Test pressure generation up to 10 bar (145 psi), switchable to Vacuum generation up to -0.85 bar (-25 inHg)
Made in Germany. brand Leitenberger, model LPP 10
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $499
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The LR-Cal LPP 10 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These low-pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.

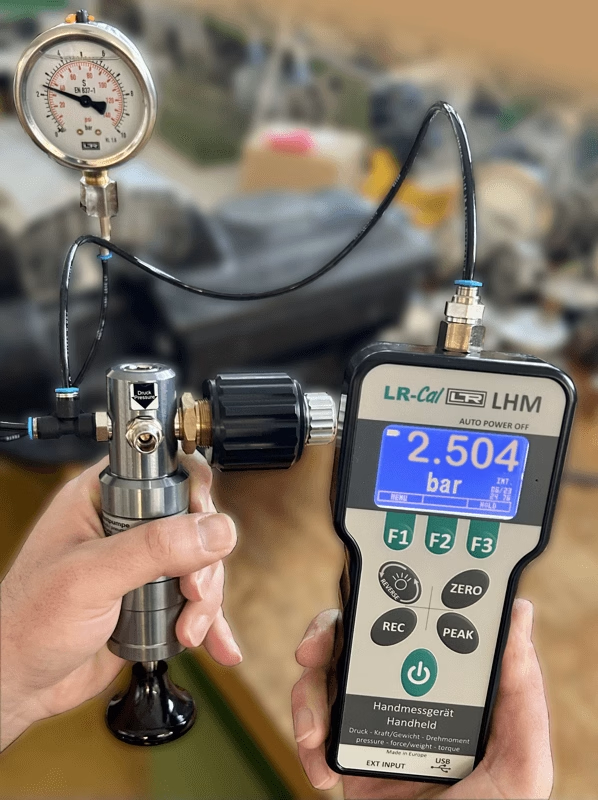

If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 10 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, a check of the accuracy or an adjustment of the pressure gauge to be tested can be made.
Despite its very compact dimensions, the LR-Cal LPP 10 pressure test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. The LR-Cal LPP 10 has a fine adjustment valve for precise setting for accurate comparative testing. The maximum achievable pressure or vacuum depends on the connected test volume.
Due to the particularly smooth pressure generation and the integrated (internal) fine adjustment valve, very small positive or negative pressures in the mbar range can be set safely and precisely. The reference gauge and test specimen can be easily connected via a T-connector with hose connections.
| Pressure generation: | 0 to 10 bar = 0 to 145 psi, switchable to |
| Vacuum generation: | 0 to -0.85 bar = 0 to -25 inHg |
| Pressure ports (standard version): |
For reference measuring instrument: 1/2″ BSM female, with o-ring, via hose and t-piece For unit under test: 1/4″ female, with o-ring, via hose and t-piece |
| Medium: | Ambient air |
| Priming pressure: | Ram |
| High pressure: | Volume adjustment valve |
| Fine pressure adjustment: | Volume adjustment valve (very sensitive) |
| Volume per stroke: | approx. 0.038 cm³ |
| Dimensions: | 172 x 100 x 58 mm (without connection pieces and hoses) |
| Weight: | approx. 697 g (without connection pieces and hoses) |
| Order-Code: | LPP-10 |
| Photo | Model | Description |
|---|---|---|
 |
LPP-KOFFER | Transport and storage case |
 |
SCHLACH-025ID-04AD | Pneumatic hose 4 x 2,5 mm by the meter |
 |
LPP-ADAPTER-BSP | Set of BSP thread adapter and set of O-ring seals for test piece connection
1/4″ BSP m x 1/8″ BSP female |
 |
LPP-O-RING-BSP | Spare part for BSP thread adapter set order-code LPP-ADAPTER-BSP: Set of O-rings |
 |
LPP-ADAPTER-NPT | Set of thread adapters NPT thread and set of O-ring seals for test item connection
1/4″ BSP m, x 1/8″ NPT female |
 |
LPP-ADAPTER-M | Thread adapter set metric, set of O-ring seals and “Minimess® 1620″ for test piece connection
1/4″ BSP m x M 12 x 1,5 female |
 |
SCHLAUCH-ADAPT-6-4 | Pneumatic hose adapter from 6 mm outer diameter to 4 mm outer diameter |
| Model | Description | Price |
|---|---|---|

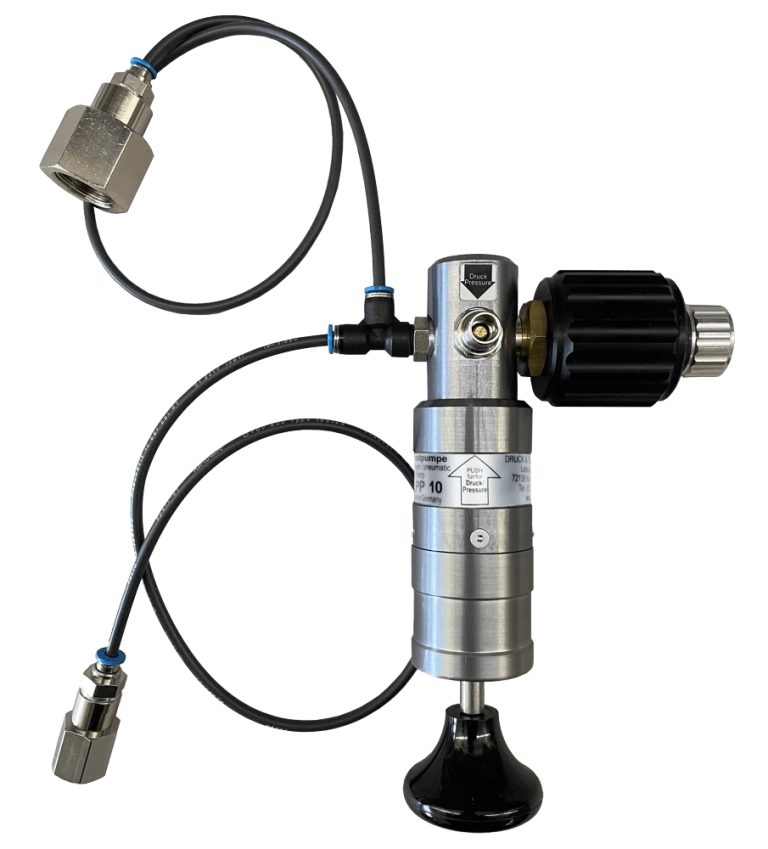

| LPP-10 | Pneumatic hand test pump for generating pressure up to +10 bar, switchable for generating vacuum up to -0.85 bar, without case and acc. Incl. T-piece, 2 x hose each 0.5 m, quick connectors and 1 adapter for reference (1/2″ BSP female) and 1 adapter for unit under test ( 1/4″ BSP female) | from 499 $ |

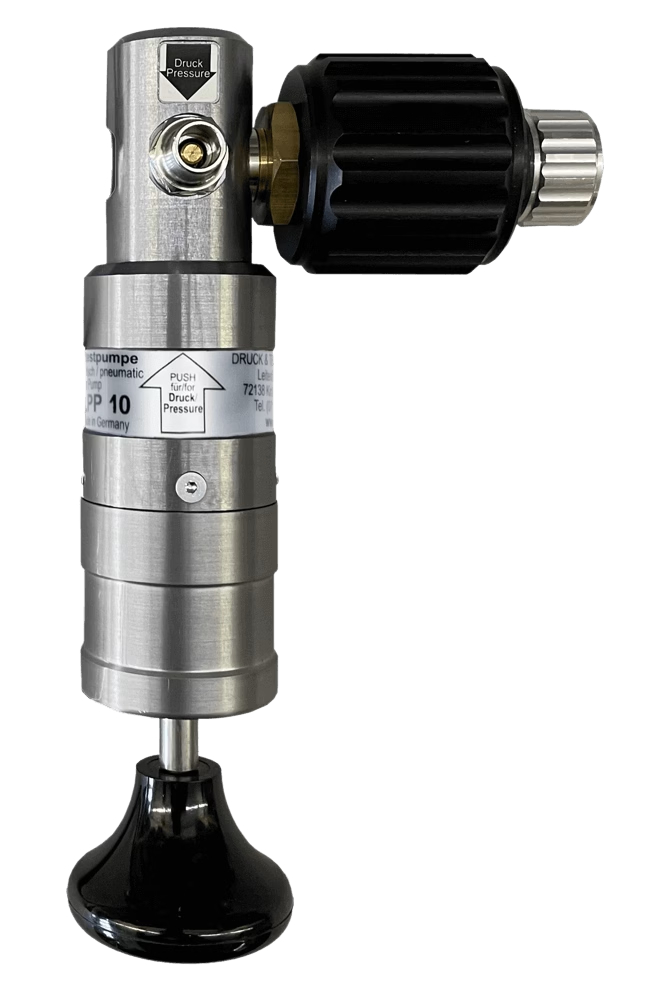

| LPP-10-PUMPE | Pneumatic hand test pump for generating pressure up to +10 bar, switchable for generating vacuum up to -0.85 bar. OEM version without any accessories, just the pump | from 469 $ |

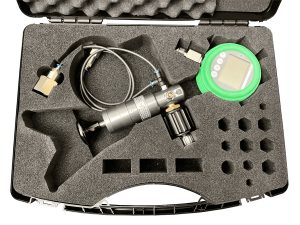

| LPP-KOFFER | Transit case with foams, suitable for LR-Cal LPP 10 and for accessories and reference measuring instruments | from 120 $ |
| SCHLAUCH-025ID-04AD | Pneumatic hose 4 x 2.5 mm per meter | from 5.8 $ |
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8″ BSP F, 3/8″ BSP F, 1/2″ BSP F and 1/2″ BSP M | from 131 $ |
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® 1620 | from 131 $ |
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8″ NPT F, 1/4″ NPT F, 3/8″ NPT F and 1/2″ NPT F | from 131 $ |
| LPP-10-T-STUECK | T-piece, 1/8″ BSP male thread for direct mounting to LR-Cal LPP 10 and two quick-fit hose connectors for hose 4 x 2 mm | from 18 $ |
| LPP-10-PN-STECK | Pull & Push quick hose connectors for hose 4 x 2 mm | from 7 $ |

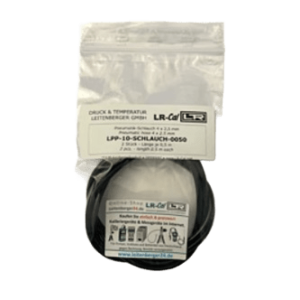

| LPP-10-SCHLAUCH-0050 | Set with 2 pcs. of pneumatic hose 4 x 2 mm, length 0.5 m | from 7 $ |

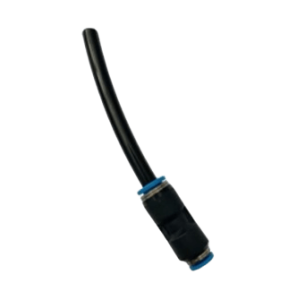

| SCHLAUCH-ADAPT-6-4 | Hose adapter from hose with 6 mm outer diam. To hose with 4 mm outer diam. | from 4.6 $ |
| 3000-ADAPT-I25 | Pressure port adapter to use the pump with LR-Cal Serie 3000 handheld | from 36 $ |
| LPP-10-ADAPT-G12 | Threaded adapter 1/2″ BSP female for reference instrument to LPP-10-PN-STECK | from 23 $ |
| LPP-10-ADAPT-G14 | Threaded adapter 1/4″ BSP female for test item to LPP-10-PN-STECK | from 23 $ |
| SET-O-RING-14X3.5 | 10 spare o-rings for LPP-10-ADAPT-G12 (14 x 3.5 NBR 70 shore) | from 11 $ |
| SET-O-RING-8X2.5 | 10 spare o-rings for LPP-10-ADAPT-G14 (8 x 2.5 NBR 70 shore) | from 11 $ |
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | from 15 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 10 using the special form.
You can buy Leitenberger LPP 10 in Latvia at a price starting from499 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LPP 10 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
