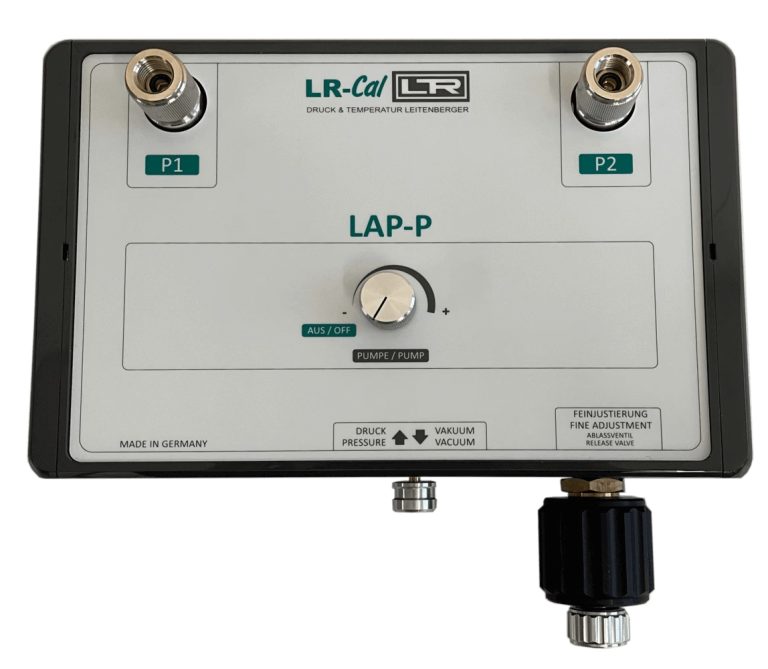

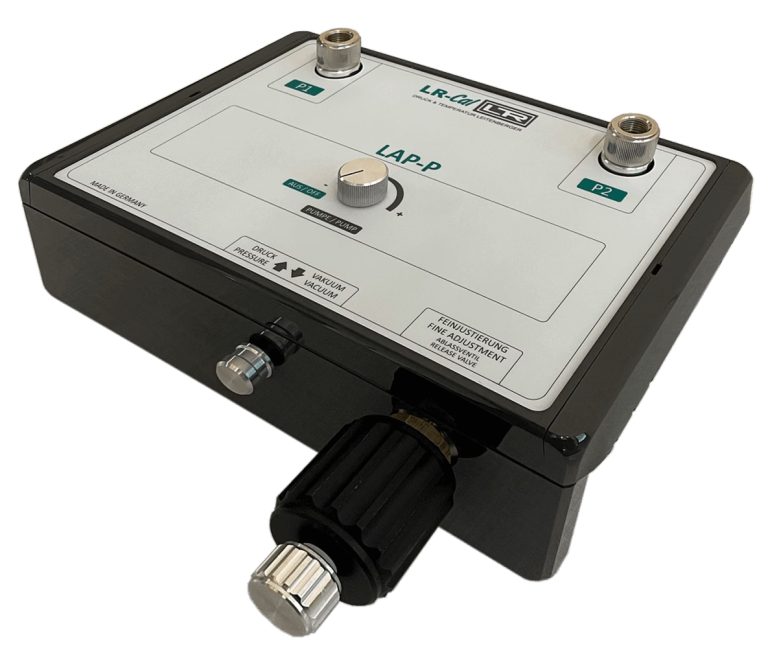

The LR-Cal LAP-P electrical pressure test pump is used to generate electrical pressure (without manual effort) for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LAP-P electrical pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.
Due to the integrated electric pump, the LR-Cal LAP-P enables automatic and exact test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal LAP-P electric pressure test pump is equipped with a fine adjustment valve.

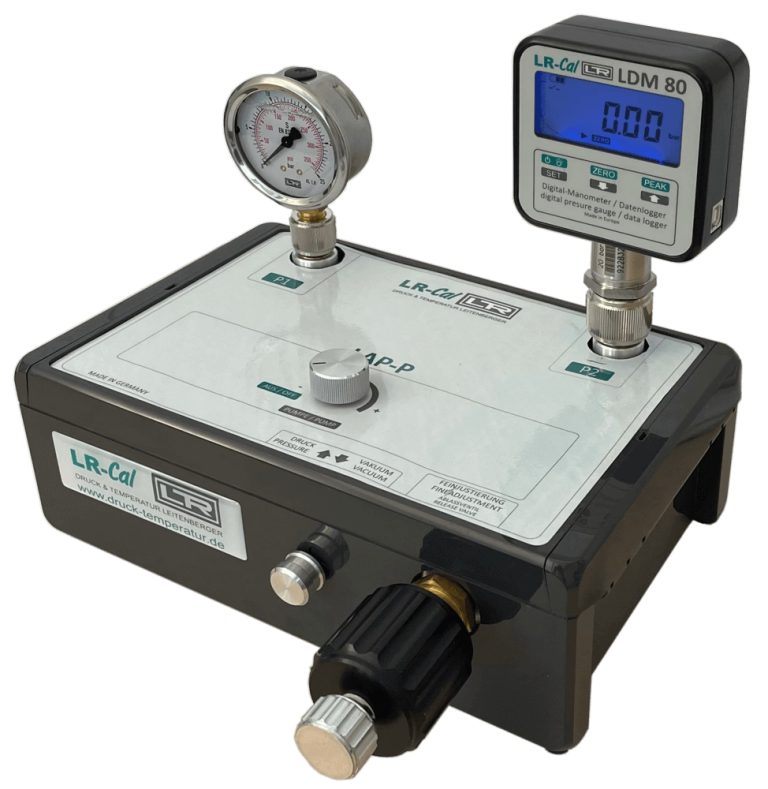

Both the test item and the reference pressure gauge (pressure calibrator) are mounted on top of the electrical calibration test pump, using suitable thread adapters if necessary (see Accessories).
No tools are needed to connect the measuring instruments to the pump; hand-tightening and tightening the instruments is quite sufficient.
| Generation of pressure: | 0 to 25 bar (363 psi), switchable to |
| Generation of vacuum: | 0 to -0,9 bar = 0 to -26.6 inHg |
| Pressure ports: | 2 connections with free-running union nut and with dirt separator strainer and sealing ring. Left pressure port P1 for unit under test and right pressure port P2 for reference instrument. Part-No. LAP-P-G14-G12: P1 = 1/4″ BSP F + P2 = 1/2″ BSP F Part-No. LAP-P-G14-G14: P1 = 1/4″ BSP F + P2 = 1/4″ BSP F Part-No. LAP-P-G12-G14: P1 = 1/2″ BSP F + P2 = 1/4″ BSP F Part-No. LAP-P-G12-G12: P1 = 1/2″ BSP F + P2 = 1/2″ BSP F |
| Material wetted parts: | Stainless steel, nickel-plated brass, brass, FKM |
| Test pressure setting: | Fine adjustment valve (large volume variator, sensitivity better than ±1 mbar) |
| Temperatures: | Operation 0…50°C (+32…+122°F); Storage -20…+60°C (-4…+140°F) |
| Power supply: | 100…230 VAC (incl. power supply unit to 24 VDC / 1.5 ADC) |
| Motor specification: | 24 VDC, 220 Ncm, 0.88 A |
| Dimensions: | approx. 271 x 228 x 116 mm (without power supply unit) |
| Housing material: | ABS |
| Weight: | approx. 2.9 kg (without power supply unit) |
| Photo | Model | Description |
|---|---|---|
 |
LPP-ADAPTER-BSP | Set of BSP thread adapter for 1/4″ BSP port
1/4″ BSP m x 1/8″ BSP female |
 |
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: |
 |
LPP-ADAPTER-NPT | Set of BSP thread adapter for 1/4″ BSP port
1/4″ BSP m x 1/8″ NPT female |
 |
LPP-ADAPTER-M | Set of BSP thread adapter for 1/4″ BSP port
1/4″ BSP m x M 12 x 1,5 female |
 |
LSP-ADAPTER-SET | Set of thread adapter for 1/2″ BSP port
1/2″ BSP m x 1/4″ BSP female |
 |
VRS-G12 | Volume reducer, to be used with reference devices (pressure calibrators) LR-Cal TLDMM-2.0 and LR-Cal LDM 80 |
 |

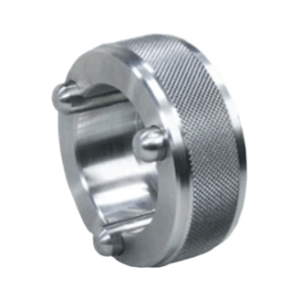

LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It enlarges the diameter and makes fine pressure adjustment even easier. |
 |
LAP-P-NT | Power supply unit Input 100…230 VAC Output 24 VDC 1.5 A |
 |
LAP-P-SICH | Glass fuse 5 x 2mm medium time-lag, 1A, 250 V |
 |
LPP30-ASS-G12 | Reference device connection with 1/2″ BSP free-running female thread |
 |
LPP30-ASS-G14 | Reference device connection with 1/4″ BSP free-running female thread |
 |
LAP-P-SIEB-G14 | Dirt separator strainer, set with 10 pieces, for pressure connection 1/4″ BSP. |
|
LAP-P-SIEB-G12 | Dirt separator strainer, set with 10 pieces, for pressure connection 1/2″ BSP. |
 |
LPP-VENTIL | Assembly Fine adjustment and drain valve |
| Model | Description | Price |
|---|---|---|
| LAP-P-G14-G12 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/4″ BSP female rotating union-nut/1/2″ BSP female rotating union-nut | 2750 $ |
| LAP-P-G14-G14 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/4″ BSP female rotating union-nut / 1/4″ BSP female rotating union-nut | 2750 $ |
| LAP-P-G12-G14 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/2″ BSP female rotating union-nut/ 1/4″ BSP female rotating union-nut | 2750 $ |
| LAP-P-G12-G12 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/2″ BSP female rotating union-nut / 1/2″ BSP female rotating union-nut | 2750 $ |
| LAP-P-NT | Power supply unit (input 110…230 VAC; output 24 VDC 1.5 A) | 100 $ |
| LAP-P-SICH | Spare glass fuse (5 x 20 mm, medium order, 1A/250V) | 13 $ |
| LPP30-ASS-G12 | Pressure connector with 1/2″ BSP female rotating union-nut (assembly) | 34 $ |
| LPP30-ASS-G14 | Pressure connector with 1/4″ BSP female rotating union-nut (assembly) | 34 $ |
| LAP-P-SIEB-G12 | 10 pcs. of dirt separator slieves for pressure connector 1/2″ BSP | 27 $ |
| LAP-P-SIEB-G14 | 10 pcs. of dirt separator slieves for pressure connector 1/4″ BSP | 27 $ |
| LPP-VENTIL | Assembly volume variator and pressure release valve | 167 $ |
| LPP-VENTIL-DICHT | Kit of 3 gaskets for LPP-VENTIL volume variator and release valve | 26 $ |
