LR-Cal 2911: pressure up to +7 bar / LR-Cal 2941: Vacuum up to -0,9 bar
Made in Germany. brand Leitenberger, model 2911 + 2941
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $453
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

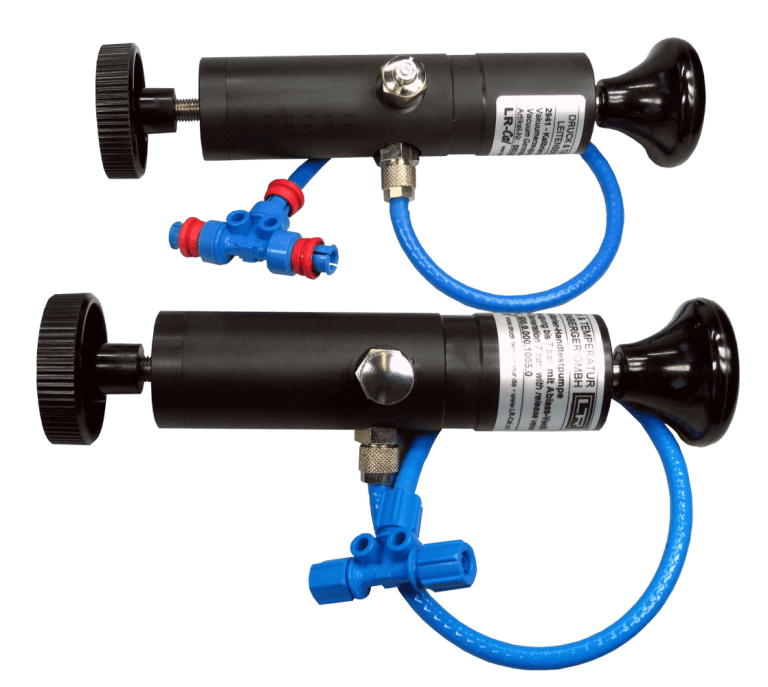

The calibration hand test pumps LR-Cal 2911 is used for pressure generation and the LR-Cal 2941 is used for negative pressure/vacuum generation for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparison measurement. These tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal 2911 or LR-Cal 2941 calibration hand test pump via the T-piece supplied, the same pressure or vacuum acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure or vacuum values, it is possible to check the accuracy or adjust the vacuum gauge to be tested.
Despite their very compact dimensions, the LR-Cal 2911 and LR-Cal 2941 calibration hand test pumps enable simple and accurate pressure or vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal 2911 and LR-Cal 2941 have a fine adjustment valve. The reference pressure gauge and test item are connected via hose connection for hose with 4 mm internal diameter (6 mm external diameter). A piece of hose and a T-piece are included in the scope of delivery.
| Pressure generation: | only type LR-Cal 2911: 0 to 7 bar (100 psi) |
| Vacuum generation: | only typ LR-Cal 2941: 0 to -0,9 bar (-25 inHg) |
| Pressure port: | For hose with 4 mm inner diameter and 6 mm outer diameter |
| Medium: | Ambient air |
| Pressure- resp. vacuum generation via: | Hand knob |
| Test pressure fine adjustment: | Volume variator (very sensitive fine adjustment valve) |
| Dimension: | approx. 200 mm long, pump body approx. 35 mm diameter |
| Materials: | Aluminum, brass, H-PVC, NBR |
| Weight: | approx. 400 g |
| Order-Code: | LR-Cal 2911 (pressure generation): 500.9.000.1005.0 LR-Cal 2941 (vacuum generation): 500.9.000.9800.0 |
| Photo | Model | Description |
|---|---|---|
 |
2950-KOFFER | Rigid transport and storage case with molded foam insert. |
 |
500.9.000.0002.0 | Quick coupling T-piece for LR-Cal Serie 3000 T-piece with quick couplings for hose with 1 x 6 mm outer diameter 2 x 4 mm outer diameter |
 |
500.0.000.9999.9 | PVC hose by the meter Outer diameter 6 mm (inner diameter 4 mm) |
 |
500.9.000.0001.0 | Hydrophobic filter (max. 2 bar!) gas permeable, blocks liquids/moisture, for hose with 6 mm outer diameter (4 mm inner diameter) |
 |
500.9.000.0002.0 | T-piece with quick couplings for hose with 6 mm outer diameter (4 mm inner diameter)Note: 1 pc. is included in scope of delivery of the pump. |
| Model | Description | Price |
|---|---|---|
| 500.9.000.1005.0 | Pneumatic test pump for generating pressure up to 5 (7) bar, acc. Datasheet “2911/2941”, incl. T-piece and appr. 300 mm hose | from 453 $ |
| 500.9.000.9800.0 | Pneumatic hand test pump for generating vaccum up to -900 mbar | from 453 $ |
| 2950-KOFFER | Transit Case with space for 1 digital handheld manometer and 2 calibration handpumps LR-Cal 2911 / 2941 | from 63.89 $ |
| T-STUECK-4-6-4 | Adapter T-Piece (needed if used with LR-Cal Serie 300 handheld) Pneumatic connection 1: for hose with 6 mm outer diameter Pneumatic connection 2: for hose with 4 mm outer diameter Pneumatic connection 3: for hose with 4 mm outer diameter Push-Pull-Principle | from 7.8 $ |
| 500.0.000.9999.9 | PVC tube 6 mm, per meter | from 10.39 $ |
| 500.9.000.0001.0 | Hydrophobe filter for 6 mm tube | from 24.3 $ |
| 999.0.000.0023.0 | Bleeding valve | from 89.66 $ |
| 500.9.000.0002.0 | Quick fit T-piece for hose with 6 mm outer diameter (1 pc. included in scope of delivery of the pump) | from 18.23 $ |
| 2911-2941-WARTUNG | Service kit for LR-Cal 2911/2941 | from 28.93 $ |
| HV-90 | Pressure and vacuum pump HV 90 for service and maintenance -0.95…+3 bar, incl. Accessories as per datahsheet. NOT for calibration purpose | from 318.26 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger 2911 + 2941 using the special form.
You can buy Leitenberger 2911 + 2941 in Latvia at a price starting from453 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger 2911 + 2941 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
