Made in China. brand HIKMICRO, model SP60H
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $14500
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

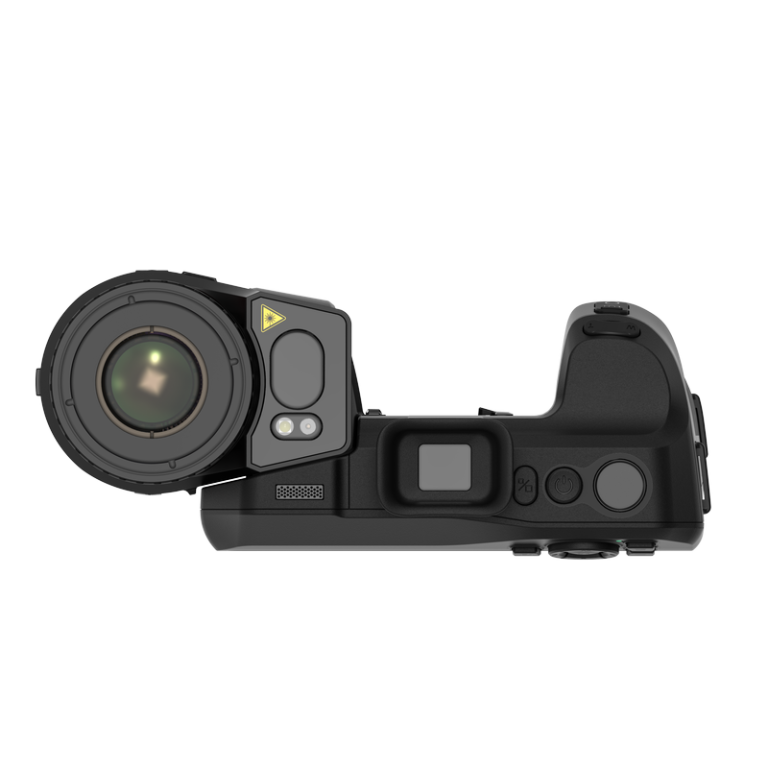

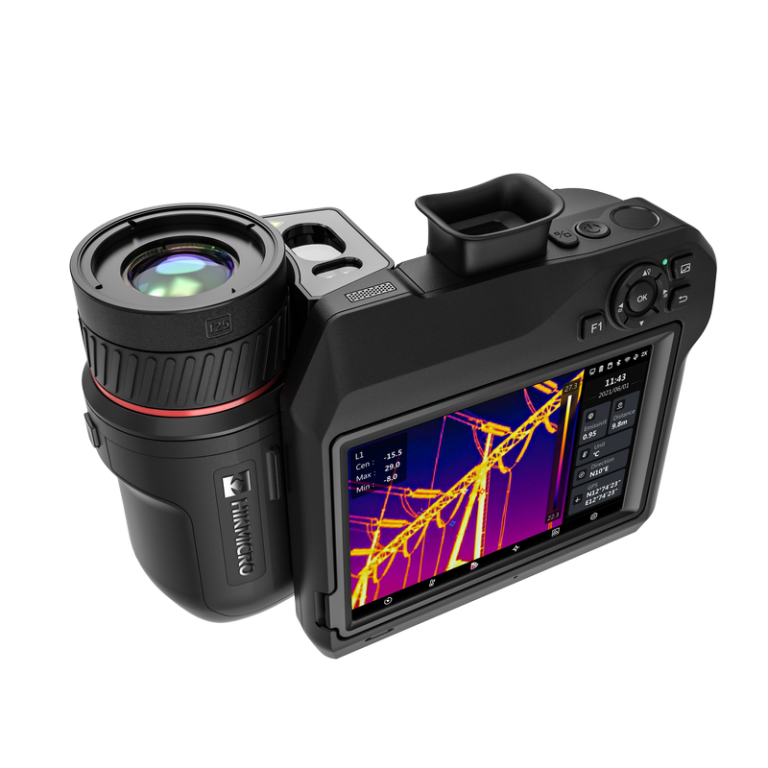

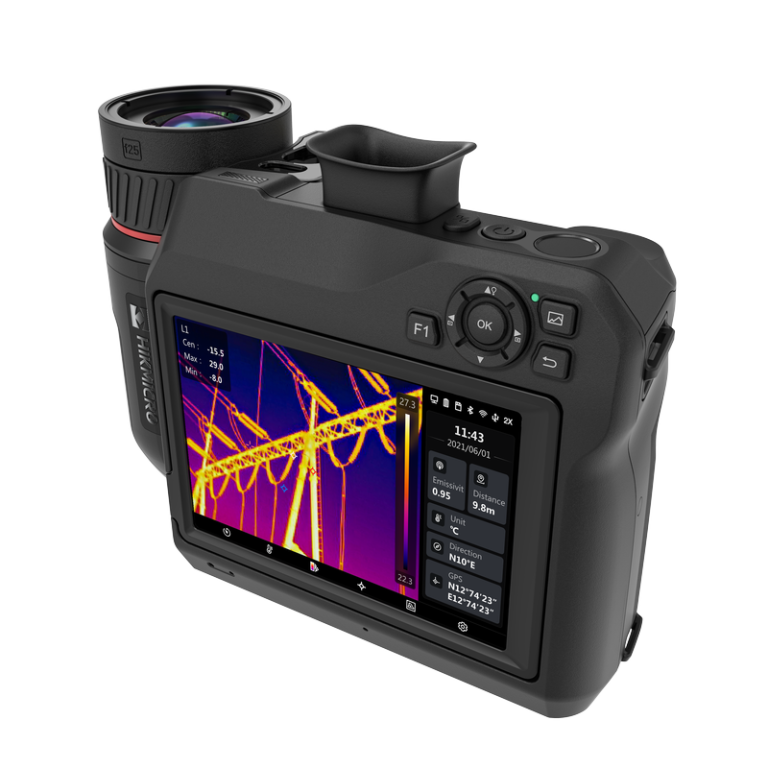

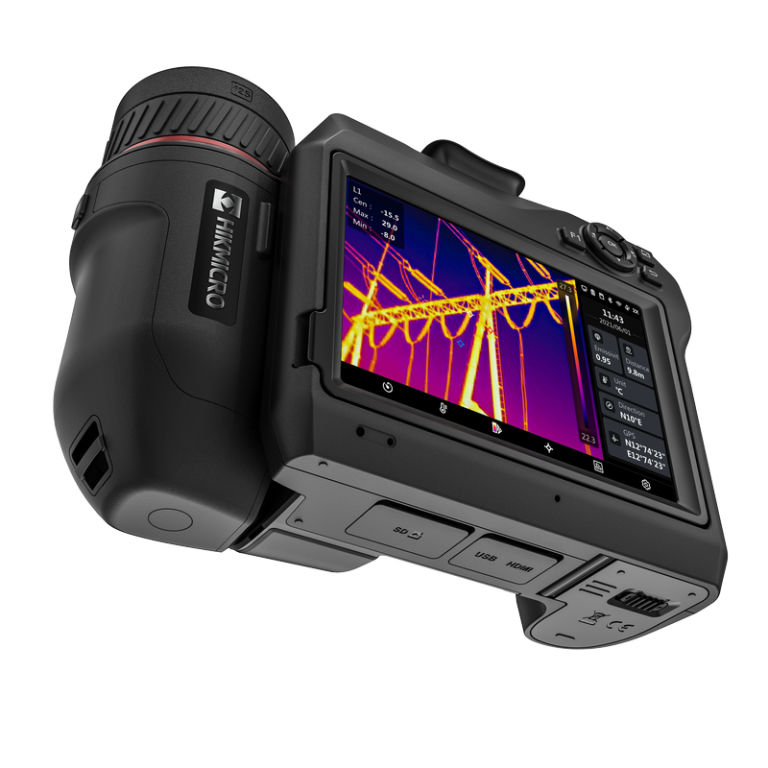

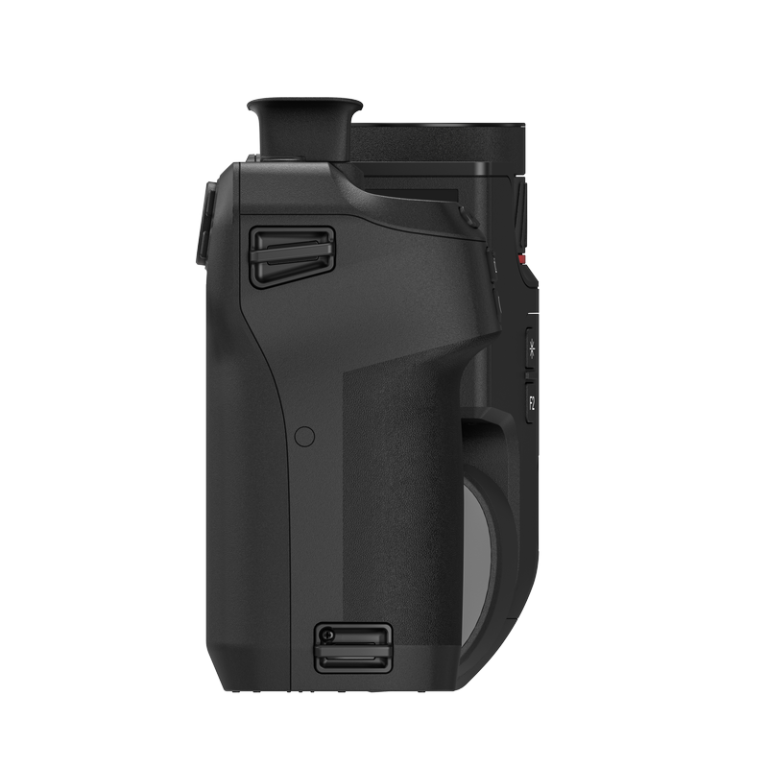

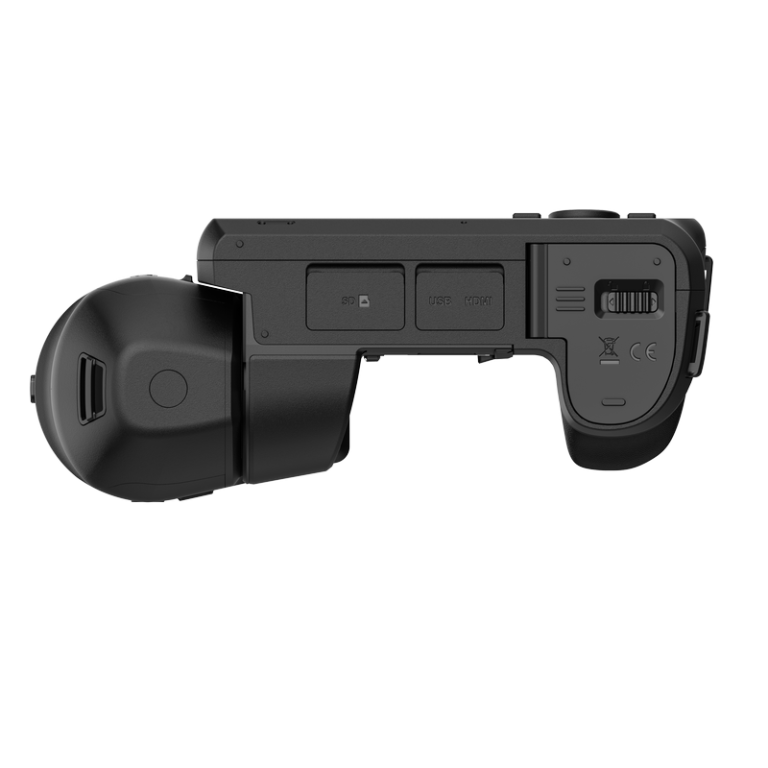

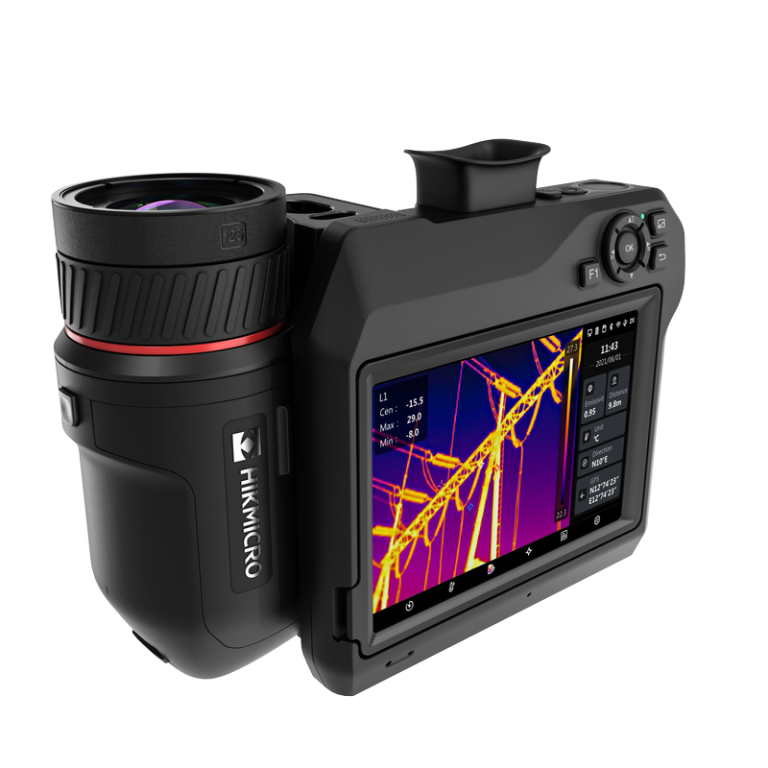

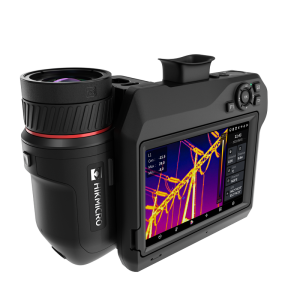

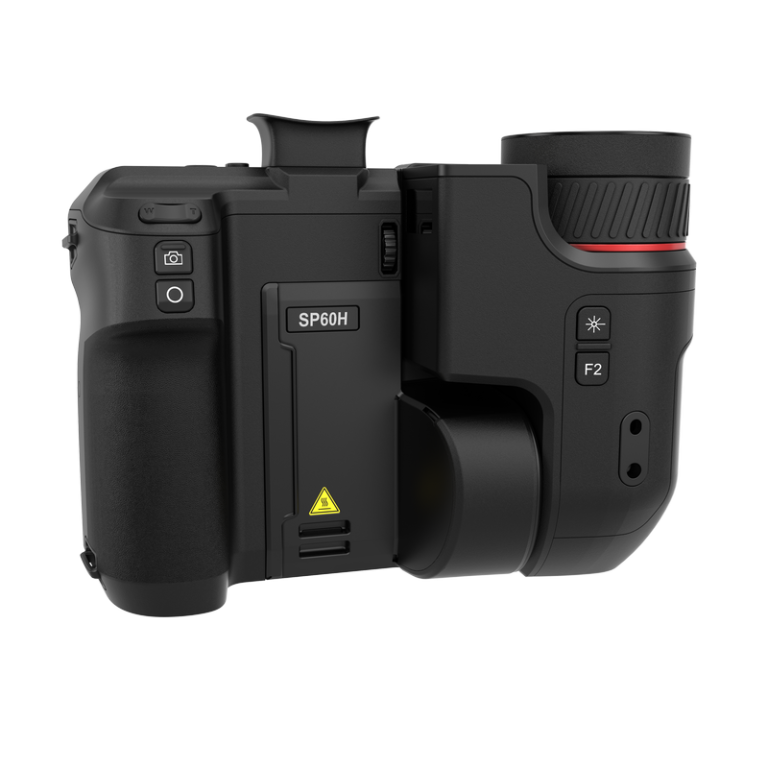

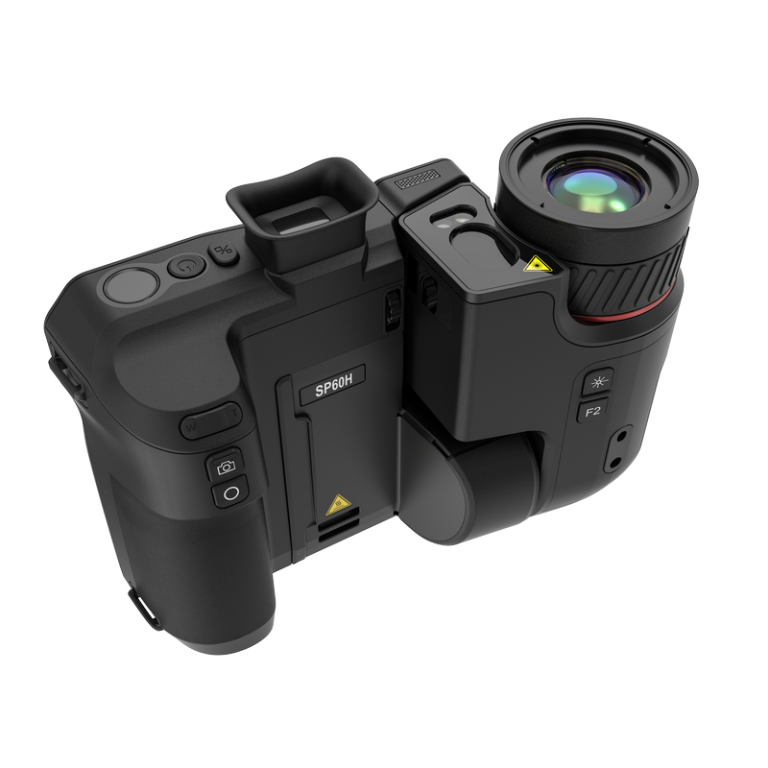

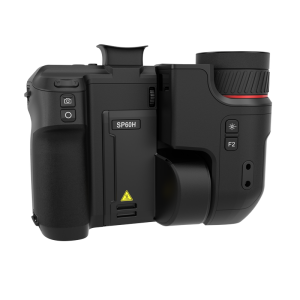

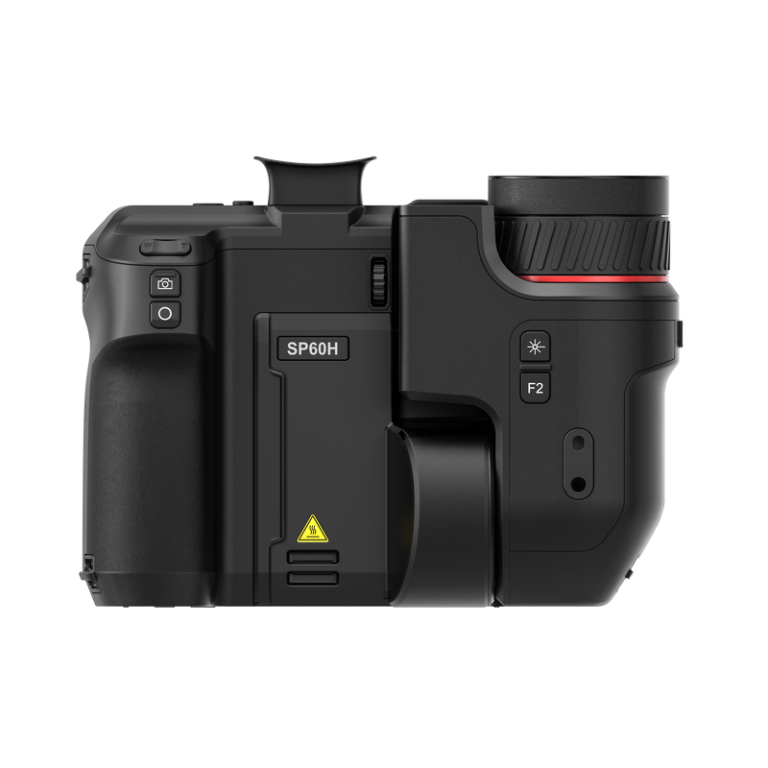

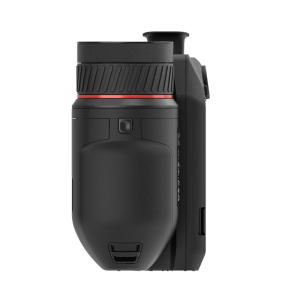

The HIKMICRO SP60H high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO SP60H has a high sensitivity (NETD < 30 mK) and high resolution (640 × 480) HIKMICRO VOx detector, and the temperature calibration is up to 2200°C. This flexible and ergonomic thermal imager provides an electronic viewfinder and a 180° rotating lens, making long-day outdoor inspections easier. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
Features
Ultra-high performance and maximum flexibility
SuperIR – Powered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
One-second fast focusing – Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.

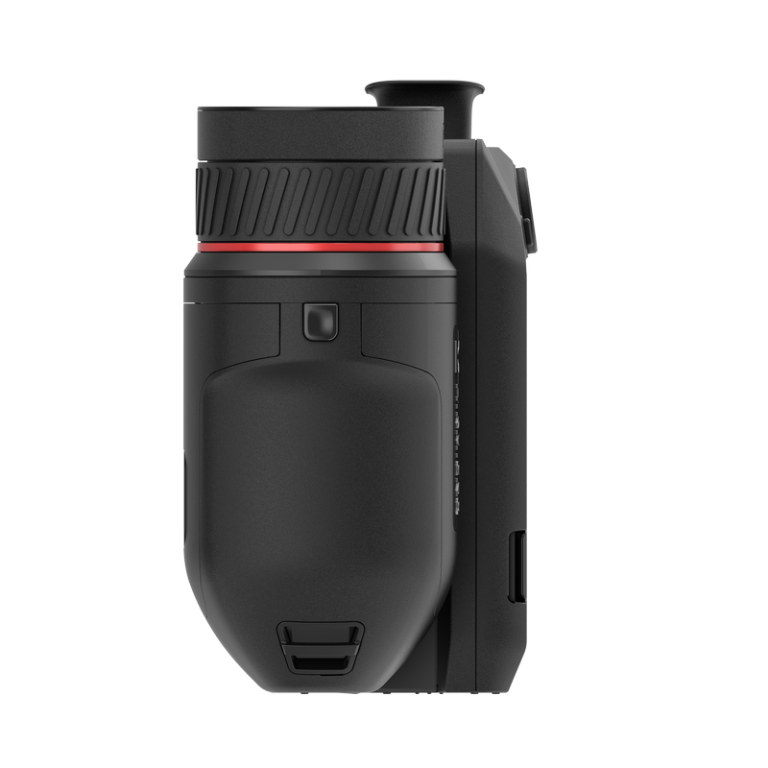

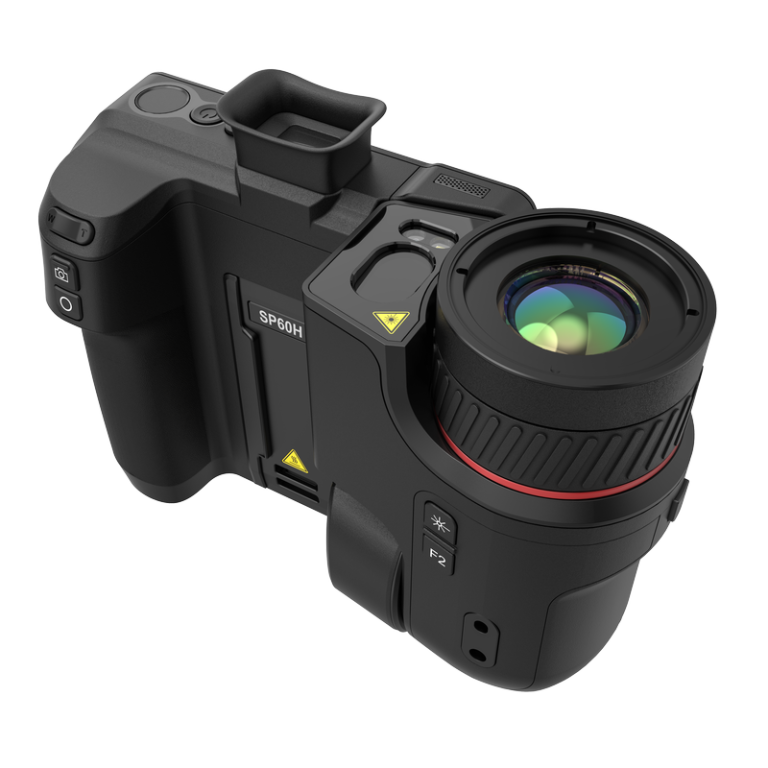

Flexible Rotating Lens and Screen – The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Designed for Outdoor – Water and dust resistant to IP54 standards and drop tested to a height of 1 m.

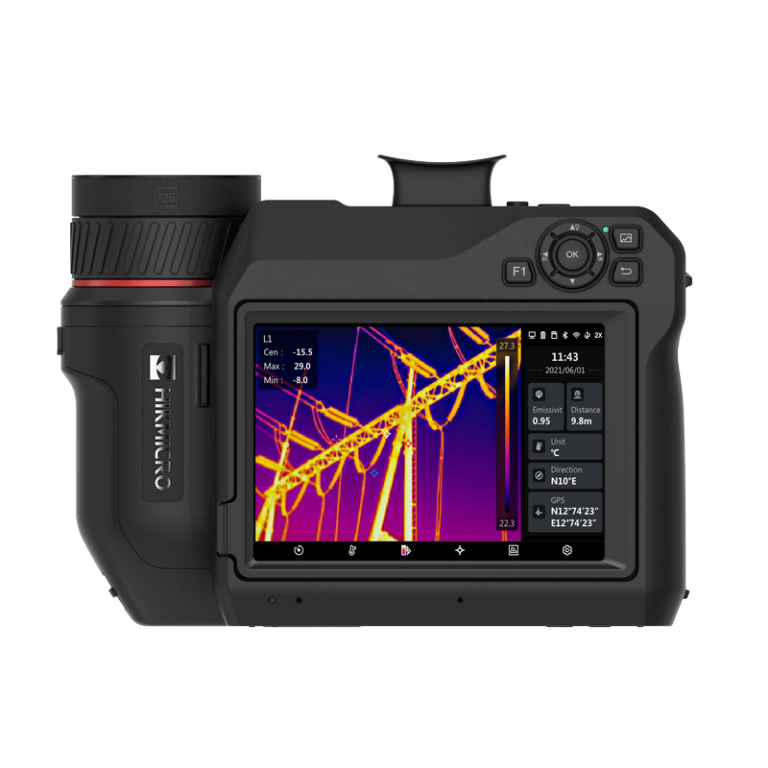

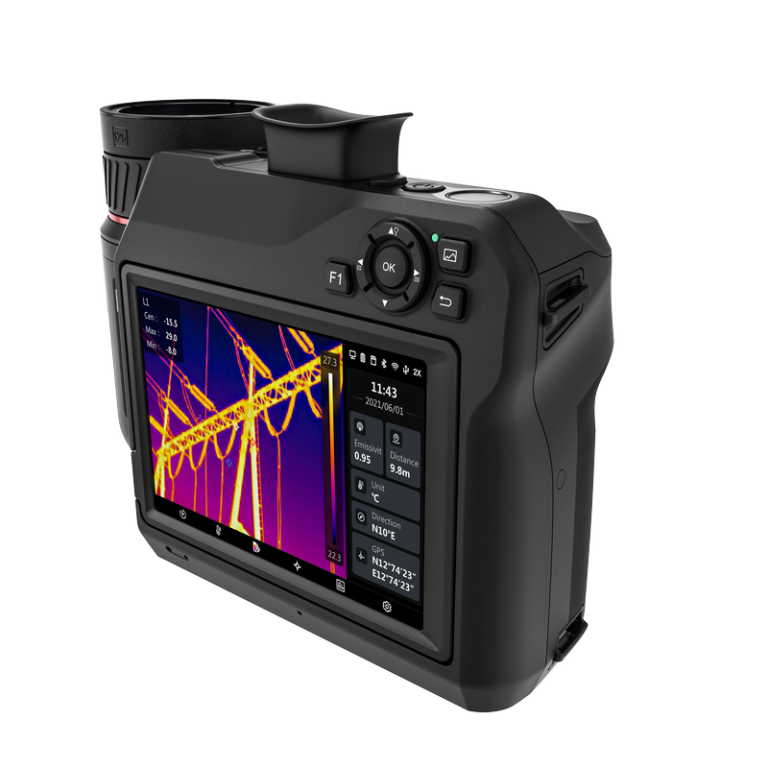

1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
1-Tap Level & Span – Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Up to 2200°C Temperature Range – With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)
High-Precision Detection – By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System – Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation. You can stay powered up for even the longest inspections.
Extensive Range of Interchangeable Lenses – Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Embedded Laser Distance Meter – An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Complete Image Annotations – Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.
Continuous Digital Zoom – 1.0x to 12.0x continuous digital zoom provides more image details.
Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)
HIKMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Conveniently Share Images and Reports – Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.
Introduction video
How to do video
| Infrared Image | |
| IR Resolution | 640 × 480 (307,200 pixels) SuperIR 1280 x 960 (1,228,800 pixels) |
| NETD | < 30 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 30 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | L8: 77.4 mm L12: 51.4 mm L25: 25 mm L50: 12.6 mm |
| F-number | L8: F1.2 L12: F1.1 L25: F1.0 L50: F1.0 |
| Field of View (FOV) | L8: 8° × 6° L12: 12° × 9° L25: 24.8° × 18.7° L50: 50° × 37.3° |
| Spatial Resolution (IFOV) | L8: 0.22 mrad L12: 0.33 mrad L25: 0.68 mrad L50: 1.35 mrad |
| Min. Focus Distance | L8: 2 m (6.56 ft) L12: 1 m (3.3 ft) L25: 0.2 m (0.65 ft) L50: 0.2 m (0.65 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 1 second |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 1280 × 720 Resolution, 5″ LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Viewfinder | 1024 × 768 pixels OLED |
| Digital Zoom | 1.x to 12.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -40°C to 2200°C (-40°F to 3992°F) |
| Accuracy | ±1°C (±1.8°F): 0 to 100°C (32 to 212°F) ±1%: 100 to 150°C (212 to 302°F) ±2°C (±3.6°F): -40 to 0°C (-40 to 32°F) ±2%: 150 to 2200°C (302 to 3992°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Video Storage Capacity | Approx. 64 hours |
| Video File Format | MP4 video and radiometric video |
| Image Format | Radiometric JPEG |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC, Wi-Fi |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| General | |
| Laser Pointer | Yes |
| LED Light | Yes |
| Laser Distance Meter | Indoor distance: 50 m (164 ft) Outdoor distance: 10 m (33 ft) |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: <1 mW |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| GPS & Compass | Yes |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes |
| Programmable Buttons | 2 |
| Protection Level | IP54, IEC 60529 |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 |
| Vibration | 2 g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | <95% non-condensing |
| Weight | Approx. 1481 g (3.27 lb) |

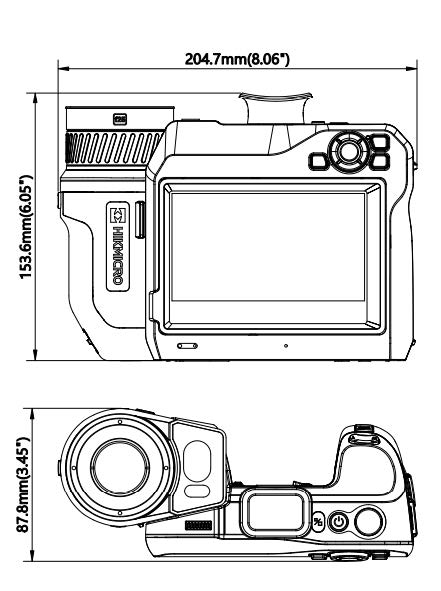

| Dimensions | 204.7 × 153.6 × 87.8 mm (8.06 × 6.05 × 3.45 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number:
| Model | Price, € |
| HM-TP96H-Q/W-SP60H-L8 | 16 100 |
| HM-TP96H-Q/W-SP60H-L12 | 14 500 |
| HM-TP96H-Q/W-SP60H-L50 | 14 500 |
| HM-TP96H-Q/W-SP60H-L25 | 14 500 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO SP60H using the special form.
You can buy HIKMICRO SP60H in Latvia at a price starting from14500 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO SP60H price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
