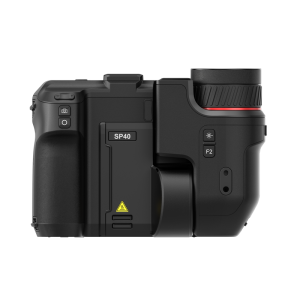

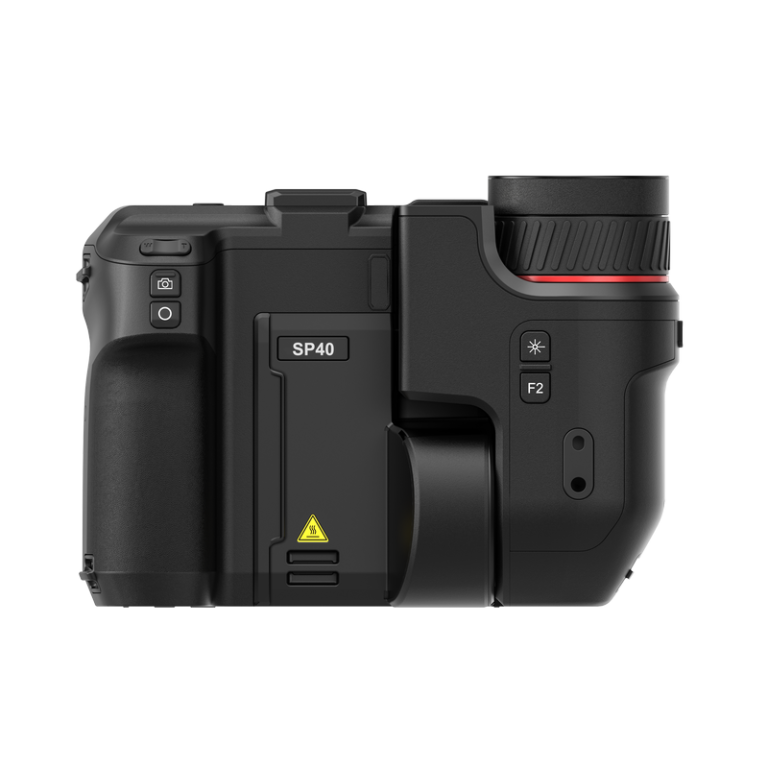

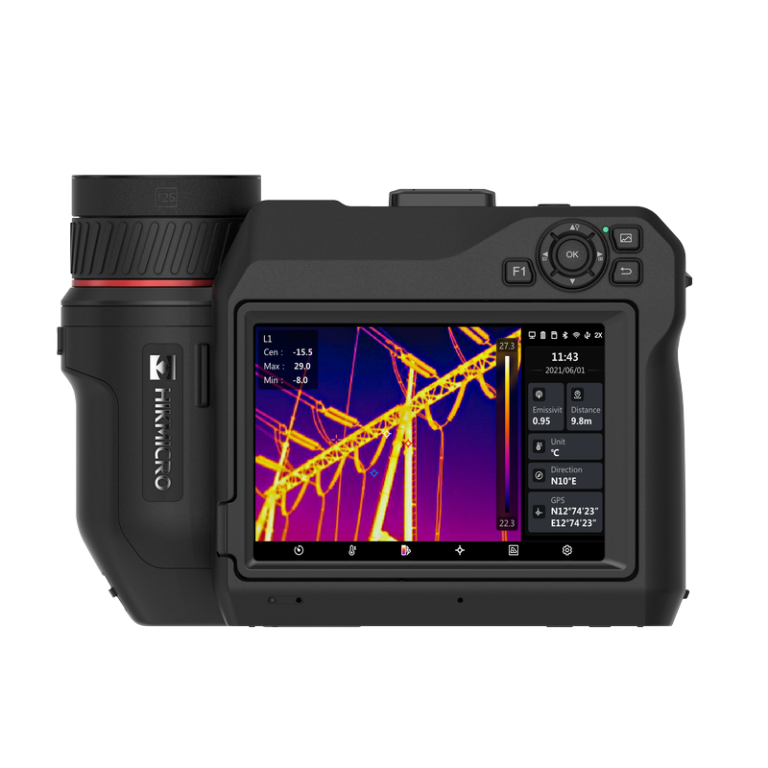

HIKMICRO SP40 Handheld Thermal Imaging Camera 480×360 -20°C to 650°C IP54

Description of HIKMICRO SP40

The HIKMICRO SP40 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO SP40 has a high sensitivity (NETD < 30 mK) and high resolution (480 × 360) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.

Ultra-high performance and maximum flexibility

SuperIR – Powered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

One-second fast focusing – Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.

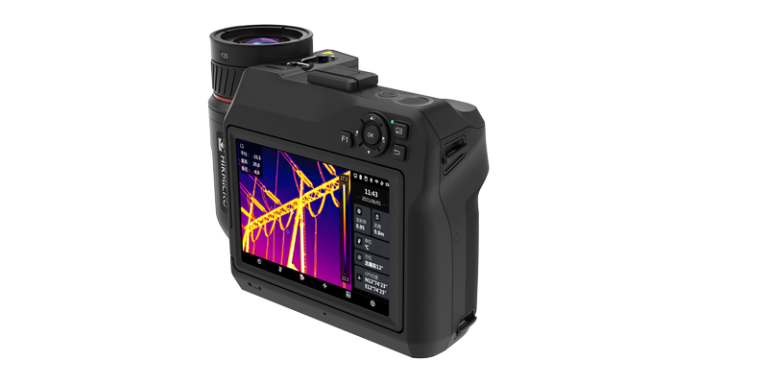

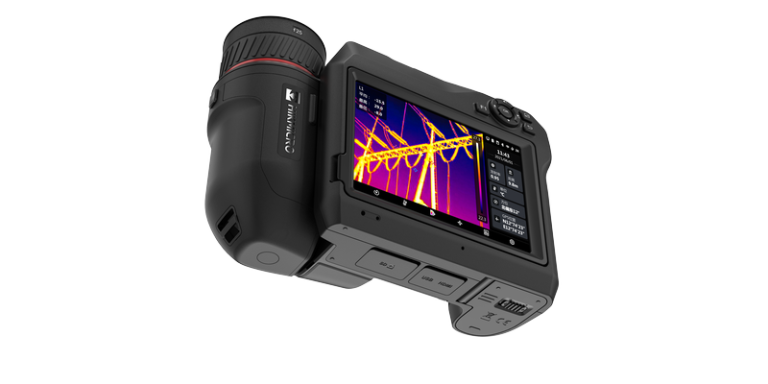

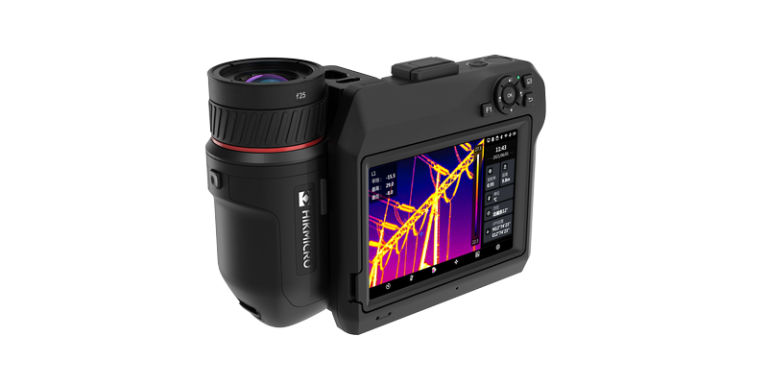

Flexible Rotating Lens and Screen – The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.

Designed for Outdoor – Water and dust resistant to IP54 standards and drop tested to a height of 1 m.
1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)

1-Tap Level & Span – Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.

Up to 2200°C Temperature Range – With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)

High-Precision Detection – By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)

Interchangeable Battery System – Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation. You can stay powered up for even the longest inspections.

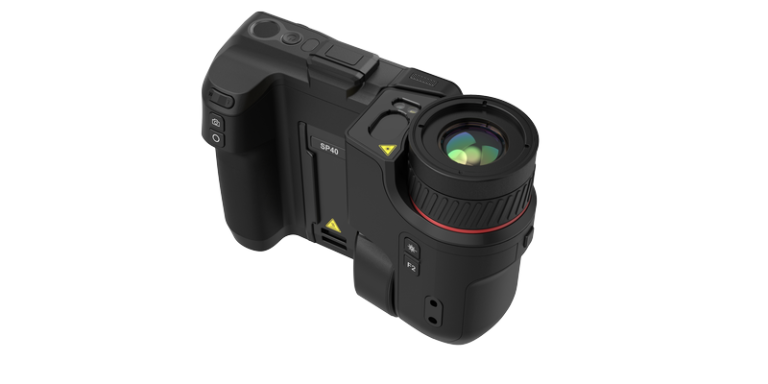

Extensive Range of Interchangeable Lenses – Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.

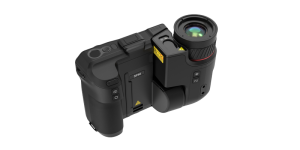

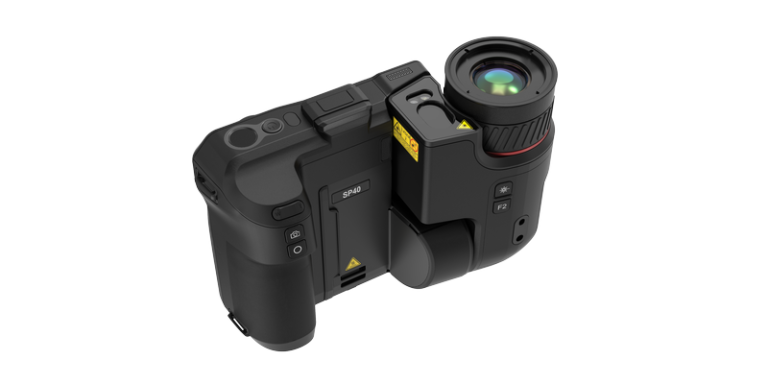

Embedded Laser Distance Meter – An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.

5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.

Complete Image Annotations – Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.

Continuous Digital Zoom – 1.0x to 12.0x continuous digital zoom provides more image details.

Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)

HIKMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.

Conveniently Share Images and Reports – Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.

Applications

• High temperature
• Industrial
• Power Industry

Video HIKMICRO SP40

Introduction video

How to video

Technical specifications of HIKMICRO SP40

Package Contents HIKMICRO SP40

• Calibration Certificate
• Printed Quick Start Guide
• Hard Carrying Case
• Charging Base with Adapter and Plugs (US/EU/UK/AU)
• Interchangable Battery x 2
• 128GB SD card
• Lens Cap
• Hand Strap
• Neck Strap
• 2-in-1 USB-C to USB-CA Cable
• Mini HDMI to HDMI Cable
• Dust-free Cloth

Model Number:

• HM-TP94-Q/W-SP40-L6
• HM-TP94-Q/W-SP40-L19/37
• HM-TP94-Q/W-SP40-L9/19
• HM-TP94-Q/W-SP40-L6/19
• HM-TP94-Q/W-SP40-L9/37
• HM-TP94-Q/W-SP40-L9
• HM-TP94-Q/W-SP40-L19
• HM-TP94-Q/W-SP40-L37

Accessories for HIKMICRO SP40

Model	Description	Photo
HM-20322ZC	Battery Charger Base
HM-7250DC	Battery. 7.2 V. 4800 mAh
HM-SP620-MACRO	Interchangeable lens. Macro lenses like the HM-SP620-MACRO allow very close focus to capture sharp images of small objects with accurate measurements. Min. Focus Distance up to 31.6 mm. Focal Length 31.6 mm(0.11 ft)
HM-SP605-LENS	Interchangeable lens. FOV (Field of View): SP40/SP40H: 37.3° (H) × 27.8° (V) SP60/SP60H: 50° (H) × 37.3° (V)
HM-SP610-LENS	Interchangeable lens. FOV (Field of View): SP40/SP40H: 18.7° (H) × 14° (V) SP60/SP60H: 24.8° (H) × 18.7° (V)
HM-SP620-LENS	Interchangeable lens. FOV (Field of View): SP40/SP40H: 9° (H) × 6.8° (V) SP60/SP60H: 12° (H) × 9° (V)
HM-SP630-LENS	Interchangeable lens. FOV (Field of View): SP40/SP40H: 6° (H) × 4.5° (V) SP60/SP60H: 8° (H) × 6° (V)
HM-SP01-POUCH	M/G/SP Series Pouch. The soft Pouch with a shoulder strap can protect HIKMICRO handheld thermal cameras.
HM-SP650-MACRO	Interchangeable lens. Macro lenses like the HM-SP650-MACRO allow the close focus to capture sharp images of small objects with accurate measurements.

Expand Table

Prices for HIKMICRO SP40

Accessories

Warranty for HIKMICRO SP40

The warranty for the HIKMICRO SP40 thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The cost of extending the warranty for the HIKMICRO SP40 is:

• 1 year – €799
• 2 years – €1599

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO SP40

The cost of calibrating the HIKMICRO SP40 thermal imager is €1332 for the General Lens and €400 for the Additional Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
