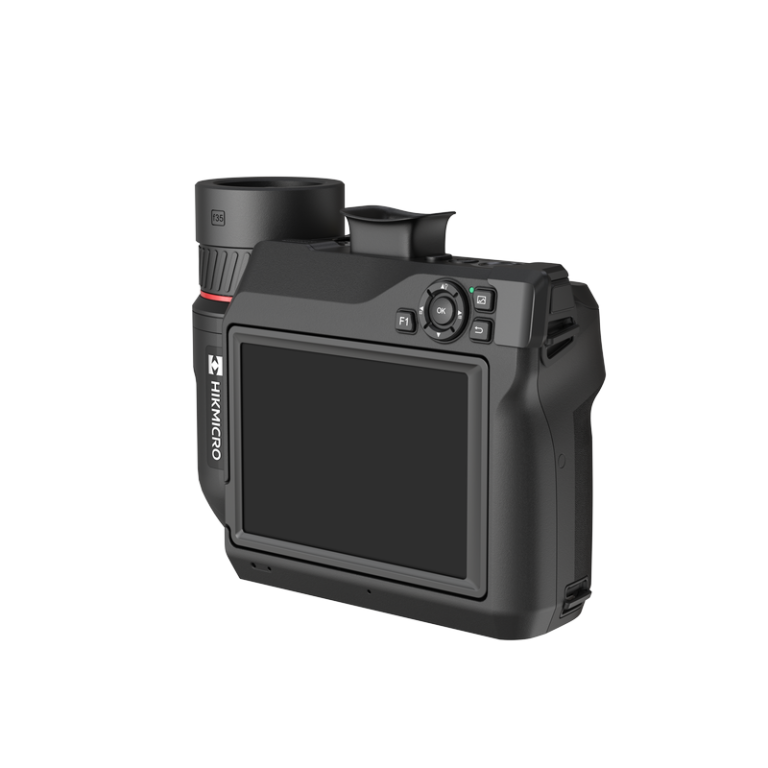

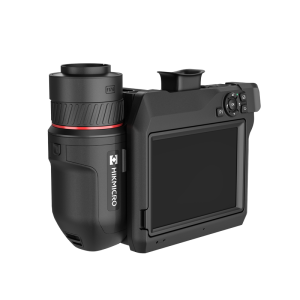

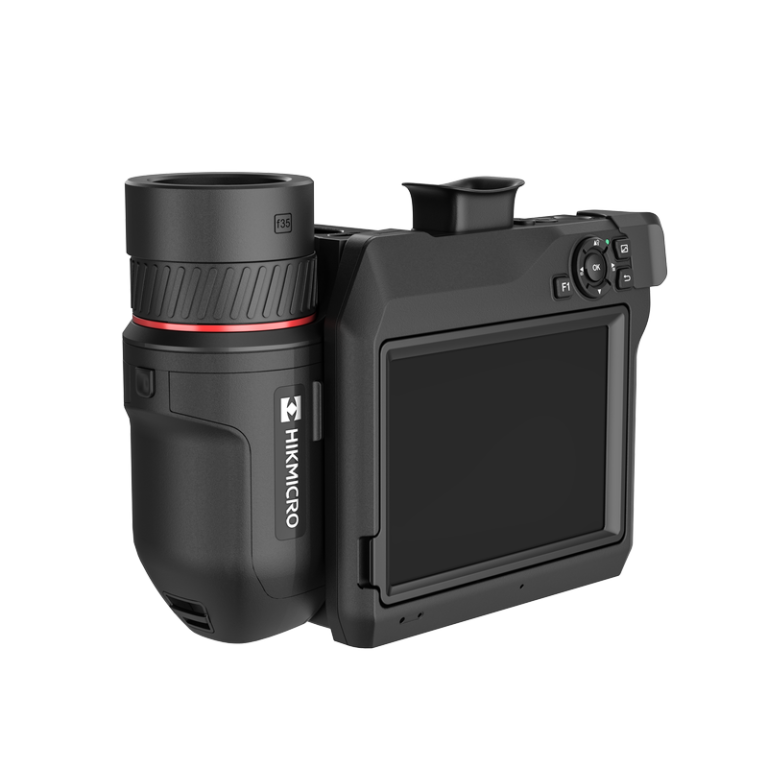

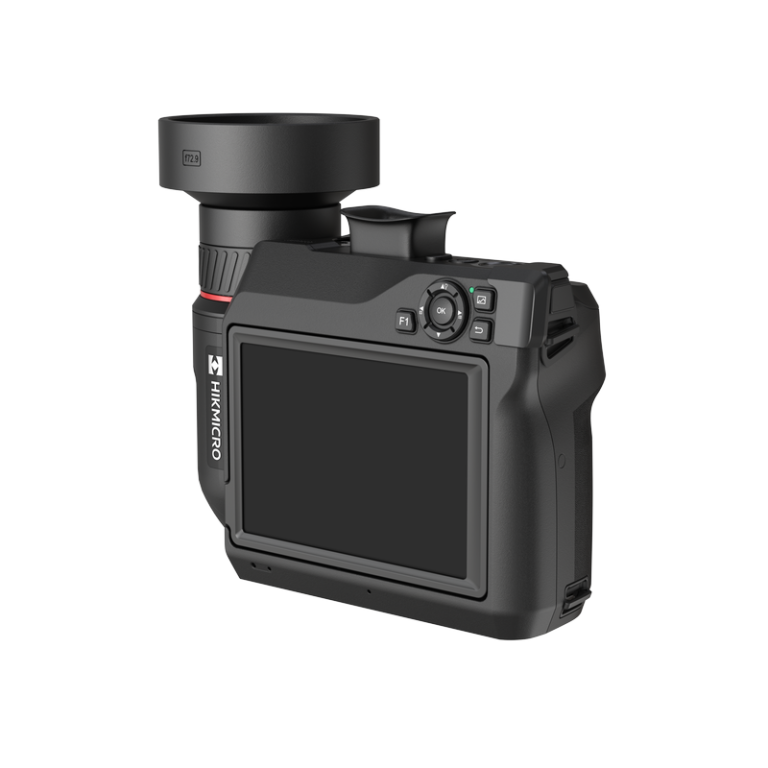

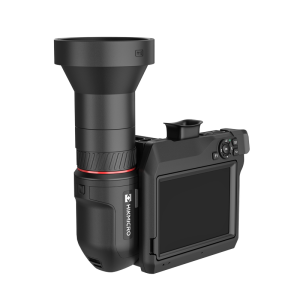

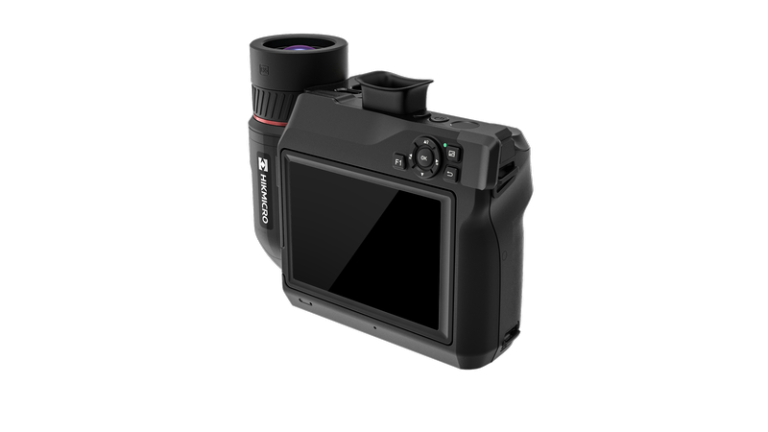

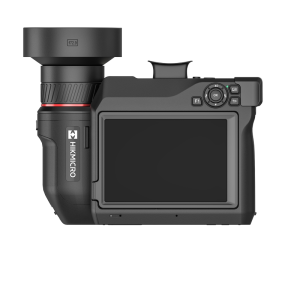

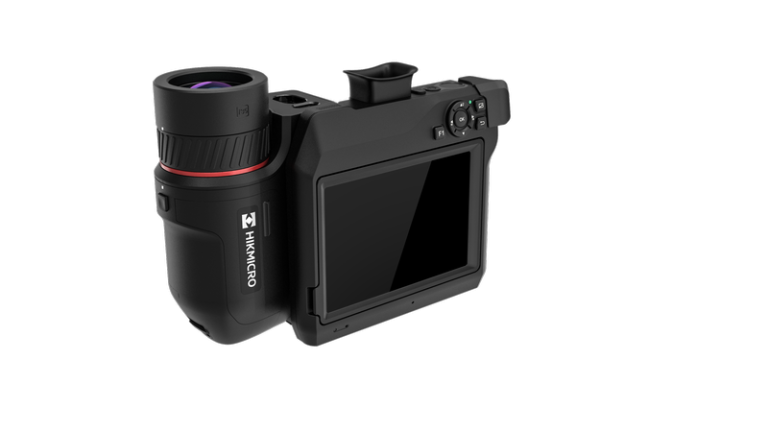

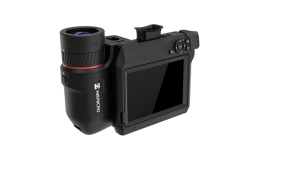

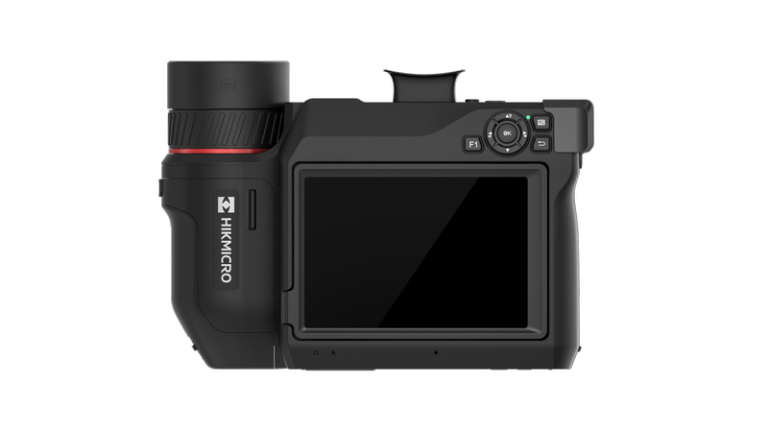

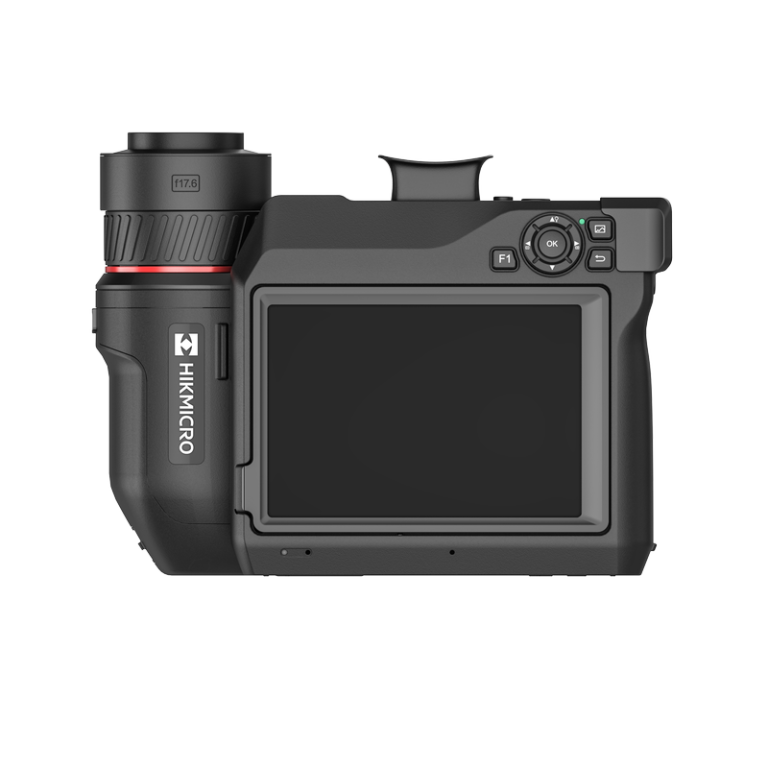

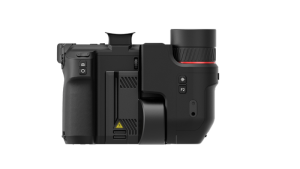

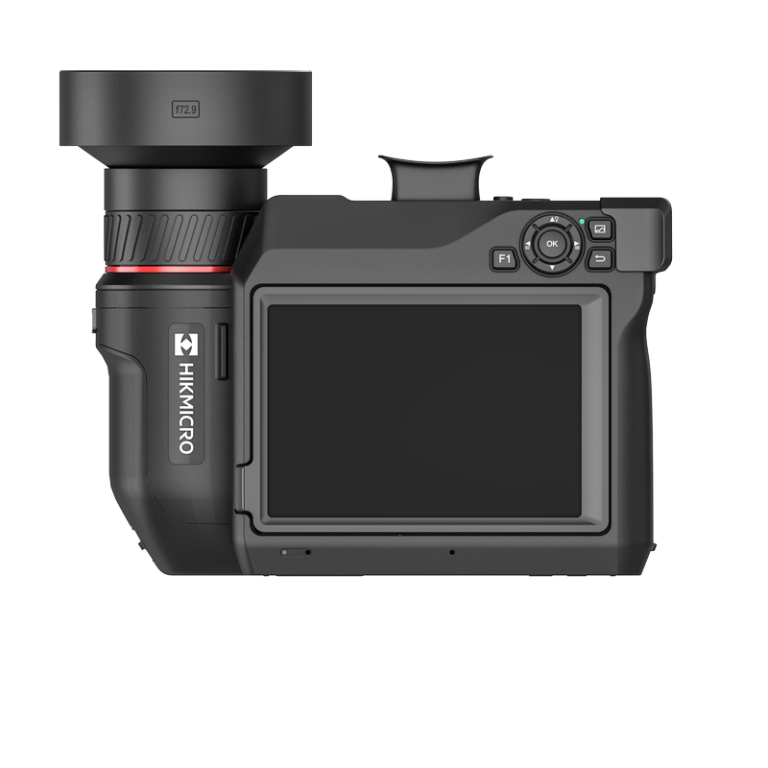

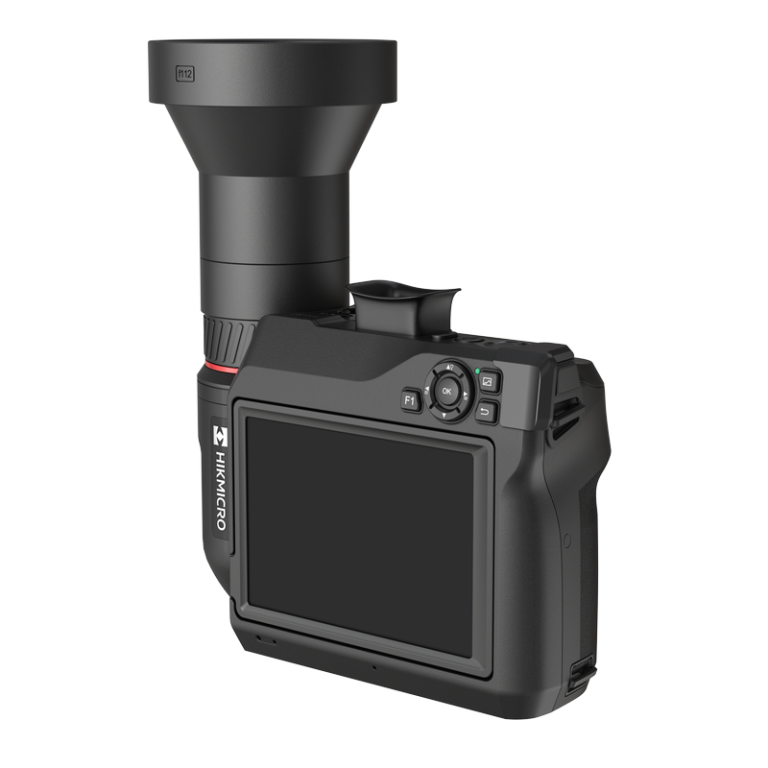

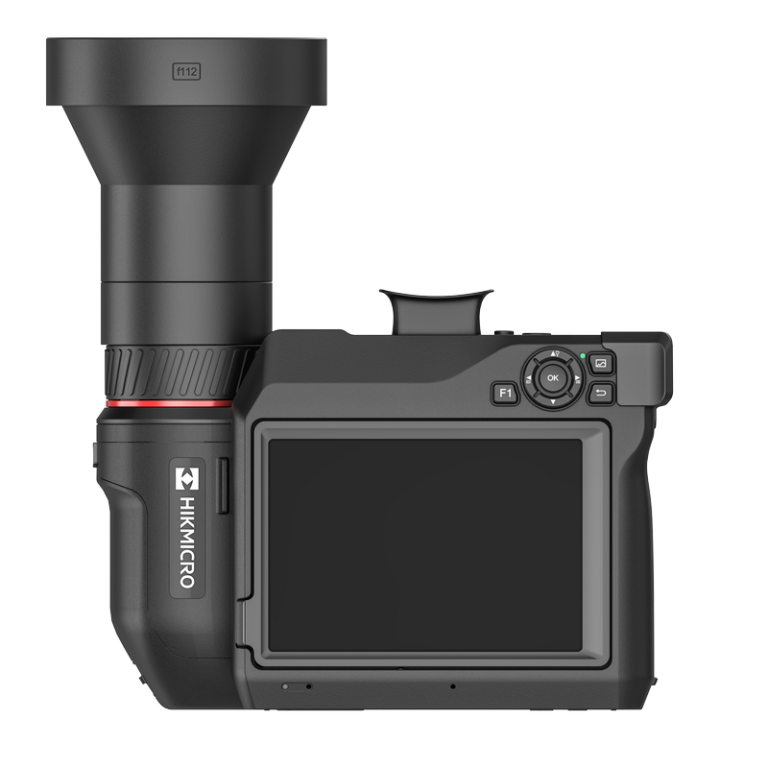

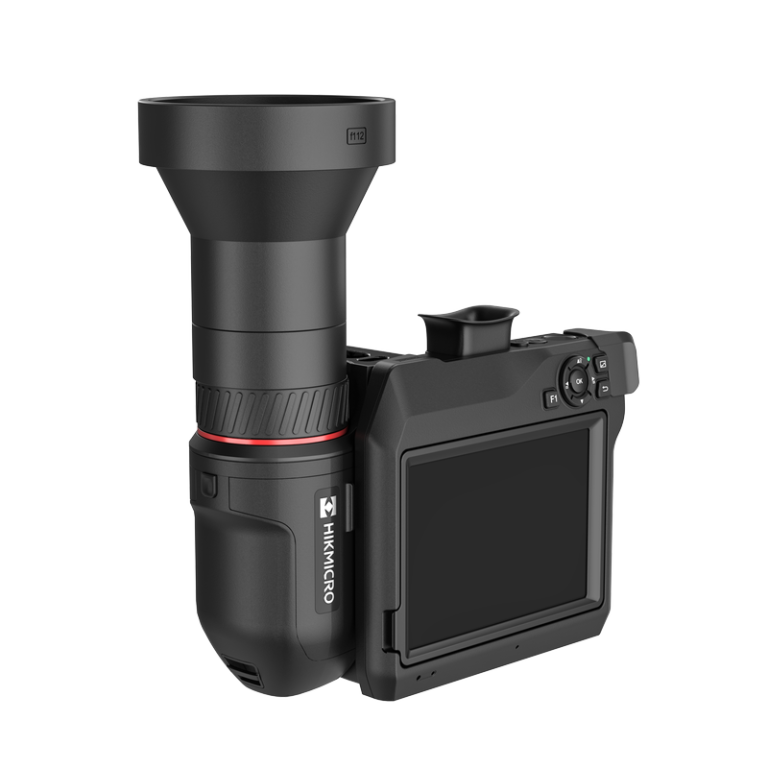

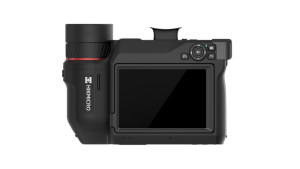

HIKMICRO SP120H
Photo HIKMICRO SP120H Description of HIKMICRO SP120H Video HIKMICRO SP120H Specifications HIKMICRO SP120H Package Contents HIKMICRO SP120H Accessories for HIKMICRO SP120H Prices for HIKMICRO SP120H Warranty for HIKMICRO SP120H Calibration of HIKMICRO SP120H User Manual for HIKMICRO SP120H Related instruments to HIKMICRO SP120H
Made in China. brand HIKMICRO, model SP120H
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 30000 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The HIKMICRO SP120H high-performance handheld thermal camera is an excellent choice for industrial, predictive, oil and gas, and utility maintenance inspections. It features a high-sensitivity HIKMICRO VOx detector (NETD < 20 mK) with a resolution of 1280 x 1024 and can measure temperatures up to 2200°C. This flexible and ergonomic thermal imager includes an electronic viewfinder and a 180° rotating lens, simplifying long outdoor inspections. Advanced features such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span make it easy for professionals to survey equipment and detect malfunctions. With the HIKMICRO Viewer App or HIKMICRO Analyzer software, users can transfer, analyze, and share images, as well as generate reports for free.
Features
Ultra-high performance and maximum flexibility
SuperIR – Powered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
One-second fast focusing – Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.

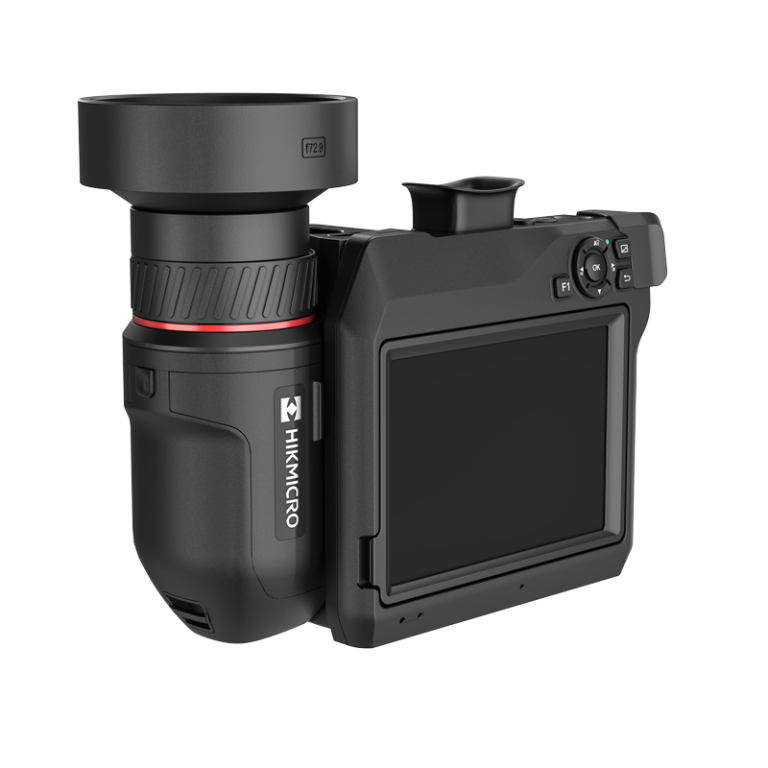

Flexible Rotating Lens and Screen – The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Designed for Outdoor – Water and dust resistant to IP54 standards and drop tested to a height of 1 m.
1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
1-Tap Level & Span – Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Up to 2200°C Temperature Range – With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP120H/SP60H/SP120H Only)
High-Precision Detection – By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System – Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation. You can stay powered up for even the longest inspections.
Extensive Range of Interchangeable Lenses – Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Embedded Laser Distance Meter – An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Complete Image Annotations – Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.
Continuous Digital Zoom – 1.0x to 12.0x continuous digital zoom provides more image details.
Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP120H/SP60/SP60H Only)
HIKMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Conveniently Share Images and Reports – Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.
Applications
Introduction video
How to video
| Infrared Image | |
| IR Resolution | 1280×1024 (1,310,720 pixels) |
| SuperIR | 2560×2048 (5,242,880 pixels) |
| NETD | ＜20 mK (@ 30 °C, F#=1.0) |
| Image Frequency | 30 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | L8: 112.2 mm L12: 72.9 mm L25: 35 mm L50: 17.6 mm |
| F-number | L8: F1.3 L12: F1.2 L25: F1.1 L50: F1.1 |
| Field of View (FOV) | L8: 7.9° × 6.3° L12: 12° × 9.6° L25: 25° × 20° L50: 50° × 40° |
| Spatial Resolution (IFOV) | L8: 0.11 mrad L12: 0.17 mrad L25: 0.34 mrad L50: 0.68 mrad |
| Min. Focus Distance | L8: 5m (16.4 ft) L12: 1.65m (5.41 ft) L25: 0.3m (0.98 ft) L50: 0.2m (0.66 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Image Display | |
| Visual Camera | 4208 × 3120 (13 MP） |
| Display | 1920 × 1080 Resolution, 5.1”OLED Touch Screen, Lv 360 Cd/m^2 |
| Screen Brightness | Manual/Auto |
| Viewfinder | 1024 × 768 pixels OLED |
| Digital Zoom | 1.x to 12.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation/Condensation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | Range -40~150℃（-40 ~ 302°F） Range 100~650℃（212~1202°F） Range 300~2200℃（572~3992°F） |
| Accuracy | Range -40~150℃（-40 ~ 302°F）: -40~0℃（-40 ~ 32°F）: ±2℃ (±3.6°F) 0~100℃（32 ~ 212°F）: ±1℃ 100~150℃（212 ~ 302°F）: ±1% Range 100~650℃（212~1202°F）: ±2% Range 300~2200℃（572~3992°F）: ±2% |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 128 GB SD Card |
| Image Storage Capacity | Approx. 30,000 Images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | Approx. 130 Hours（MP4 video） |
| Video File Format | MP4 video and radiometric video |
| Image Format | Radiometric JPEG |
| IR Live Streaming | Radiometric streaming via USB Non-radiometric streaming via USB and Wi-Fi |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| LED Light | Yes |
| Laser Pointer | Yes |
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 15 m (49 ft). |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: <1 mW |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| GPS & Compass | Yes |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes |
| Programmable Buttons | 2 |
| Protection Level | IP54, IEC 60529 |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1 EN 301 489-17 EN IEC 61000-6-2 EN IEC 61000-6-3 EN 61326-1 |
| Vibration | 2 g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) |
| Relative Humidity | ＜95% non-condensing |
| Weight | Approx. 1550 g (3.42 lb)（Without lens） |

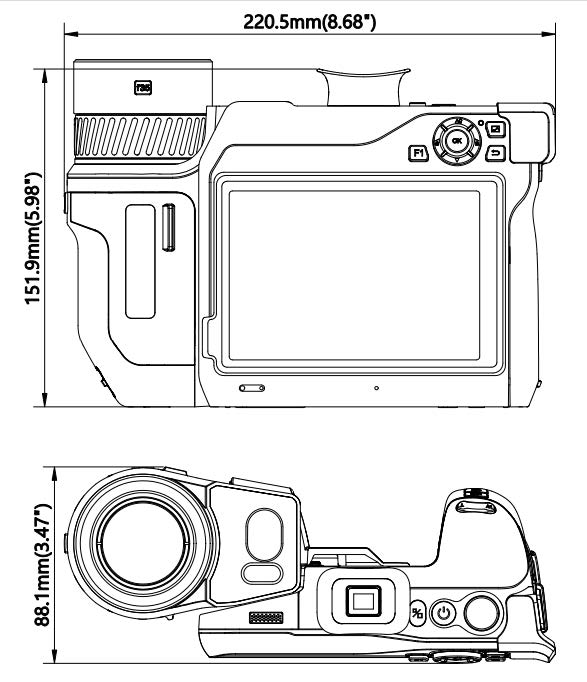

| Dimension | 220.5 × 151.9 × 88.1 mm (8.68 × 5.98 × 3.47 in)（Without lens） |
| Tripod Mounting | UNC ¼”-20 |
| Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
Model Number: HM-TP9CH-W/W-SP120H-L25
| Model | Description | Photo |
| HM-20322ZC | Battery Charger Base |  |
| HM-7250DC | Battery. 7.2 V. 4800 mAh |  |
| HM-SP620-MACRO | Interchangeable lens. Macro lenses like the HM-SP620-MACRO allow very close focus to capture sharp images of small objects with accurate measurements. Min. Focus Distance up to 31.6 mm. Focal Length 31.6 mm(0.11 ft) |  |
| HM-SP605-LENS | Interchangeable lens. FOV (Field of View): SP40/SP40H: 37.3° (H) × 27.8° (V) SP60/SP60H: 50° (H) × 37.3° (V) |  |
| HM-SP610-LENS | Interchangeable lens. FOV (Field of View): SP40/SP40H: 18.7° (H) × 14° (V) SP60/SP60H: 24.8° (H) × 18.7° (V) |  |
| HM-SP620-LENS | Interchangeable lens. FOV (Field of View): SP40/SP40H: 9° (H) × 6.8° (V) SP60/SP60H: 12° (H) × 9° (V) |  |
| HM-SP630-LENS | Interchangeable lens. FOV (Field of View): SP40/SP40H: 6° (H) × 4.5° (V) SP60/SP60H: 8° (H) × 6° (V) |  |
| HM-SP01-POUCH | M/G/SP Series Pouch. The soft Pouch with a shoulder strap can protect HIKMICRO handheld thermal cameras. |  |
| HM-SP650-MACRO | Interchangeable lens. Macro lenses like the HM-SP650-MACRO allow the close focus to capture sharp images of small objects with accurate measurements. |  |
| Model | Description | Price, € |
| SP120H-L25 | 1280×1024, 25°×20°, Auto focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 30000 |
| SP120H-L50 | 1280×1024, 50° × 40°, Auto focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 30000 |
| SP120H-L12 | 1280×1024, 12° × 9.6°, Auto focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 30800 |
| SP120H-L8 | 1280×1024, 7.9° × 6.3°, Auto focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 39100 |
| SP120H-L12/25 | 1280×1024, 25°×20°&12°×9.6°, Auto/manual focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 35200 |
| SP120H-L8/25 | 1280×1024, 25°×20°&7.9°×6.3°, Auto/manual focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 43500 |
| SP120H-L25/50 | 1280×1024, 25°×20°&50°×40°, Auto/manual focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 34400 |
| SP120H-L12/50 | 1280×1024, 12°×9.6°&50°×40°, Auto/manual focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 35200 |
| SP120H-L8/12/25 | 1280×1024, 25°×20°&12°×9.6°&7.9°×6.3°, Auto/manual focus, NETD<20mk, 30 Hz, 13MP visible camera, -40~2200℃, ±1℃/±1%(0-150℃) or ±2℃/±2%, 128GB, 5” 1920×1080 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 48700 |
Accessories
| Model | Description | Price, € |
| HM-20322ZC | Battary charger for SP series battery | 150 |
| HM-7250DC | Battery for SP sries, 7.2V, 4300mAh | 100 |
| HM-SP620-MACRO | Marco lens for SP40, SP40H and SP60 and SP60H, 20 µm spot size, -20~150℃, ±2℃/±2% | 3000 |
| HM-SP605-LENS | “37° wide angle lens for SP40 and SP40H 50° wide angle lens for SP60 and SP60H” |
1450 |
| HM-SP610-LENS | “19° standard lens for SP40 and SP40H 25° standard lens for SP60 and SP60H” |
1450 |
| HM-SP620-LENS | “9° telephoto lens for SP40 and SP40H 12° telephoto lens for SP60 and SP60H” |
1450 |
| HM-SP630-LENS | “6° telephoto lens for SP40 and SP40H 8° telephoto lens for SP60 and SP60H” |
3000 |
| HM-SP01-POUCH | Soft pouch with adjustable shoulder strap, for SP, G and M series cameras. Enough space for extra lens. | 75 |
| HM-SP650-MACRO | Marco lens for SP40, SP40H and SP60 and SP60H, 50 µm spot size, -20~150℃, ±2℃/±2% | 3000 |
The warranty for the HIKMICRO SP120H thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The cost of extending the warranty for the HIKMICRO SP120H is:
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO SP120H thermal imager is €1598 for the General Lens and €533 for the Additional Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO SP120H using the special form.
You can buy HIKMICRO SP120H in Latvia at a price starting from 30000 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO SP120H price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
