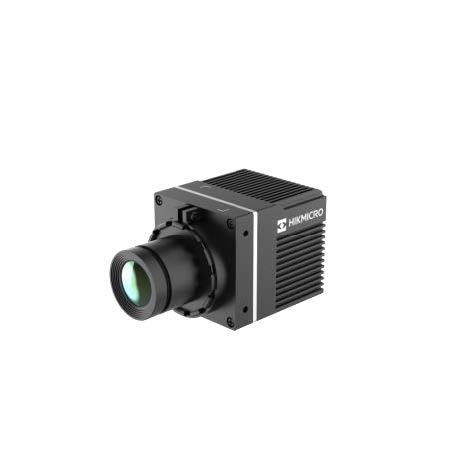

The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
Made in China. brand HIKMICRO, model QF610
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $4000
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Model Number:
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 30 mk(@25 °C,F#=1.0) |
| Focal Length | 5mm 10mm 18mm |
| IFOV | 5mm : 2.40mrad 10mm: 1.20mrad 18mm: 0.67mrad |
| Field of View | 5mm : 90.0°(H)×70.1°(V) 10mm: 45.2°(H)×36.1°(V) 18mm: 24.2°(H)×19.4°(V) |
| Min. Focusing Distance | 5mm : 0.35 m 10mm: 1.30 m 18mm: 4.00 m |
| Aperture | 5mm : F1.0 10mm: F1.0 18mm: F1.1 |
| Measurement and Analysis | |
| Object Temperature Range | -20 °C to 150 °C , 0°C to 650 °C |
| Temperature Accuracy Max | (± 2 °C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 21 rules (max. 21 points, max. 21 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 21. |
| Video and Image | |
| Main Stream | 50 fps (640 × 512) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 18 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Winter, Summer, Blue Red |
| Digital Zoom | ×2, ×4, ×8 |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45/UVC, 640 x 512@50 fps |
| Network | |
| Protocols | IPv4,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP, RTP,TCP,UDP,IGMP,ICMP,DHCP,ISUP,GB28181, ONVIF,modbusTCP,WebSocket,PPPoE,SRTP,OTAP |
| Simultaneous Live View | Up to 20 channels |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 V DC) |
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) |
| Analog Output | 1, CVBS output |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (HIKVISION, PELCO-P, PELCO-D, modbusRTU, modbusASCII) 1, USB type-c port that supports the UVC protocol |
| General | |
| Menu Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power Supply | 12V DC, Max. 3.5 W |
| Working Temperature/Humidity | -20 °C to 60 °C 90% or less |
| Protection Level | IP40 |
| Mount | M3 |
| Weight | 5mm : Approx. 168 g 10mm: Approx. 165 g 18mm: Approx. 161 g |

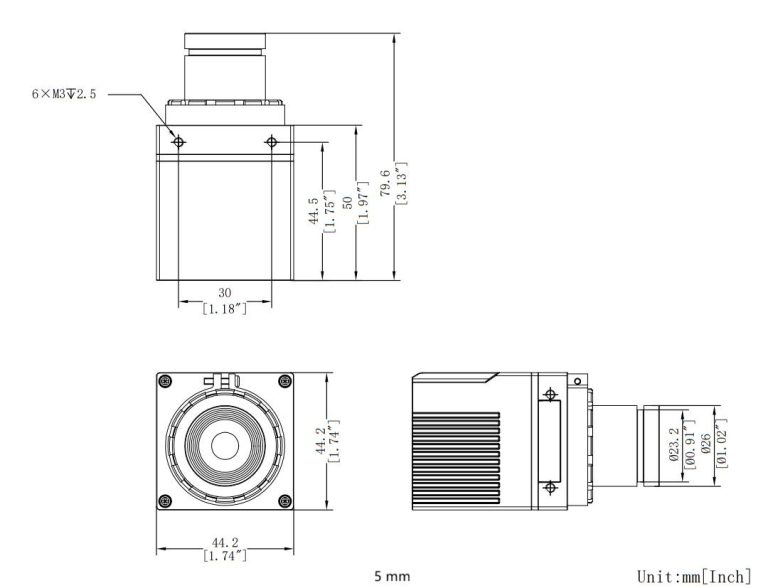

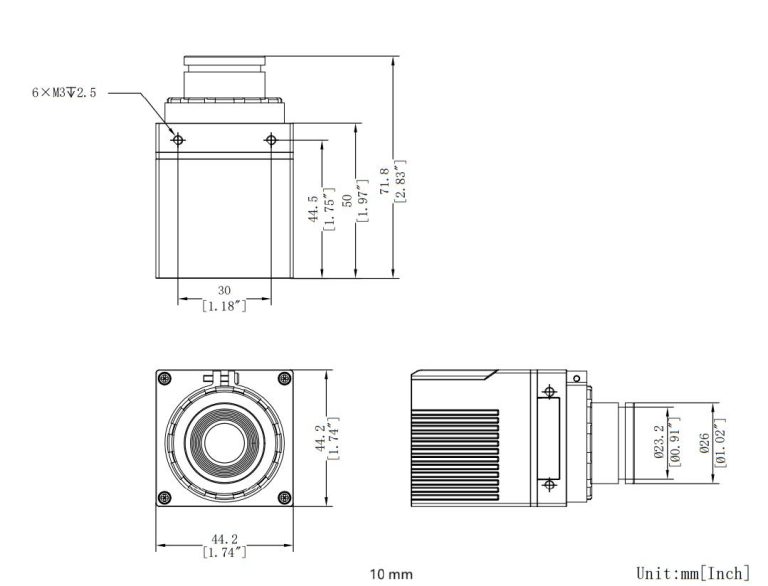

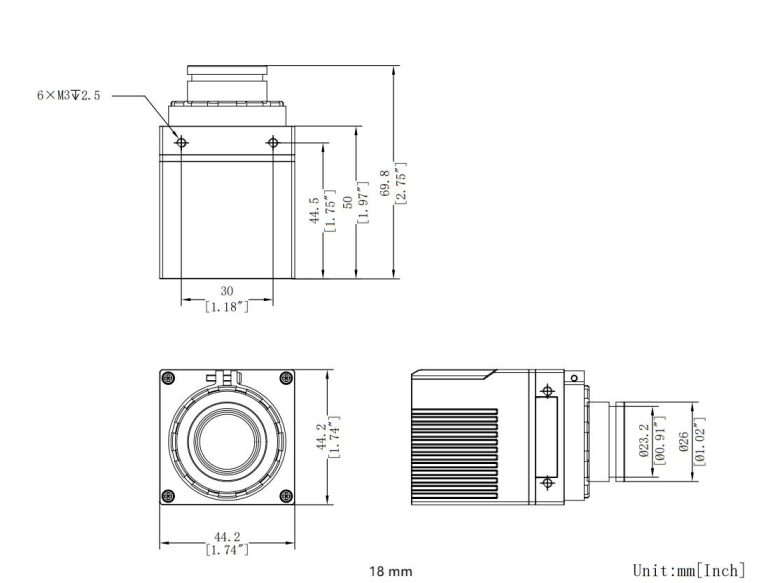

| Dimensions | 5mm : 79.6 × 44.2 × 44.2 mm 10mm: 71.8 × 44.2 × 44.2 mm 18mm: 69.8 × 44.2 × 44.2 mm |
| Model | Price, € |
| HM-TD2068T-5/Q | 4 000 |
| HM-TD2068T-10/Q | 4 000 |
| HM-TD2068T-18/Q | 4 000 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO QF610 using the special form.
You can buy HIKMICRO QF610 in Latvia at a price starting from4000 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO QF610 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
