Made in China. brand HIKMICRO, model QD610
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $11500
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

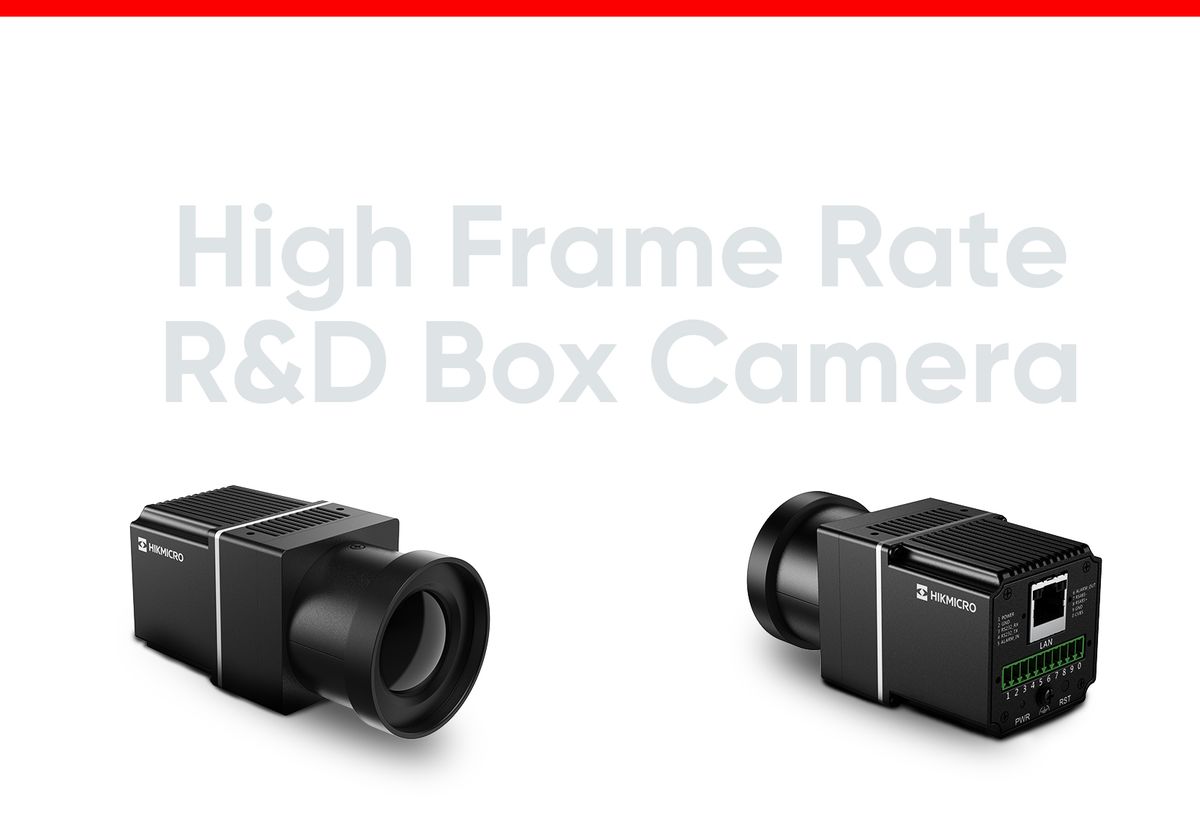

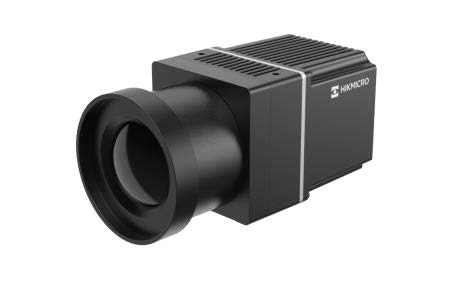

The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.

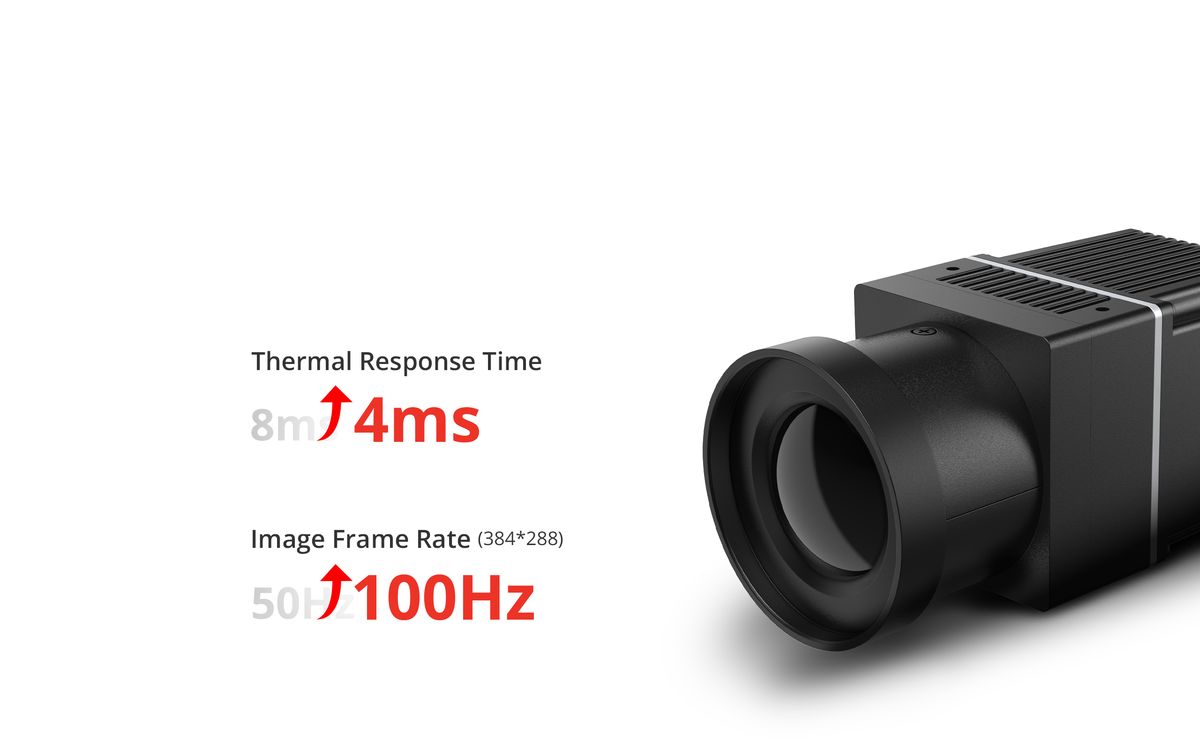

100Hz High Frame Capture without Smearing – With frame rate up to 100Hz and thermal response time down to 4ms, HIKMICRO high frame rate R&D box camera provide unmatched image quality, capturing each moment of high-speed objects.
Ultra-high Accurate Temperature Measurements – HIKMICRO high frame rate R&D box camera accurately measures temperatures from -20°C to 650°C, with a temperature accuracy up to ±1°C / ± 1 % for range -20°C to 150°C.
Model Number:
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 ×512 |
| Pixel Pitch | 17 μm |
| NETD | < 35 mK (25 °C, F# = 1.0) |
| Focal Length | QD610:7 mm: 7 mm 15 mm: 15 mm |
| Focus Mode | QD610:7 mm: Athermalized 15 mm: Semi-auto & Manual |
| IFOV | QD610:7 mm: 2.4 mrad 15 mm: 1.1 mrad |
| Field of View | QD610:7 mm: 640×512: 90.4°×75° 384×288: 55.8°×42.1° 15 mm: 640×512: 45°×36.1° 384×288: 26.8°×20.3° |
| Min. Focusing Distance | QD610:7 mm: 0.5 m 15 mm: 0.15 m |
| Aperture | QD610:7 mm: F 1.0 15 mm: F 1.0/F2.7 |
| Measurement and Analysis | |
| Object Temperature Range | QD610:7 mm: Range -20°C~150°C Range 0°C~650 °C 15 mm: Range -20°C~150°C Range 0°C~650 °C Range 300°C~2000 °C |
| Temperature Accuracy | QD610:7 mm: Range -20~150℃： -20~100℃:±1℃ 100~150℃:±1% Range 0~650℃ 0~100℃:±2℃ 100~650℃:±2% 15 mm: Range -20~150℃： -20~100℃:±1℃ 100~150℃:±1% Range 0~650℃ 0~100℃:±2℃ 100~650℃:±2% Range 300~2000℃ 300~2000℃:±2% |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Video and Image | |
| Main Stream | 50 fps (640×512) 100fps（384×288） |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | ×2, ×4, ×8 |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 640 × 512@50 fps, 384 × 288@100 fps |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Analyzer |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, External relay required |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Analog Output | 1, CVBS output |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| General | |
| Menu Language | English |
| Power Supply | 12-24 VDC |
| Power Consumption | QD610:7 mm: 4.2W Max 15 mm: 6.4W Max |
| Working Temperature/Humidity | -20 °C to 50 °C (-4 °F to 122 °F) 90% or less |
| Protection Level | IP42 |
| Mount | M3 |
| Weight | QD610:7 mm: Approx. 342g (0.75 lb.) 15 mm: Approx. 910g (2 lb.) |

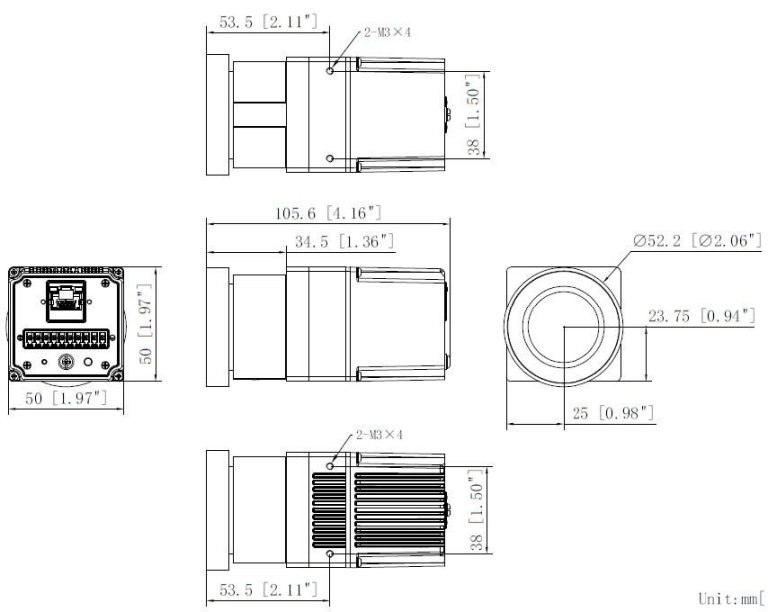

| Dimensions | QD610:7 mm: 103.5mm × 50mm × 50 mm (4.06″× 1.97″× 1.97″) 15 mm: 121.7mm × 74mm × 72mm (4.79″× 2.91″× 2.83″) |
| Material | Aluminum alloy |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO QD610 using the special form.
You can buy HIKMICRO QD610 in Latvia at a price starting from11500 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO QD610 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
