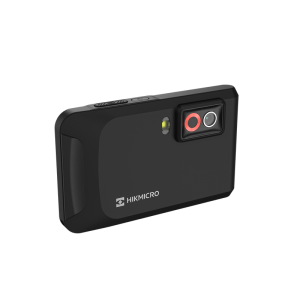

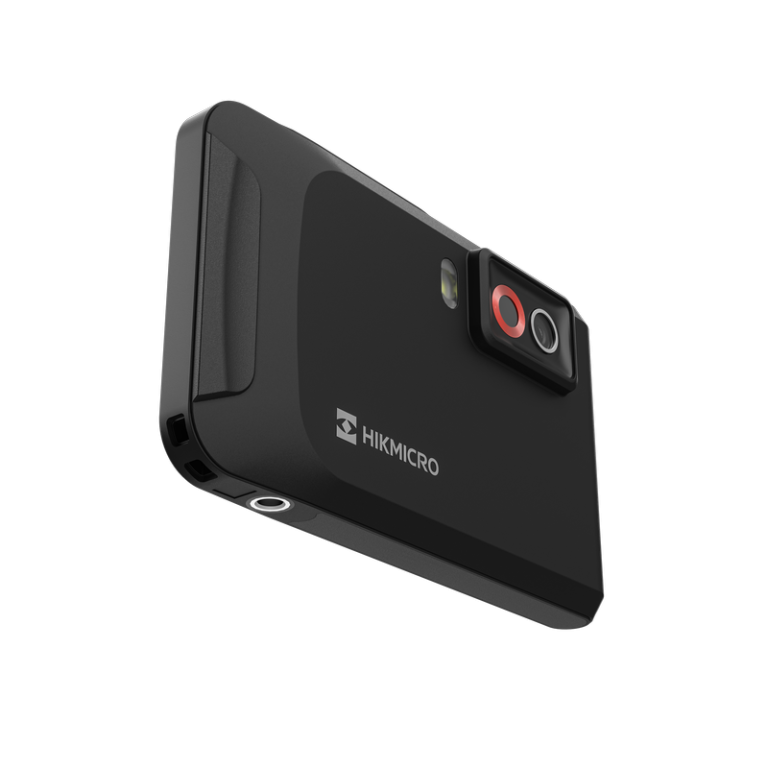

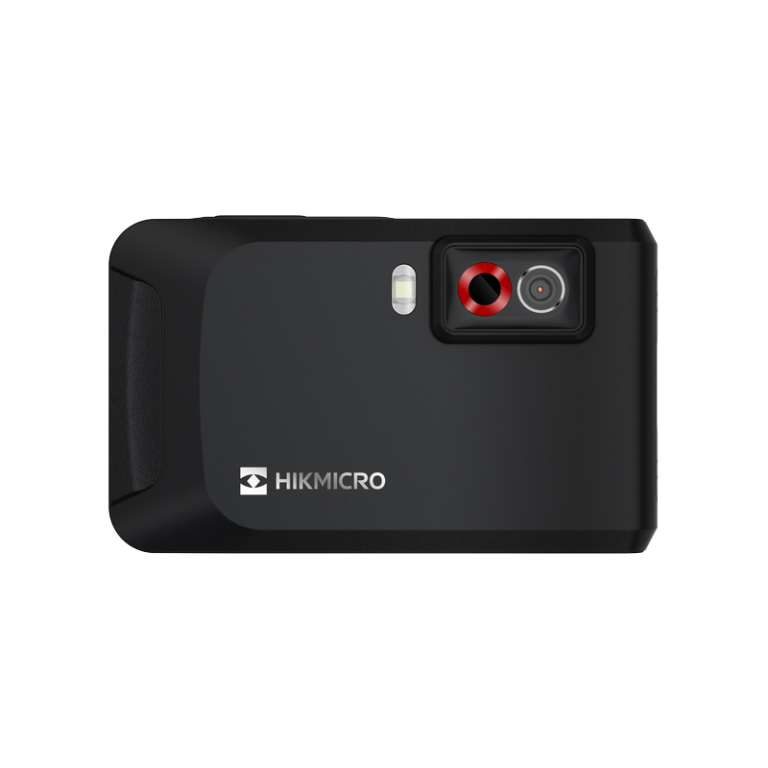

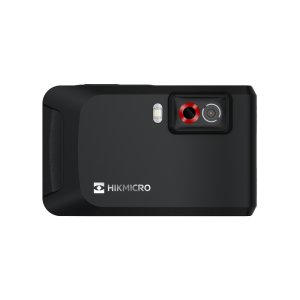

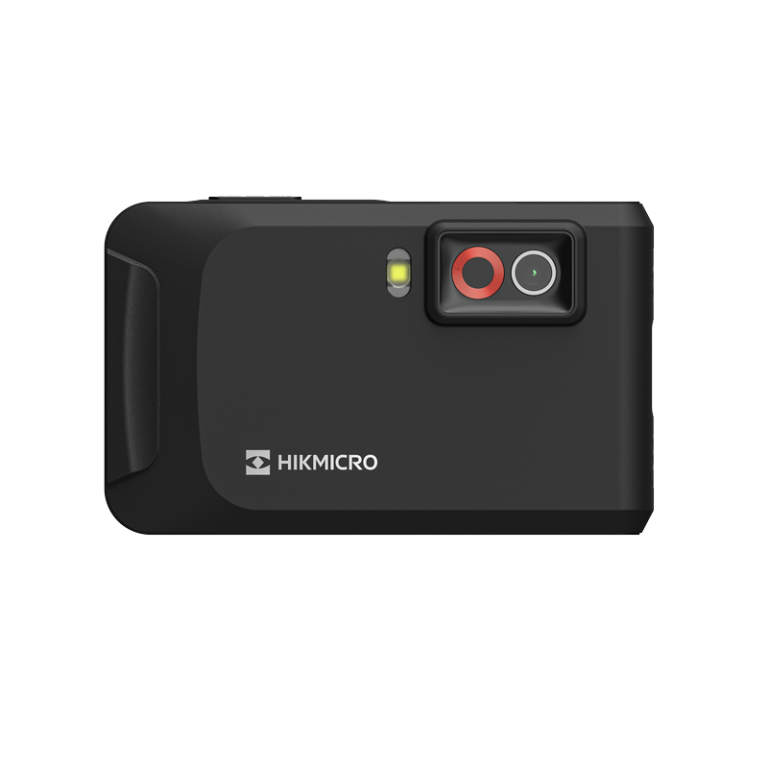

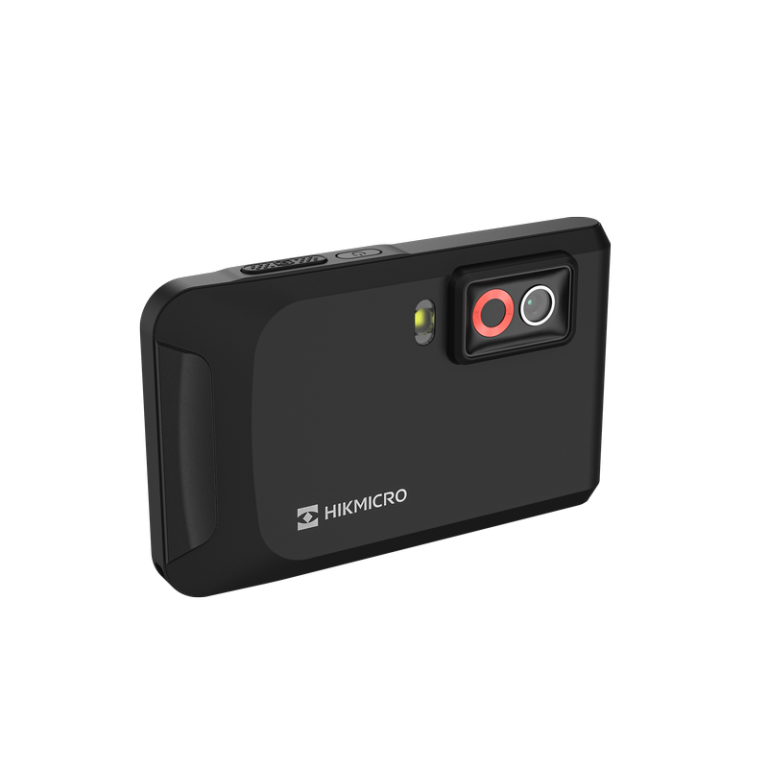

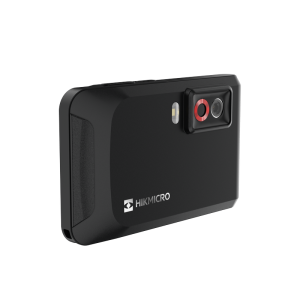

HIKMICRO POCKET2 Handheld Thermal Imaging Camera 256×192 -20°C to 400°C IP54

Description of HIKMICRO POCKET2

HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.

Vivid, Detailed, and Smooth Thermal View

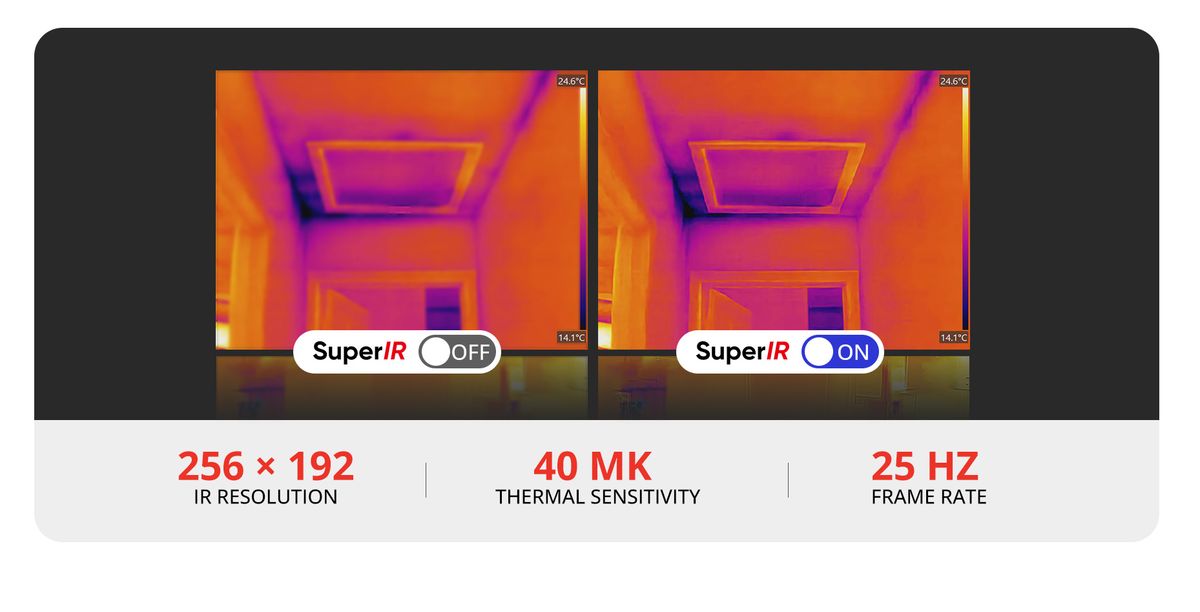

Enhanced Image Quality – The HIKMICRO Pocket2 is designed with a highly sensitive (NETD < 40 mK) VOx detector and features a resolution of 256 x 192 (49,152) pixels, ensuring exceptional image quality. With a fast image frequency of 25 Hz and advanced real-time SuperIR image enhancement algorithms, this device delivers a clear and detailed thermal view.

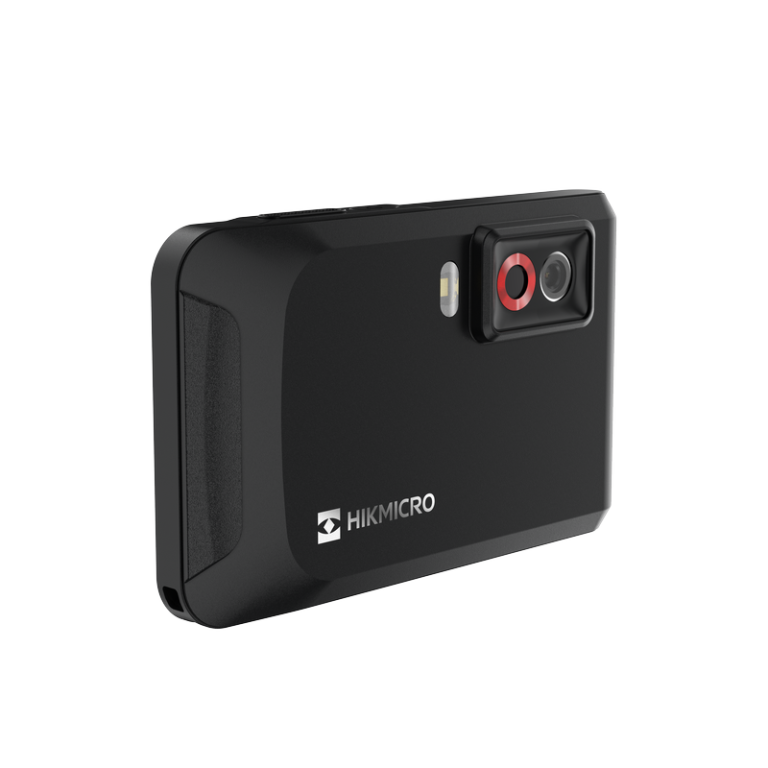

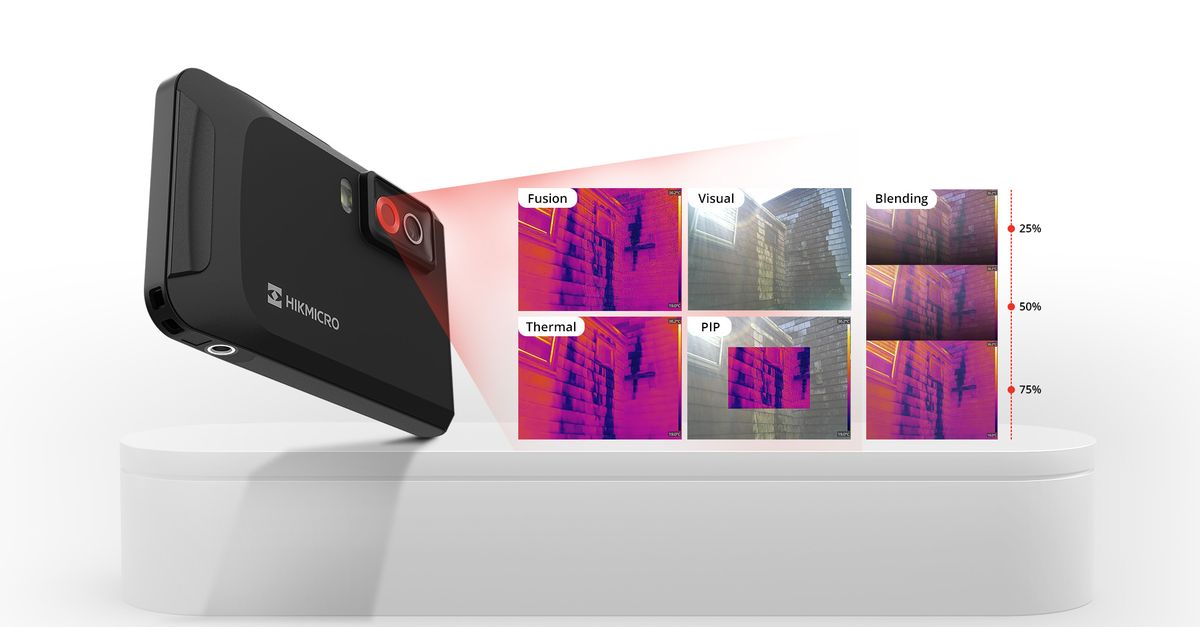

Dual Thermal-Visible Camera – The HIKMICRO Pocket2 features both an IR camera and a visible camera, enabling you to switch between multiple image modes (Thermal, Visual, PIP, Fusion, or Blending) and save visual and thermal images simultaneously with just one click, providing clear reference images. This ensures an efficient workflow and fast inspection report.

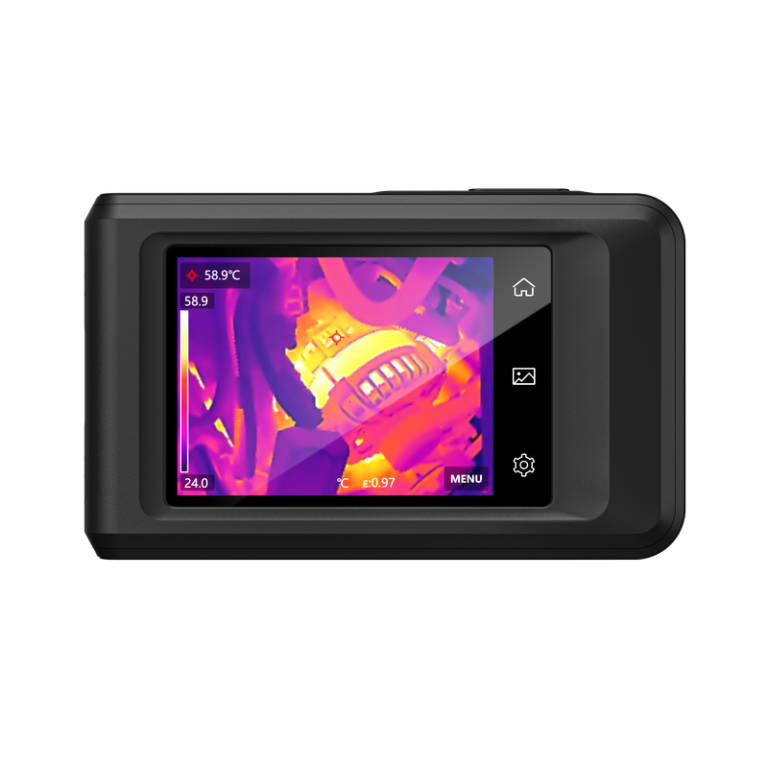

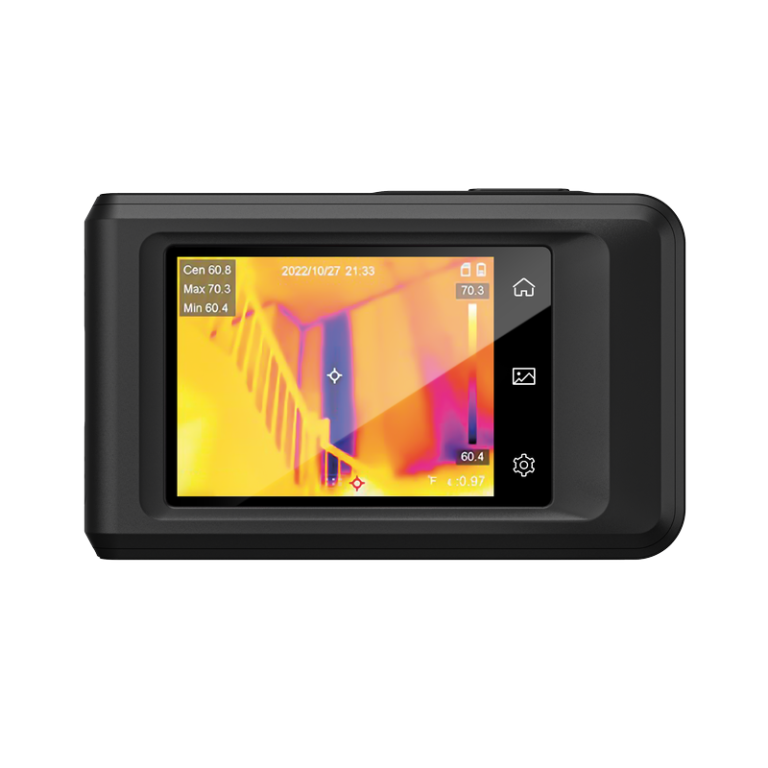

3.5” LCD Touch Screen – The Brilliant 3.5″ 640×480 Touchscreen with auto-rotation simplifies operations, including advanced 1-Tap Level and Span mode, instantly improving image contrast and highlighting potential problems.

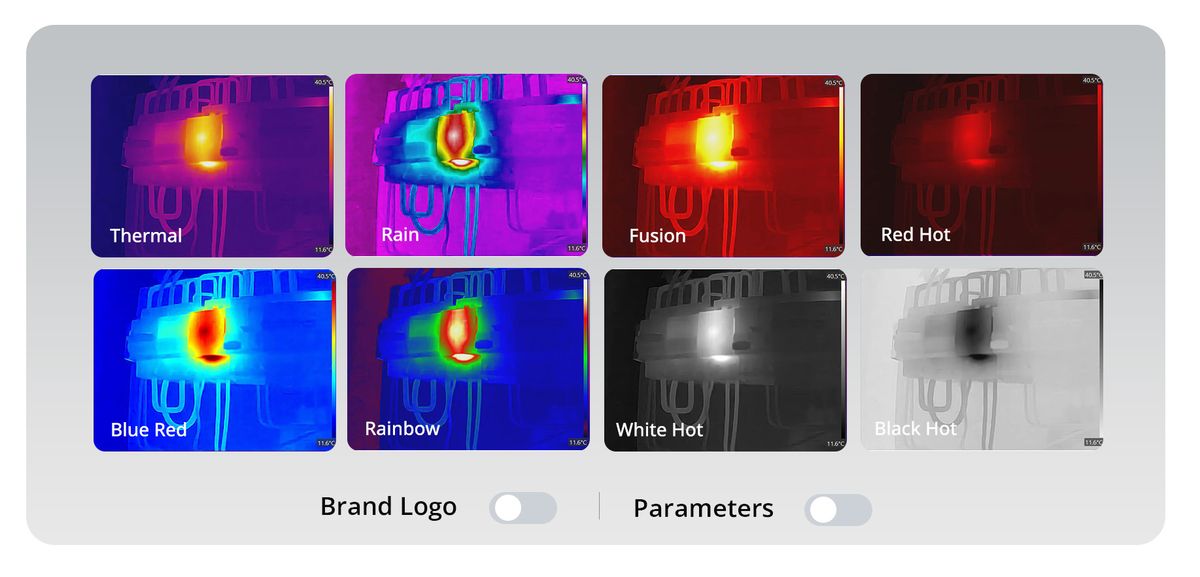

Adjustable Image Settings – Open the image adjustment capabilities to adjust color palettes, color distribution, and other settings to create your desired image effect.

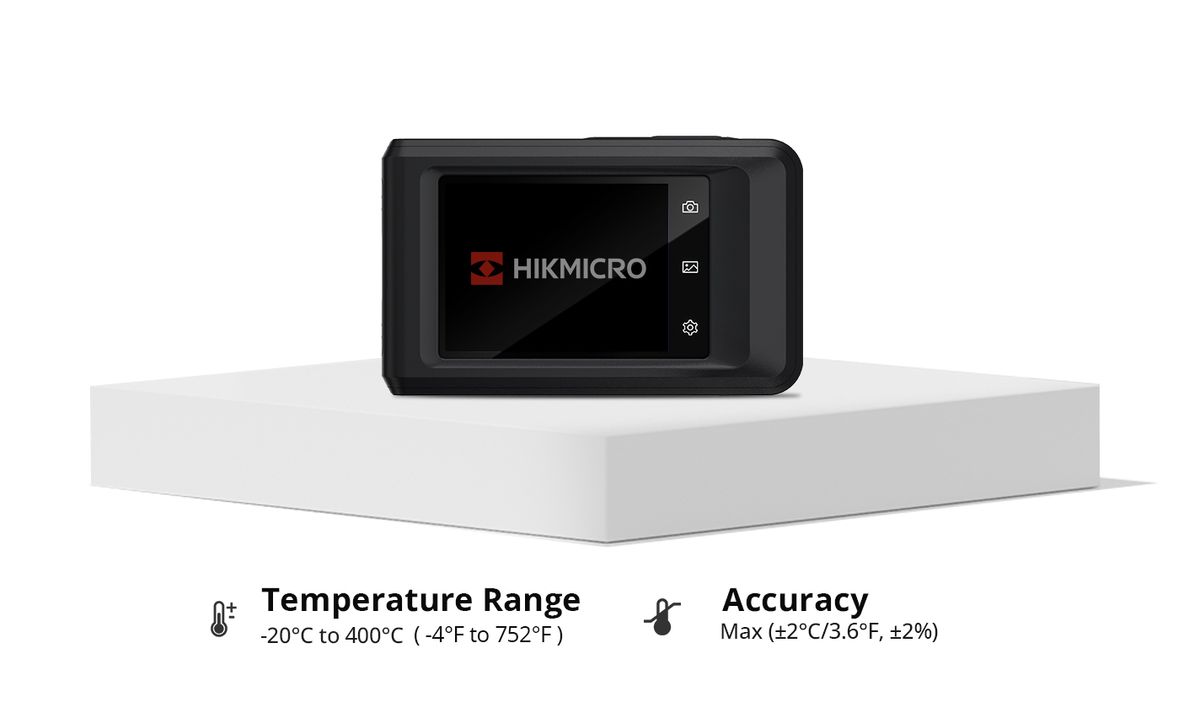

Wide Measurement Range & Accuracy – The HIKMICRO Pocket2 features a wide temperature measurement range of -20℃ to +400℃. It can also measure temperatures with max(±2℃, 2% of the reading) accuracy for precise temperature measurements.

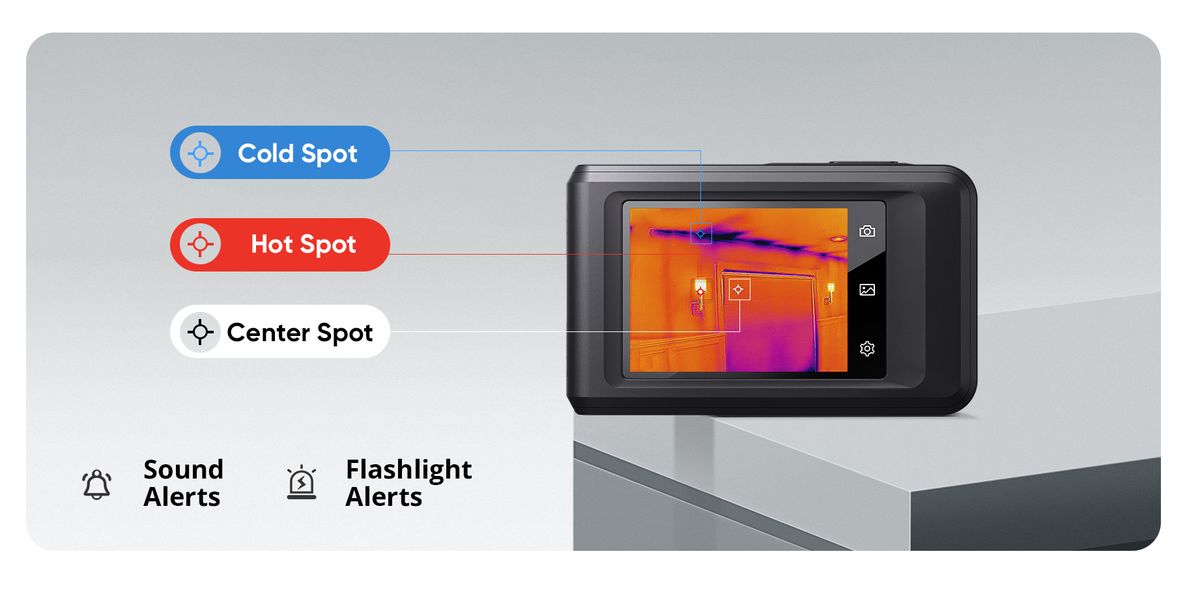

Fast Troubleshooting – The HIKMICRO Pocket2 is an essential tool for fast troubleshooting in HVAC, electrical, and mechanical fields. It identifies central, maximum, and minimum temperature values and provides instant alerts for exceeding predefined thresholds, enhancing safety and minimizing downtime.

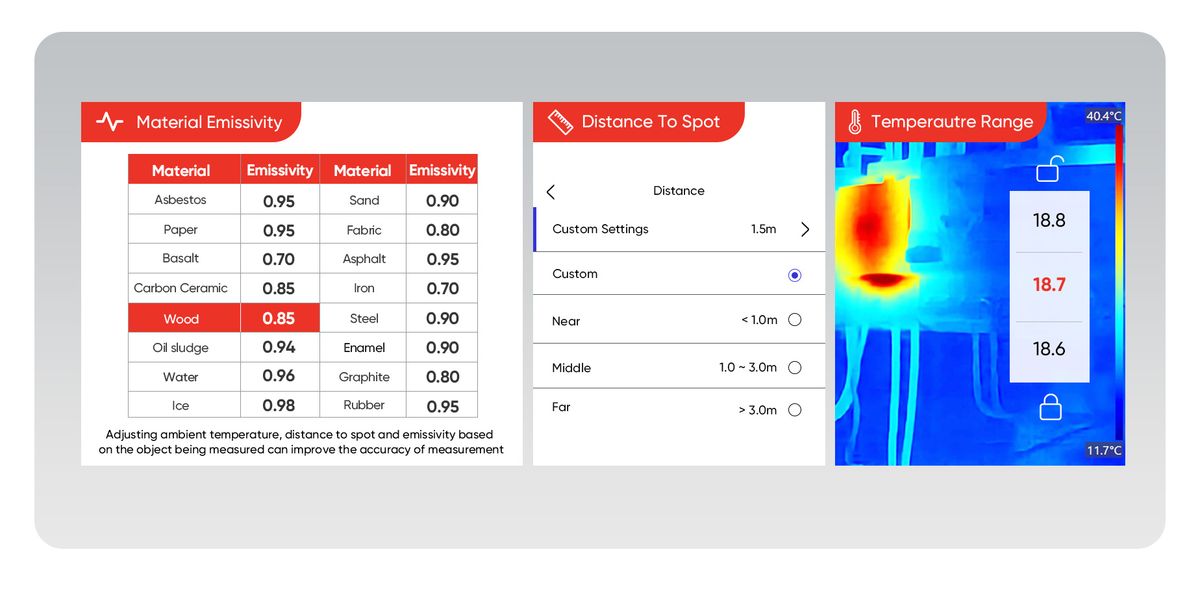

Flexible Measurement Adjustment – Having adjustable measurement settings is essential for obtaining accurate temperature readings. With the HIKMICRO Pocket2, users have the option to adjust the emissivity, distance, and temperature range, among other settings. This capability significantly improves the accuracy of the measurements.

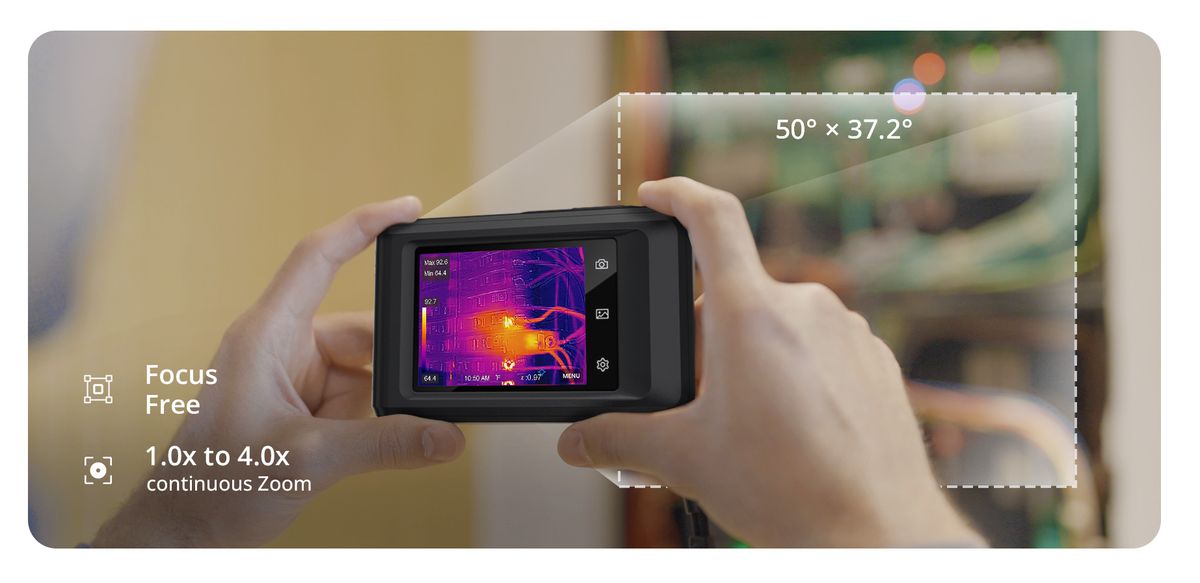

Wide FOV – The HIKMICRO Pocket2 offers a wide 50° × 37.2° field of view (FOV) and 1.0x to 4.0x continuous digital zoom, allowing you to capture larger areas with more details effortlessly without adjusting the focal length. It’s a convenient grab-and-go device for easy and hassle-free imaging.

Professional Yet Free Software – Connect your camera to the HIKMICRO Viewer App wirelessly for instant file transfer to your phone. Analyze, share, and generate reports on-site. Use HIKMICRO Analyzer for PC (Windows) to batch-analyze radiometric IR images and videos, support Pocket2 live projection, and create professional reports and custom templates.

Work More Effectively – With features such as text and QR code scan annotations, as well as single or auto time-lapse image capture, you can easily capture and annotate images to identify potential issues. Additionally, the camera’s swipe-down or touch icons provide easy access to all camera features and settings, allowing you to quickly adjust settings and streamline your workflow. These features help you to work more effectively and productively.

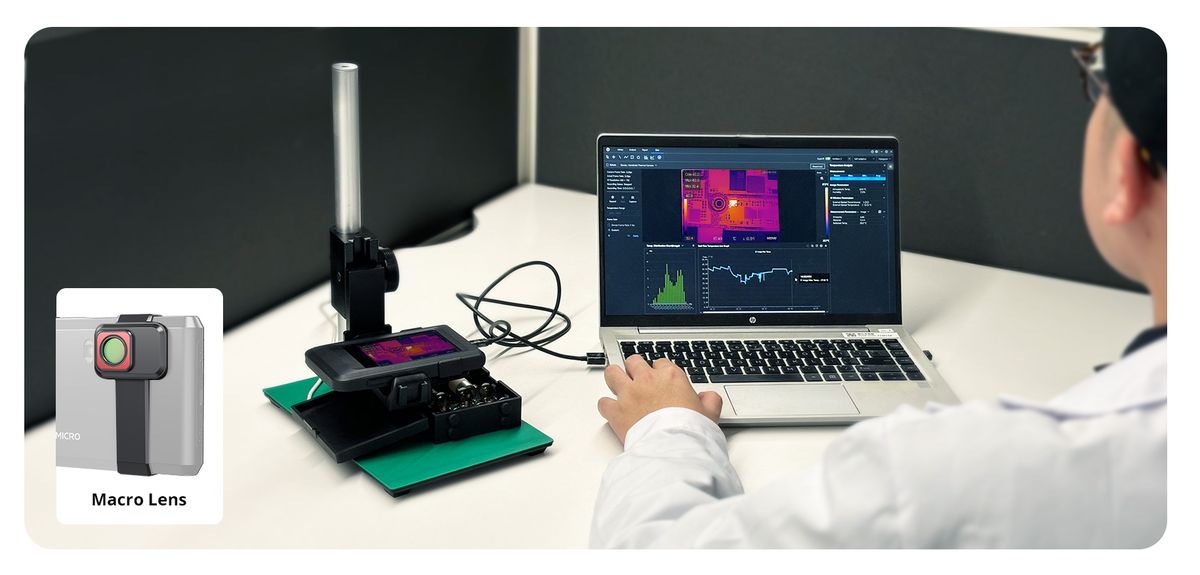

Innovative Macro Mode – Using an extra clip-on macro lens and desk stand bracket, the Pocket2 thermal camera can see details as small as 100 microns stably and take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

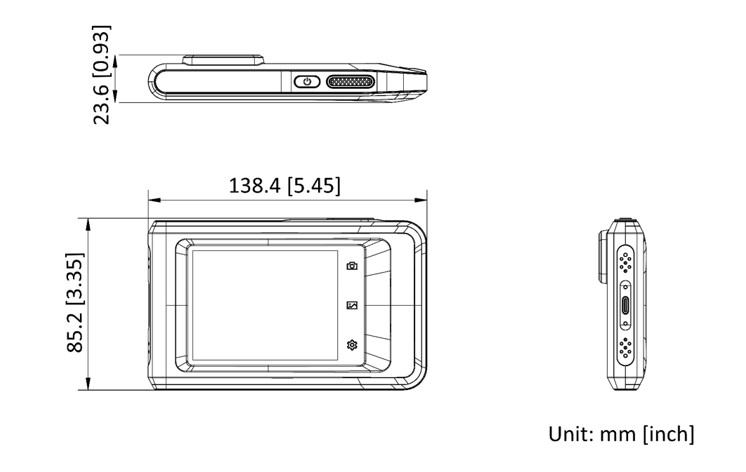

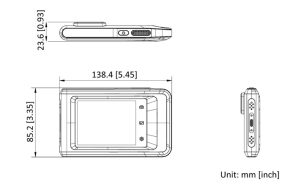

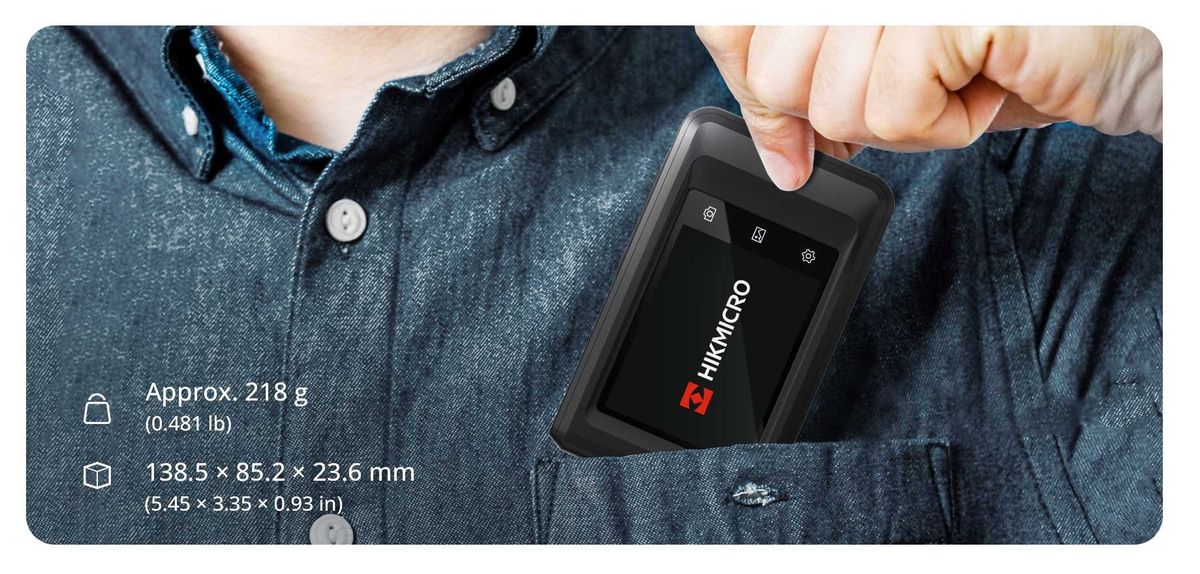

Portable Pocket-sized Design – The HIKMICRO Pocket2 is designed with portability and convenience in mind. Its compact size and ergonomic shape make it easy to carry and hold, fitting perfectly in your pocket or tool bag. Take it with you wherever you go for hassle-free use on the job.

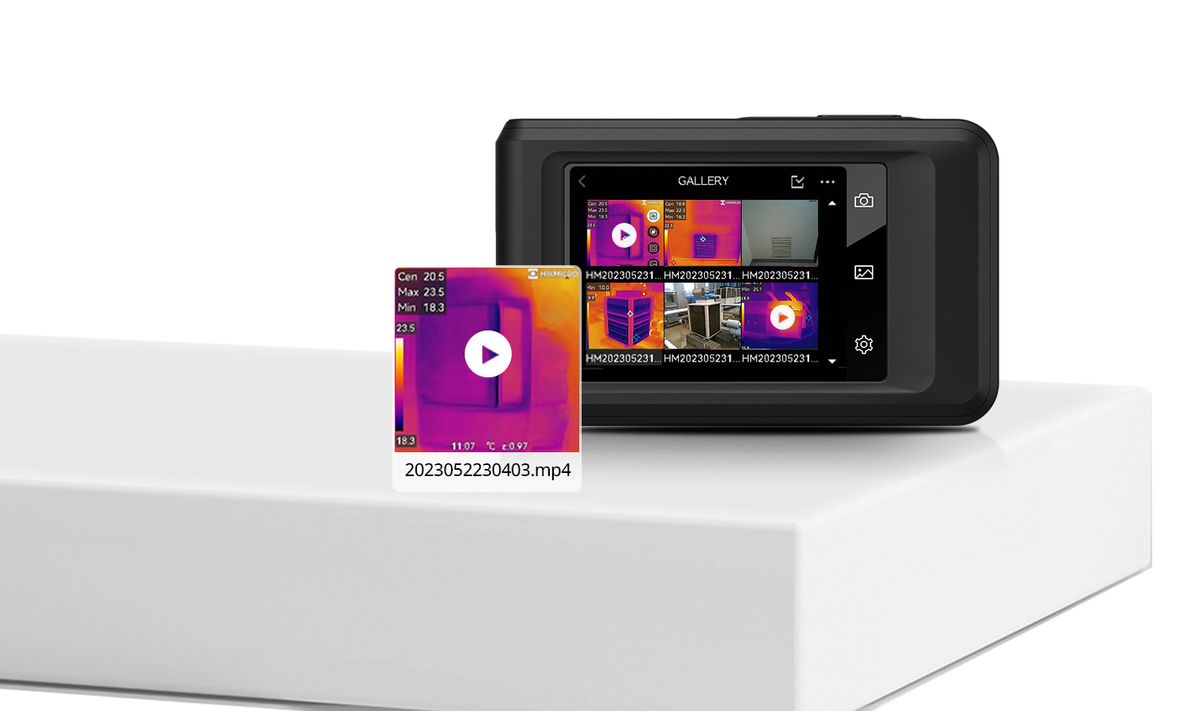

Meets Your Image Capture and Video Recording Needs – With a built-in 16GB internal memory, you can capture more than 60,000 images and record approximately 54 hours of video in MP4 or Radiometric format. Additionally, enjoy the convenience of onboard playback and post analysis of your video, Whether you require fast troubleshooting or professional analysis, our product is the perfect choice for your needs.

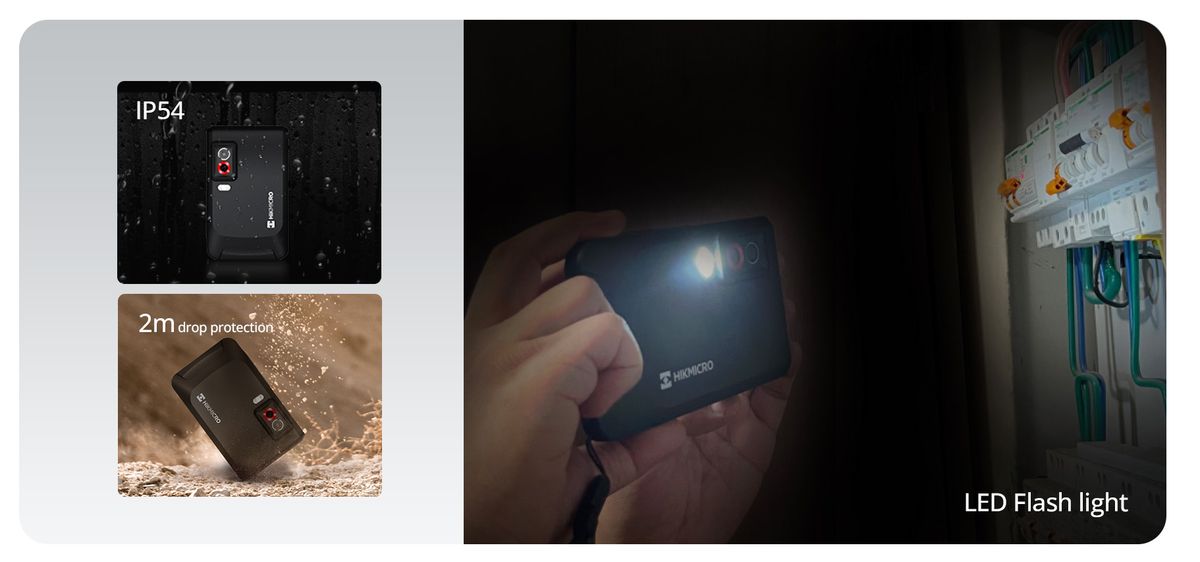

Reliable in harsh situations – The HIKMICRO Pocket2 offers worry-free usage in tough environments thanks to its IP54 rating, which provides ample protection against dust and splashing water, as well as its ability to withstand drops of up to 2 meters. A built-in LED flashlight allows users to easily work in low-light conditions, record thermal readings, and capture high-quality digital images without the need for an additional light source.

Applications

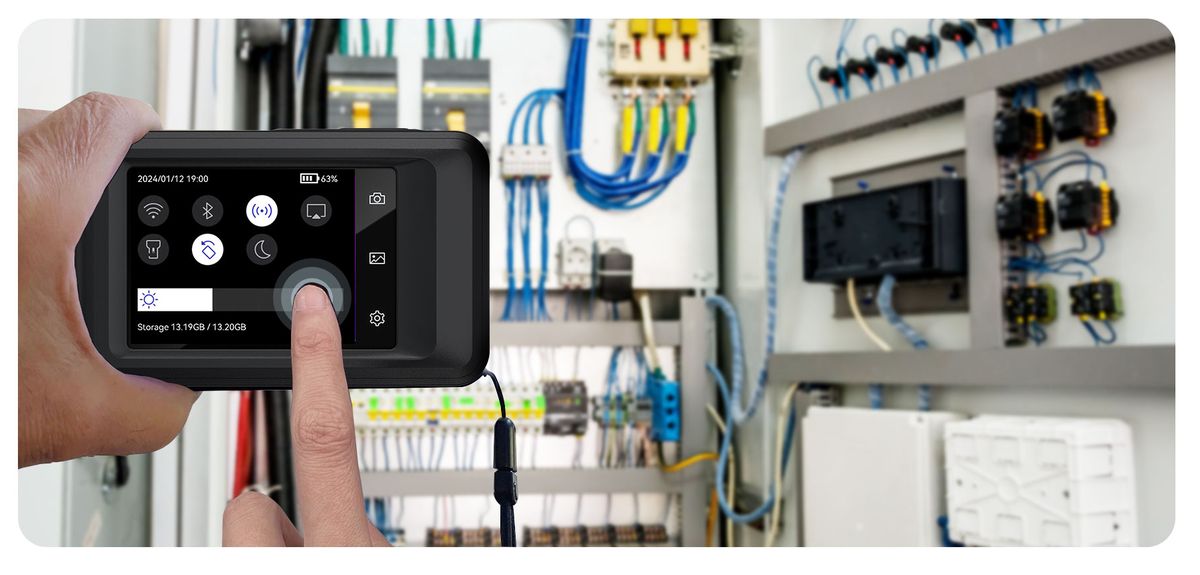

• Electrical Cabinet
• Check Machine Temperature
• Building Envelope
• HVAC Inspection

Video HIKMICRO POCKET2

Promotional Video

How to use Pocket series

Technical specifications of HIKMICRO POCKET2

Package Contents HIKMICRO Pocket2

• Thermal Imager
• Wrist Strap
• Quick Start Guide
• 2-in-1 USB-C to USB-C/A Cable
• Soft Carrying Pouch
• Color Box Packaging
• Calibration Certificate

Model Number:

HM-TP42-3AQF/W-Pocket2
HM-TP42G-3AQF/W-Pocket2

Accessories for HIKMICRO Pocket2

Model	Description	Photo
HM-P201- MACRO	Thermography Camera Macro Lens
HM-AHBR02	Pocket/Mini Series Desktop Stand Bracket

Expand Table

Prices for HIKMICRO POCKET2

Warranty for HIKMICRO POCKET2

The warranty for the HIKMICRO POCKET2 thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO POCKET2

The cost of calibrating the HIKMICRO POCKET2 thermal imager is €265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
