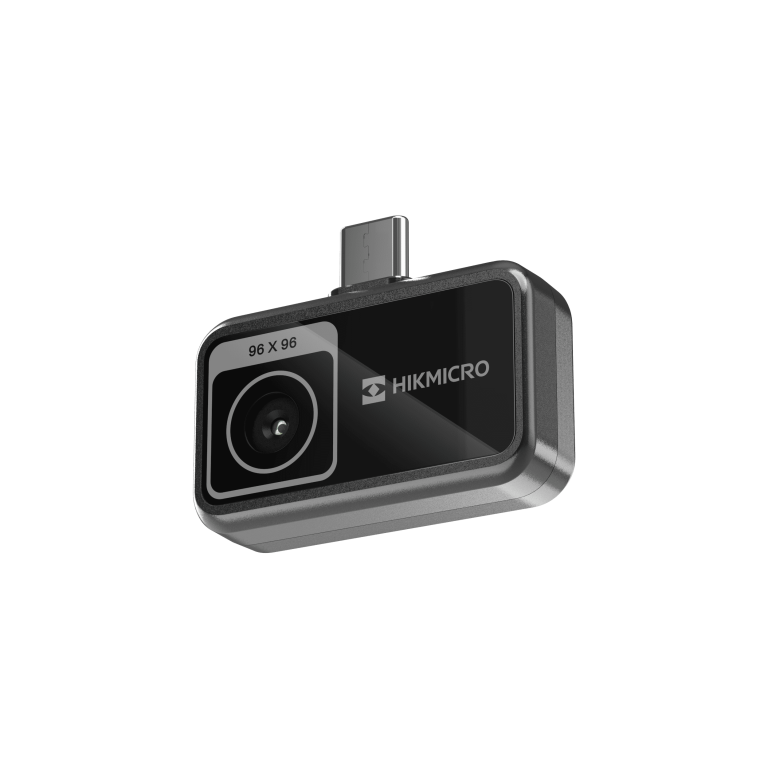

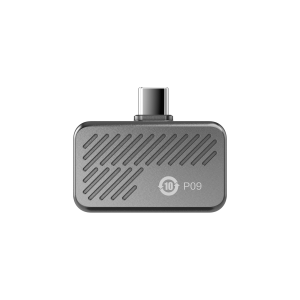

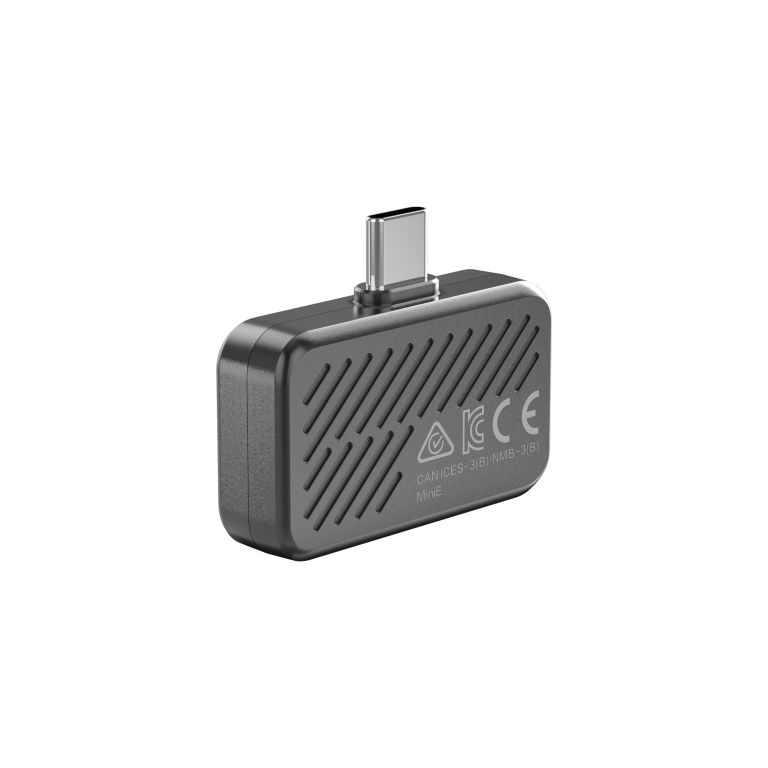

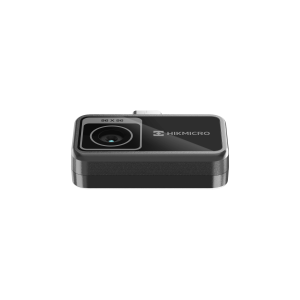

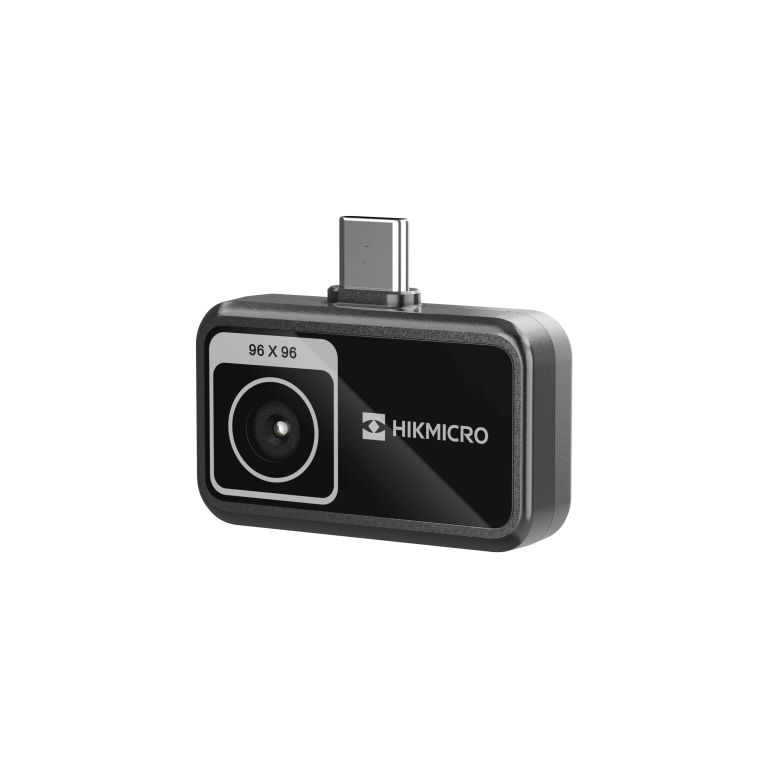

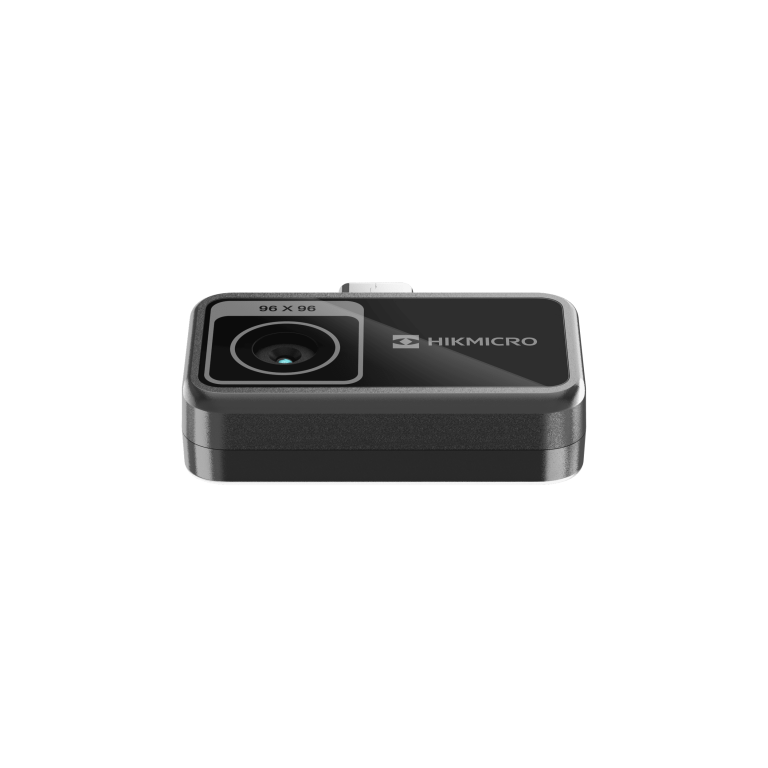

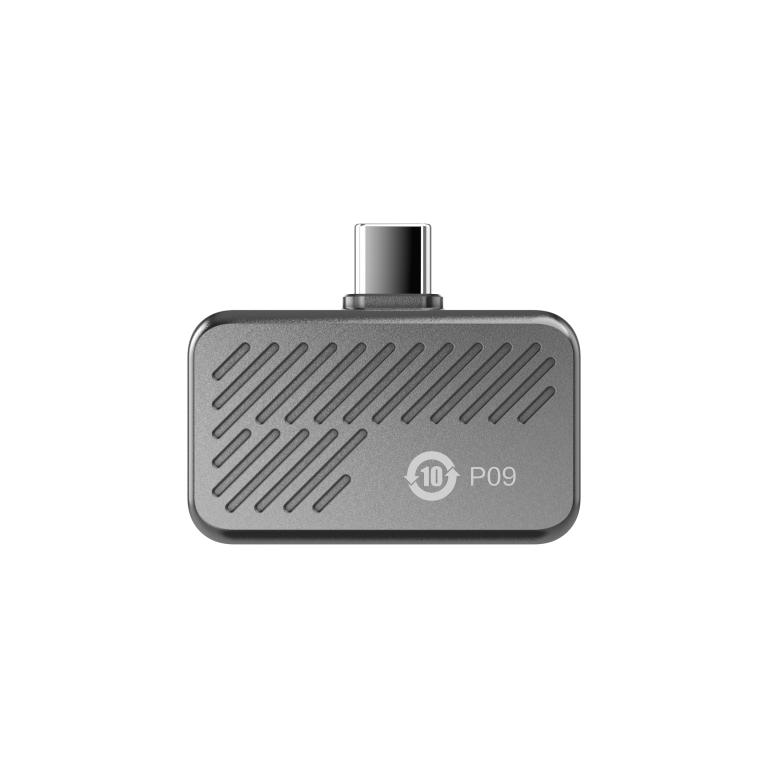

Made in China. brand HIKMICRO, model MiniE
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 104 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

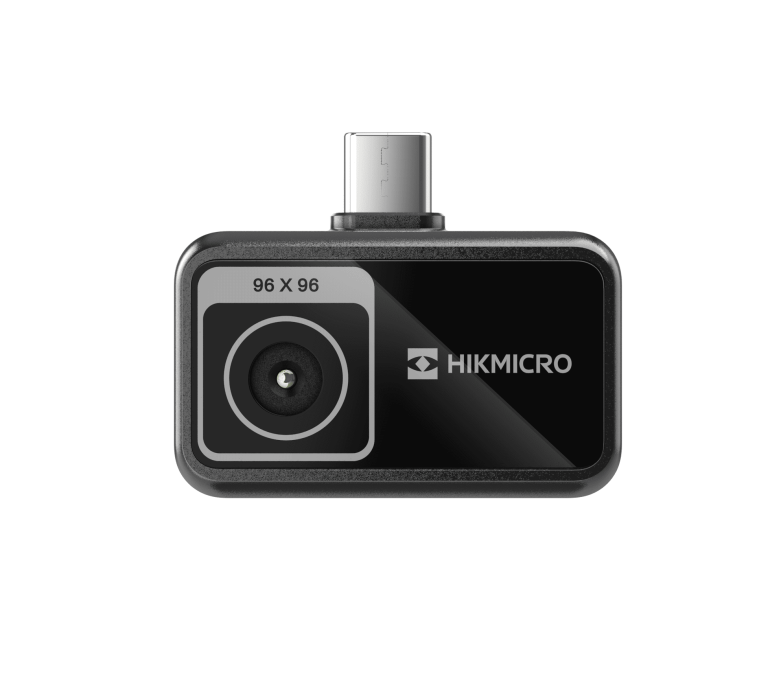

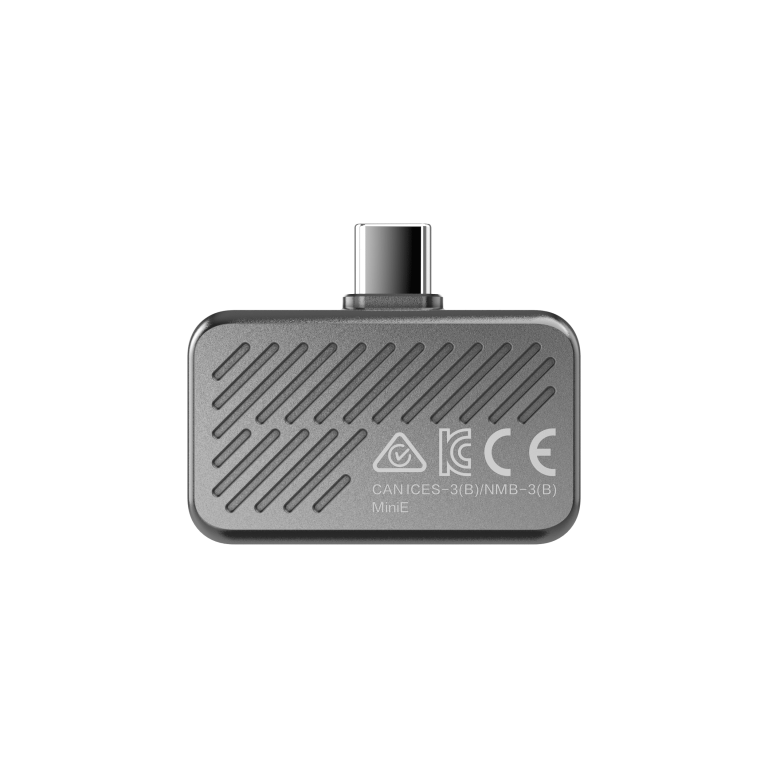

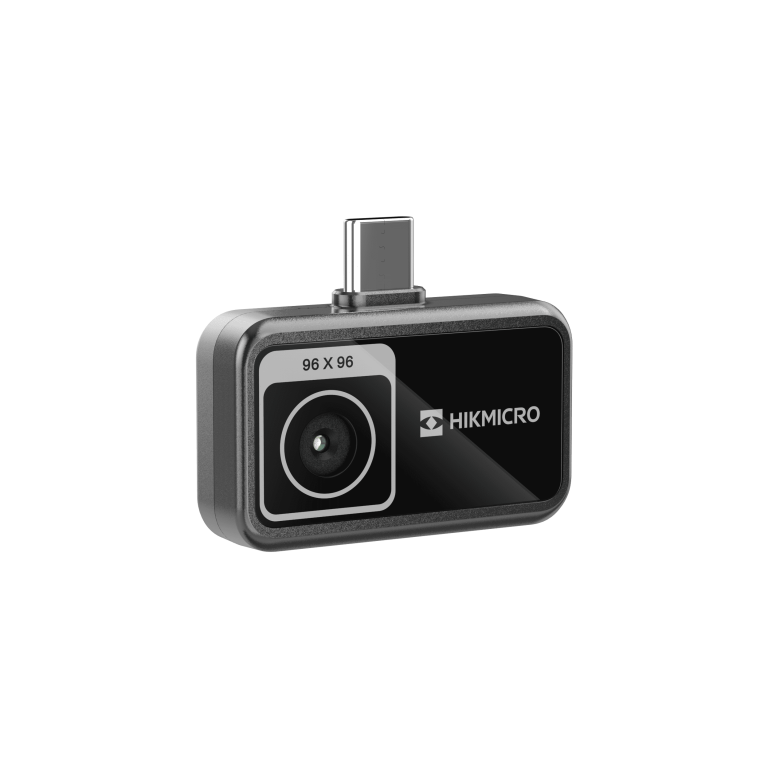

MiniE is your affordable solution for home inspection and thermal troubleshooting. With its advanced features like SuperIR image enhancement and precise temperature readings, identifying problem areas and making informed decisions have never been easier. Customize your image effects with the support of a custom palette. Plus, its compatibility with both iOS and Android devices makes it a convenient and reliable tool for thermal imaging. Whether you’re a homeowner or a DIY enthusiast, the MiniE is the versatile smartphone thermal camera that will assist you in all your thermal imaging needs.
Premium Performance, Small Package – Explore your world in thermal with high accuracy
Type-C Port & Lightning Port – HIKIMICRO MiniE infrared phone thermal imager is compatible with the latest iPhone 15/16 series and Android devices. Equipped with Lightning to Type-C adapter suitable for iPhone14 and earlier models.
Super Clear Thermal Image – The camera features a highly sensitive (NETD < 50 mK) VOx detector with a resolution of 96 x 96 (92,16) pixels, along with advanced HIKMICRO SuperIR image enhancement technology for real-time image enhancement, noise reduction, and improved edge details.
Accurate Temperature Measurements – MiniE accurately measures temperatures from -20°C (-4°F) to 400°C (752°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.
Ready for any job or just for fun – Small, easy to carry, and ready 24/7 for almost anything
Mini Size – At just 41.56 × 34.03 × 10.79 mm (1.64 × 1.34 × 0.42 in) and weighing only 20 g (0.71oz), HIKMICRO MiniE thermal imager will fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
Battery-free – HIKIMICRO MiniE is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
Auto & Manual Rotation – Enjoy the flexibility of both automatic and manual image rotation with HIKMICRO MiniE. Whether you’re capturing thermal images in landscape or portrait mode, the thermal imaging camera intelligently adjusts the display for optimal viewing.
MiniE- Connecting with you
Adjustable Image Settings – Create your desired image effect with HIKMICRO MiniE thermal imager
Different Color Palettes & Image Modes – HIKMICRO MiniE with PIP mode, Custom Palettes and 15 Preset Palettes,Video and Image Capture make it easier to work.
Multiple Professional Settings – Providing professional settings allows you to get the best thermal images and temperature readings of different surfaces from HIKMICRO thermal imaging camera.
HIKMICRO VIEWER
HIKMICRO Viewer app allows you to generate reports in the field quickly, customize job site data, adjust measurement settings, add annotations, and share with customers or managers.
Application
The MiniE thermal camera is designed for DIYers and homeowners, eg. cooking, baking, reptile enclosures, DIY projects, home inspection etc., also applied in automotive maintenance, electrical inspection, HAVC maintenance.
| Infrared Image | |
| IR Resolution | 96 × 96 (9,216 pixels) |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Focus Mode | Focus Free |
| SuperIR | Yes, on captured images and live view |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Image Display | |
| Image Modes | Thermal, PIP/td> |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined，Custom Palette |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 150°C (-4°F to 302°F) 100°C to 400°C (212°F to 752°F) |
| Accuracy | Max. (±2°C / ±3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line. |
| Level and Span Mode | Auto / Manual |
| General | |
| Power Consumption | 310 mW |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 20 g (0.044 lb) |

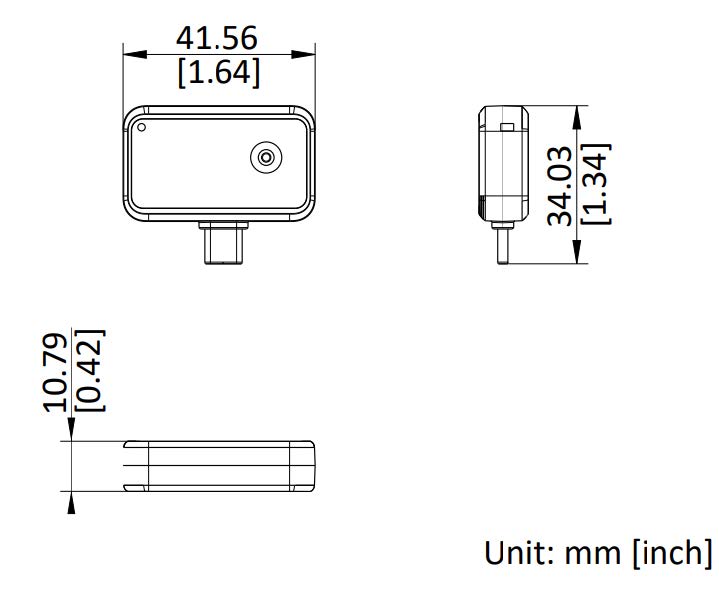

| Dimension | 41.56 × 34.03 × 10.79 mm (1.64 × 1.34 × 0.42 in) |
| Interface | USB-C (Android), USB-C (iOS), Lightning (iOS, includes adapter) |
| Device Compatibility | iOS 14+, Android 7+ smartphones/tablets, Windows devices |
| Software Compatibility | HIKMICRO Viewer app (iOS & Android) |
Model Number: HM-TJ10-1ARF-MiniE
The warranty for the HIKMICRO MiniE thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO MiniE using the special form.
You can buy HIKMICRO MiniE in Latvia at a price starting from 104 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO MiniE price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
