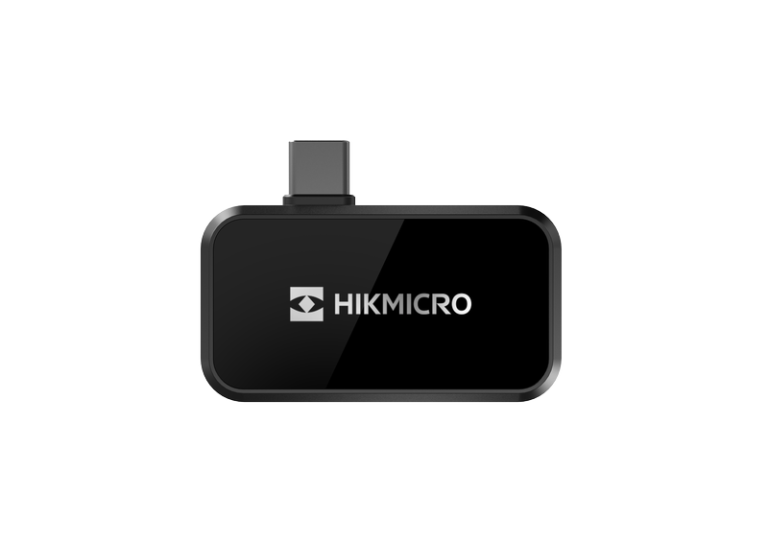

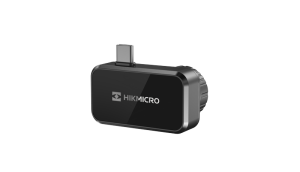

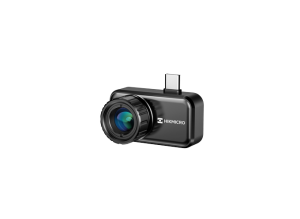

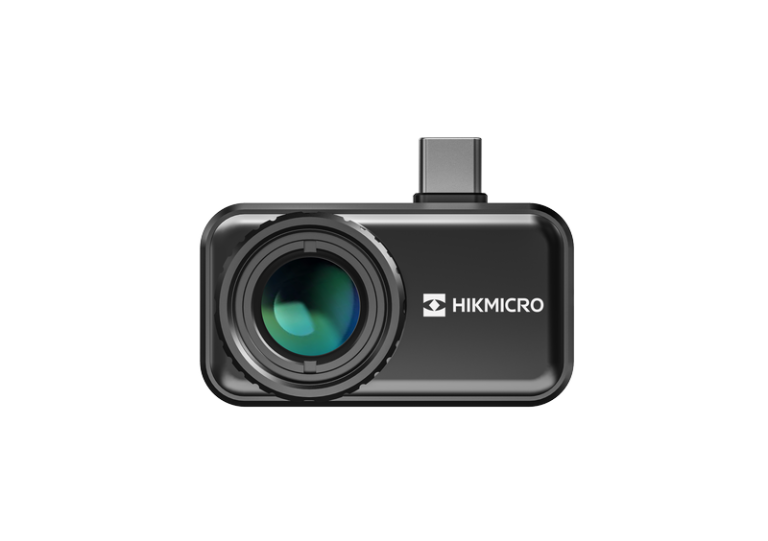

Made in China. brand HIKMICRO, model Mini3
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 900 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

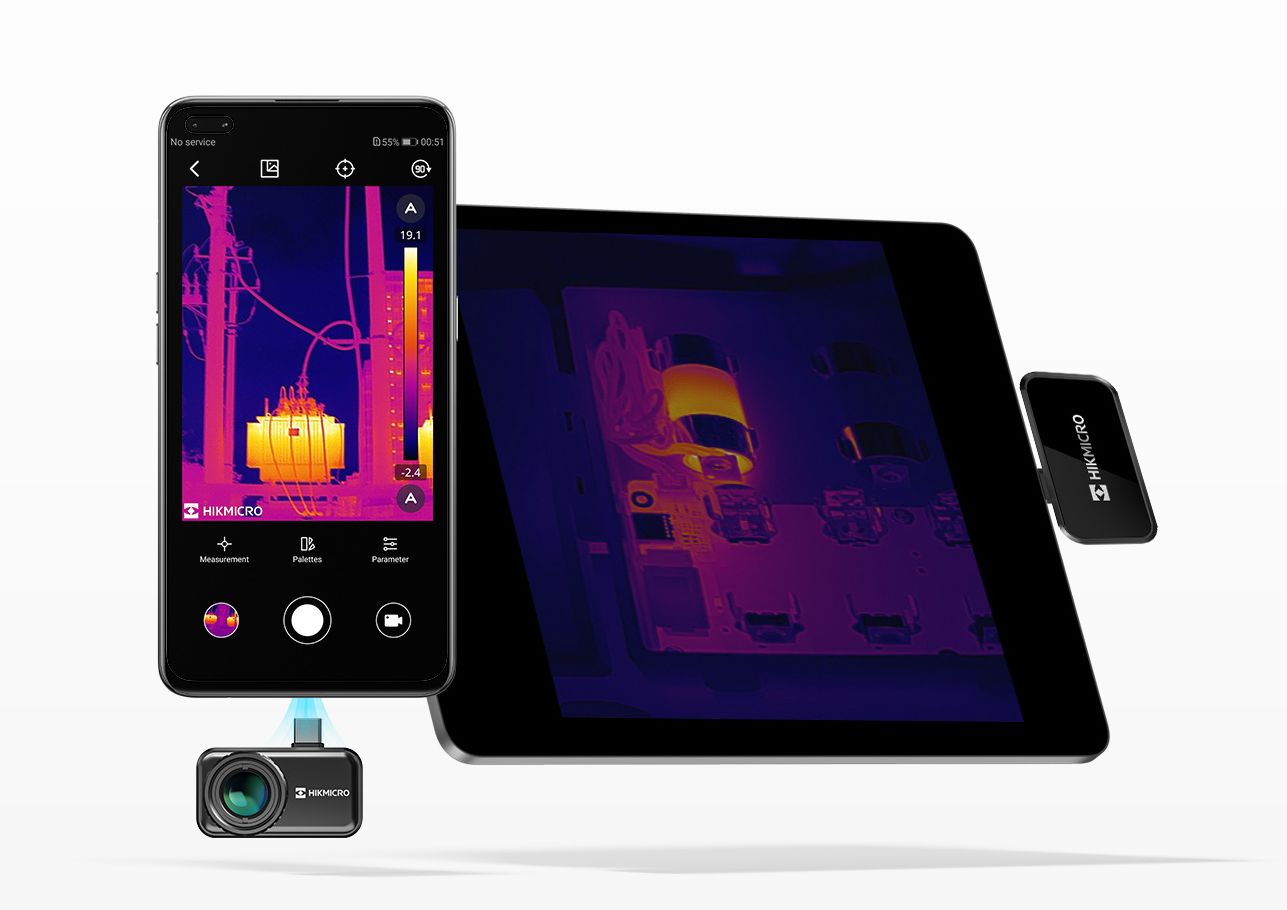

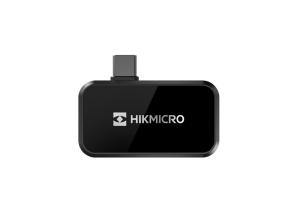

The Smartphone Module is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with functional thermal App for smartphone, the Smartphone Module enables you to get the thermal imaging on your phone.
Premium Performance, Small Package – Explore your world in thermal with high accuracy

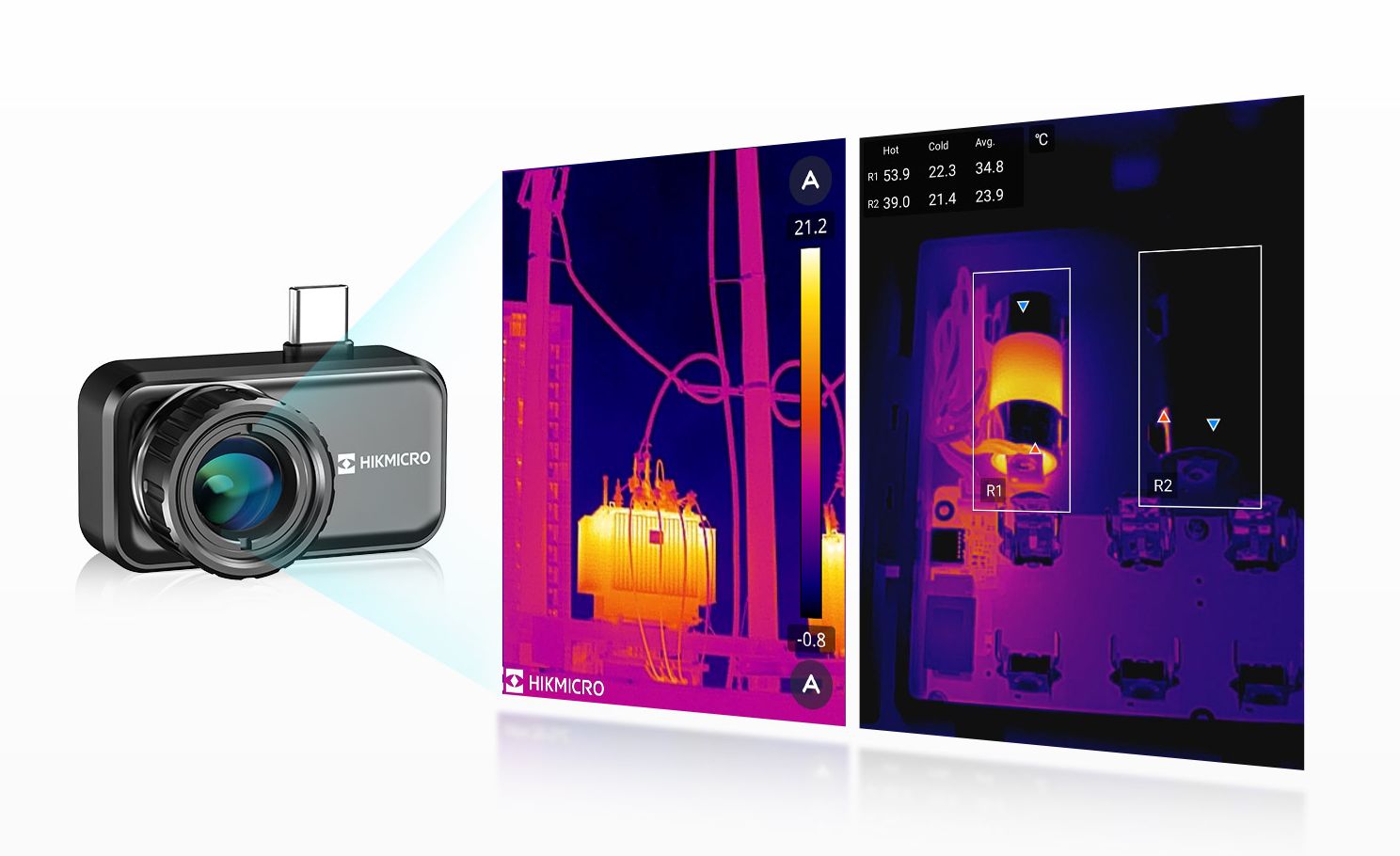

Super Clear Thermal Image – Mini3 features a highly sensitive (NETD < 30 mK) VOx detector with a resolution of up to 384 x 288 (110,592 pixels), along with optimized image enhancement algorithms to provide clear thermal images.

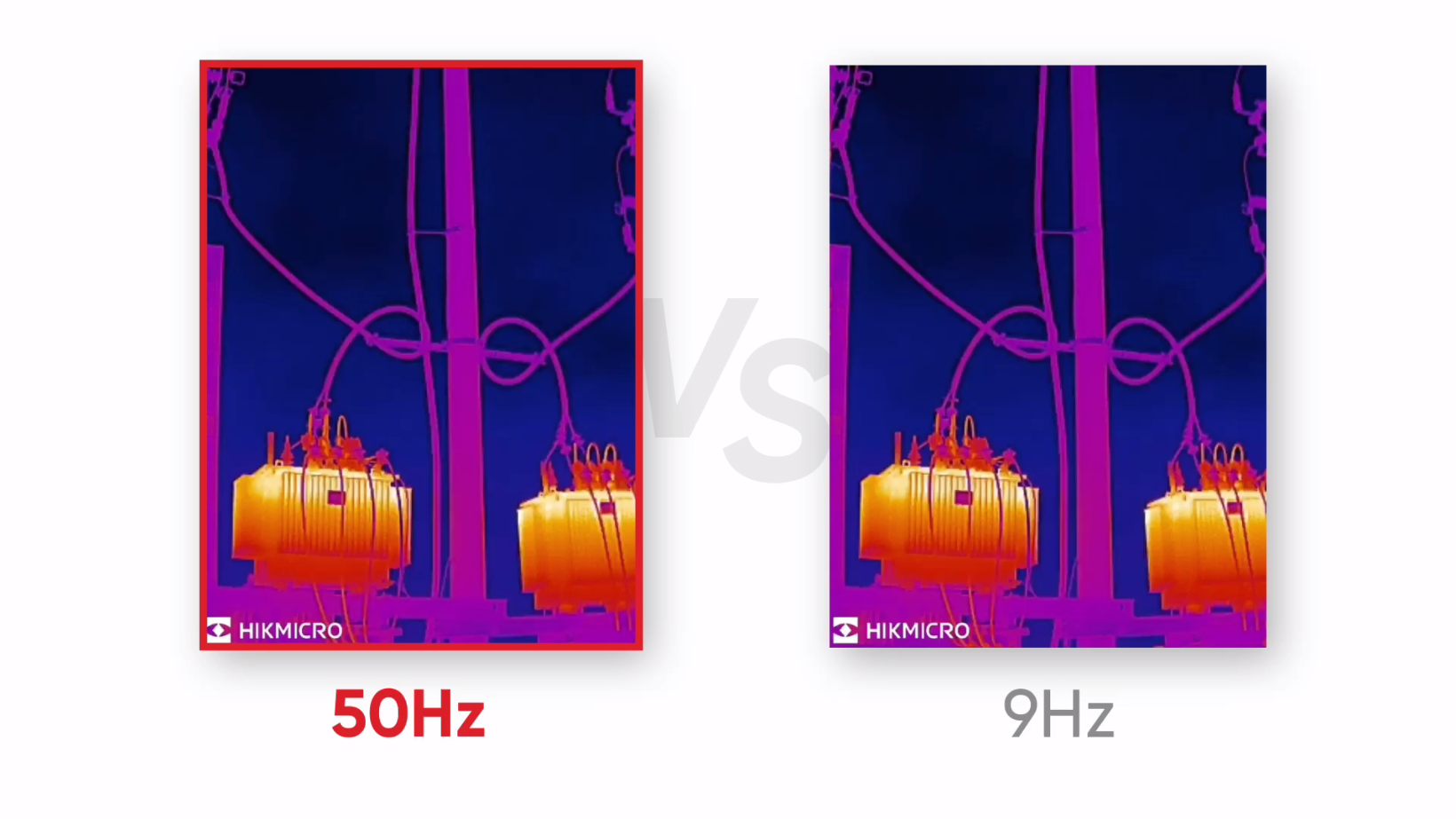

50 Hz Smooth Video – 50 Hz image refresh provides a smooth image and video while panning across scenes or viewing moving items. (Need 8 GB RAM on the mobile devices or more if you want to enable 50Hz)
50 Hz image refresh provides a smooth image and video while panning across scenes or viewing moving items.
Accurate Temperature Measurements – Mini3 accurately measures temperatures from -20°C (-4°F) to 650°C (1202°F), with a temperature accuracy up to ±2°C (±0.5°F) / ± 2%.

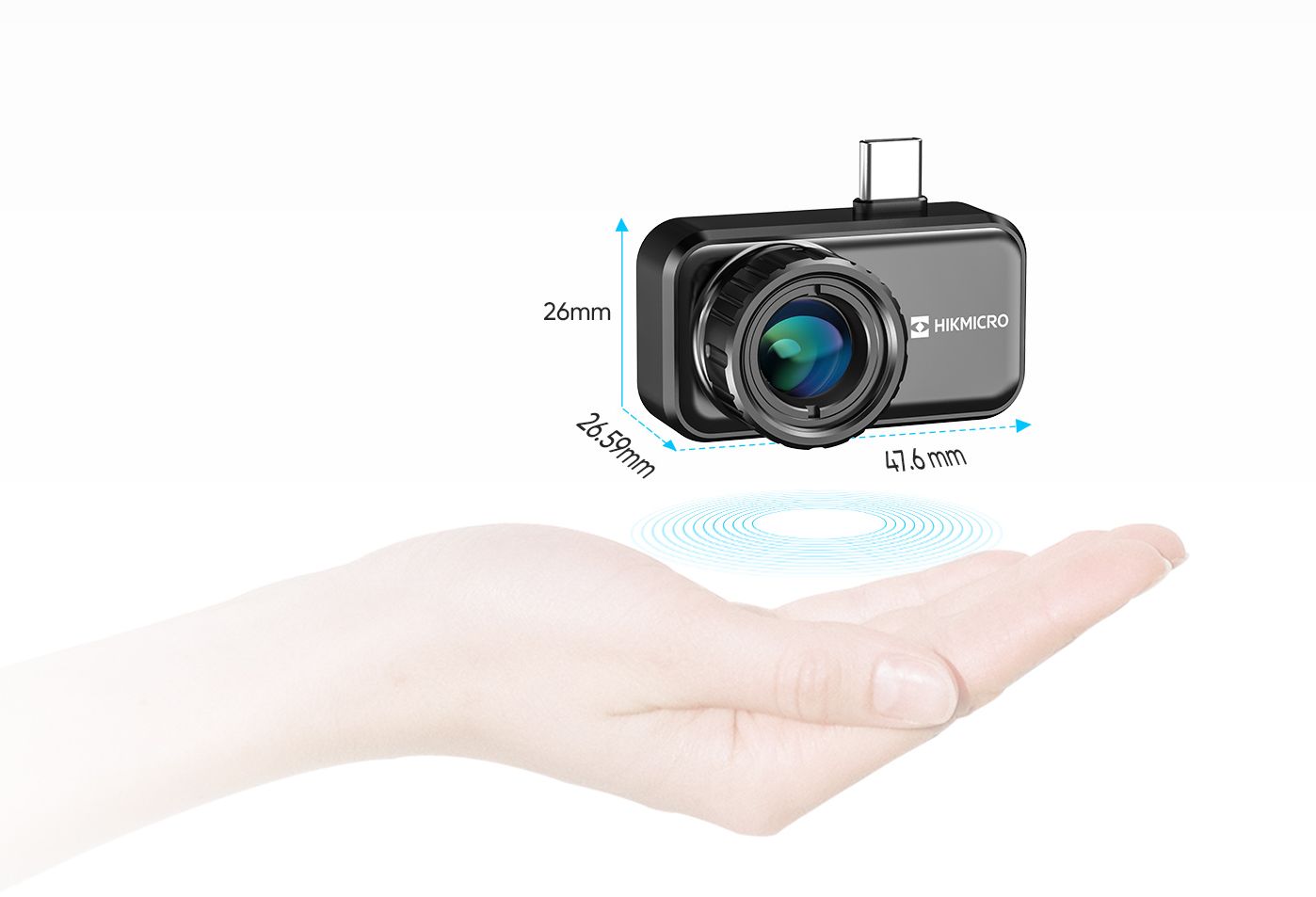

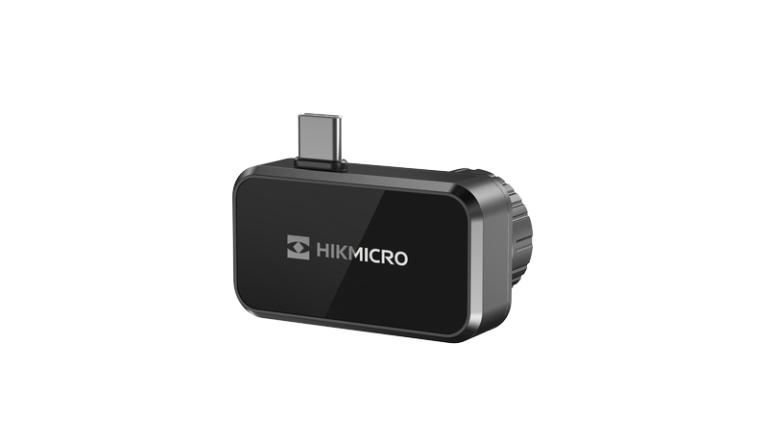

Mini Size – At just 47.6 × 26 × 26.59 mm (1.87 × 1.02 × 1.05 in) and weighing only 45 g (1.59 oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
Ready for any job or just for fun – Small, easy to carry, and ready 24/7 for almost anything
Plug and Play – Instantly attaches to your Android smartphone or tablet and is ready to go in seconds.
Battery-free – Mini3 is battery free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
Durable and Rugged – Designed for where you work, live or relax, the Mini3 features IP40-rated aluminum alloy housings, passes strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.

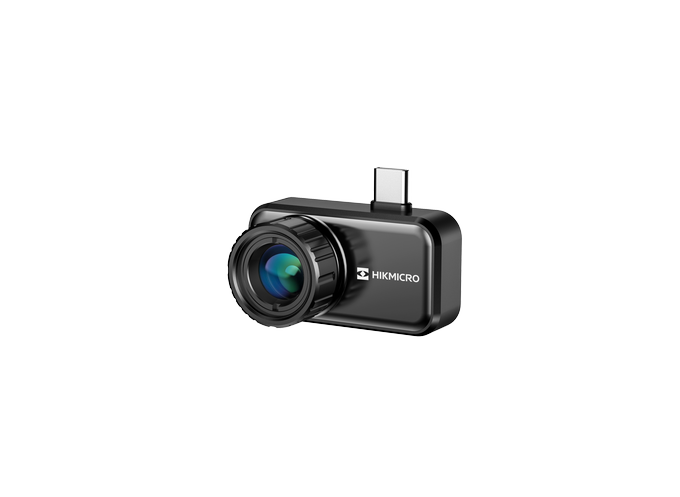

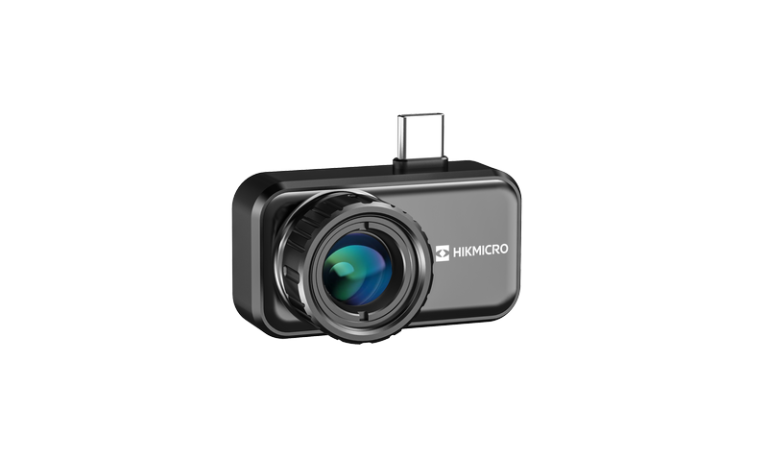

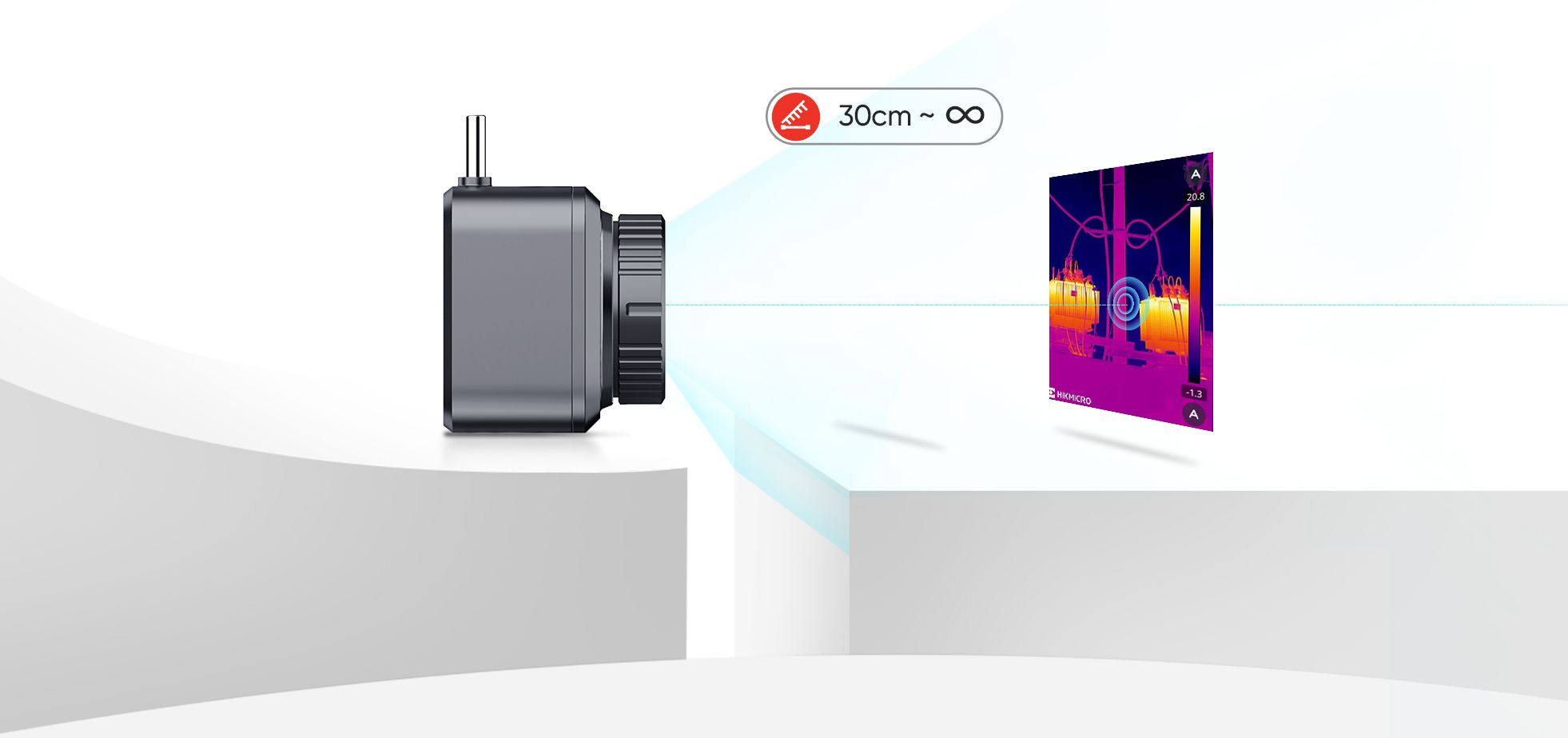

Manual Focus – Mini3 is equipped with a manual focus lens for inspection at various distances from 30 cm (0.98 ft) to infinity. Viewing small objects like electronic components, or viewing more distant objects like electrical or mechanical equipment that require a safe distance.

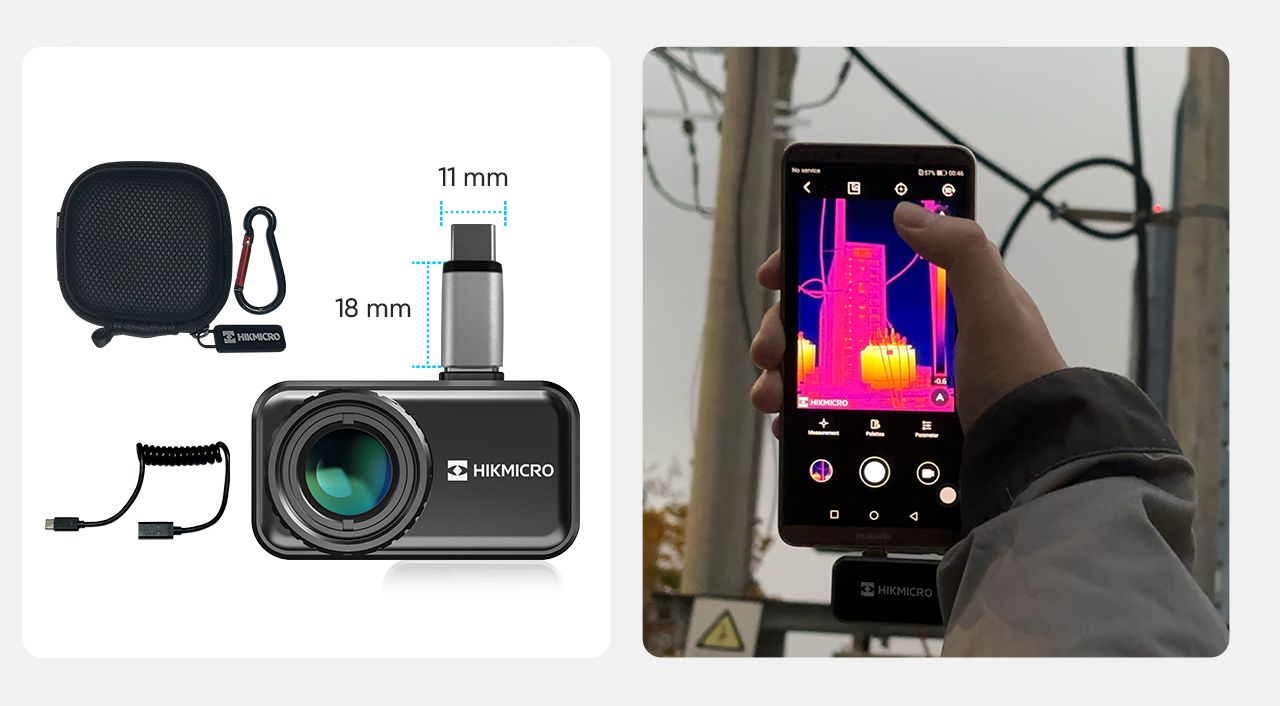

Essential Accessories Included – A 40 cm (15.75 in) extending cord connects between your device and the camera allowing remote viewing, and inspection through narrow, confined openings, or difficult-to-reach places. Also included is an 18 mm extended connector to accommodate smartphones or tablets in a protective case. A storage case is provided for storing your camera.

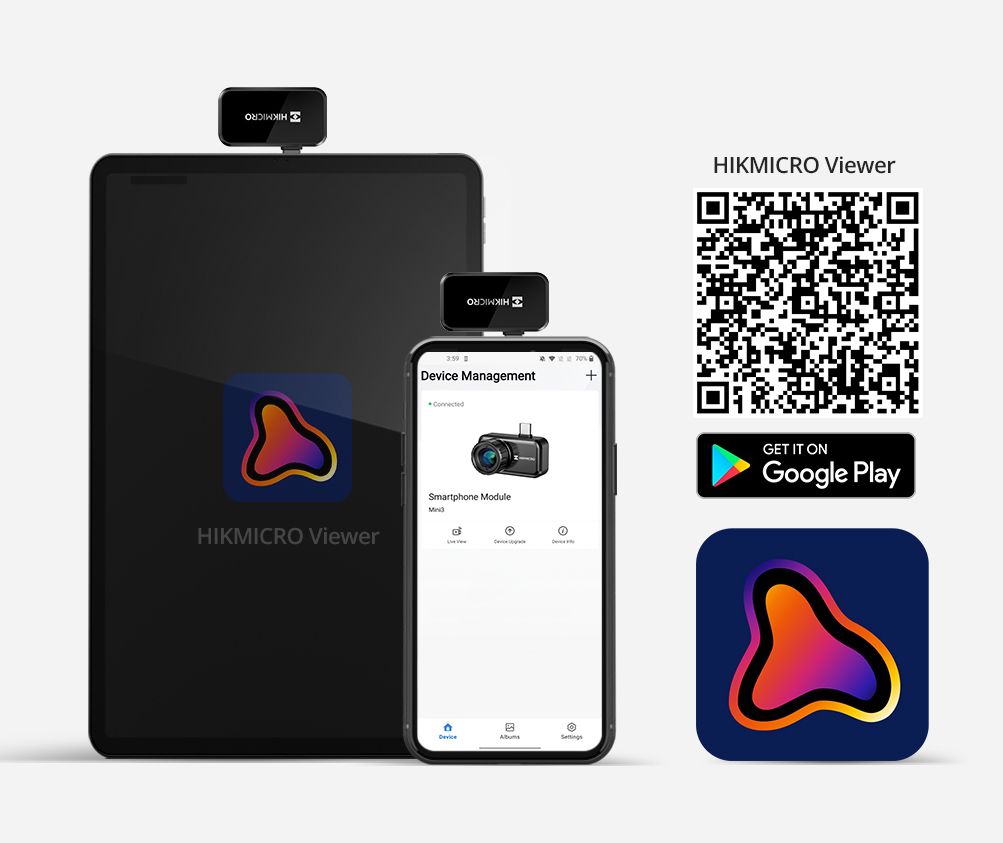

Mini Series APP for smartphone or tablet – Mini3 is compatible with our free HIKMICRO Viewer for smartphones providing a user-friendly user interface and the link to operating the camera.

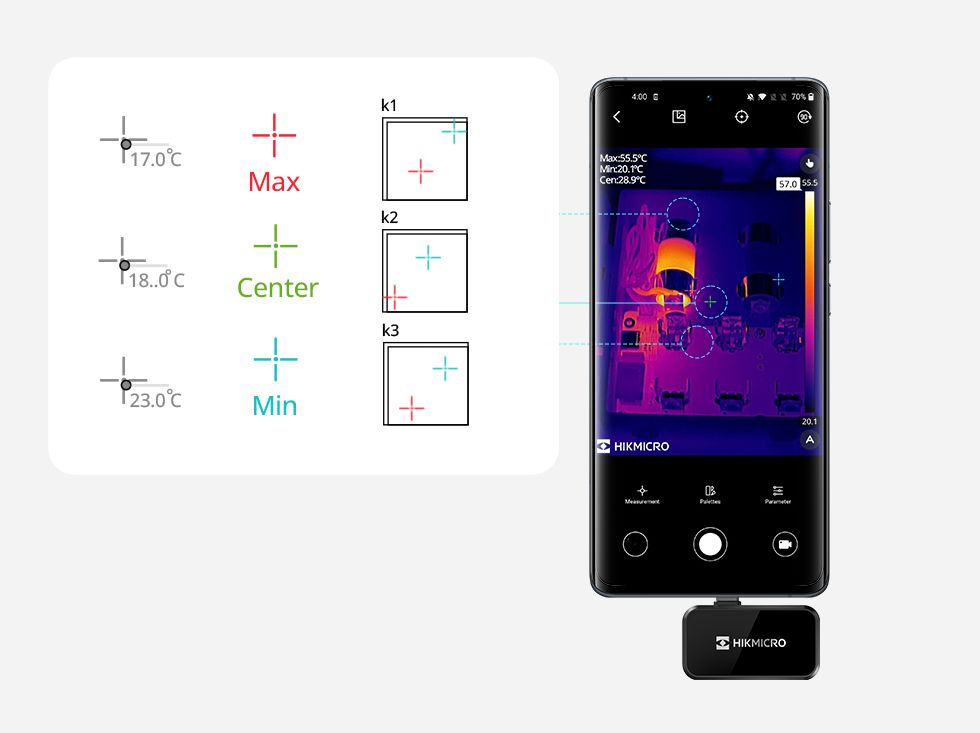

Quick Temperature Measurement – Full screen measurement: Center Spot, Hot Spot, Cold Spot, 3 Custom Spots and 3 Areas.

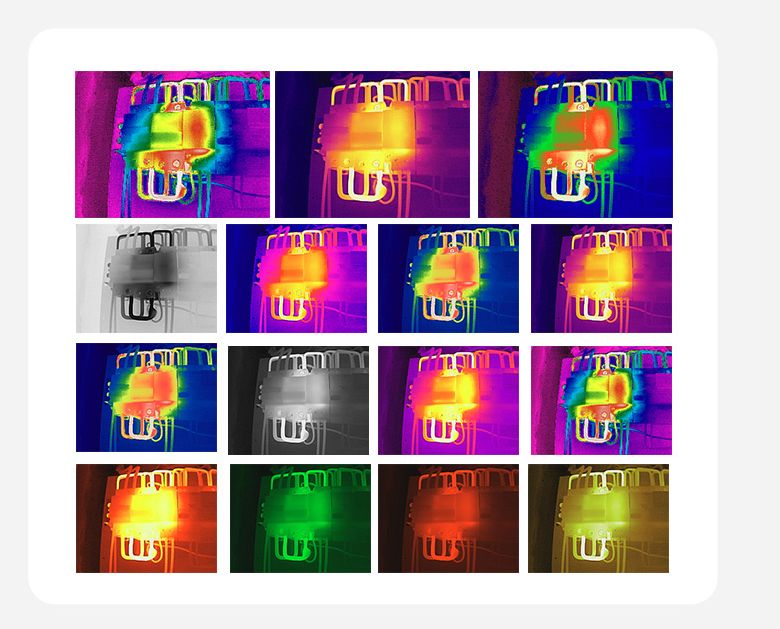

15 Different Color Palettes – Find invisible problems more easily.

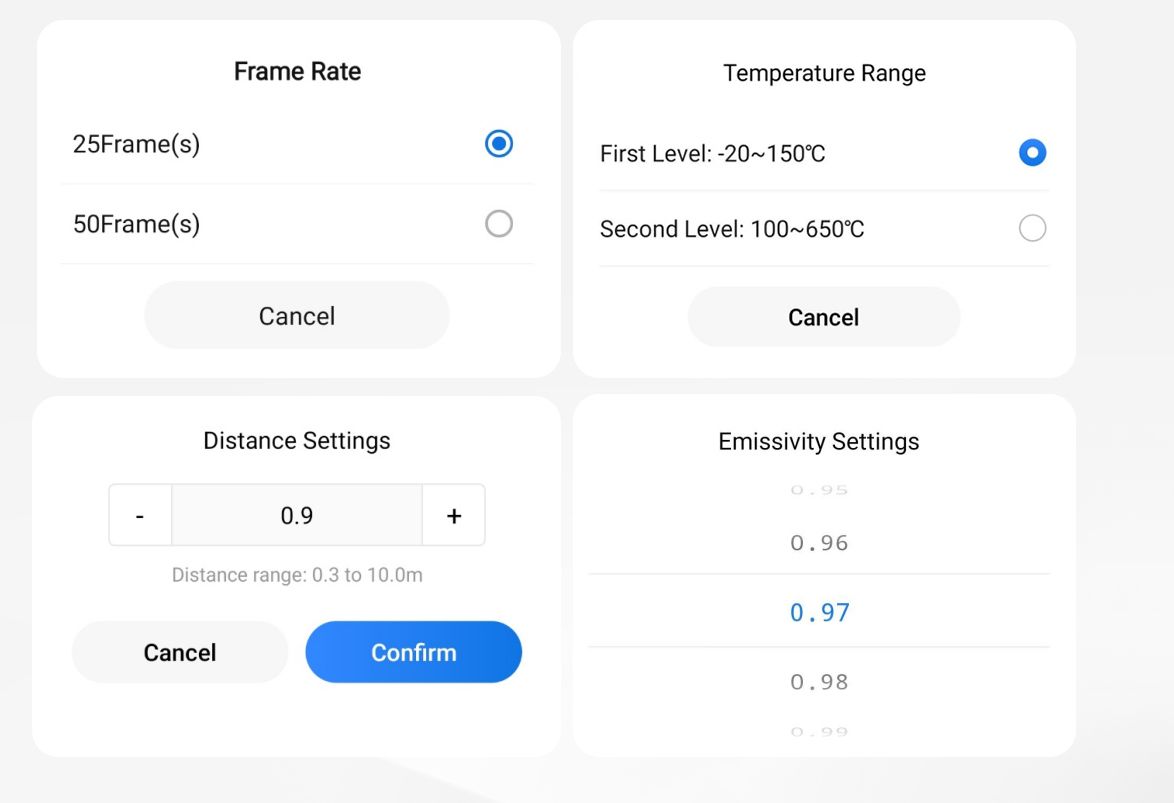

Multiple Professional Settings – Providing professional settings like emissivity/distance/range of your thermal camera allows you to get the best thermal imaging images and temperature readings of different surfaces.

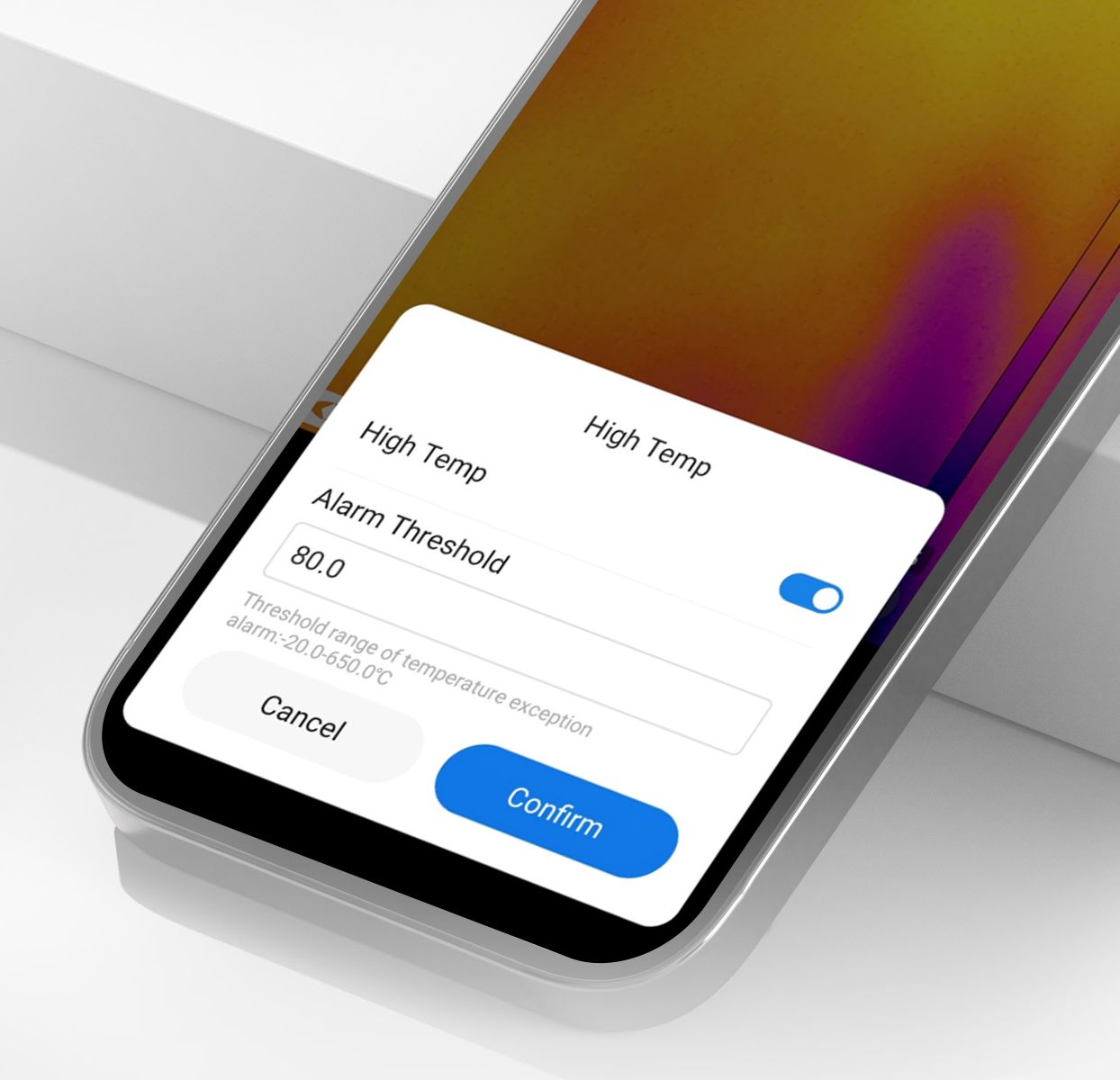

High Temperature Alarm – Give the operator audio and visual alerts to high temperatures. Instant notification when the temperature exceeds the preset alarm level.
Application Scenarios
Introduction video
| Infrared Image | |
| IR Resolution | 384×288 (110,592 pixels) |
| NETD | ≤35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25Hz / 50Hz (Requires 8 GB RAM or more on mobile device for 50Hz) |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 10 mm |
| F-number | F1.0 |
| Field of View (FOV) | 26° × 19° |
| Focus Mode | Manual Focus |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Image Display | |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 150°C (-4°F to 302°F) 100°C to 650°C (212°F to 1202°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, and 3 rectangles. |
| Level and Span Mode | Auto/Manual |
| General | |
| Power Consumption | 550 mW |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 45 g (0.099 lb) |
| Dimension | 47.6 × 26 × 26.59 mm (1.87 × 1.02 × 1.05 in) |
| Interface | USB-C |
The warranty for the HIKMICRO Mini3 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Mini3 using the special form.
You can buy HIKMICRO Mini3 in Latvia at a price starting from 900 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Mini3 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
