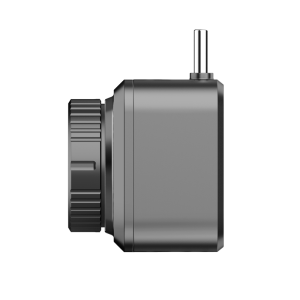

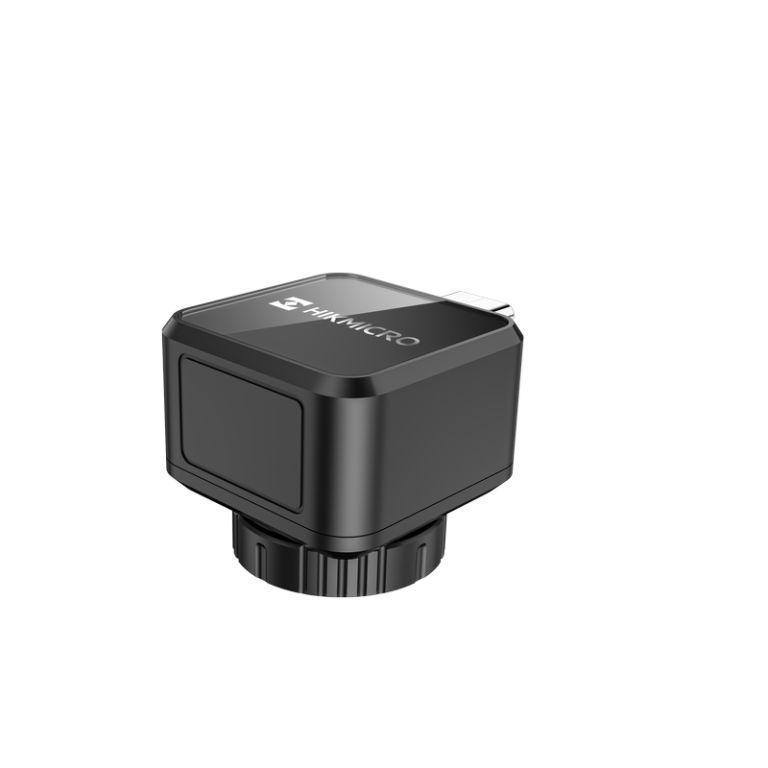

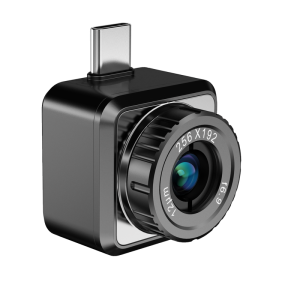

HIKMICRO Mini2Plus V2 Thermal Imaging Camera for Android and Iphone USB-C Phone 256×192 -20°C to 400°C IP40

Description of HIKMICRO Mini2Plus V2

The Mini2Plus V2 is a versatile smartphone thermal camera with manual focus for inspecting homes and troubleshooting HVAC problems. It offers high thermal resolution, SuperIR image enhancement, and accurate temperature readings. Compatible with iOS and Android devices, it’s a convenient and reliable tool for thermal imaging.

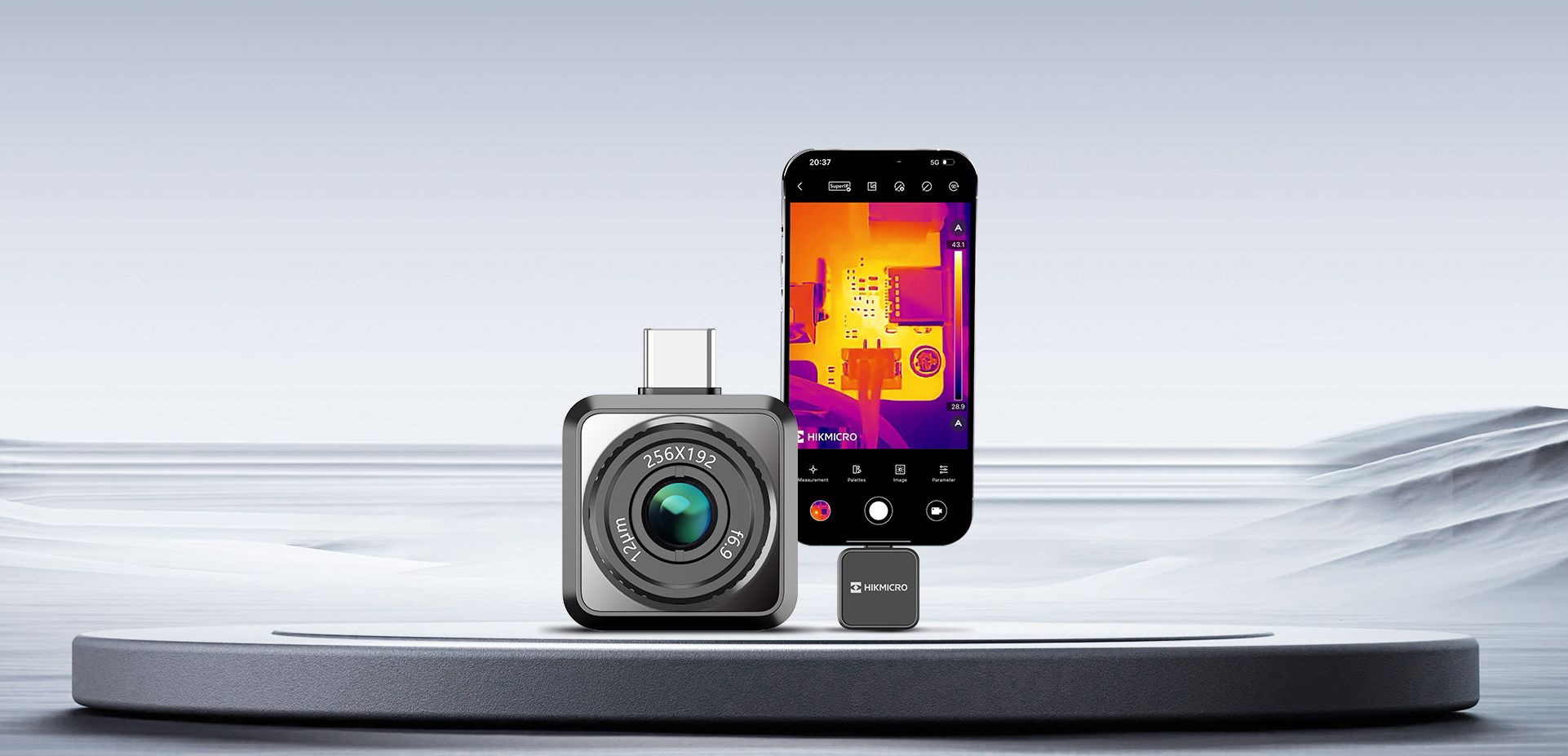

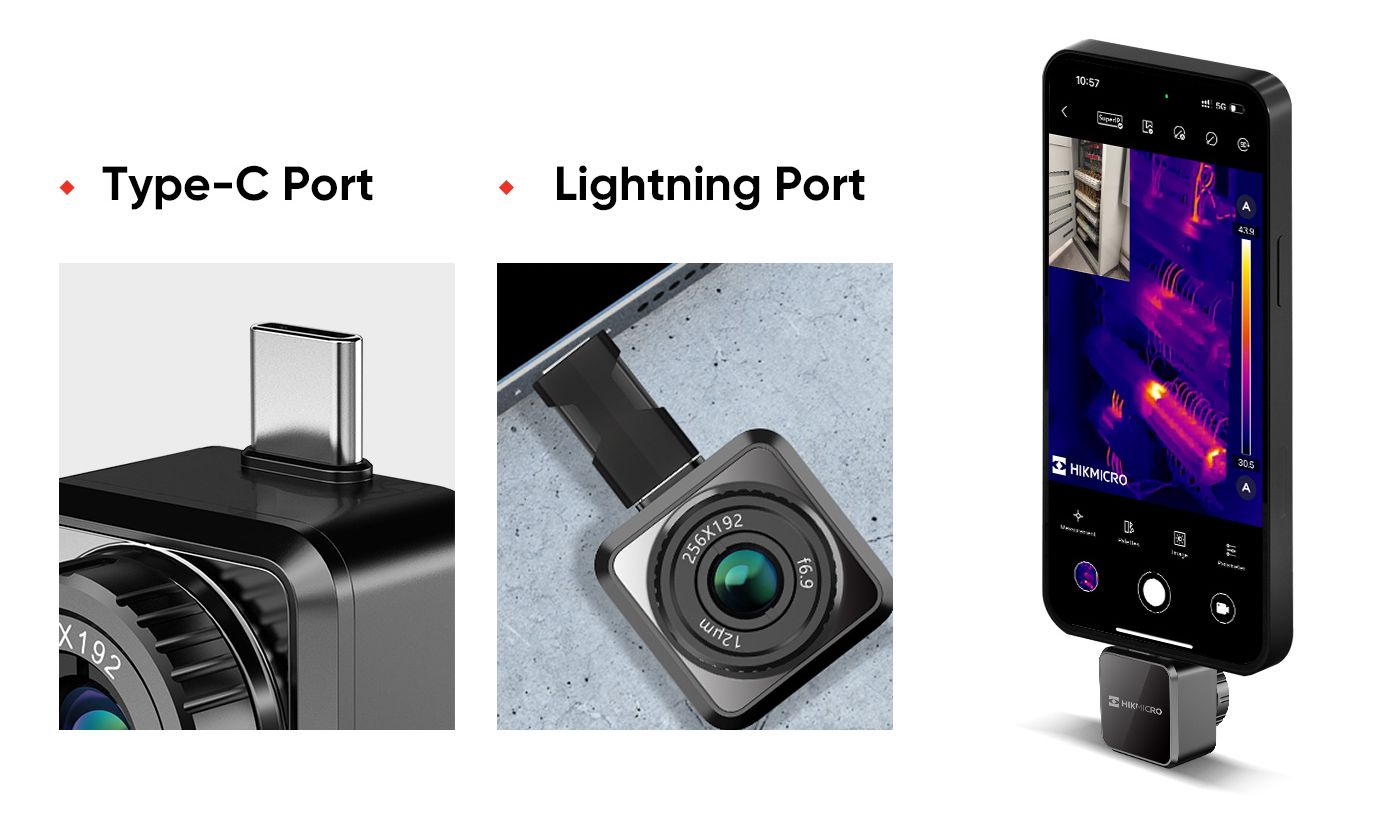

Type-C Port & Lightning Port – HIKIMICRO Mini2Plus V2 compatible with the latest iPhone15 series and Android devices. Equipped with Lightning to Type-C adapter suitable for iPhone14 and earlier models.

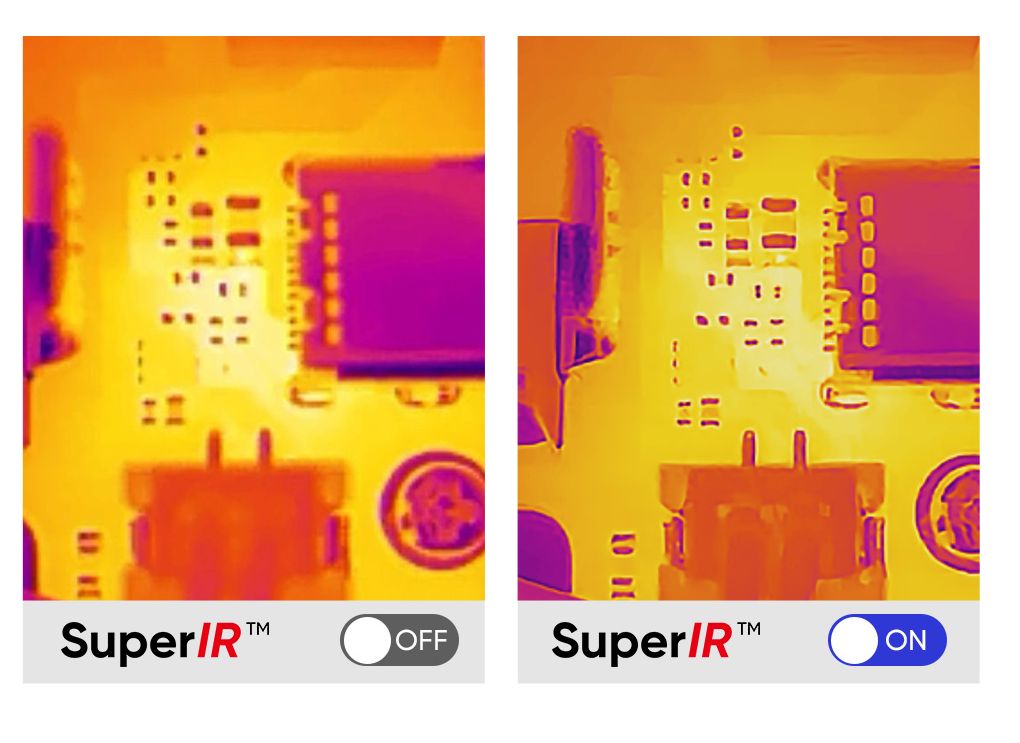

Super Clear Thermal Image – HIKIMICRO Mini2Plus V2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

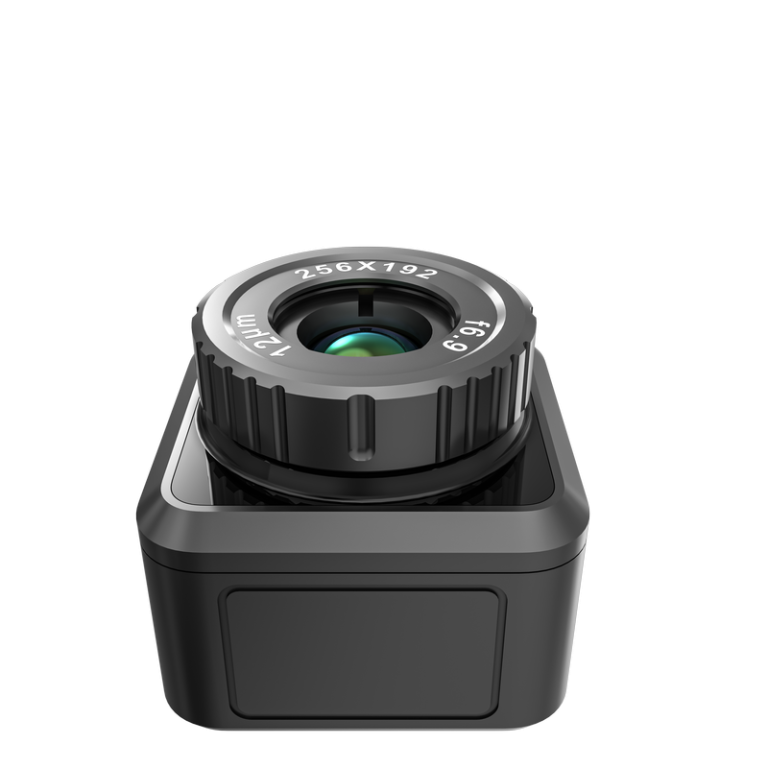

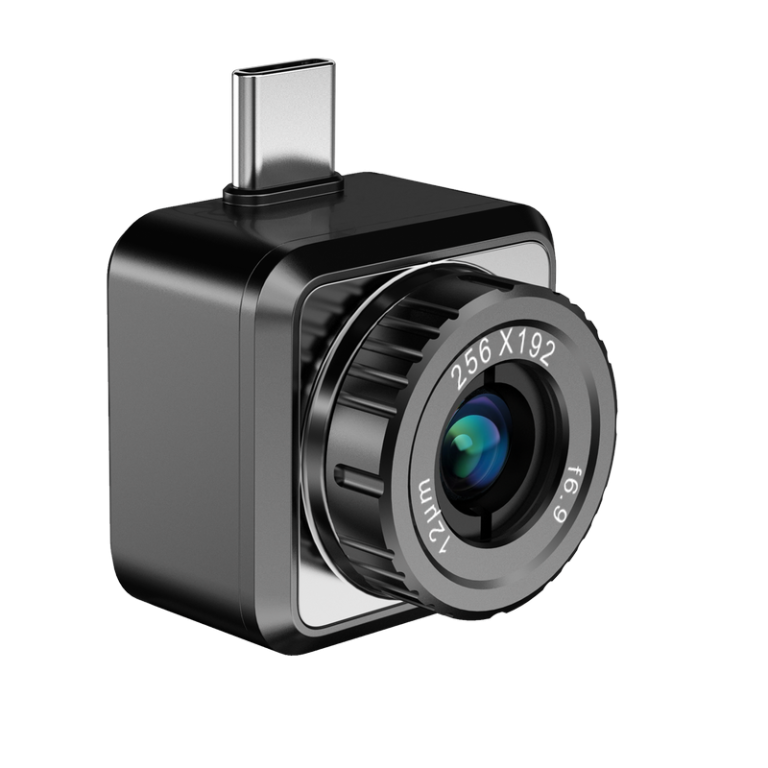

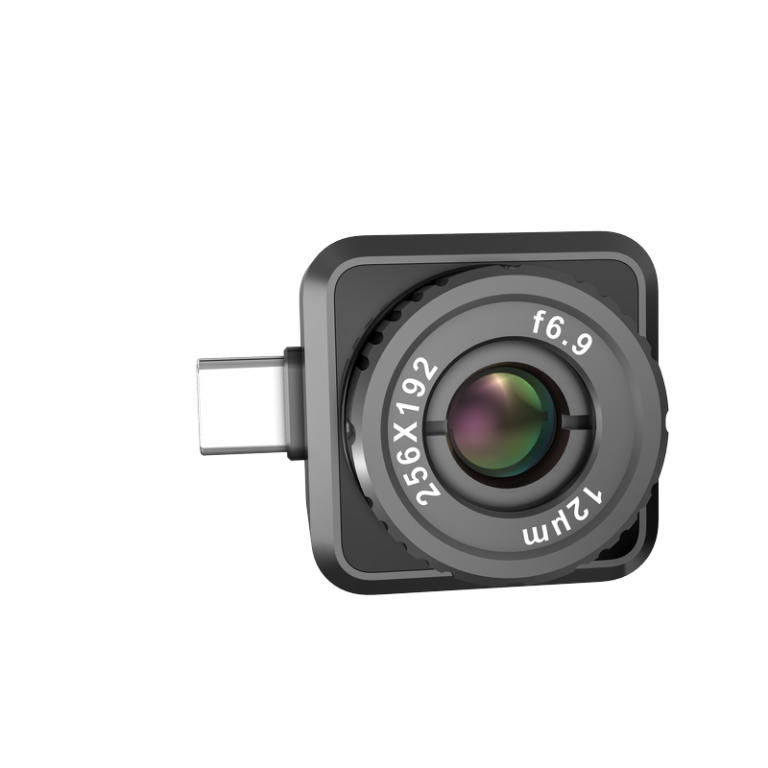

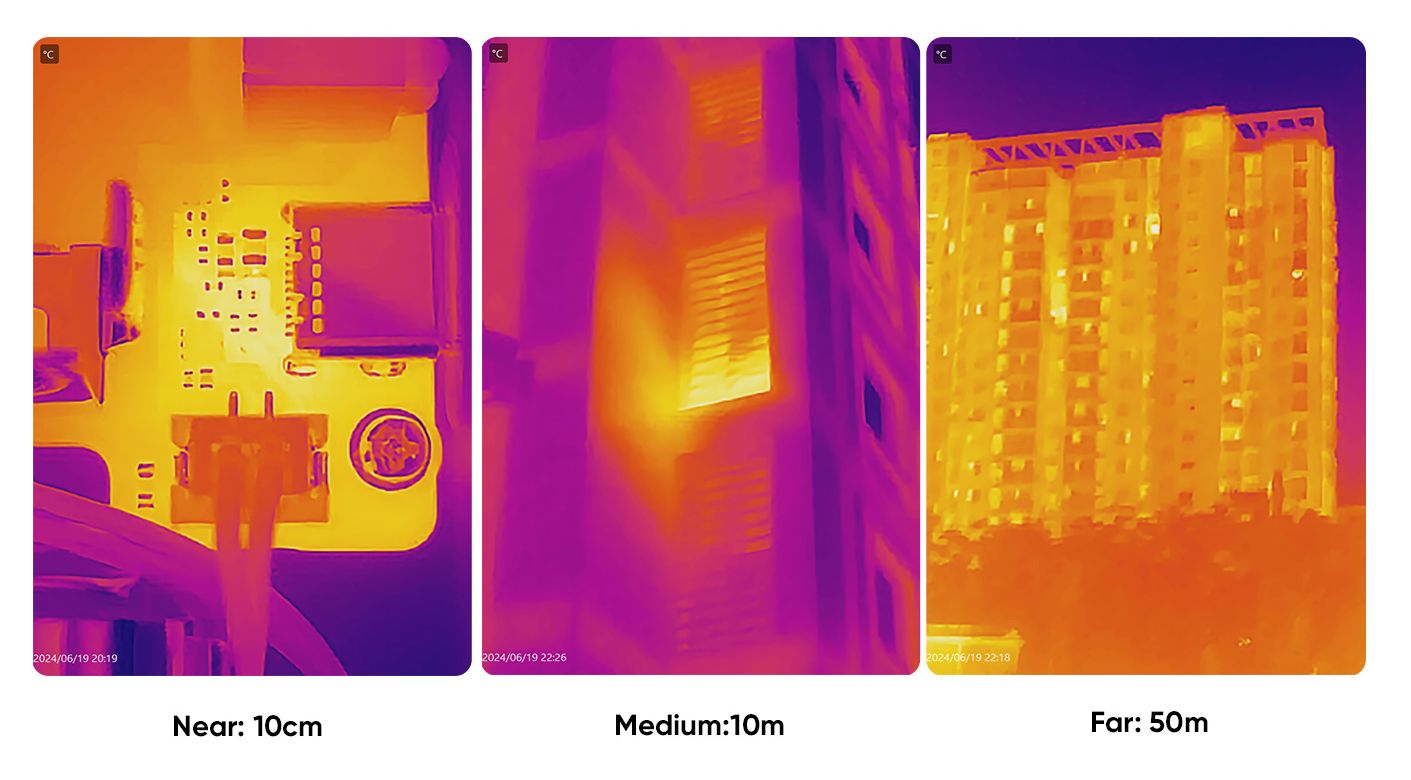

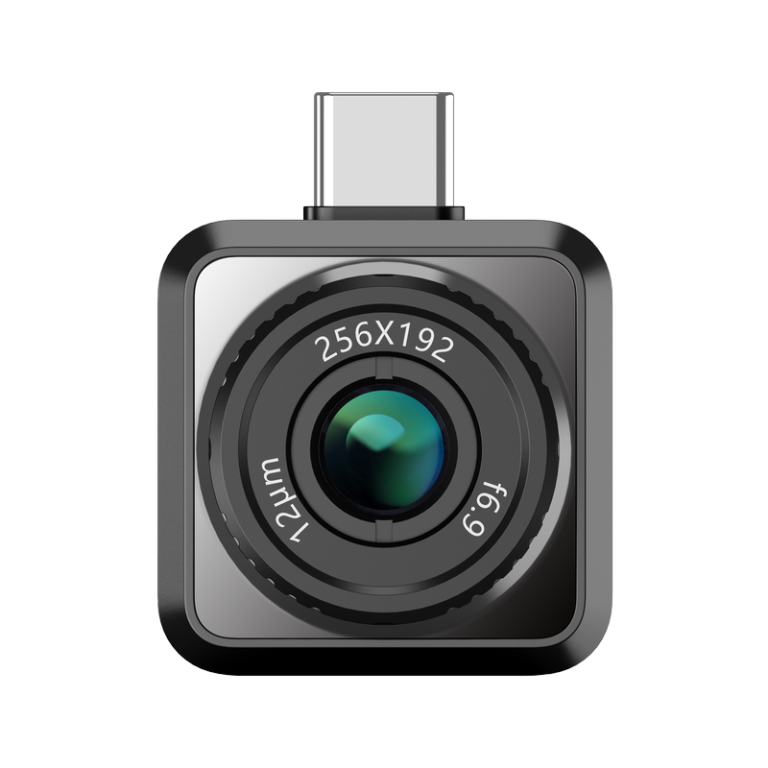

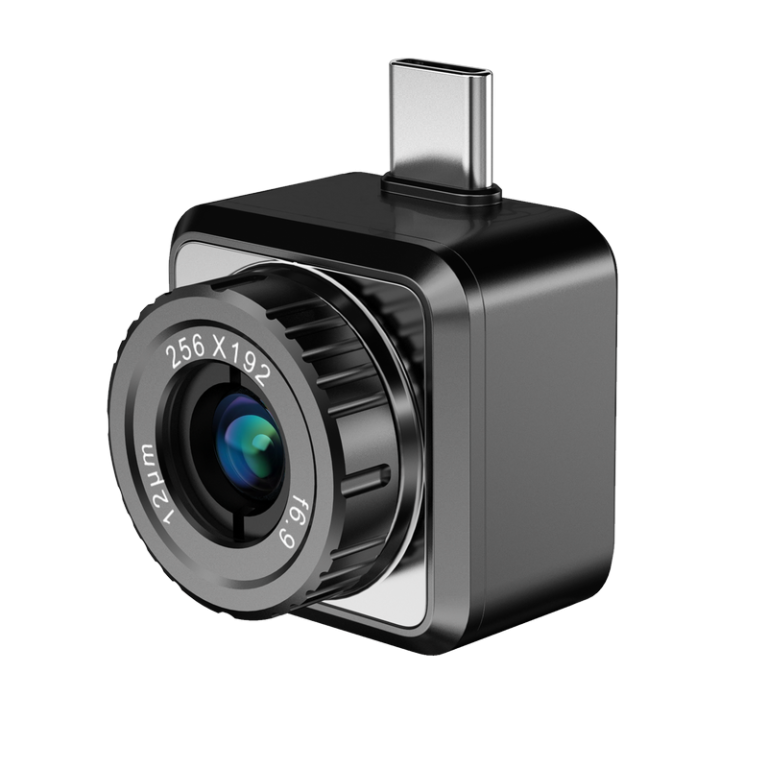

Manual Focus – Equipped with a manual focus lens for inspection at various distances from 10 cm (0.23 ft) to 50 m (164 ft). Viewing small objects like electronic components as small as 0.5 mm, or viewing more distant objects like electrical or mechanical equipment that require a safe distance.

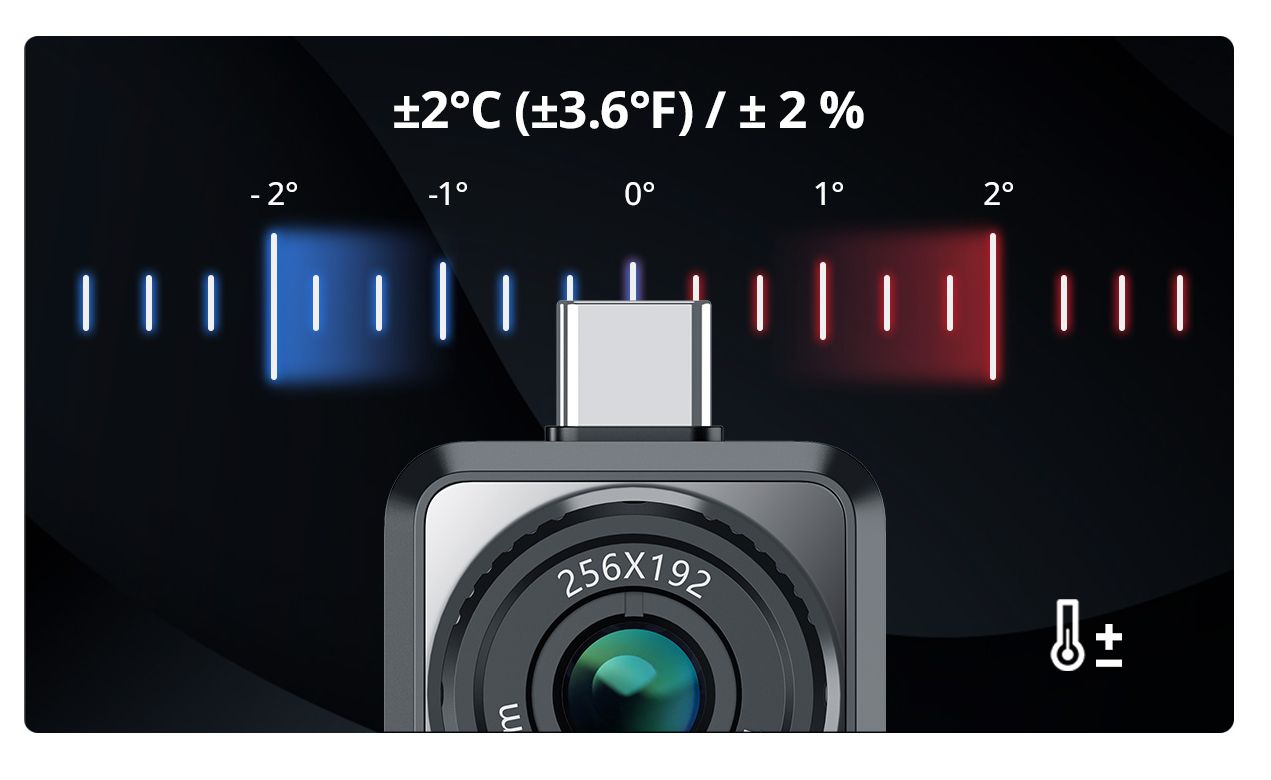

Accurate Temperature Measurements – Mini2Plus V2 accurately measures temperatures from -20°C (-4°F) to 400°C (752°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.

Ready for any job or just for fun – Small, easy to carry, and ready 24/7 for almost anything

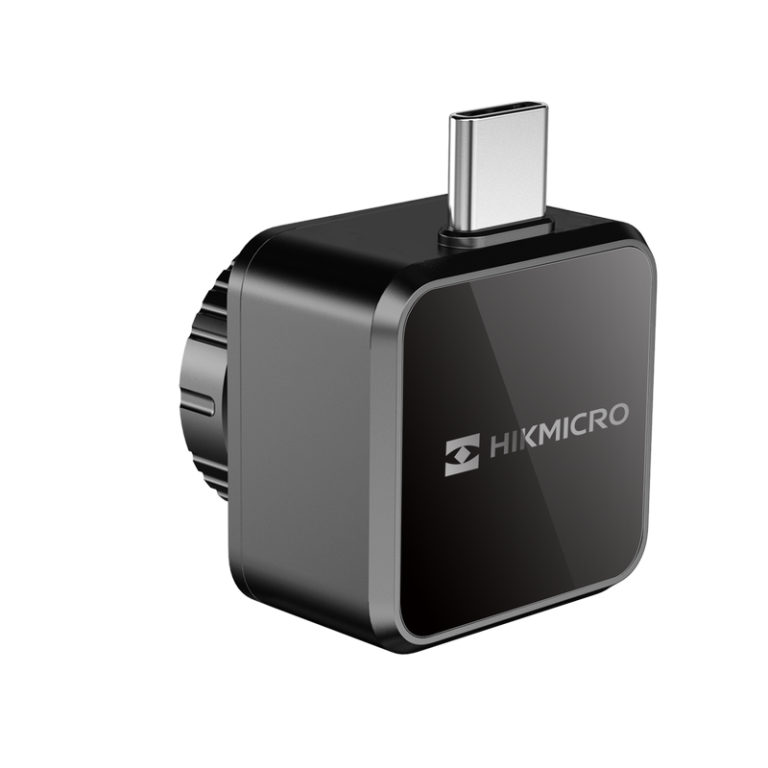

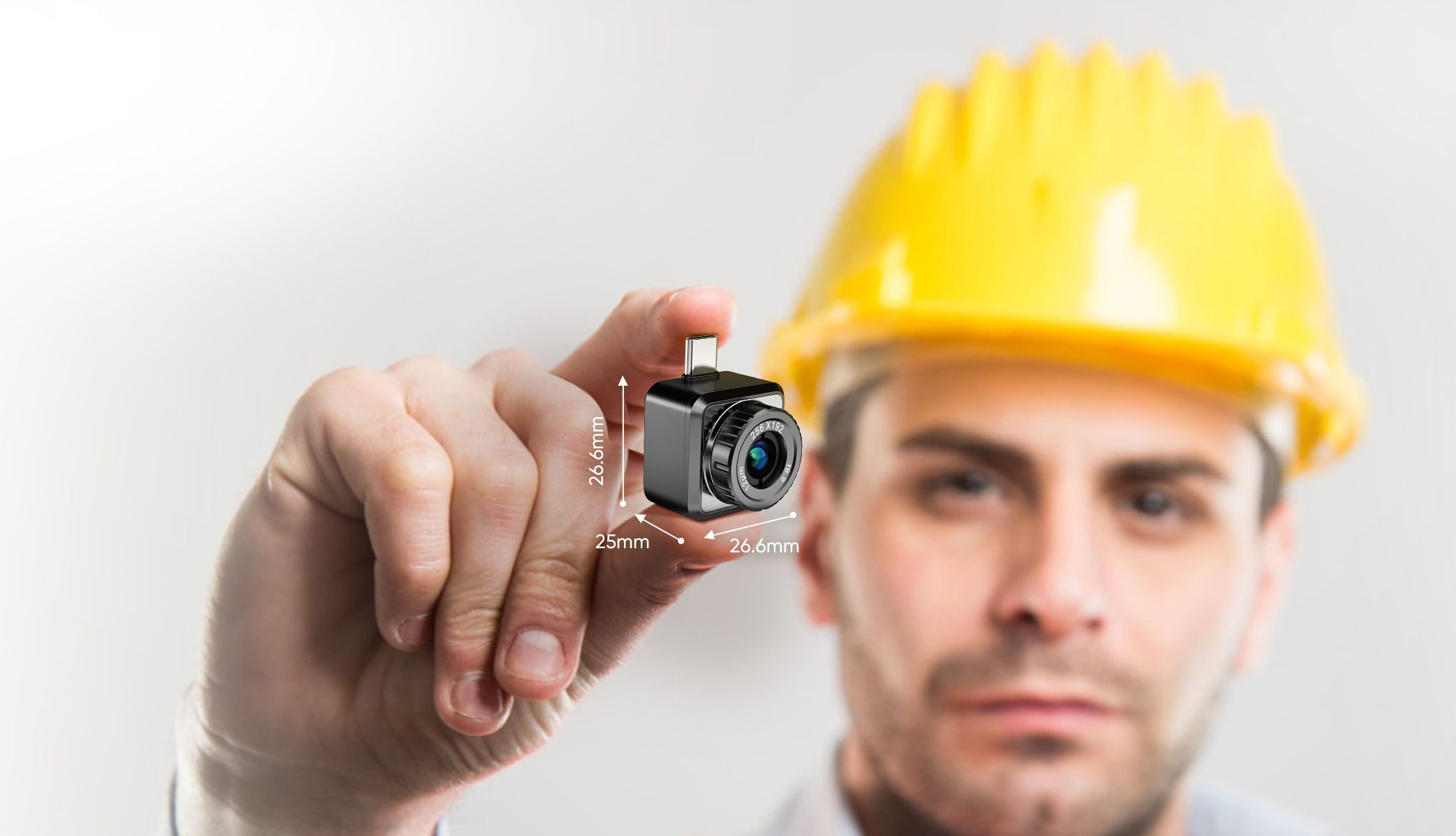

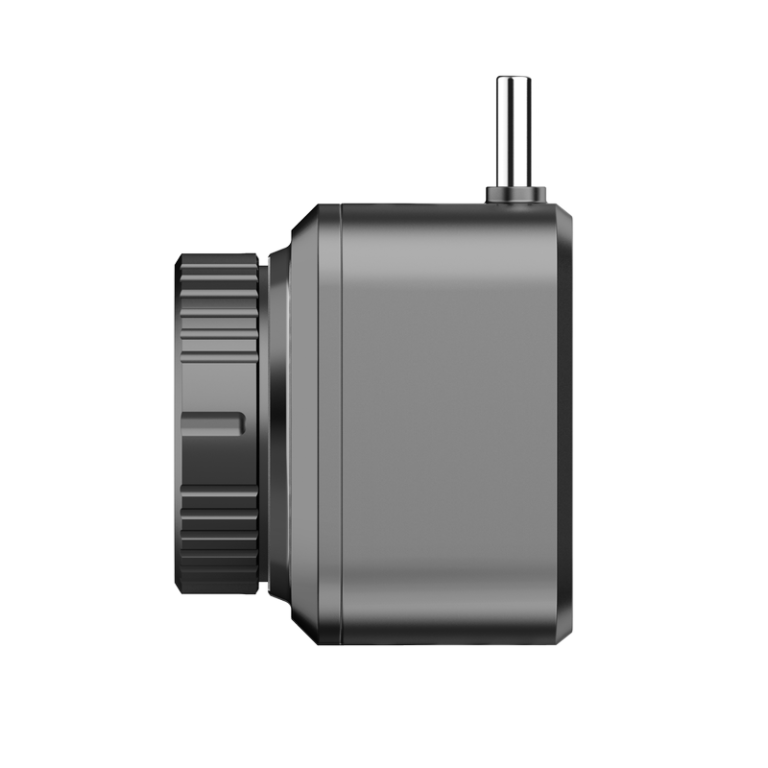

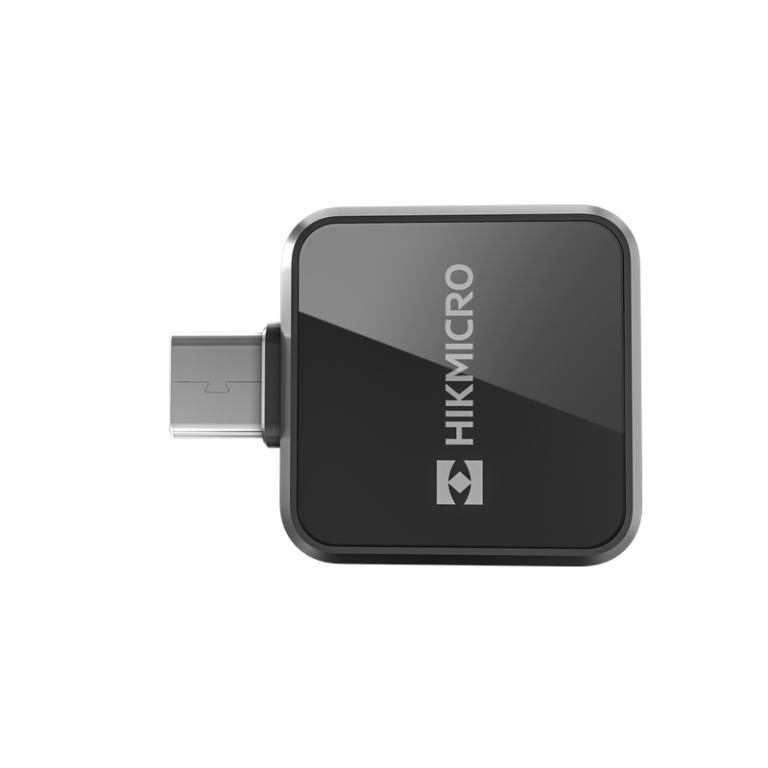

Mini Size – At just 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in) and weighing only 24 g (0.85 oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.

Innovative Macro Mode – The Mini2Plus V2 with its manual focus lens is capable of delivering stable, detailed views of objects as small as 340 microns, when used with an additional desk stand bracket. Furthermore, it is accurate at taking temperature readings on small items, like components on printed circuit boards and assemblies.

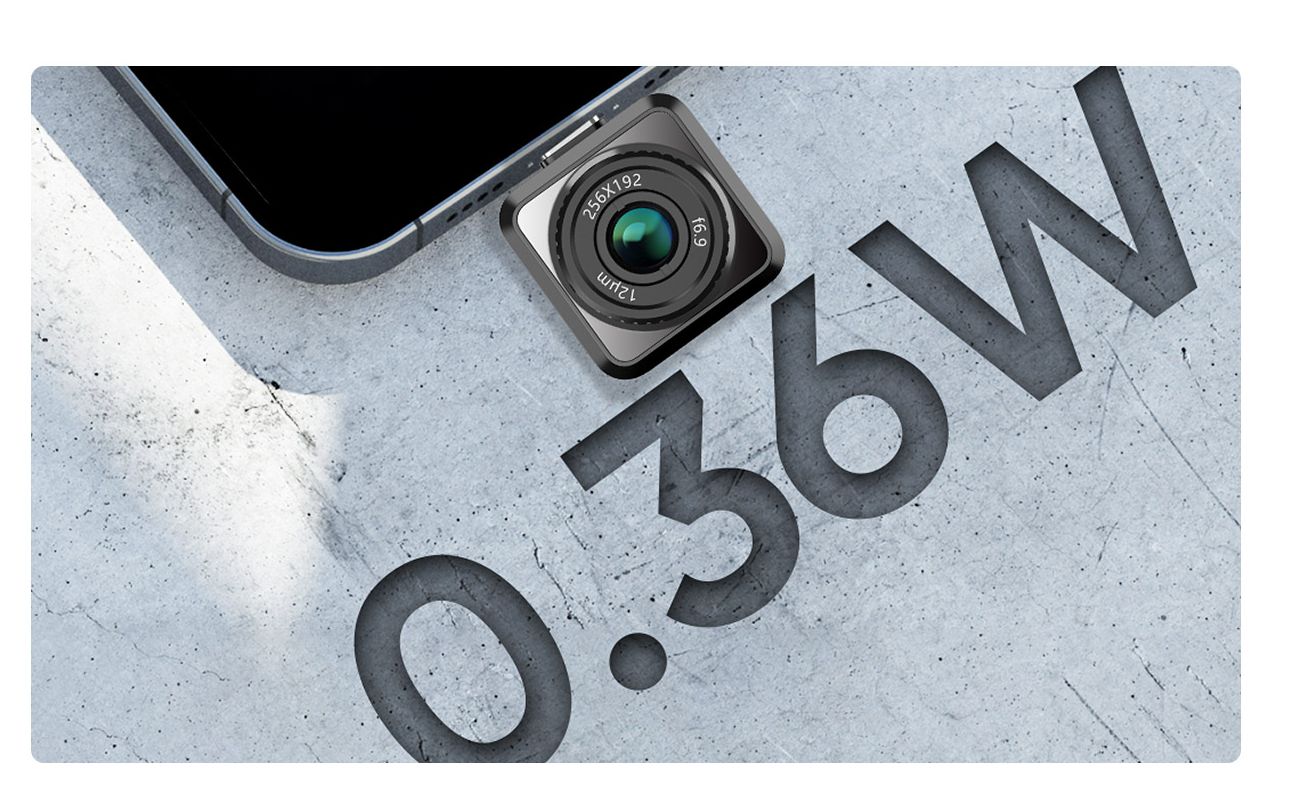

Battery-free – HIKIMICRO Mini2Plus V2 is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.

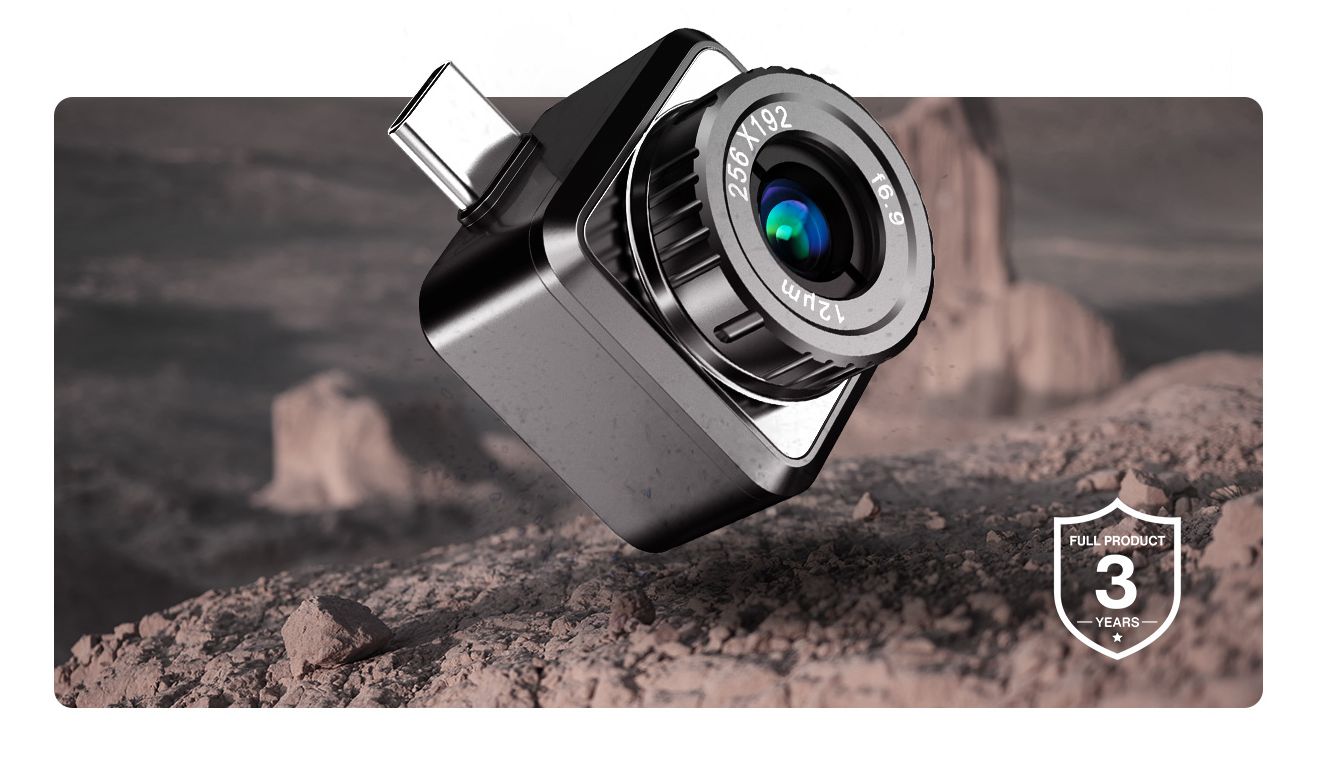

Durable and Rugged – Designed for where you work, live or relax, the Mini2Plus V2 features IP40-rated aluminum alloy housings, pass strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.

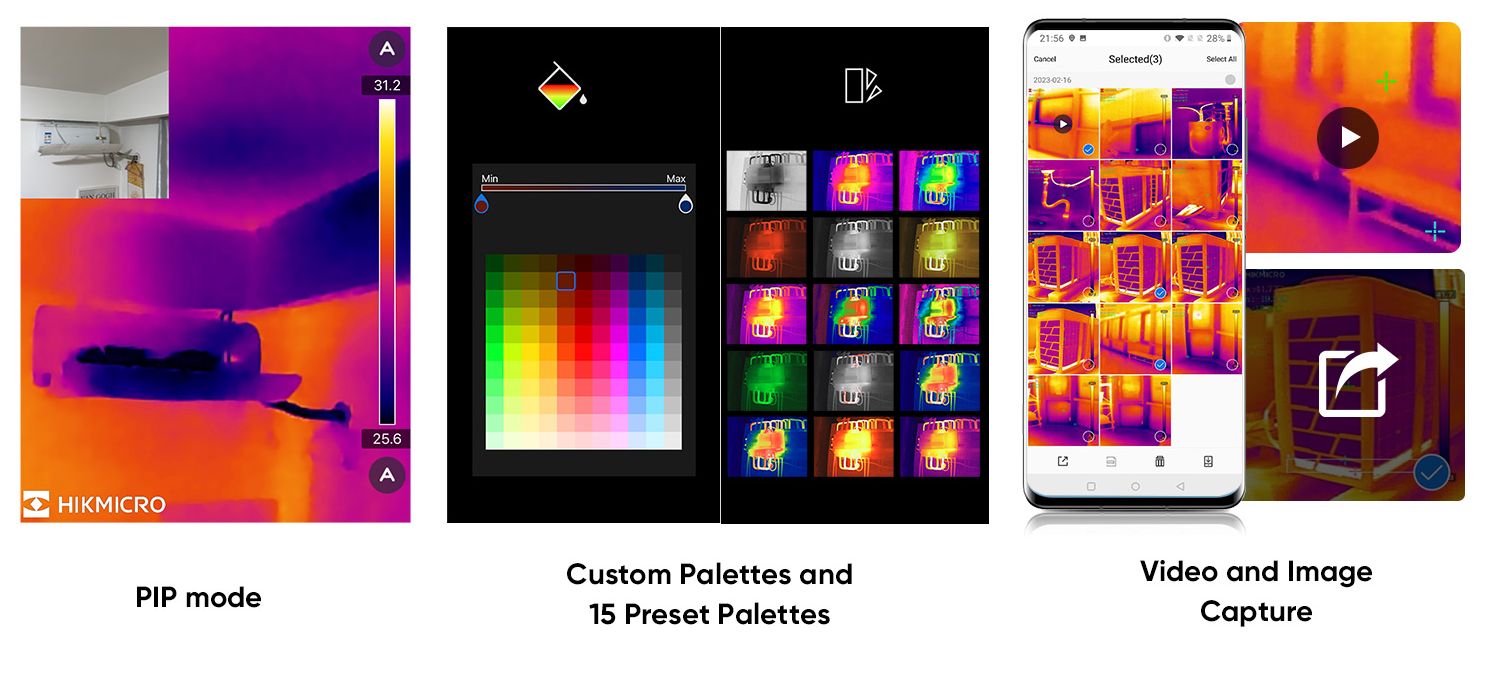

Image & Temperature Measurement – HIKMICRO Mini2Plus V2 with PIP mode, Custom Palettes and 15 Preset Palettes,Video and Image Capture make it easier to work.

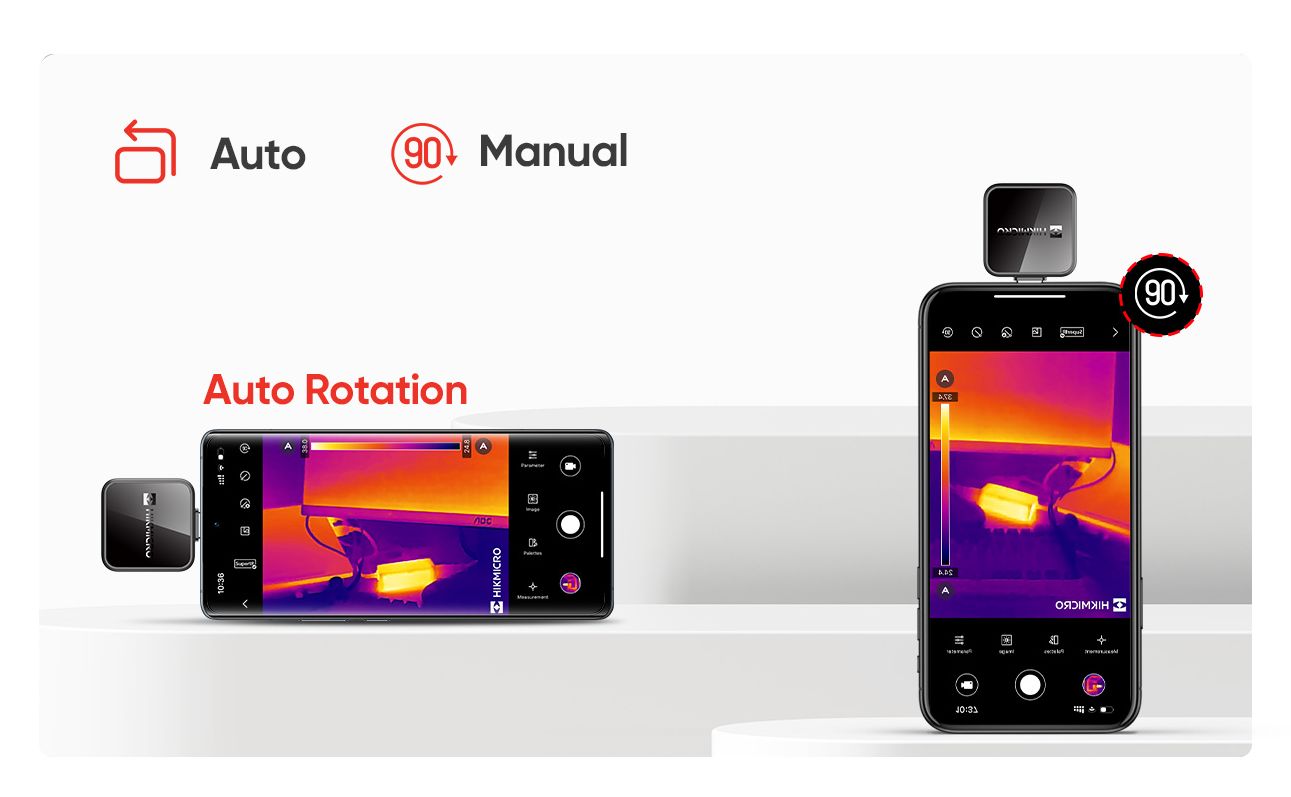

Seamless Viewing Experience: Auto & Manual Rotation – Enjoy the flexibility of both automatic and manual image rotation with the Mini2Plus V2.

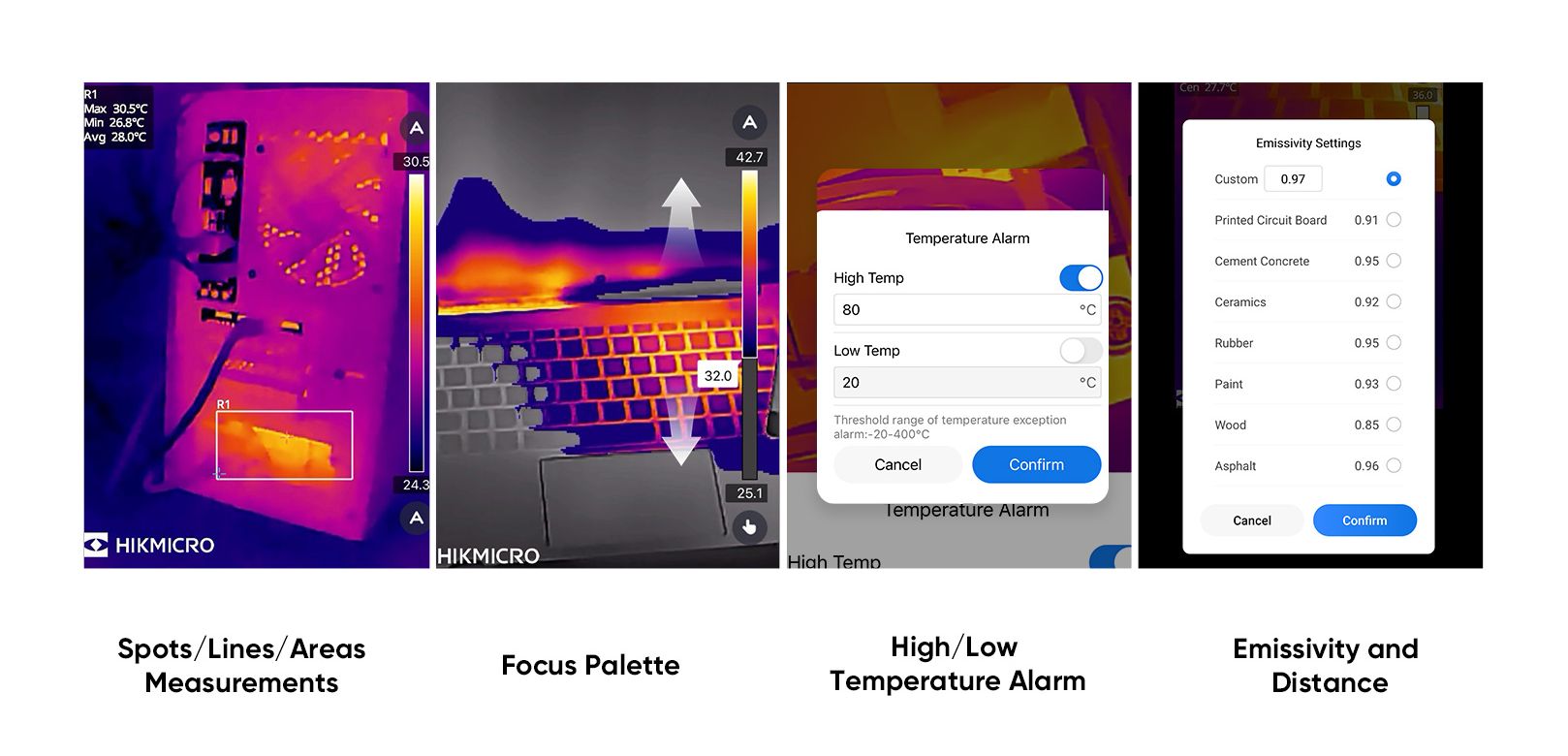

Multiple Professional Settings – Providing professional settings allows you to get the best thermal imaging images and temperature readings of different surfaces.

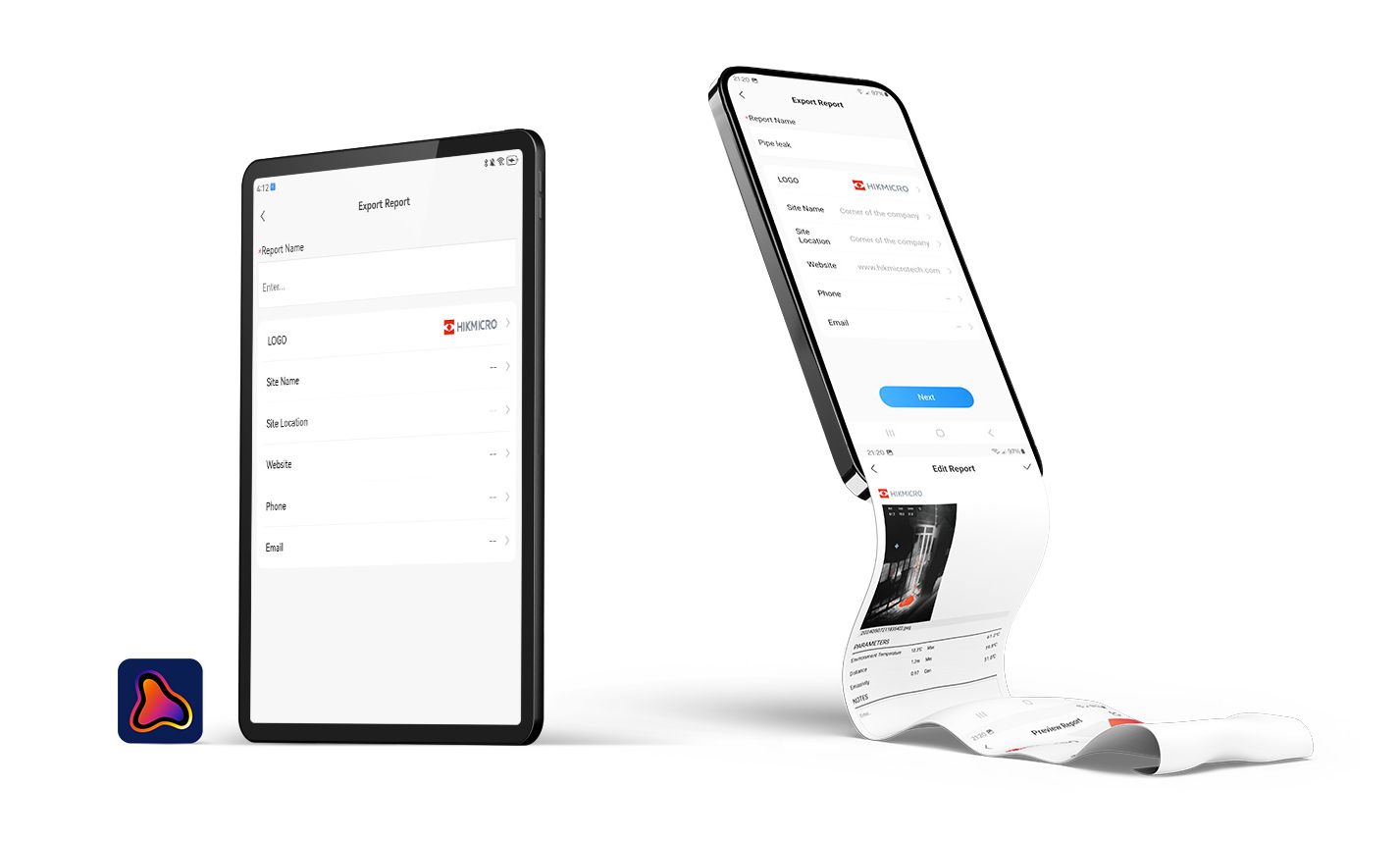

HIKMICRO VIEWER – HIKMICRO Viewer app allows you to generate reports in the field quickly, customize job site data, adjust measurement settings, add annotations, and share with customers or managers.

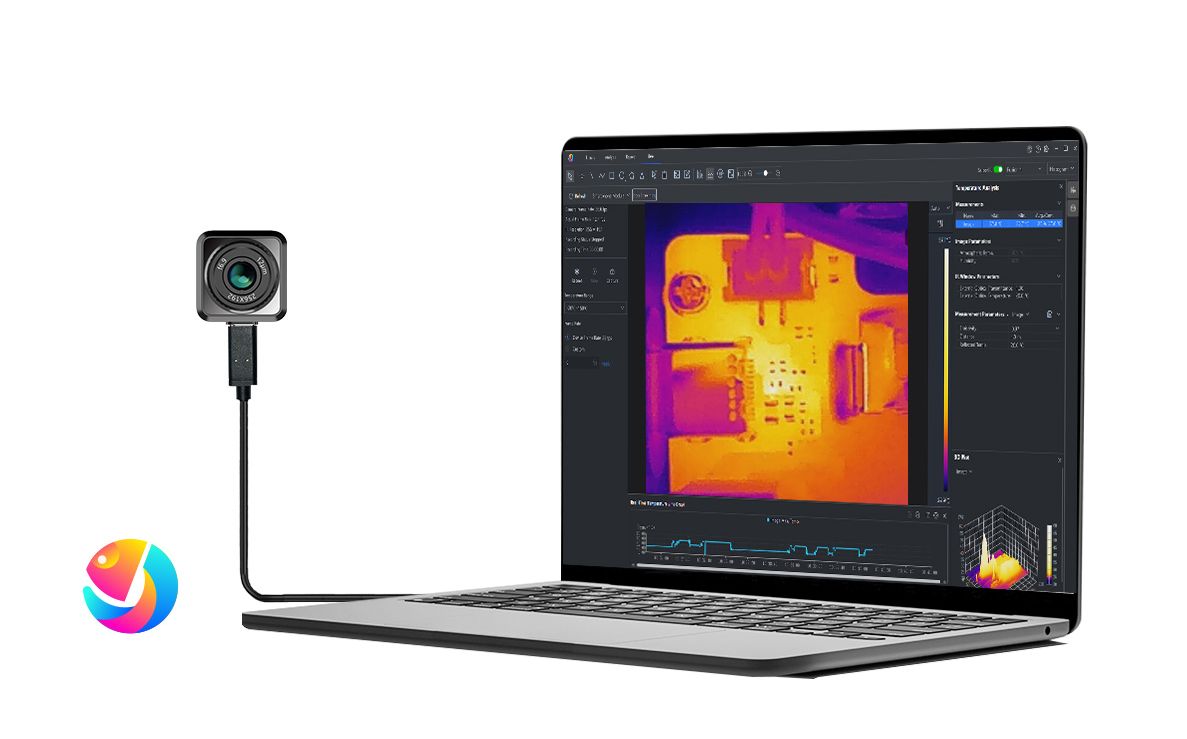

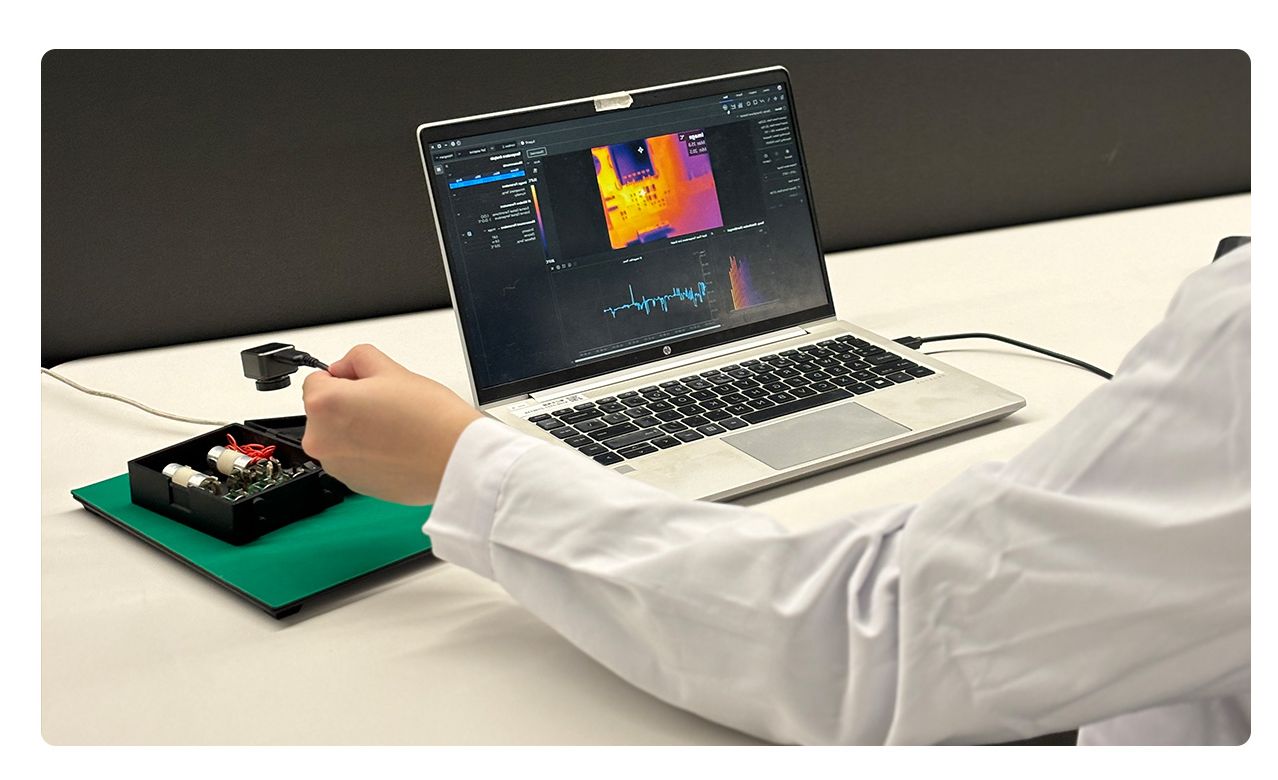

HIKIMICRO ANALYZER – HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.

Application Scenarios – PCB, Finding Pets, Computer Cooling, Insulation Inspection, HVAC Inspection, Automotive.

Video HIKMICRO Mini2Plus V2

Introduction video

Technical specifications of HIKMICRO Mini2Plus V2

Package Contents HIKMICRO Mini2Plus V2

• Thermal Imager
• Protective Case
• Extension Cord
• Quick Start Guide
• Extra Long Adapter*2

Accessories for HIKMICRO Mini2Plus V2

Model	Description	Photo
HM-AHBR02	Pocket/Mini Series Desktop Stand Bracket

Expand Table

Prices for HIKMICRO Mini2Plus V2

Warranty for HIKMICRO Mini2Plus V2

The warranty for the HIKMICRO Mini2Plus V2 thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
