Made in China. brand HIKMICRO, model Mini-X
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 310 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

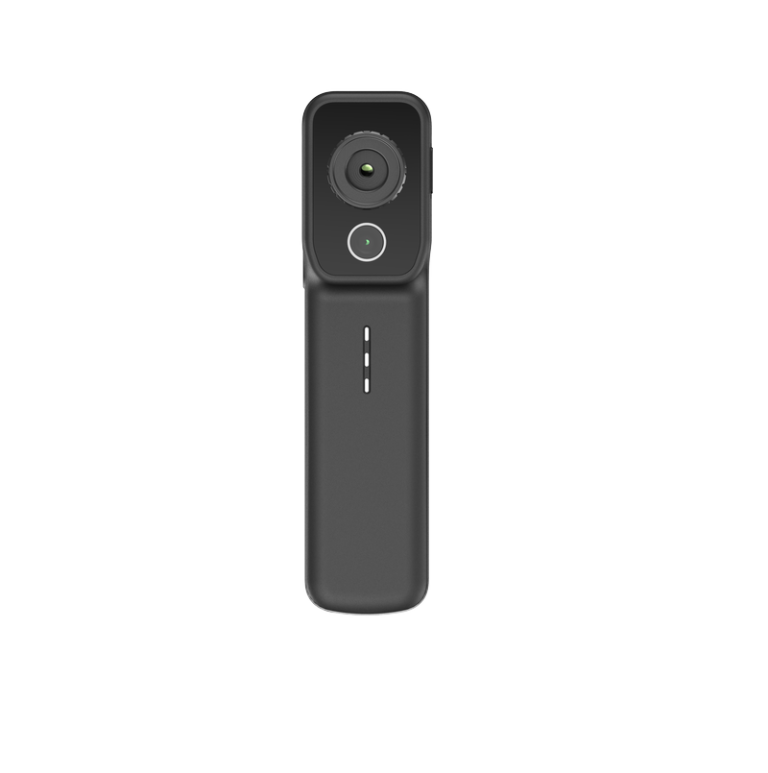

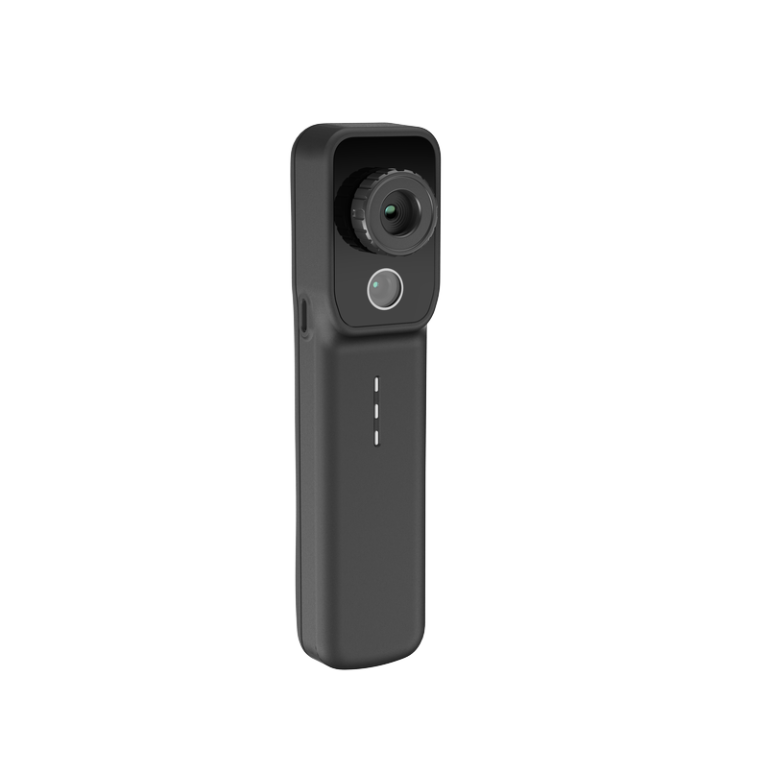

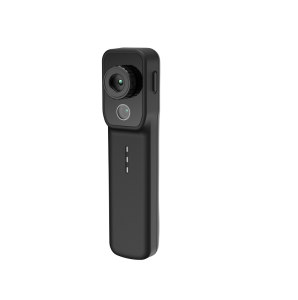

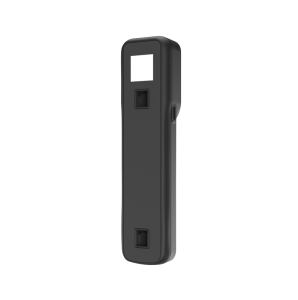

The HIKMICRO innovation MiniX is a versatile thermal imaging tool that wirelessly connects to your smart device. The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring. It features a dual-lens, a high-resolution VOx detector, and a 0.3 MP optical camera for added detail. With SuperIR™ and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements. The wide temperature range of -20°C to 550°C makes it ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The MiniX has a 25 Hz frame rate for fast inspections and a Wi-Fi function for real-time image sharing. It’s a powerful thermography tool that fits in your pocket, ready whenever you need it.

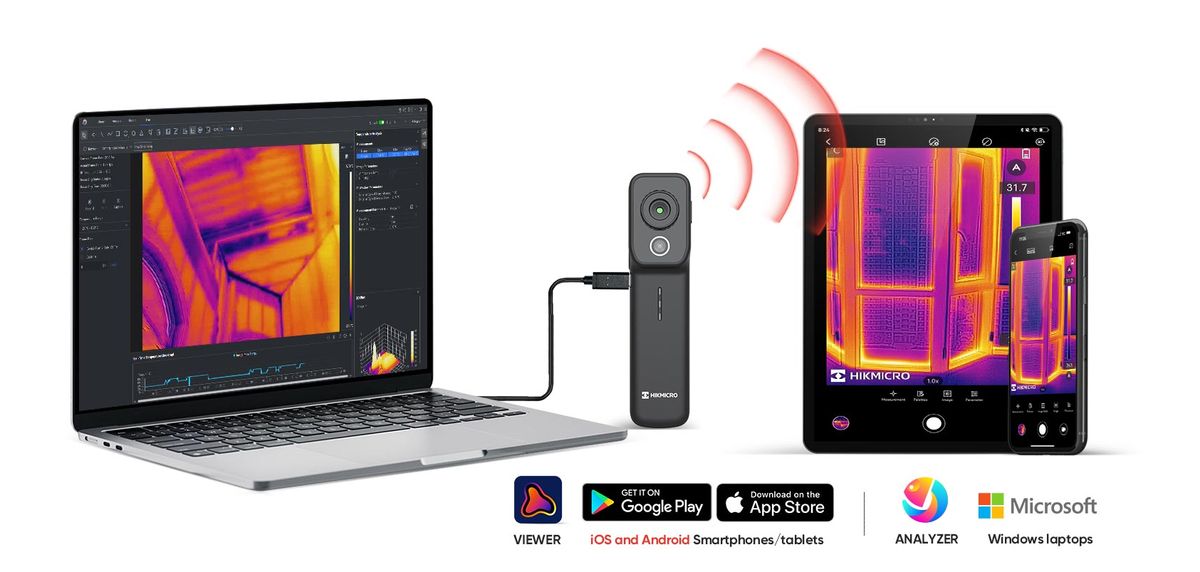

Stable Wireless Connection, Wide Compatibility – The HIKMICRO Mini-X thermal camera connects to Android/iOS devices, eliminating the need to replace it when switching phones.

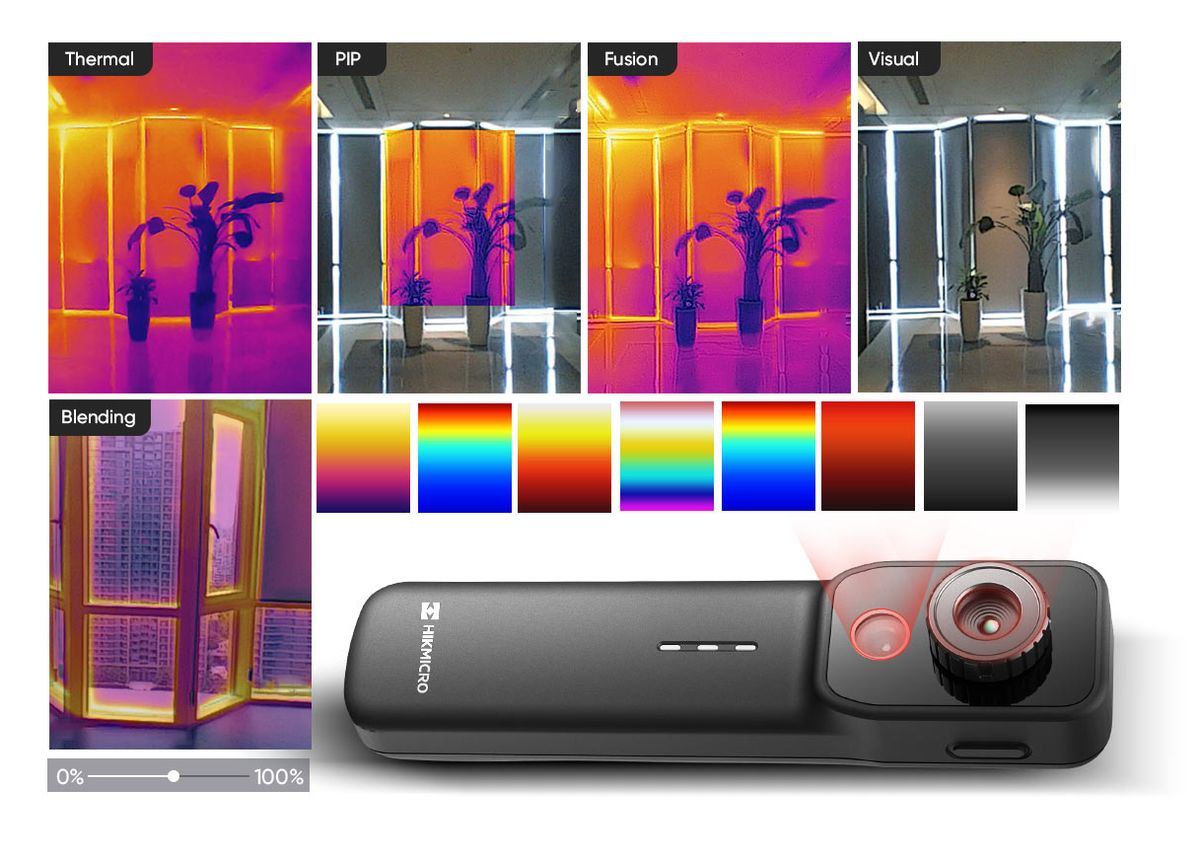

Dual Thermal Imaging Camera – High-resolution visual and infrared cameras reveal hidden details with 5 image modes and 8 color palettes.

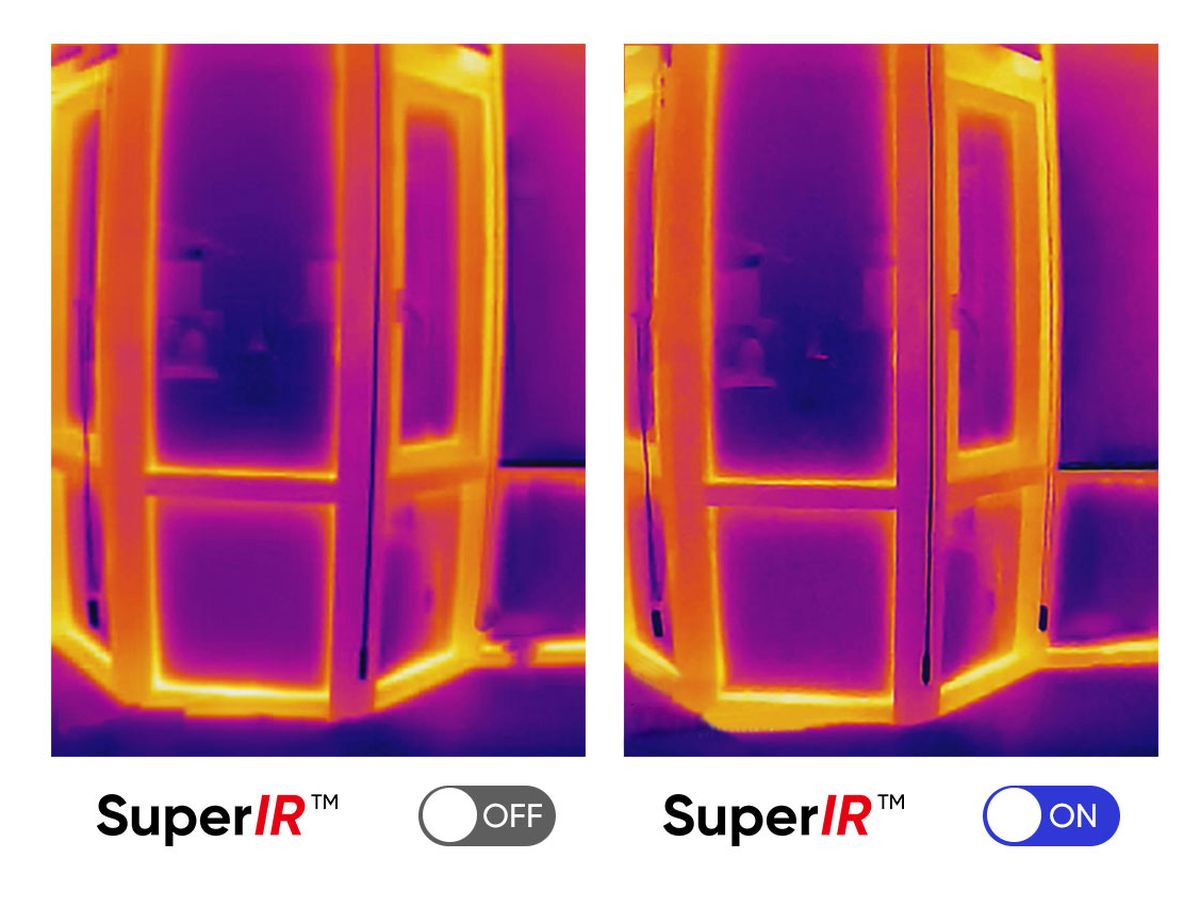

Enhanced Image Quality with SuperIR – The HIKMICRO Mini-X features a highly sensitive VOx detector (NETD < 40 mK) with 256 x 192 (49,152) pixel resolution, combined with an optimized image enhancement algorithm to deliver sharp thermal images.

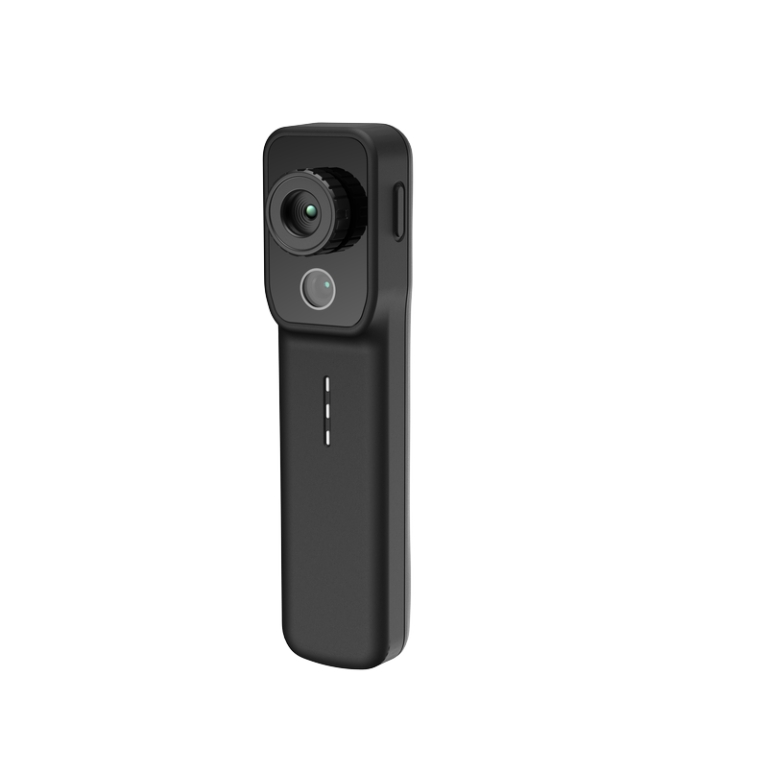

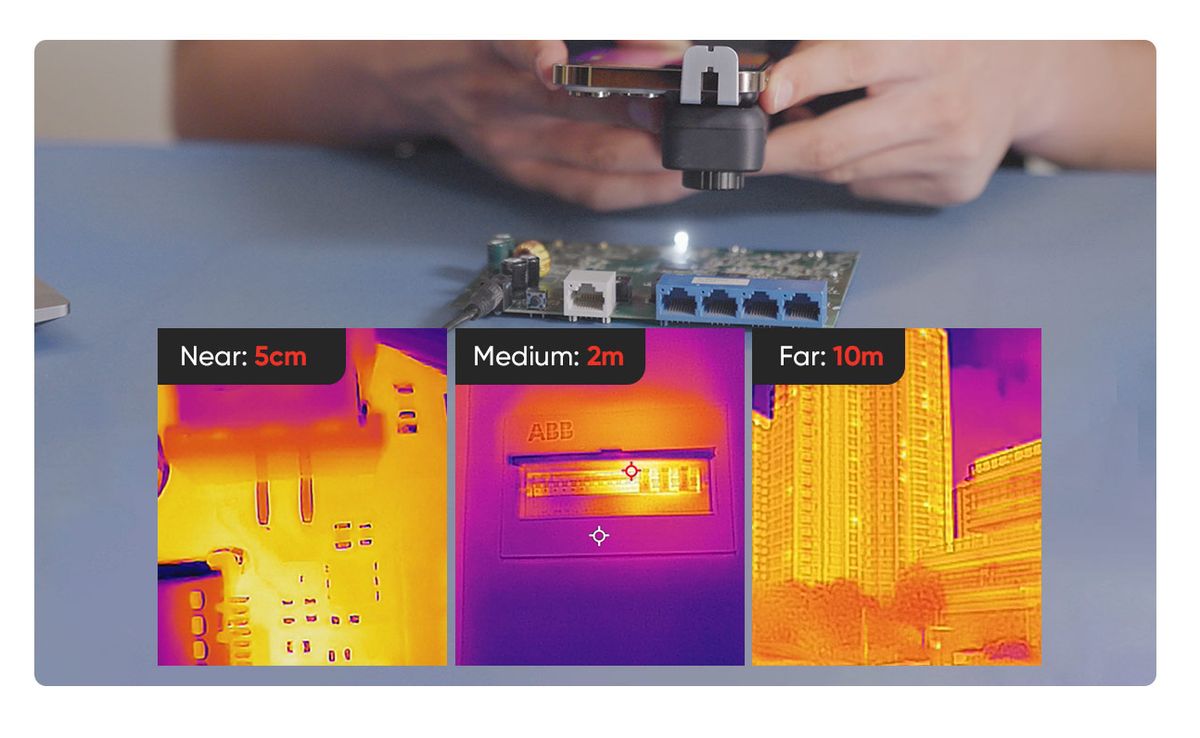

Adjustable Focus Lens – Sharp focus from near to far with a 3.5 mm adjustable focus lens for precise details in repairs, inspections, and PCB tracing.
Easy and Stable Wireless Connection – With the Mini-X thermal camera, simply scan a QR code for quick wireless connection and enjoy stable image transmission.

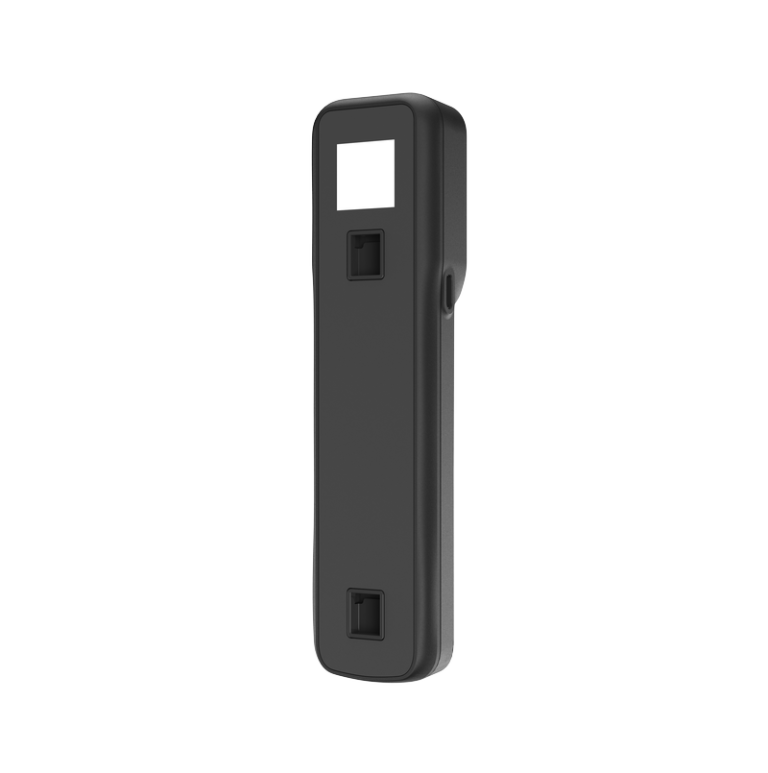

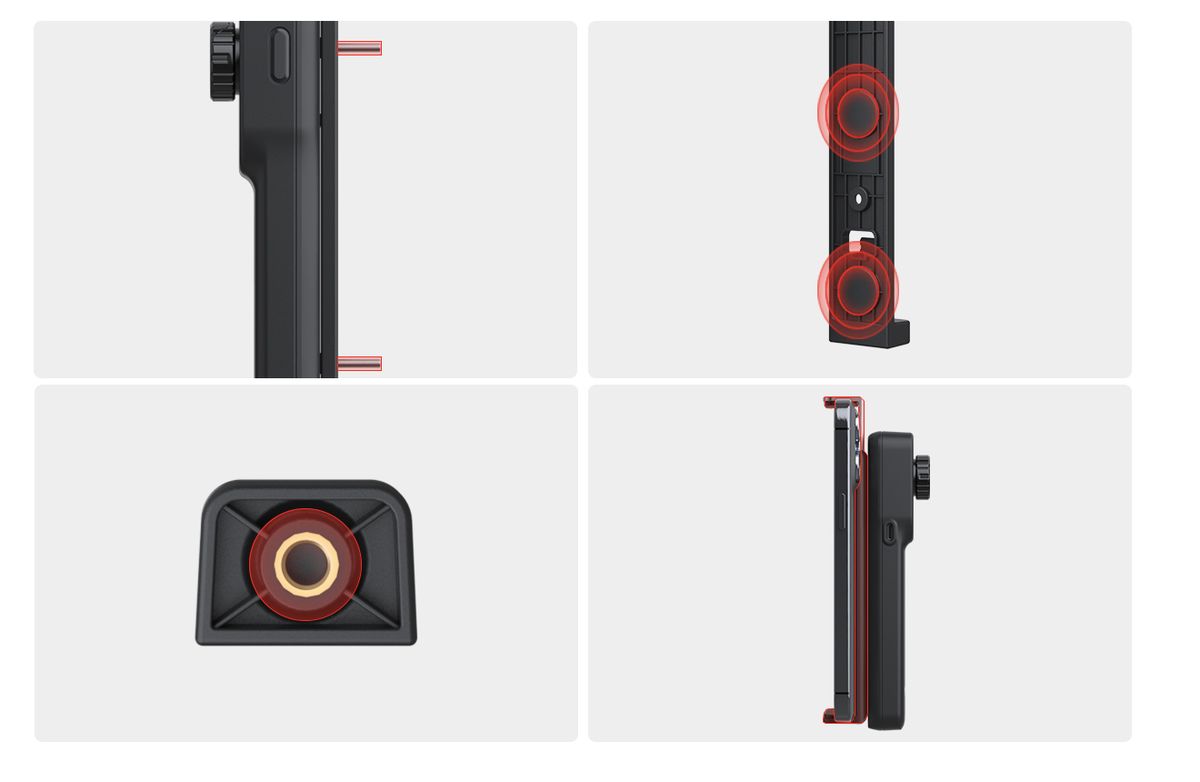

Compact, Ergonomic and Versatile Mounting – The HIKMICRO Mini-X features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task.

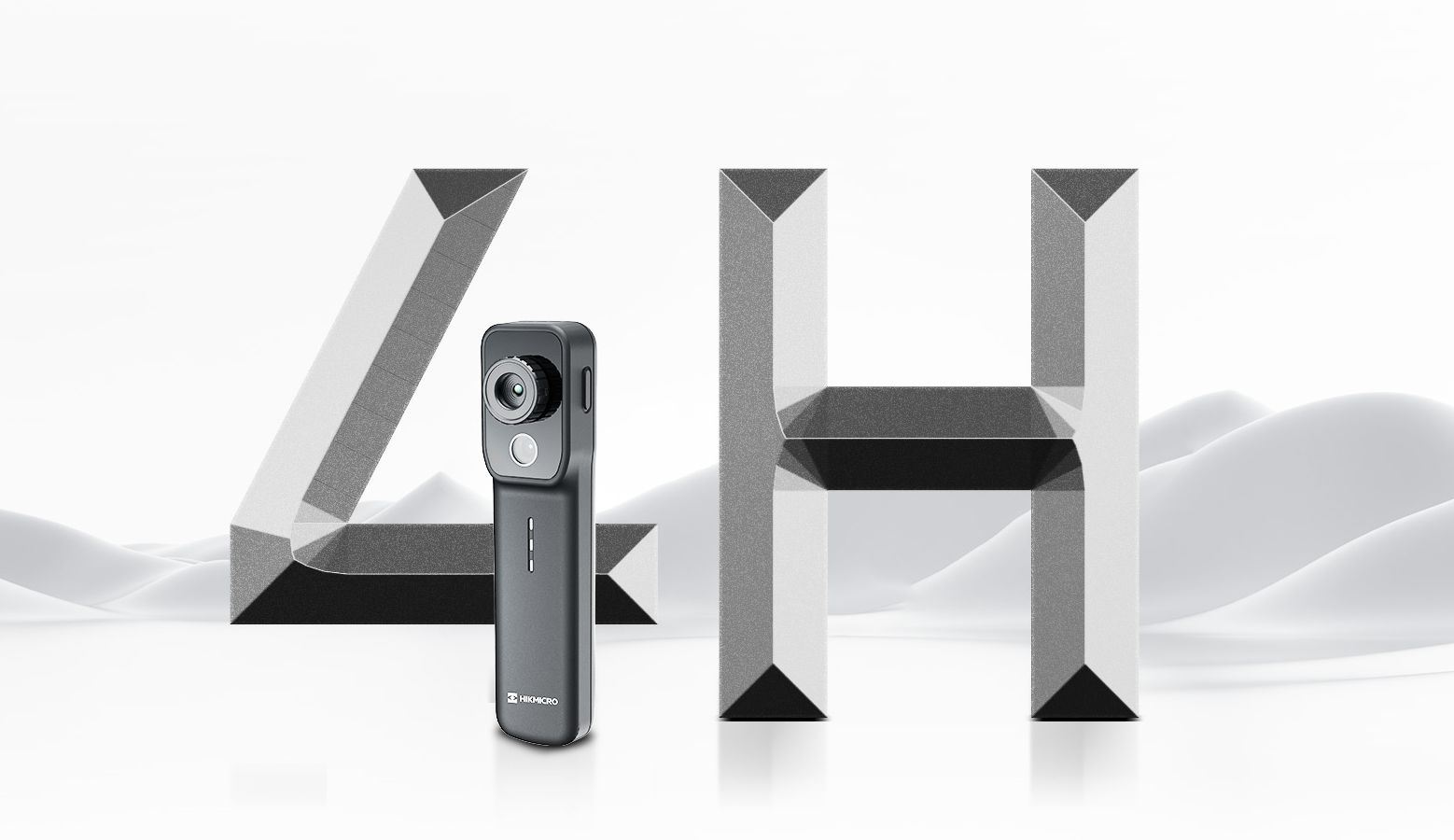

Long-lasting Battery – Enjoy up to 4 hours of continuous operation with the built-in rechargeable lithium-ion battery.

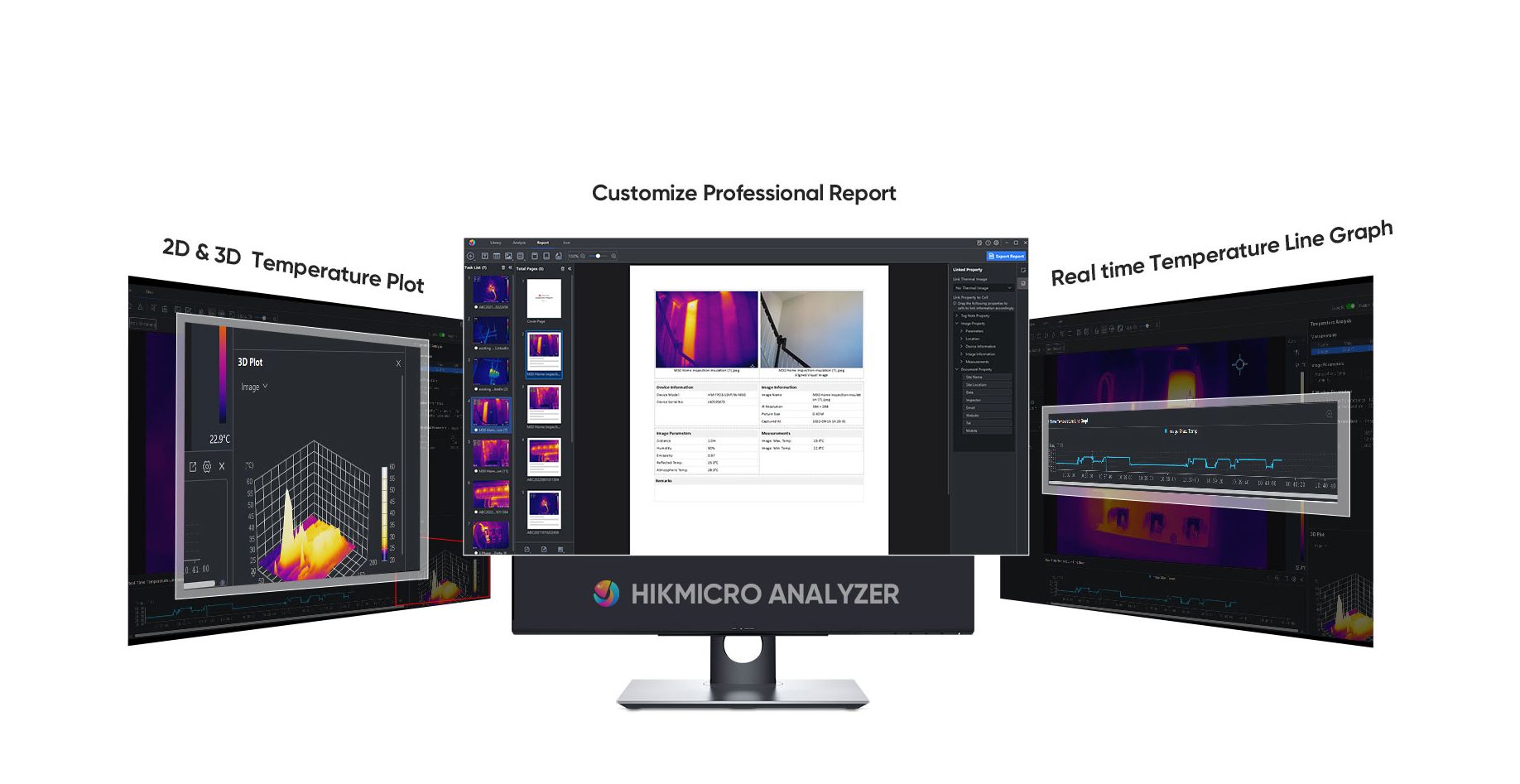

HIKMICRO ANALYZER – The online viewing feature of HIKMICRO Analyzer is particularly valuable, allowing real-time access to thermal image data, significantly improving efficiency.

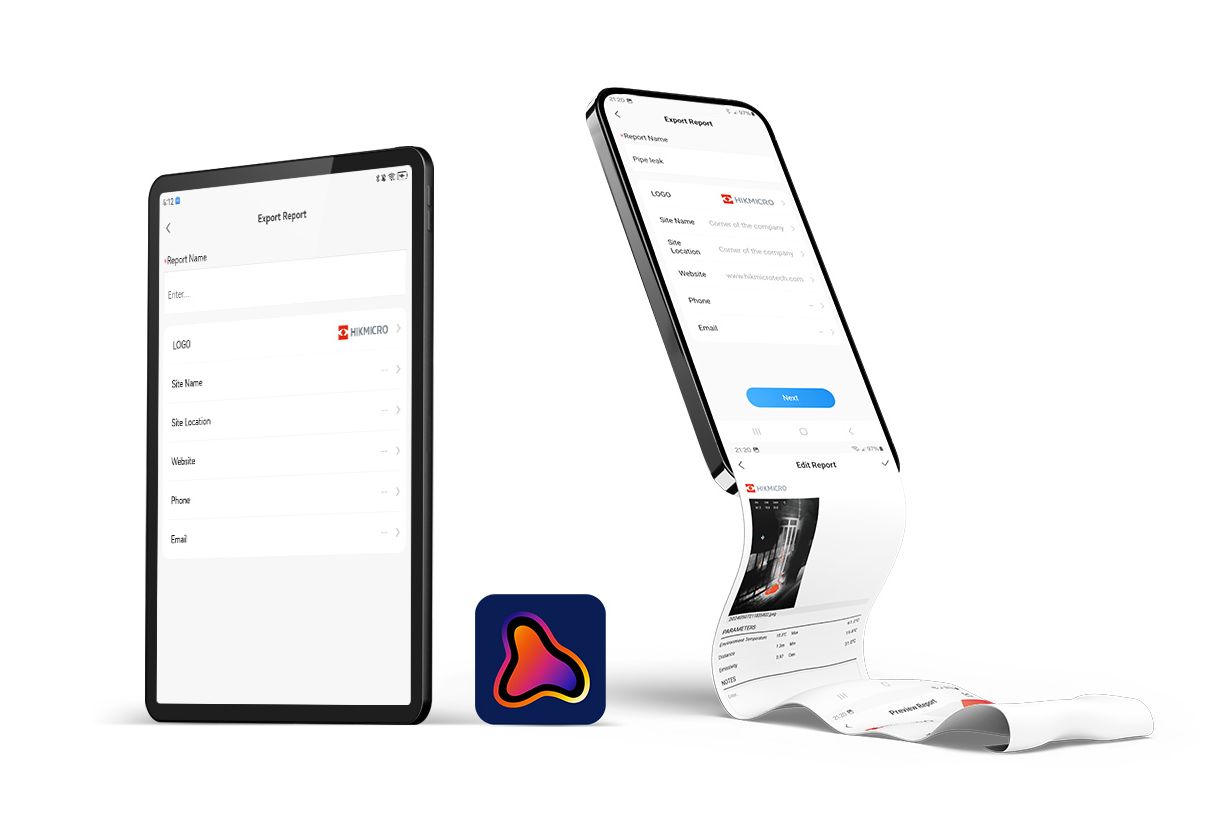

HIKMICRO VIEWER – The HIKMICRO Viewer app lets you quickly generate reports on-site, customize job site data, adjust measurement settings, add annotations, and share with clients or managers.
Application Scenarios
Introduction video
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50.0° × 37.2° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Focus Mode | Manual Focus |
| SuperIR | Yes, on captured images and live view |
| Min. Focus Distance | 0.05 m (0.164 ft) |
| Image Display | |
| Visual Camera | 640 × 480 (0.3 MP) |
| Image Modes | Thermal / Visual / Fusion / PIP / Blending |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) 100°C to 550°C (212°F to 1022°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Video File Format | MP4 video (25 Hz), saved in HIKMICRO Viewer App |
| Image File Format | Radiometric JPEG, saved in HIKMICRO Viewer App |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC (5Hz) |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Fast charging: 50% in 30 min, 85% in 1 hour, 100% in 2 hours |
| Power Saving Mode | Auto Power-off |
| Protection Level | IP54 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 158 g (0.35 lb) |

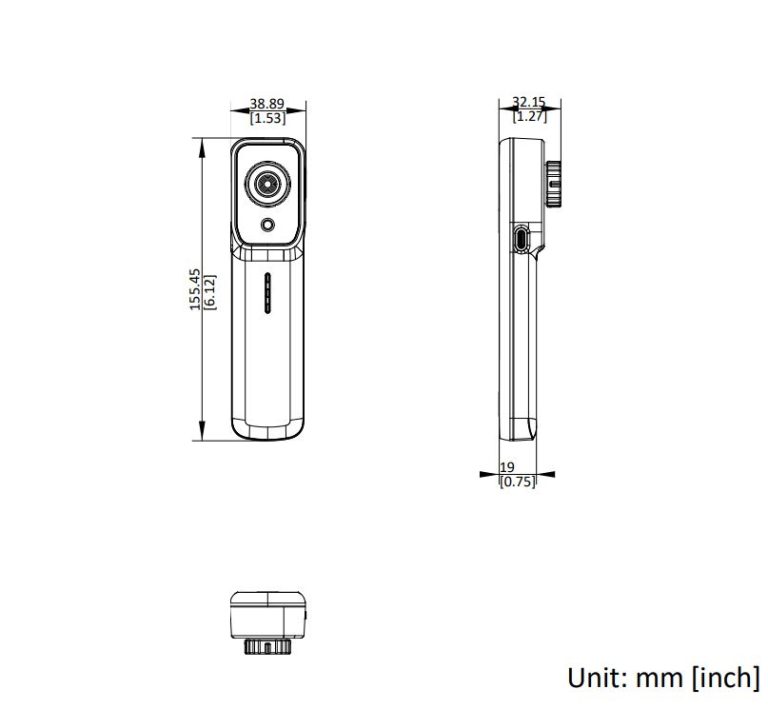

| Dimension | 155.45 × 38.89 × 32.15 mm (6.12 × 1.53 × 1.27 in) |
| Power Supply | USB-C (5V/2A) |
| Battery Indicator | Yes, indicating battery level and charging status |
| Installation Method | Clipping onto phone/tablet, magnetic wall mounting, or tripod mounting |
| Software Compatibility | HIKMICRO Viewer app (iOS/Android), HIKMICRO Analyzer (Windows) |
| Device Compatibility | iOS 14+, Android 9+ smartphones/tablets, Windows devices |
Model Number: HM-TJ52-3AQF/W-MiniX
The warranty for the HIKMICRO Mini-X thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Mini-X using the special form.
You can buy HIKMICRO Mini-X in Latvia at a price starting from 310 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Mini-X price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
