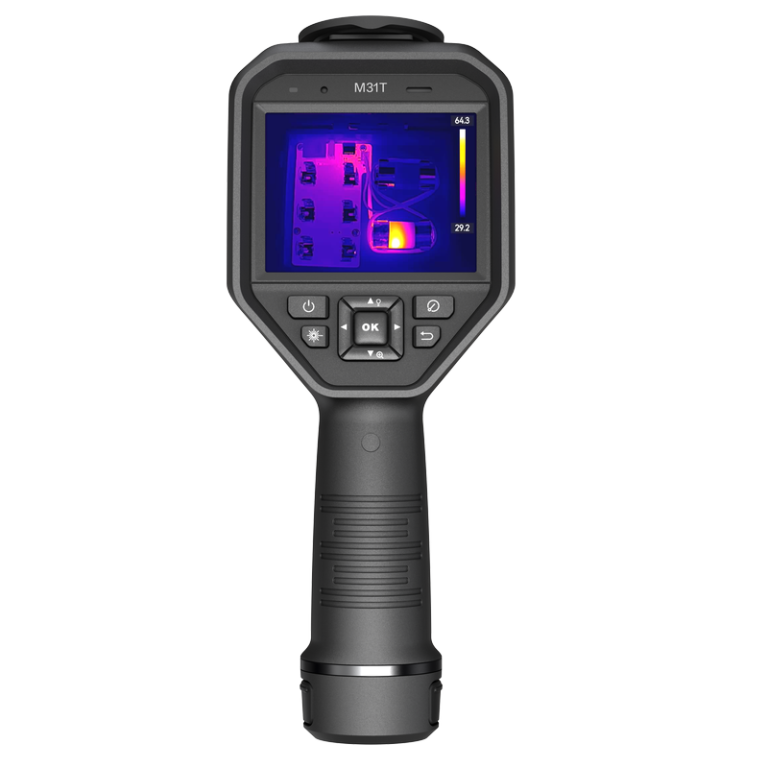

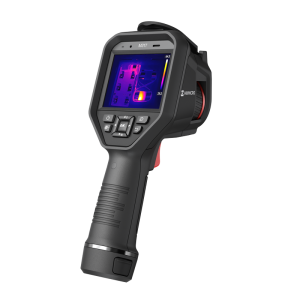

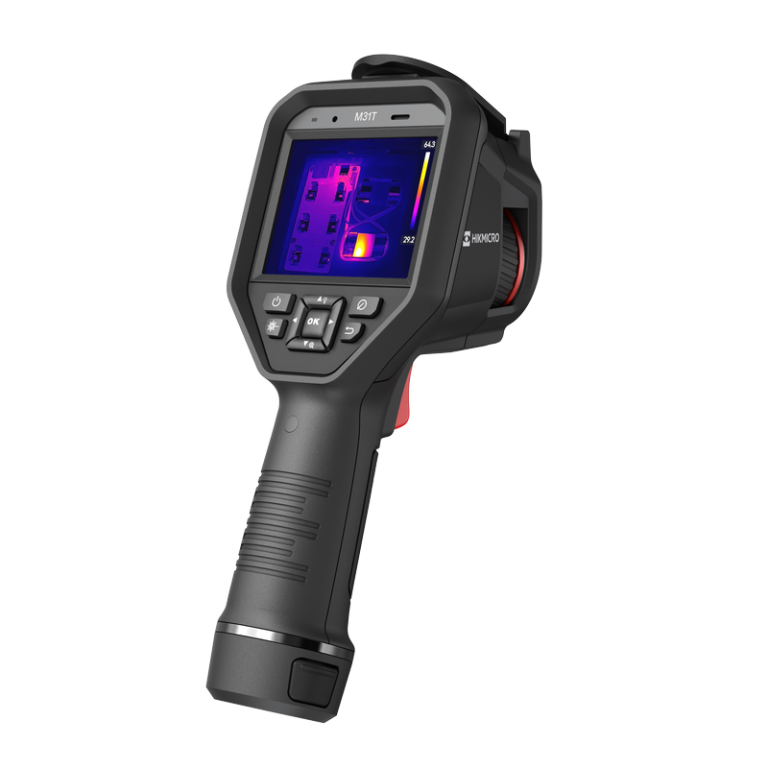

HIKMICRO M31T Handheld Thermal Imaging Camera

Description of HIKMICRO M31T

The HIKMICRO M31T handheld thermal imaging camera is engineered for high-precision temperature monitoring within critical ranges. Equipped with a 384× 288 resolution, advanced calibration algorithms, it enables rapid identification of temperature anomalies in dynamic environments. With real-time temperature tracking at ± 0.5° C accuracy (ambient temperature: 5°C~40° C), the device supports informed decision-making and enhances safety.

Features

• High sensitivity thermal module with 384×288 resolution
• Supports multiple palettes
• High quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: 5°C~40°C
• High temperature measurement accuracy: Max (±0.5°C), for the ambient temp. 15°C to 35°C
• 640×480 resolution 3.5″ LCD touch display
• LED light supplement makes the device a torch in required scenarios
• Supports 1.0× to 8.0× continuous digital zoom

Advanced thermal imaging camera with full function analysis

Enhanced Image Quality with SuperIR – Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

Manual Focus – Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away. (M11W, M20W features a focus-free lens.)

Interchangeable Battery System – HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.

Complete Image Annotations – Quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series.

1-Tap Level & Span – HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems.

5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.

Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.

Rugged & Durable Design – HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.

Laser Pointer – The Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object. Analyze, share images, and generate reports in real-time on-site.

HIKMICRO Viewer – Connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.

HIKIMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.

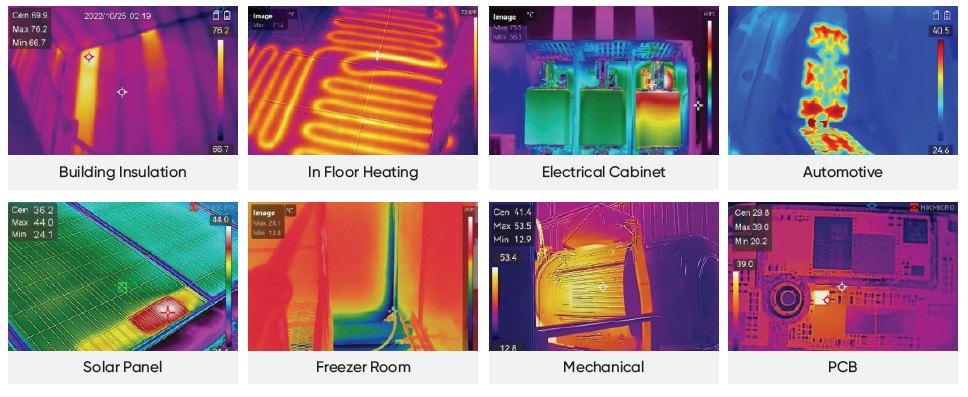

Application Scenarios

• Building Insulation
• In Floor Heating
• Electrical cabinet
• Automotive
• Solar Panel
• Freezer Room
• Mechanical
• PCB

Video HIKMICRO M31T

Introduction video

How to video

Unboxing HIKMICRO M series

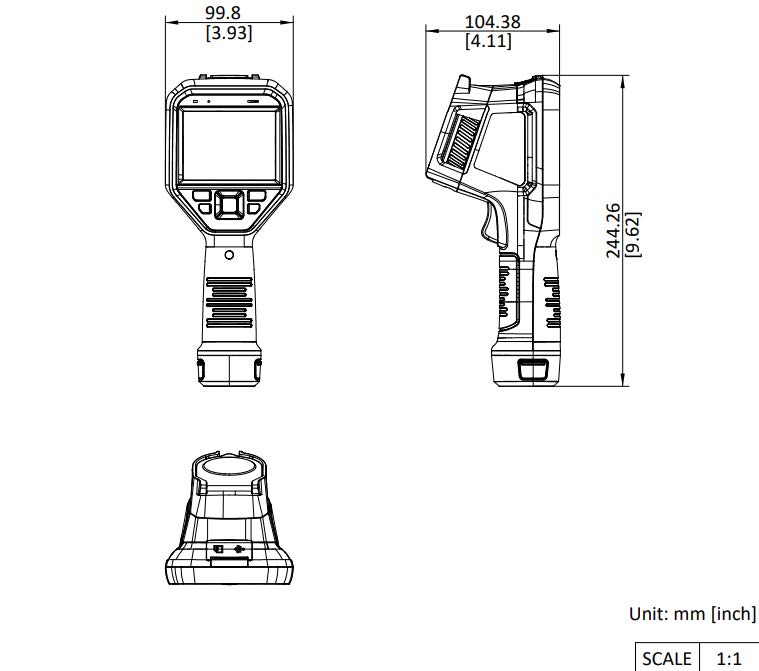

Technical specifications of HIKMICRO M31T

Package Contents HIKMICRO M31T

• Calibration Certificate
• Printed Quick Start Guide
• Hard Carrying Case
• Charging Base with Adapter and Plugs
• Interchangable Battery x 2
• Wrist Strap
• 64GB Micro SD card
• 2-in-1 USB-C to USB-CA Cable

Model Number: HM-TP23A-7QF/W-M31T

Accessories for HIKMICRO M31T

Model	Description	Photo
HM-5202ZC	Battery Chargers
E097-13-1S1P26650	Interchangeable Batteries
HM-SP01-POUCH	Pouches

Expand Table

Prices for HIKMICRO M31T

Warranty for HIKMICRO M31T

The warranty for the HIKMICRO M31T thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The cost of extending the warranty for the HIKMICRO M31T is:

• 1 year – €199
• 2 years – €399

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO M31T

The cost of calibrating the HIKMICRO M31T thermal imager is €532 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
