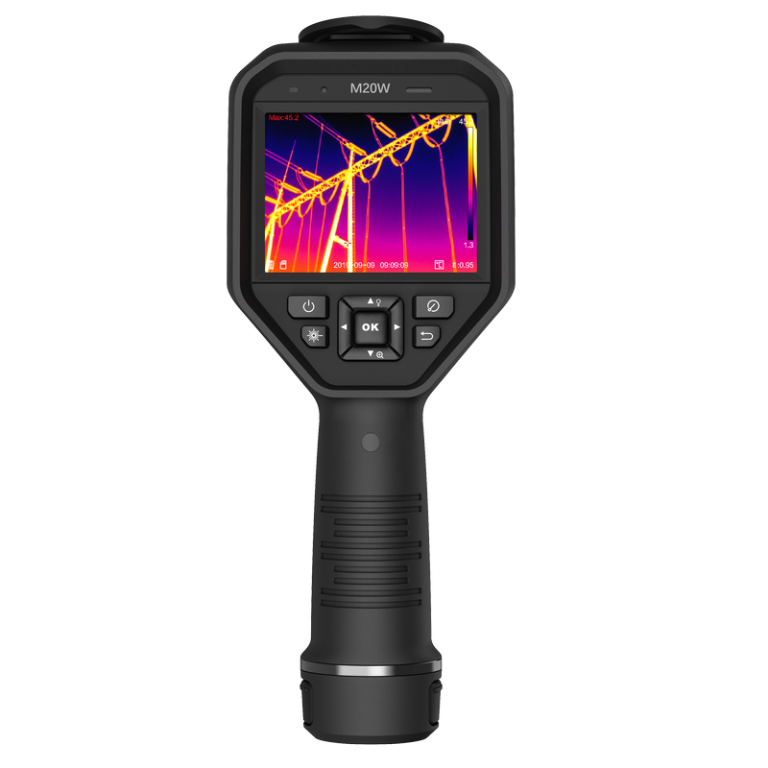

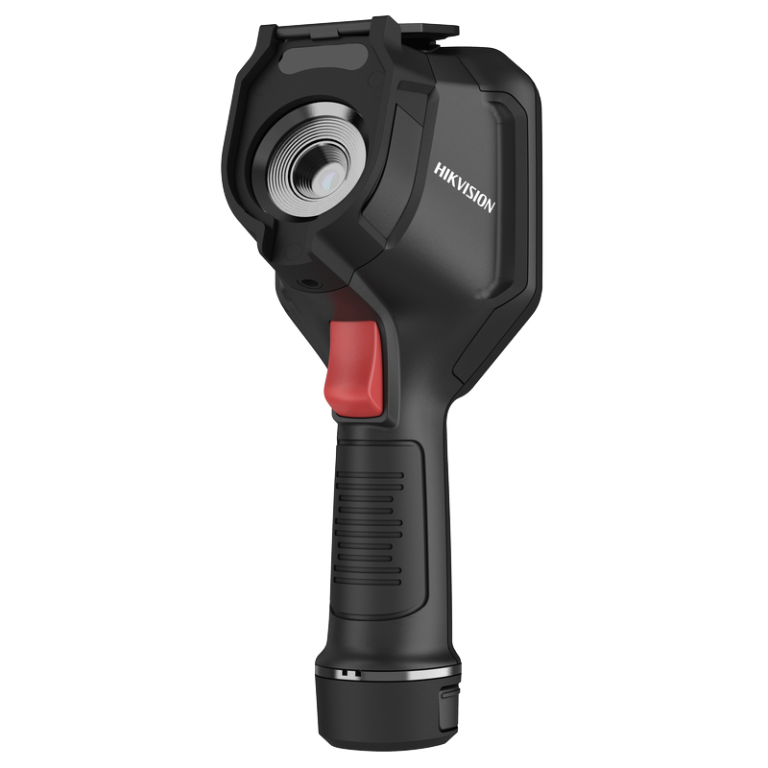

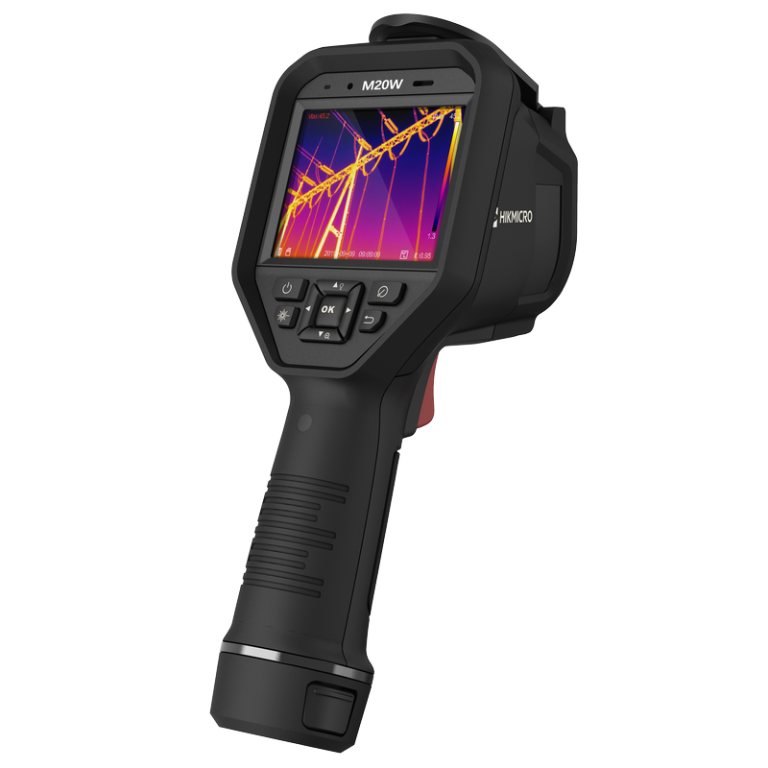

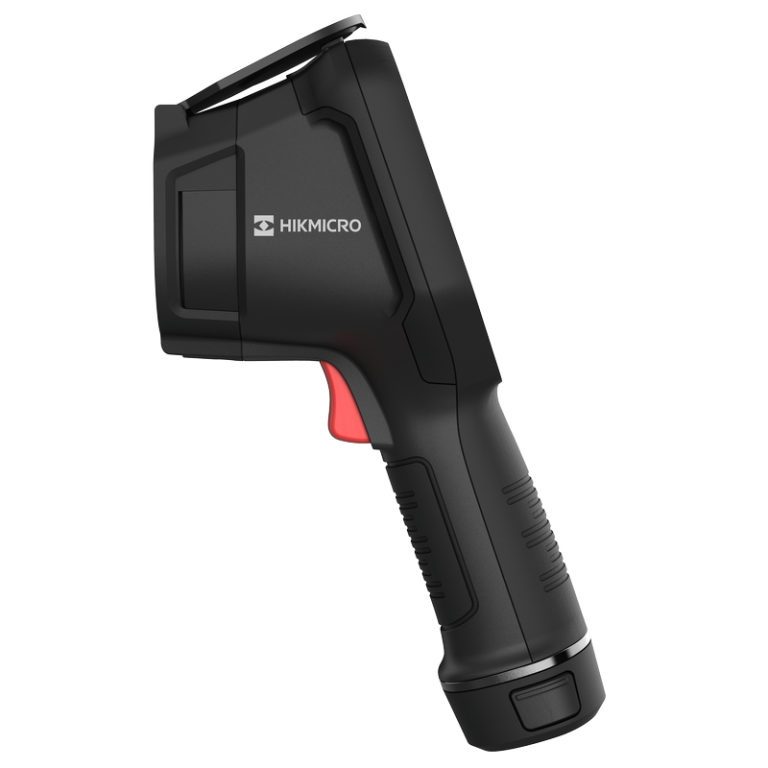

HIKMICRO M20W Handheld Thermal Imaging Camera

Description of HIKMICRO M20W

HIKMICRO M20W handheld thermography camera is specially designed for professional inspections of large objects where a wider FOV captures more of the scene in one picture. It’s equipped with a 256 × 192 resolution thermal detector, 50° x 37.2° fixed focus lens, and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20W quickly identifies potential faults and quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

Features

• High sensitivity thermal module with 256 × 192 resolution
• Supports multiple palettes
• High quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• 1.0x to 8.0x continuous digital zoom
• Supports remote album access, download and quick report with APP.

Advanced thermal imaging camera with full function analysis

Enhanced Image Quality with SuperIR – Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

Manual Focus – Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away. (M11W, M20W features a focus-free lens.)

Interchangeable Battery System – HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.

Complete Image Annotations – Quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series.

1-Tap Level & Span – HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems.

5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.

Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.

Rugged & Durable Design – HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.

Laser Pointer – The Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object. Analyze, share images, and generate reports in real-time on-site.

HIKMICRO Viewer – Connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.

HIKIMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.

Application Scenarios –

Promotional Video

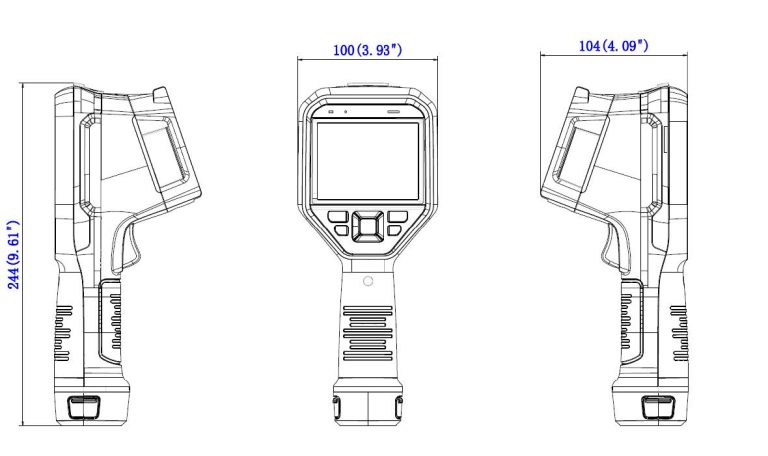

Technical specifications of HIKMICRO M20W

Package Contents HIKMICRO M20W

• Calibration Certificate
• Printed Quick Start Guide
• Hard Carrying Case
• Charging Base with Adapter and Plugs (US/EU/UK/AU)
• Interchangable Battery x 2
• Wrist Strap
• 64GB Micro SD card
• 2-in-1 USB-C to USB-CA Cable
