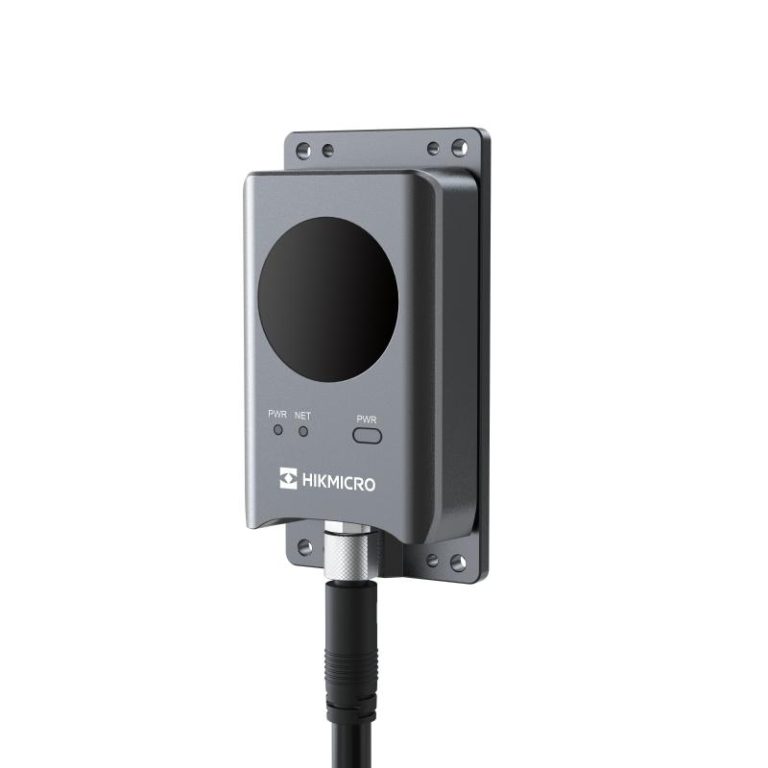

Cube Camera
Small size and compact design, magnet adapter for easy installation
Made in China. brand HIKMICRO, model HM-TD3118T-1/Q
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

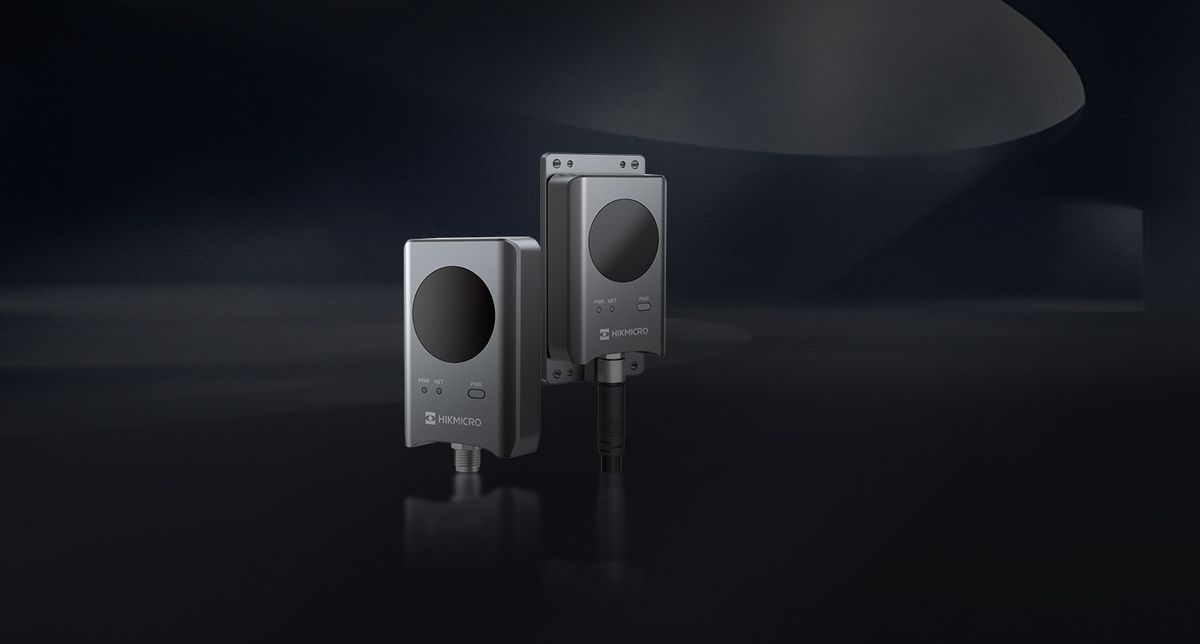

The Thermographic Cube Camera is a temperature measurement device which is equipped with a thermal lens.
It is equipped with high-sensitivity IR detector and high-performance sensor. The device is able to measure object’s temperature at a high accuracy in real time. It is applied to electric system, and industrial automation, etc, for fire prevention. The pre-alarm system helps you discover unexpected events immediately and protects your property.
Temperature Measurement
Device detects the real-time temperature all the day, and display it on live view.
Temperature Exception Alarm
Device outputs alarm when the temperature is higher than the setting alarm threshold value.
Image Adjustment
Device can correct the nonuniformity of the image and improve the image quality.
Application
Thermographic Cube Camera supports 433MHz wireless transmission, which makes it more friendly to use in the application scenarios where cable routing is inconvenient. The device receives temperature data and alarm from external temperature detectors with 433MHz wireless transmission and uploads the data to the center. When sending data to the center client (iVMS-4200), the device supports a wireless way (with the help of a gateway that supports 433MHz transmission) and a wired way.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Pixel Interval | 12 µm |
| Response Waveband | 8 µm to 14 µm |
| NETD | Less than 40 mK (@ 25 °C.F#=1.1) |
| IFOV | 13.08 mrad |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, Email, ISUP, PPPOE, NAS |
| API | ISAPI SDK |
| Simultaneous Live View | Up to 20 channels |
| Security | User authentication (ID and PW), HTTPS encryption, access control. IP address filtering |
| Video and Audio | |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Video Compression | Main stream: H.265/ H.264 Sub-stream: H.265/H.264/MJPEG |
| Sub Stream | Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) |
| General | |
| Protection Level | IP67 Standard TVS 6000 V lightning protection, surge protection, voltage transient protection |
| Weight | Approx. 180 g (0.39 lb) |
| Dimension | 102 mm × 51.2 mm × 27.5 mm (4.0″ × 2.0″ × 1.1″) |
| Video and Image | |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Spela, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD3118T-1/Q using the special form.
You can buy HIKMICRO HM-TD3118T-1/Q in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO HM-TD3118T-1/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
