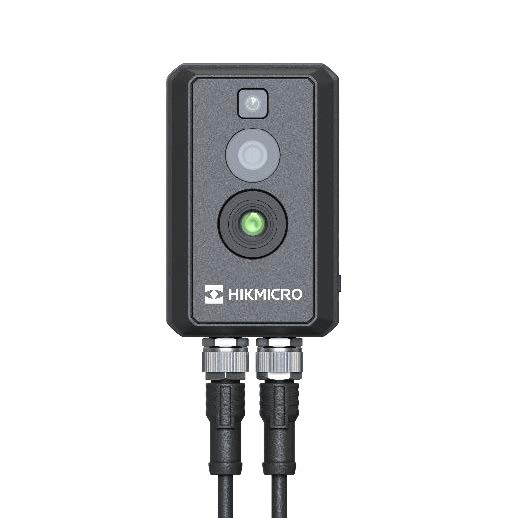

Hikmicro HM-TD3028T-2/Q Thermographic Cube Camera is able to measure object’s temperature at a high accuracy in real time. It is applied to fire prevention purpose in electric system, industrial automation and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.
| Image Setting | Rotate mode, brightness, contrast and AGC adjustable by client software or web browser |
| Compression Standard | |
| Video Compression | H.264 (Baseline/Main/High Profile) /MJPEG/H.265 |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Smart Function | |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F), 0 °C to 550 °C (32 °F to 1022 °F) |
| Temperature Accuracy | Max (± 2 °C, ± 2%) |
| Temperature Measurement Rules | Display Max. and Min. temperature in live view; 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line). |
| Network | |
| Alarm Trigger | Video tampering alarm, Network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Interface | |
| Communication Interface | 1, RJ45 Ethernet port,10M/100M/1000M 1, RS-485 interface |
| Alarm | 2-ch relay output, alarm response actions configurable |
| Thermographic Integration | |
| External Optics Correction | Support Thermal Optical Transmittance and Manual Input External Optics Temperature; Support Calibration Coefficient calculation |
| Temperature Info. Of Thermographic Rule | Real-time Output; Time Interval: 500 ms |
| Temperature Info. of Image | Real-time Output; Default is 4 fps, 32 bit × 640 × 512 per frame; 16 bit and 32 bit are selectable |
| Capture Thermal Graphic | 32 bit 160 × 120 |
| Metadata Output | Max. 25 fps (16 bit 256 × 192) |
| System Function | |
| Lighting | Yes |
| Infrared Image | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 256 x 192 |
| Pixel Interval | 12 µm |
| Response Waveband | 8 µm to 14 µm |
| NETD | Less than 40 mK (@25 °C, F# = 1.0) |
| Focal Length | 2.1 mm |
| Focus Mode | Athermalized |
| Field of View | 90° x 64.2° (H x V) |
| IFOV | 5.71 mrad |
| Image Frequency | 25 fps |
| Aperture | F 1.0 |
| Min. Focusing Distance | 0.1 m |
| Optical Module | |
| Image Sensor | 1/5” Progressive Scan CMOS |
| Resolution | 2688 x 1520 |
| Focal Length | 1.4 mm |
| Min. Illumination | 0.06 Lux @ (2.2, AGC ON), 0 Lux with IR |
| Field of View | 96.9° x 77.2° (H x V) |
| Aperture | F 2.2 |
| Image Display | |
| Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Digital Zoom | ×2, ×4 |
| General | |
| Menu language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power Supply | 12 VDC, Max. 5 W PoE (802.3af, class 2) |
| Working Temperature and Humidity | -20 °C to 60 °C (-4 °F to 140 °F) 95% or less |
| Protection level | IP67 |
| Weight | Approx. 335 g (0.74 lb) |

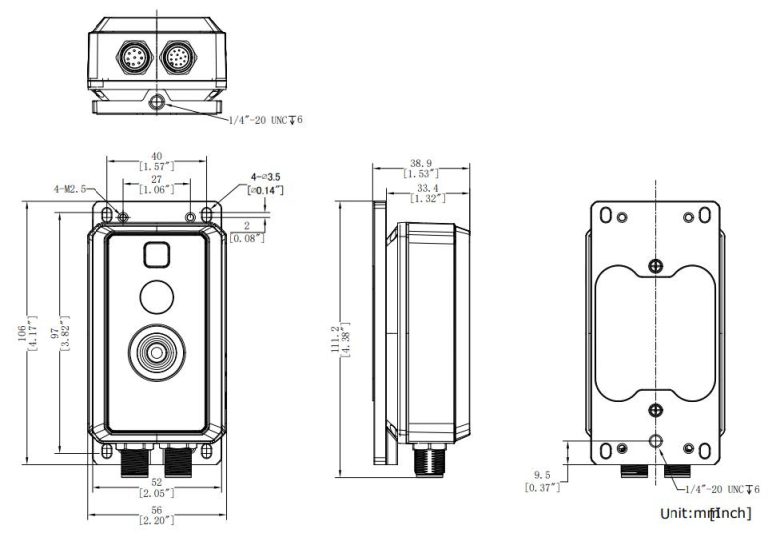

| Dimension | 56 mm x 38.9 mm x 111.2 mm (2.20° x 1.53° x 4.38°) |
| Image | |
| Main Stream | Thermal channel: 25 fps (1280 x 960) Optical channel: 25 fps (2688 x 1520) |
| Sub Stream | Thermal channel: 25 fps (704 x 576) Optical channel: 25 fps (704 x 576) |
Range Table
| Temperature Measurement (Object: 0.2 x 0.2 m) | Temperature Measurement (Object: 0.5 x 0.5 m) |
| 7m | 17.5m |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD3028T-2/Q(B) using the special form.
You can buy HIKMICRO HM-TD3028T-2/Q(B) in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO HM-TD3028T-2/Q(B) price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
