Made in China. brand HIKMICRO, model HM-TD2H67H1-25/Q
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $10460
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

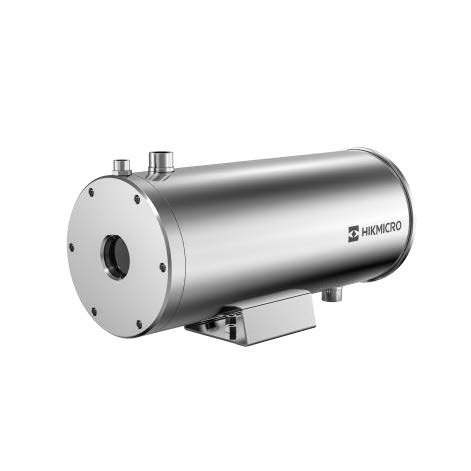

HIKMICRO HM-TD2H67H1-25/Q Thermographic Heat Resistant Bullet Camera is able to measure object’s temperature at a high temperature of environment in real time. With the advantage of standing high temperature, low power consumption, it can independently be used for failure detection, and industrial process control. The industries can be applied to devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) |
| Focal Length | 25 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.68 mrad |
| Aperture | F1.5 |
| Field of View | 24.8° × 19.9° (H × V) |
| Min. Focusing Distance | 0.5 m |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Measurement and Analysis | |
| Object Temperature Range | 0°C to 1800 °C (32 °F to 3272 °F) |
| Temperature Accuracy | Object temperature 100°C to 1800°C (212°F to 3272°F)，±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Thermographic Integration | Temperature Metadata |
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 4 fps, 32-bit 640 × 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 × 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | |
| Main Stream | 50 fps (640 × 512) |
| Video Compression | H.264/H.265/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC, Max. 4.8 W |
| Material | SUS304 |
| Working Temperature/Humidity | 0 °C to 200 °C (32 °F to 392 °F); 95% or less with air cooling and liquid cooling ; -20 °C to 65 °C (-4 °F to 149 °F); 95% or less without air cooling or liquid cooling |
| Protection Level | IP67 |

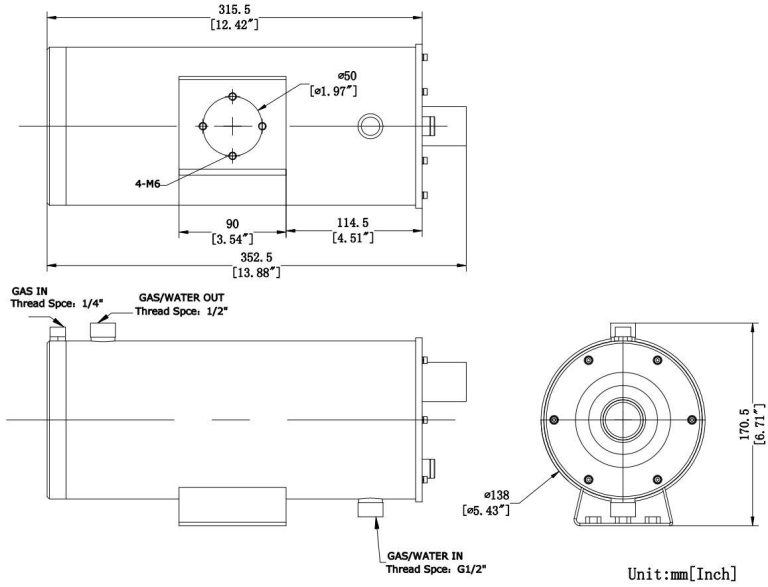

| Dimensions | 352.5 mm × 170.5 mm × 138 mm (13.88″ x 6.71″ x 5.43″) |
| Weight | Approx. 6520 g (14.37 lb) |
| High-temperature Resistance | |
| Cooling Liquid | (application example with incoming water at 20 °C (68 °F) temperature): Ambient Temperature 80 °C (176 °F), Flow Rate above 0.65 L/min ； Ambient Temperature 100 °C (212 °F), Flow Rate above 1.22 L/min ； Ambient Temperature 150 °C (302 °F), Flow Rate above 1.76 L/min ； Ambient Temperature 200 °C (392 °F), Flow Rate above 3.3 L/min |
| Cooling Air | (application example with incoming air at 20 °C (68 °F) temperature and with pressure 7 bar): Ambient Temperature 70 °C (158 °F), Flow Rate above 15.34 m³/h ； Ambient Temperature 85 °C (185 °F), Flow Rate above 32.54 m³/h ； Ambient Temperature 100 °C (212 °F), Flow Rate above 37.82 m³/h ； Ambient Temperature 120 °C (248 °F), Flow Rate above 53.97 m³/h |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2H67H1-25/Q using the special form.
You can buy HIKMICRO HM-TD2H67H1-25/Q in Latvia at a price starting from10460 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO HM-TD2H67H1-25/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
