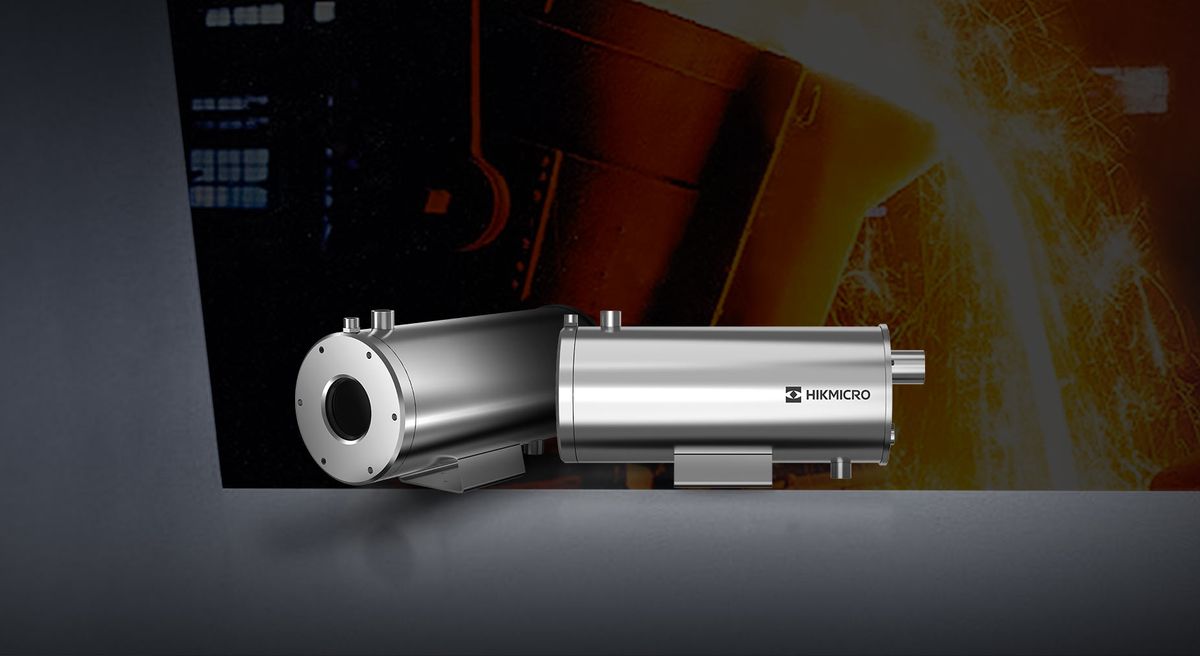

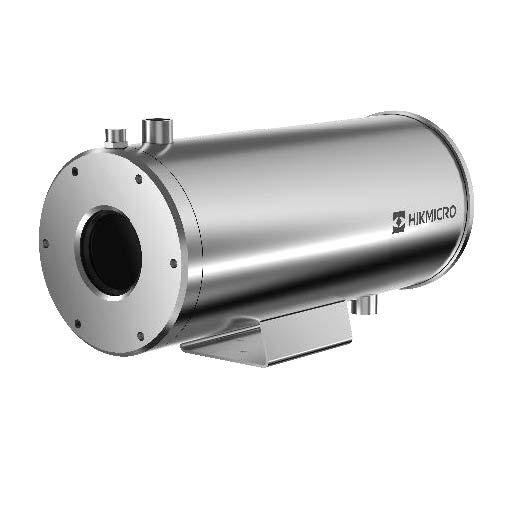

HIKMICRO HM-TD2H67H1-15/Q Thermographic Heat Resistant Bullet Camera is able to measure object’s temperature at a high temperature of environment in real time. With the advantage of standing high temperature, low power consumption, it can independently be used for failure detection, and industrial process control. The industries can be applied to devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) |
| Focal Length | 15 mm |
| Focus Mode | Athermalized |
| IFOV | 1.13 mrad |
| Aperture | F1.5 |
| Field of View | 41.5° × 33.3° (H × V) |
| Min. Focusing Distance | 0.5 m |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Measurement and Analysis | |
| Object Temperature Range | 0°C to 800°C (32°F to 1472°F), 600°C to 1800°C (1112°F to 3272°F) |
| Temperature Accuracy | Object temperature 100°C to 1800°C (212°F to 3272°F)，±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Thermographic Integration | Temperature Metadata |
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 4 fps, 32-bit 640 × 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 × 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | |
| Main Stream | 50 fps (640 × 512) |
| Video Compression | H.264/H.265/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2H67H1-15/Q using the special form.
