Made in China. brand HIKMICRO, model HM-TD2C68E-25/Q
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $17400
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

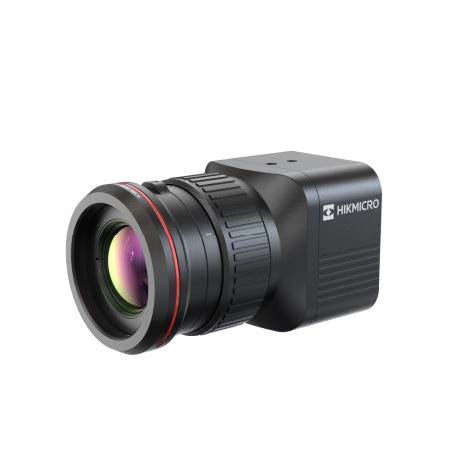

The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.

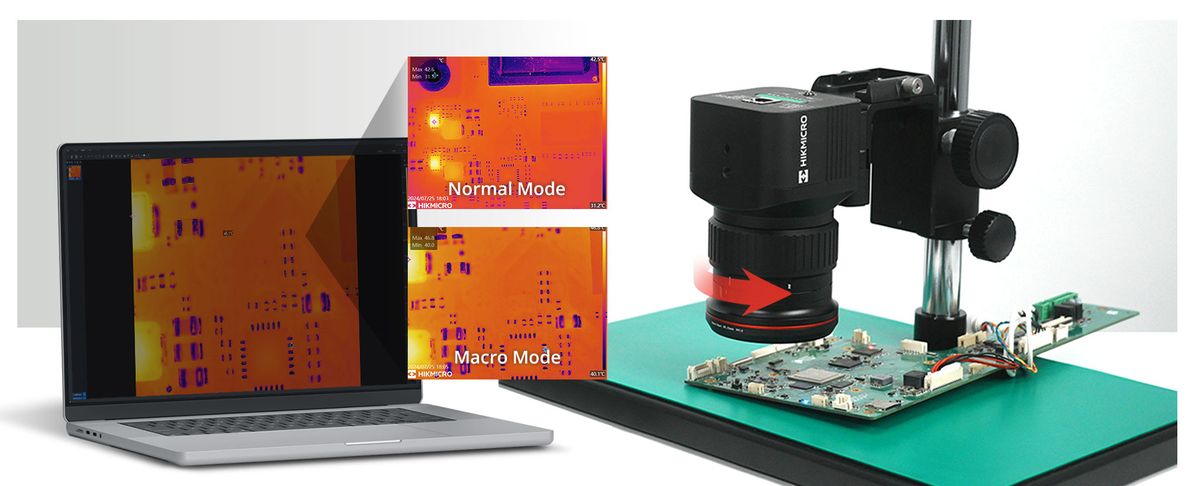

Quick Mode Switch, Improve Observation Efficiency – Equipped with a dual-mode lens, only one single twist to switch between macro mode and normal mode

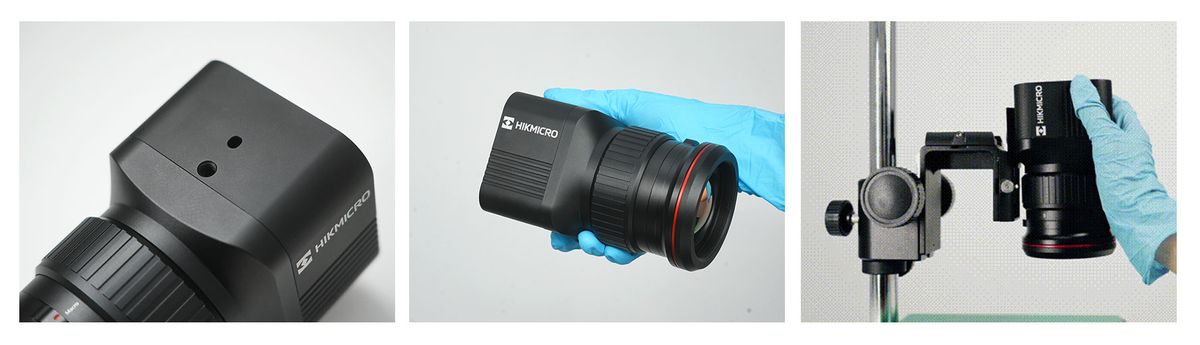

Quick Installation & Simple Integration – Designed with standard 1/4 threaded hole, HIKMICRO R&D box camera can easily cope with various installation scenarios (tripod, etc.). It is small in size and light in weight, can be held in one hand, and is super easy to install.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| NETD | <35 mK (25 °C, F# = 1.0) |
| Focal Length | 25 mm |
| Focus Mode | Athermalized |
| IFOV | 0.48 mrad |
| Field of View | 15cm: 17.5°(H) x 14°(V) x 22.3°(D) 4.3cm: 17.9°(H) x 14.3°(V) x 23.0°(D) |
| Min. Focusing Distance | 0.15 m |
| Aperture | F 1.0 |
| Spot Size | 35μm |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C~150°C Range 0°C~650 °C |
| Temperature Accuracy | Range -20~150℃： -20~100℃:±1℃ 100~150℃:±1% Range 0~650℃ 0~100℃:±2℃ 100~650℃:±2% |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Video and Image | |
| Main Stream | 50 fps (640 × 512) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | ×2, ×4, ×8 |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 640 × 512@50 fps |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Analyzer |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Analog Output | 1, CVBS output |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 3W Max |
| Working Temperature/Humidity | -20 °C to 50 °C (-4 °F to 122 °F) 90% or less |
| Protection Level | IP40 |
| Mount | M3 |
| Weight | Approx. 1000g (2.2 lb.) |

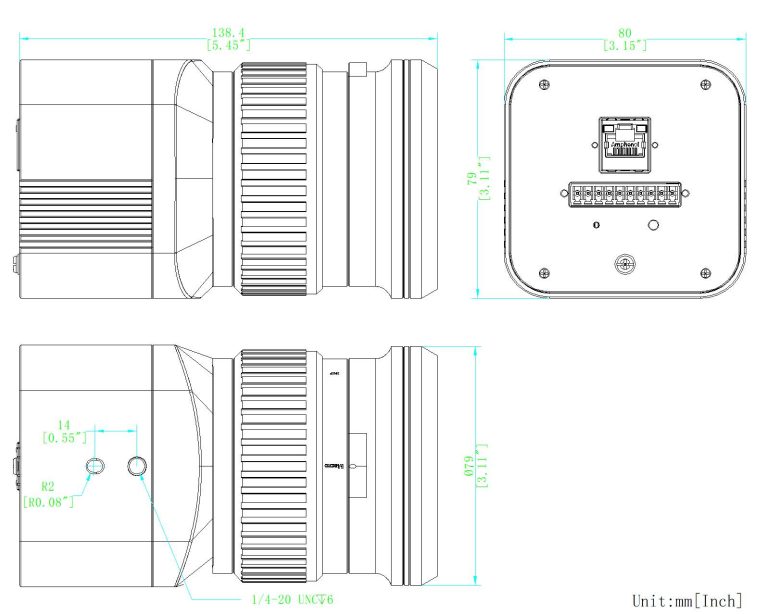

| Dimensions | 138.4 mm × 79 mm × 80 mm ( 5.44″ x 3.11″ x 3.15″) |
| Material | Aluminum alloy |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2C68E-25/Q using the special form.
You can buy HIKMICRO HM-TD2C68E-25/Q in Latvia at a price starting from17400 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO HM-TD2C68E-25/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
