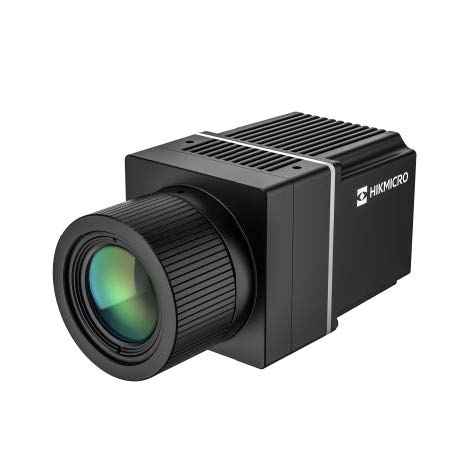

Made in China. brand HIKMICRO, model HM-TD2A67H2-7/Q
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $9360
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The High Temperature Box Camera can be combined with devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) |
| Focal Length | 7 mm |
| IFOV | 1.13 mrad |
| Aperture | F1.5 |
| Field of View | 90.0° × 73.8° (H × V) |
| Min. Focusing Distance | 0.5 m |
| Measurement and Analysis | |
| Object Temperature Range | 0°C to 1000°C (32°F to 1832°F) |
| Temperature Accuracy | Object temperature 100°C to 1000°C (212°F to 1832°F)，±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| Measurement Presets | Hot spot, cold spot in real time Point: 10 User Presets Line: 1 User Presets Area: 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Thermographic Integration | Temperature Metadata |
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 4 fps, 32-bit 640 × 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 × 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | |
| Main Stream | 50 fps ( 1280×720, 704×576, 640×512, 352×288, 384×288 ) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP |
| Simultaneous Live View | Up to 3 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 4.8W Max |
| Working Temperature/Humidity | -20 °C to 50 °C (-4 °F to 122 °F) 90% or less |
| Protection Level | IP40 |

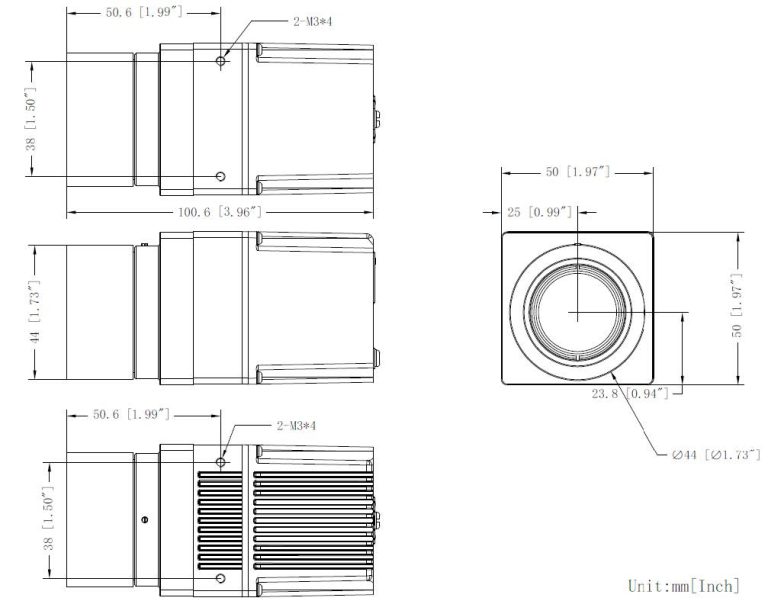

| Dimensions | 100.6mm × 50 mm × 50 mm ( 3.96″ x 1.97″ x 1.97″) |
| Weight | Approx. 344 g (0.76 lb) |
| Mount | M3 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2A67H2-7/Q using the special form.
