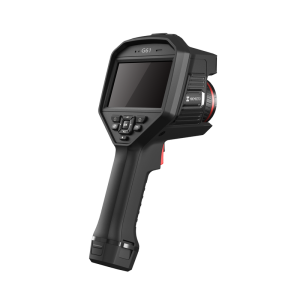

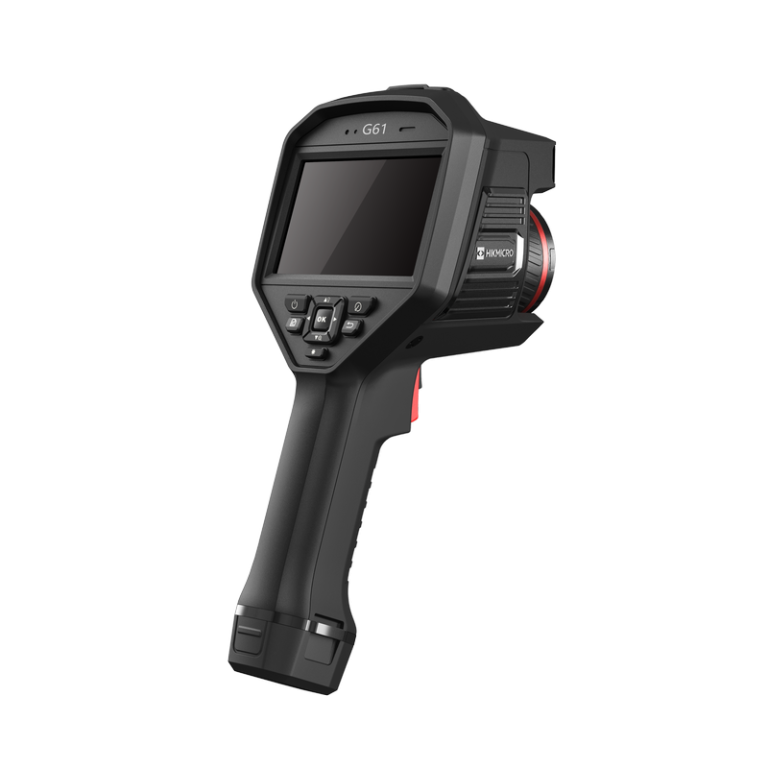

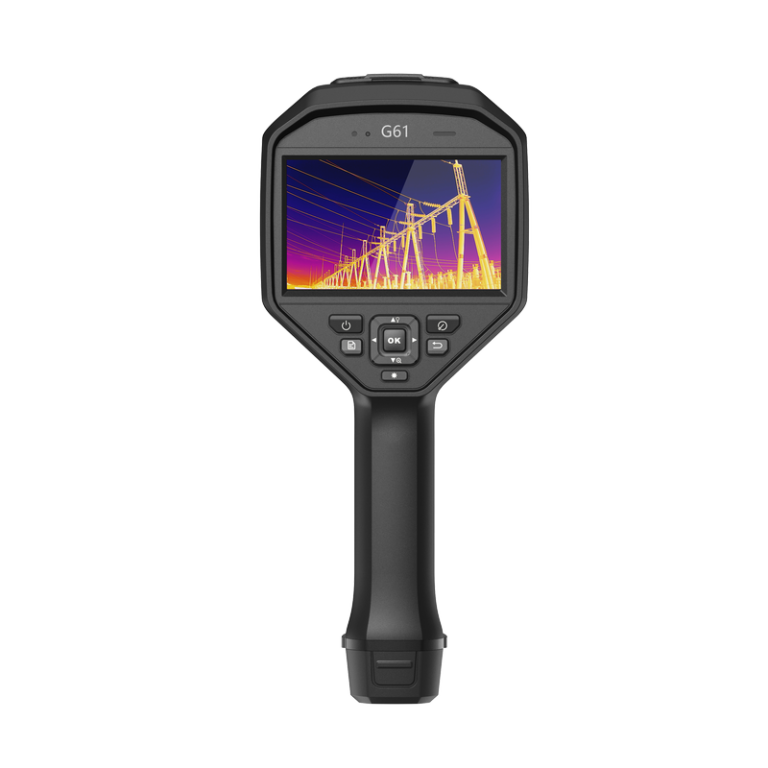

HIKMICRO G61
Photo HIKMICRO G61 Description of HIKMICRO G61 Video HIKMICRO G61 Specifications HIKMICRO G61 Package Contents HIKMICRO G61 Accessories for HIKMICRO G61 Prices for HIKMICRO G61 Warranty for HIKMICRO G61 Calibration of HIKMICRO G61 User Manual for HIKMICRO G61 Related instruments to HIKMICRO G61
Made in China. brand HIKMICRO, model G61
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 7500 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

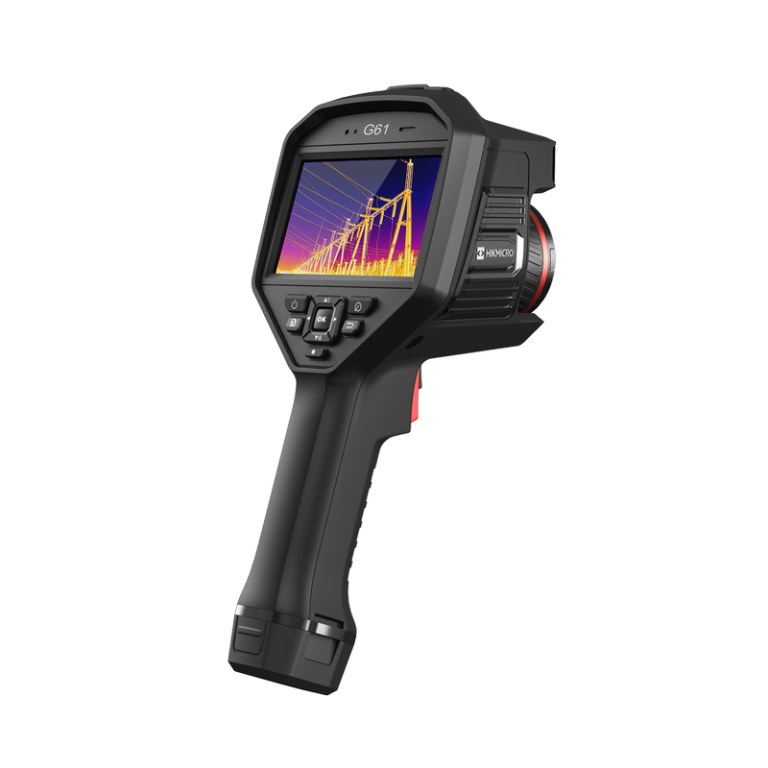

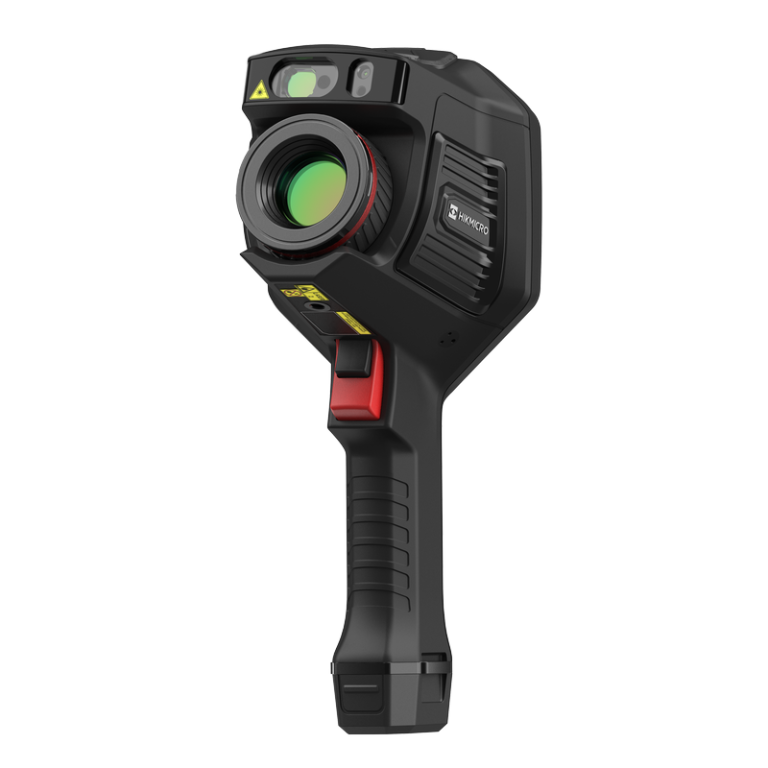

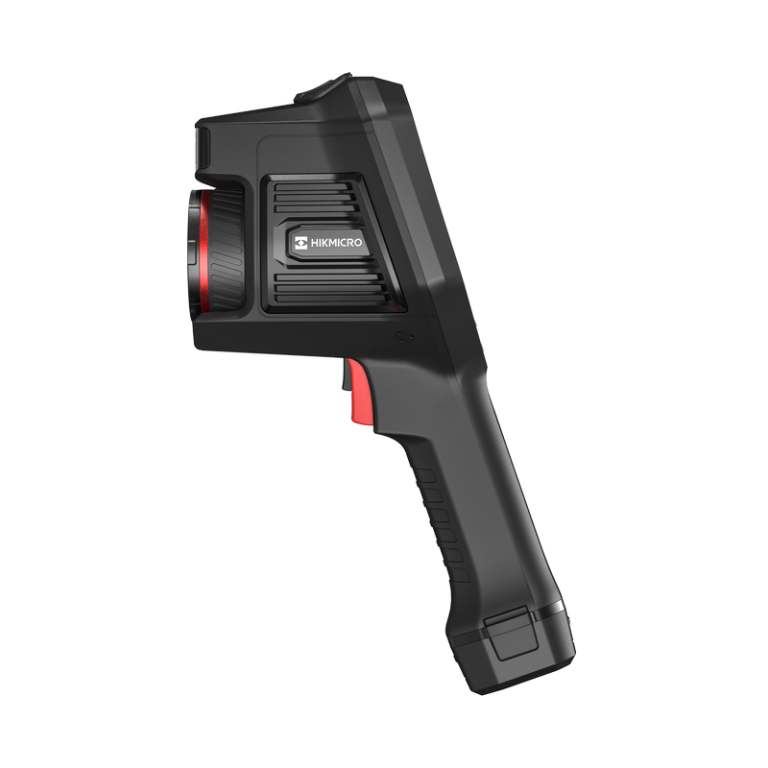

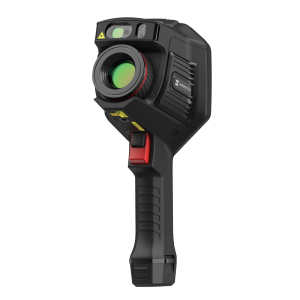

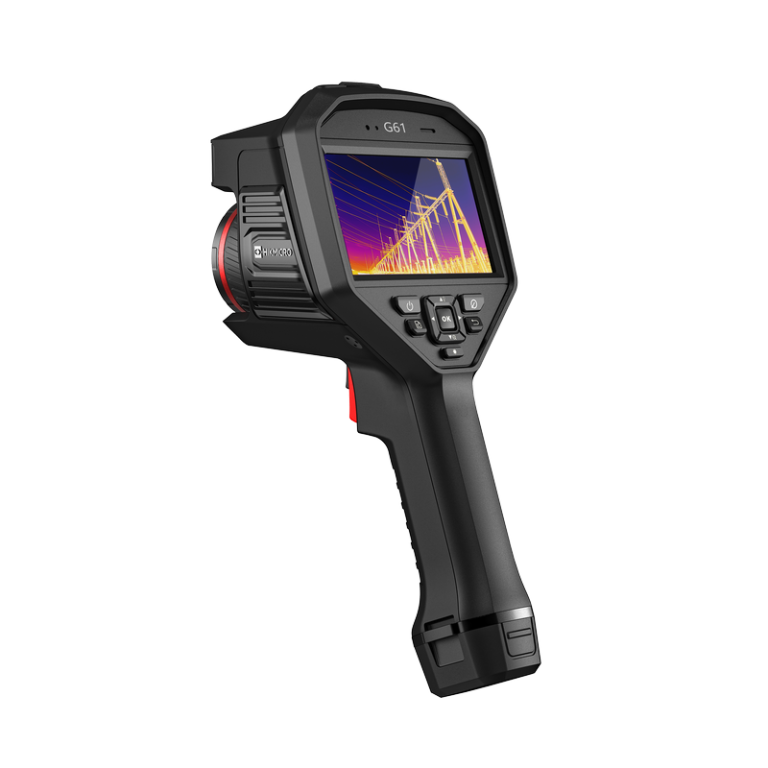

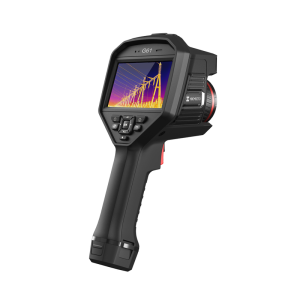

The HIKMICRO G61 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO G61 has a high sensitivity (NETD < 35 mK) and high resolution (640 x 480) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
Features
Ultra high resolution. More efficient inspection
Up to 640×480 @35mK NETD – A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target.
5 Quick Focus Modes – Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements.
3 Add-on Lenses – 3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.
Up to 2000°C Temperature Range – With a measurement range of up to 2000°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*G41H/G61H only)
Embedded Laser Distance Meter – An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes – Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred.
Complete Image Annotations – In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.
Interchangeable Battery System – Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Applications
Radiometric Video Analysis – Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.
Introduction video
| Infrared Image | |
| IR Resolution | 640×480 (307,200 pixels) |
| SuperIR | 1280×960 (1,228,800 pixels) |
| NETD | < 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 50 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 25 mm |
| F-number | F 1.0 |
| Field of View (FOV) | 25° × 19° |
| Spatial Resolution (IFOV) | 0.68 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 2 second |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 800 × 480 Resolution, 4.3″ LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.x to 8.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation/Condensation |
| Image Modes | Infrared/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circle |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB Micro SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | Approx. 54 hours |
| Video File Format | MP4 video and radiometric video |
| Image Format | Radiometric JPEG |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC, Wi-Fi |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | Yes |
| Laser Pointer | Yes |
| LED Light | Yes |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| GPS & Compass | Yes |
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 4 hours fully charged |
| Power Saving Mode | Yes |
| Protection Level | IP54, IEC 60529 |
| Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1 EN 301 489-17 EN IEC 61000-6-2 EN IEC 61000-6-3 EN IEC 61326-1 EN IEC 61326-2-2 |
| Vibration | 2 g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) |
| Weight | Approx. 1058 g (2.33 lb) |
| Relative Humidity | < 95% non-condensing |

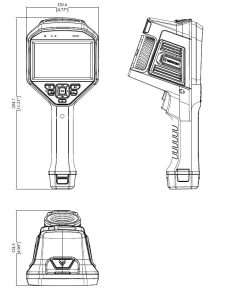

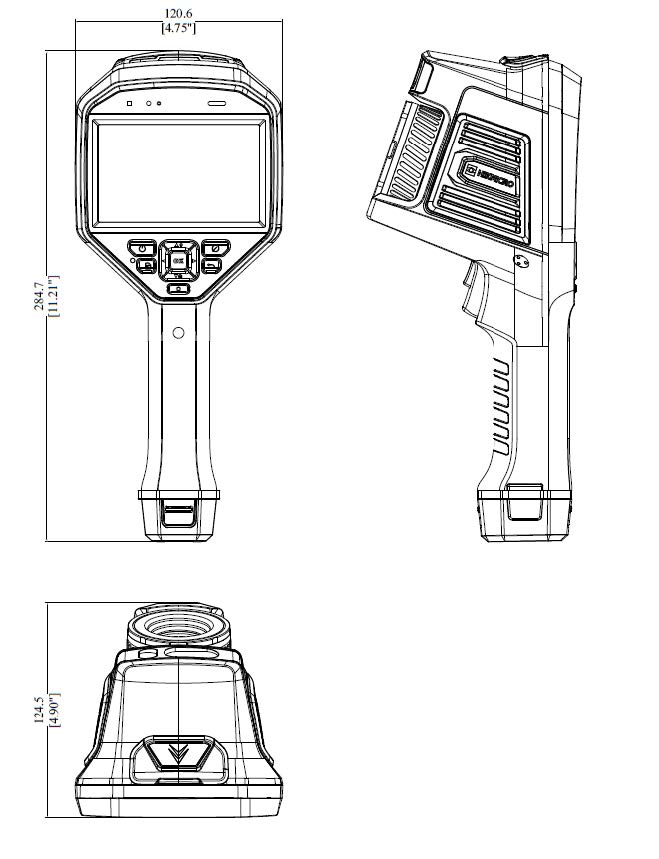

| Dimension | 284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-TP76-25SVF/W-G61
| Model | Description | Photo |
| HM-701ZJ-G01-SHIELD | Handheld Thermography Accessory |  |
| HM-G605-LENS1 | 0.5x wide angle lens, for G41 and G61 |  |
| HM-SP01-POUCH | M/G/SP Series Pouch |  |
| INR18650-35E-1S2P | G Series Battery |  |
| HM-5202ZC2 | G Series Charging Base |  |
| HM-G620-LENS1 | 2x telephoto lens, for G41 and G61 |  |
| HM-G630-LENS1 | 3x telephoto lens, for G41 and G61 |  |
| Model | Description | Price, € |
| HM-TP76-25SVF/W-G61 | 640×480, 25°×19°, Auto/manual focus, NETD<35mk, 8MP visible camera, -20~650℃, ±2℃/±2%, 64GB, 4.3 inch 800×480 LCD touch screen, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder | 7500 |
| HM-G605-LENS1 | 0.5x wide angle lens, for G41, G41H, G61 and G61H | 1450 |
| HM-SP01-POUCH | Soft pouch with adjustable shoulder strap, for SP, G and M series cameras. Enough space for extra lens. | 75 |
| INR18650-35E-1S2P | Battery for G sereis, 5000mAh, 3.7V | 100 |
| HM-5202ZC2 | Battery charger for G and AI series battary, Power Input: 100~240V/0.7A, Power Output:12V/2A | 150 |
| HM-G620-LENS1 | 2x telephoto lens, for G41, G41H, G61 and G61H | 1450 |
| HM-G630-LENS1 | 3x telephoto lens, for G41, G41H, G61 and G61H | 3000 |
The warranty for the HIKMICRO G61 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The cost of extending the warranty for the HIKMICRO G61 is:
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO G61 thermal imager is €665 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO G61 using the special form.
You can buy HIKMICRO G61 in Latvia at a price starting from 7500 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO G61 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
