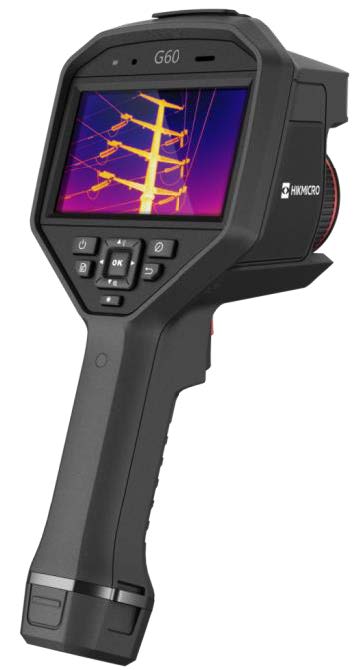

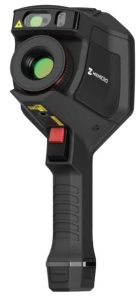

HIKMICRO G60 handheld thermal camera is specially designed for temperature measurement. It’s equipped with a 640 x 480 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
Features
Ultra high resolution. More efficient inspection
Up to 640×480 @35mK NETD – A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target.
5 Quick Focus Modes – Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements.
3 Add-on Lenses – 3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.
Embedded Laser Distance Meter – An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes – Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred.
Complete Image Annotations – In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.
Interchangeable Battery System – Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Applications
Radiometric Video Analysis – Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.
Introduction video
| Infrared Image | |
| IR Resolution | 640 x 480 (307,200 pixels) SuperIR 1280 x 960 (1,228,800 pixels) |
| NETD | < 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 50 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 25 mm |
| F-number | F 1.0 |
| Field of View (FOV) | 25° × 19° |
| Spatial Resolution (IFOV) | 0.68 mrad |
| Min. Focus Distance | 0.2 m (0.65 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 3 second |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 800 × 480 Resolution, 4.3″ LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.x to 8.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation |
| Image Modes | Infrared/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circle |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB Micro SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Video Storage Capacity | Approx. 54 hours |
| Video File Format | MP4 video and radiometric video |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| Laser Distance Meter | Indoor distance: 50 m (164 ft) Outdoor distance: 10 m (33 ft) |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Charging Time | Approx. 4 hours fully charged |
| Battery Operating Time | Approx. 4 hours |
| Power Saving Mode | Yes |
| Protection Level | IP54, IEC 60529 |
| LED Light | Yes |
| Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Vibration | 2 g, IEC 60068-2-6 |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Shock | 25 g, IEC 60068-2-27 |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 1000 g (2.2 lb) |

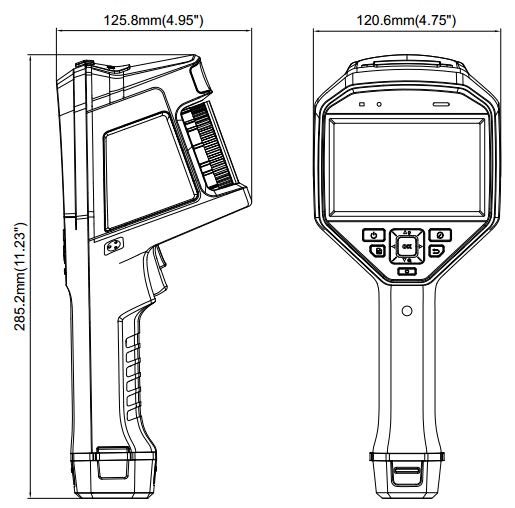

| Dimension | 285.2 × 120.6 × 125.8 mm (11.2 × 4.7 × 4.9 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-TP76-25SVF/W-G60
| Model | Description | Photo |
| HM-701ZJ-G01-SHIELD | Handheld Thermography Accessory |  |
| HM-G605-LENS1 | 0.5x wide angle lens |  |
| HM-SP01-POUCH | M/G/SP Series Pouch |  |
| INR18650-35E-1S2P | G Series Battery |  |
| HM-5202ZC2 | G Series Charging Base |  |
| HM-G620-LENS1 | 2x telephoto lens |  |
| HM-G630-LENS1 | 3x telephoto lens |  |
| Model | Description | Price, € |
| HM-G605-LENS1 | 0.5x wide angle lens | 1450 |
| HM-SP01-POUCH | Soft pouch with adjustable shoulder strap, for SP, G and M series cameras. Enough space for extra lens. | 75 |
| INR18650-35E-1S2P | Battery for G sereis, 5000mAh, 3.7V | 100 |
| HM-5202ZC2 | Battery charger for G and AI series battary, Power Input: 100~240V/0.7A, Power Output:12V/2A | 150 |
| HM-G620-LENS1 | 2x telephoto lens | 1450 |
| HM-G630-LENS1 | 3x telephoto lens | 3000 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO G60 using the special form.
You can buy HIKMICRO G60 in Latvia at a price starting from7000 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO G60 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
