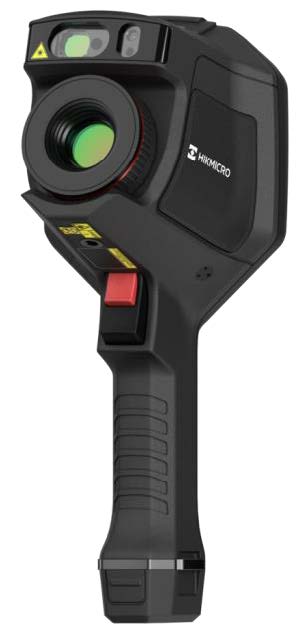

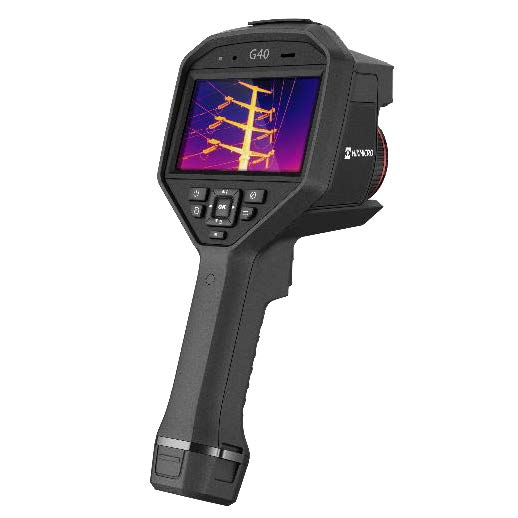

HIKMICRO G40 Handheld Thermal Imaging Camera

Description of HIKMICRO G40

HIKMICRO G40 handheld thermal camera is specially designed for temperature measurement. It’s equipped with a 480 x 360 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

Features

• High sensitivity thermal module with 480 x 360 resolution
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Supports multiple palettes
• High quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20 °C to 650 °C (-4 °F to 1202 °F)
• High temperature measurement accuracy: Max (±2°C/3.6°F, ±2%)
• High-calibre 800 x 480 resolution 4.3” LCD touch display
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• Supports 1.x to 8.x continuous digital zoom

Ultra high resolution. More efficient inspection – A highly sensitive VOx detector (NETD < 35 mK) with 640 x 512 (327 680 pixels) IR resolution, provides a distinct thermal vision of the target.

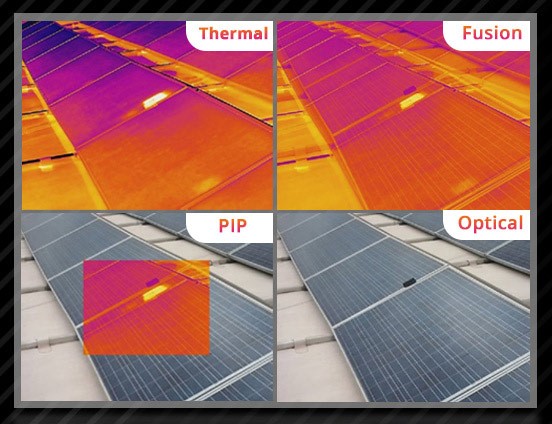

Multiple Image Modes – Thermal, Fusion, PIP and Optical modes to suit your preferred.

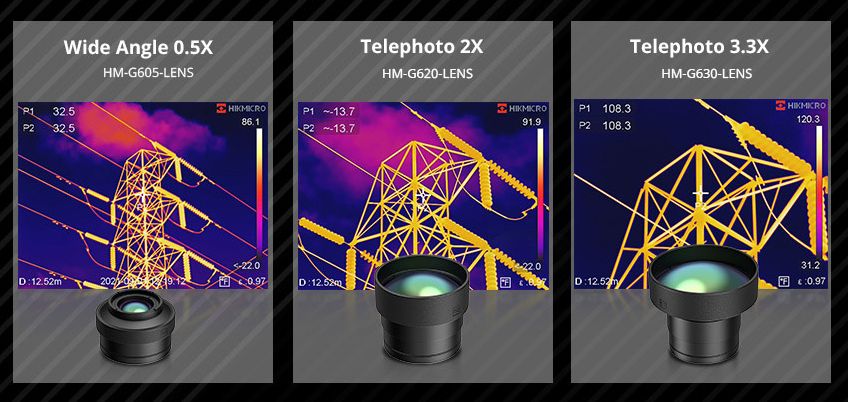

Multiple Interchangeable Lens Choices – Interchangeable lenses 0.5X, 2X, 3.3X are available for choices. Different tele converters give different Field Of View, offering more choices when facing different scenarios.

Various Focus Modes – Support 4 types of focus modes to reach more clear images and lead to more accurate temperature measurements.

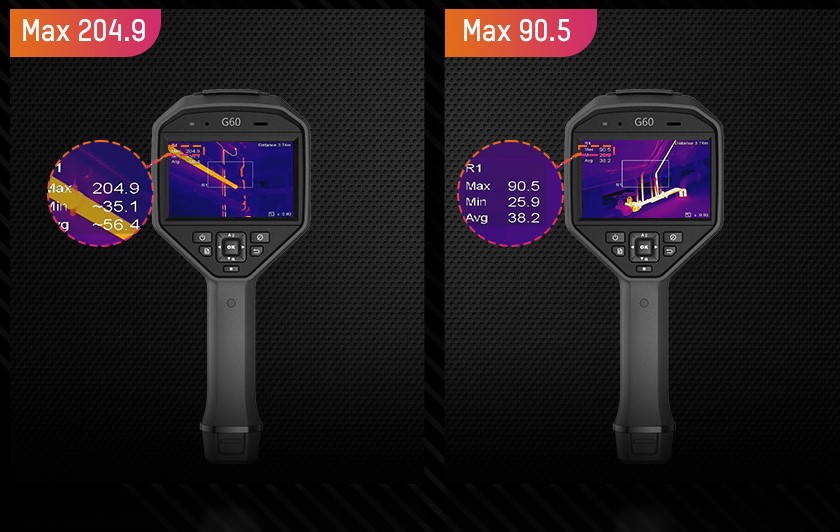

Auto-Range – A highly sensitive HIKMICRO VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.

Laser Pointer – The Laser Pointer helps show the position of the center point on actual object.

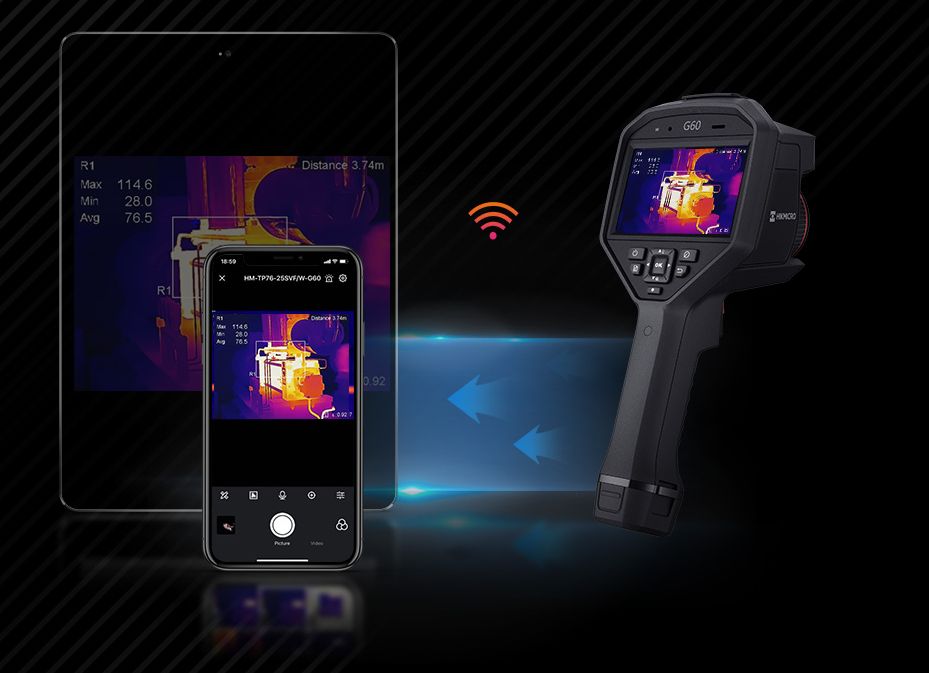

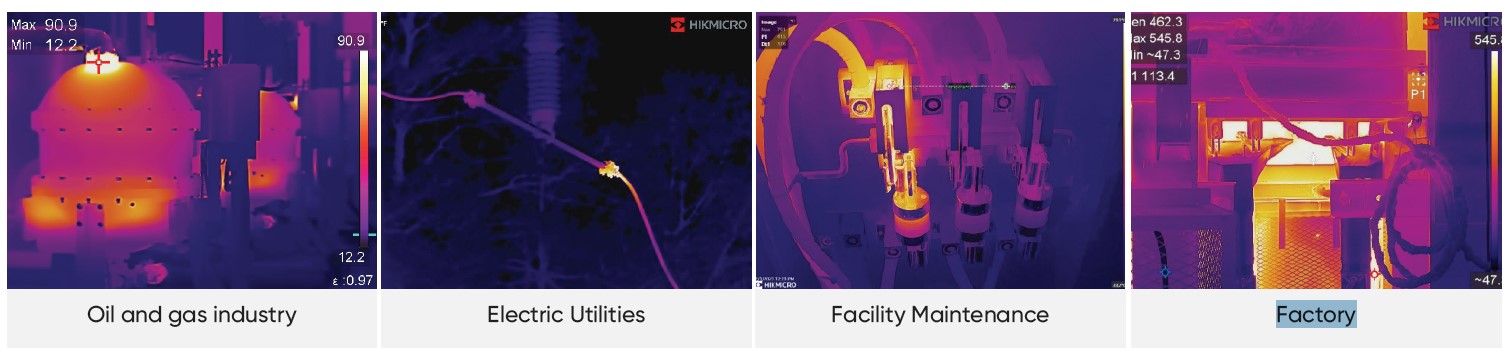

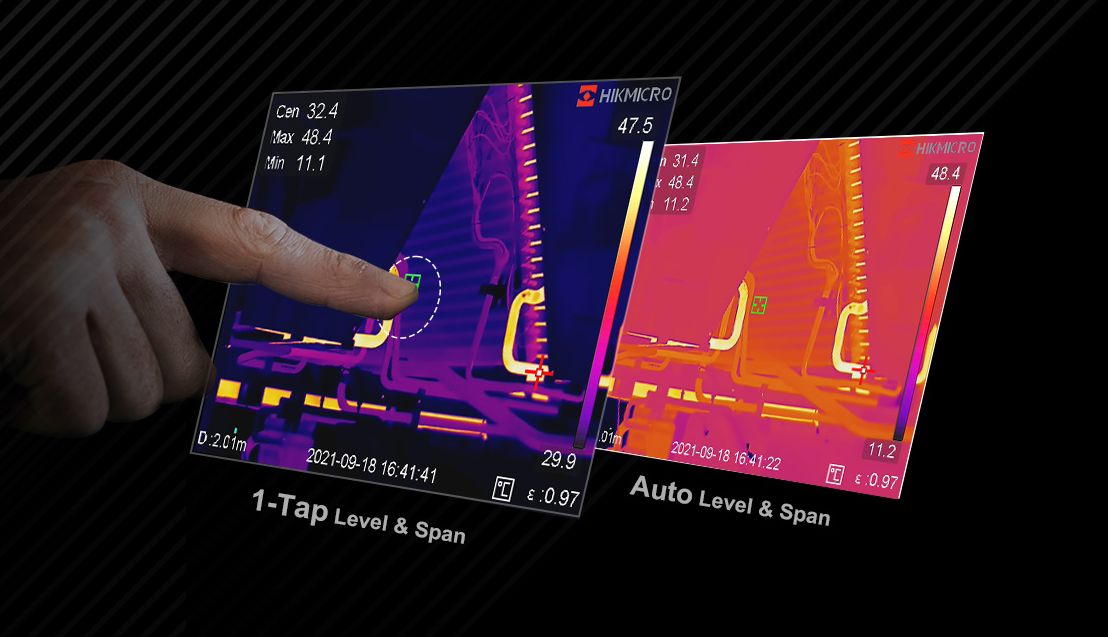

Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi to quickly share images and videos through HIKMICRO Viewer App.1-Tap Level & Span – Allows to focus one the area of the image you are interested in by narrowing the span with 1-Tap of the screen.Applications

• Oil and gas industry
• Electric Utilities
• Facility Maintenance
• Factory

Technical specifications of HIKMICRO G40

Infrared Image
IR Resolution	480 × 360 (172,800 pixels) SuperIR 960 x 720 (691,200 pixels)
NETD	< 35 mK (@ 25 °C, F#=1.0)
Image Frequency	50 Hz
Detector Pitch	17 μm
Spectral Range	7.5 to 14 μm
Focal Length	25 mm
F-number	F 1.0
Field of View (FOV)	18.7° × 14°
Spatial Resolution (IFOV)	0.68 mrad
Min. Focus Distance	0.2 m (0.65 ft)
Focus Mode	Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
Focus Speed	Approx. 3 second
Image Display
Visual Camera	3264 × 2448 (8 MP)
Display	800 × 480 Resolution, 4.3″ LCD Touch Screen
Screen Brightness	Manual/Auto
Digital Zoom	1.x to 8.x continuous
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette	Above/Below/Interval
Color Alarm	Above/Below/Interval/Insulation
Image Modes	Infrared/Visual/Fusion/PIP/Blending
Measurement and Analysis
Object Temperature Range	-20 °C to 650 °C (-4 °F to 1202 °F)
Accuracy	Max (±2°C/3.6°F, ±2%)
Measurement Tools	Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circle
Level and Span Mode	Auto/Manual/1-Tap Touch-screen
Inspection Route	Yes
Data Storage and Communication
Storage Media	Removable 64 GB Micro SD Card
Image Storage Capacity	Approx. 60,000 Images
Annotations	Voice note: max. 60 seconds Text note: max. 200 characters
Video Storage Capacity	Approx. 54 hours
Video File Format	MP4 video and radiometric video
General
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth	Bluetooth 4.2
USB Interface	USB Type-C
LED Light	Yes
Laser	Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
Laser Distance Meter	Indoor distance: 50 m (164 ft) Outdoor distance: 10 m (33 ft)
Battery Type	Interchangeable and rechargeable Li-ion battery
Battery Operating Time	Approx. 4 hours
Battery Charging Time	Approx. 4 hours fully charged
Power Saving Mode	Yes
Protection Level	IP54, IEC 60529
Safety	IEC 61010-1
Drop Test Height	2 m (6.56 ft), IEC 60068-2-31
EMC	EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3
Vibration	2 g, IEC 60068-2-6
Working Temperature Range	-20°C to 50°C (-4°F to 122°F)
Shock	25 g, IEC 60068-2-27
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 1000 g (2.2 lb)
Tripod Mounting	UNC ¼”-20

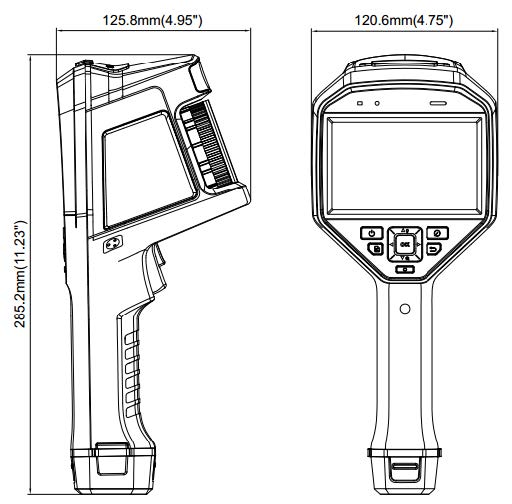

Dimension	285.2 × 120.6 × 125.8 mm (11.2 × 4.7 × 4.9 in)

Expand Table

Package Contents HIKMICRO G40

• Calibration Certificate
• Printed Quick Start Guide
• Hard Carrying Case
• Charging Base with Adapter and Plugs (US/EU/UK/AU)
• Interchangable Battery x 3
• 64GB Micro SD card
• Hand Strap Brackets Left and Right
• Aperture Diaphragm (G41H/G61H Only)
• Lens Cap
• Hand Strap
• Torx Screwdriver
• Screw for Hand Strap Brackets
• Mini HDMI to HDMI Cable
• USB Cable

Model Number: HM-TP74-25SVF/W-G40

Accessories for HIKMICRO G40

Model	Description	Photo
HM-701ZJ-G01-SHIELD	Handheld Thermography Accessory
HM-G605-LENS1	0.5x wide angle lens, for G41 and G61
HM-SP01-POUCH	M/G/SP Series Pouch
INR18650-35E-1S2P	G Series Battery
HM-5202ZC2	G Series Charging Base
HM-G620-LENS1	2x telephoto lens, for G41 and G61
HM-G630-LENS1	3x telephoto lens, for G41 and G61

Expand Table
