Made in China. brand HIKMICRO, model FT31
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 2800 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
High-performance thermal camera for observing in total darkness and smoke.

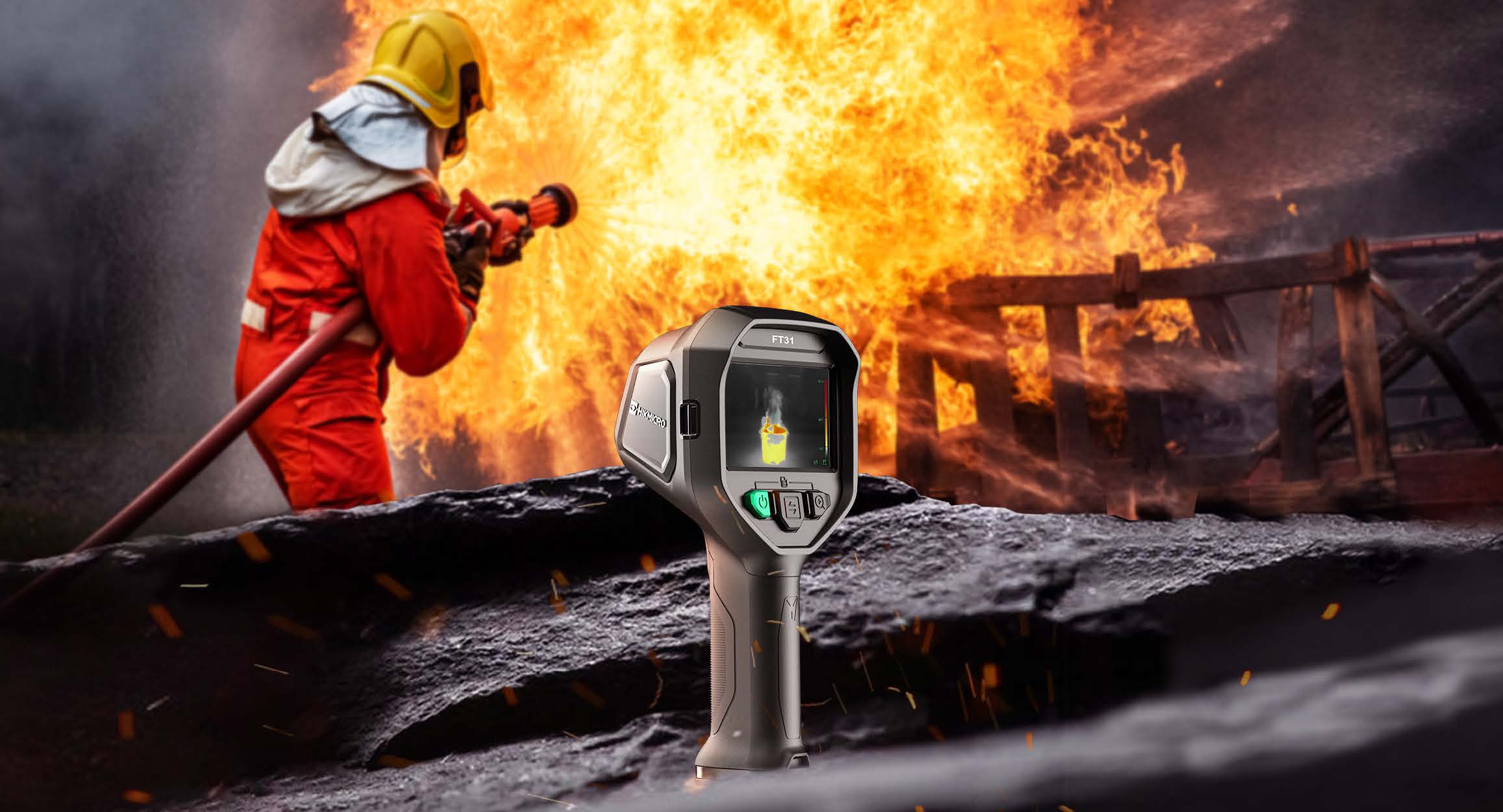

The professional firefighting thermal camera is a product designed for firefighting and life rescue. It is easy to operate even with gloves. It supports multiple display modes for different on-site purposes, for example firefighting, hidden fire point searching, life rescue, building analysis, etc. These modes can help fire and rescue personnel detect and understand the temperature status of the scene and detect life signs more efficiently.

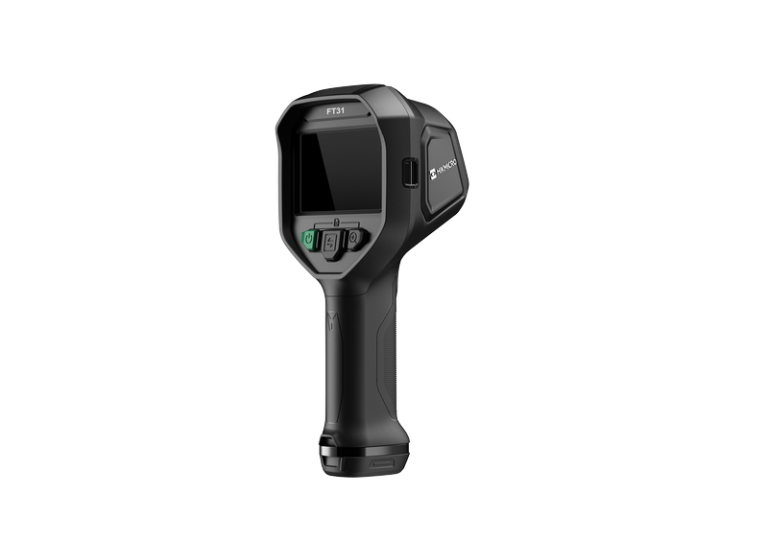

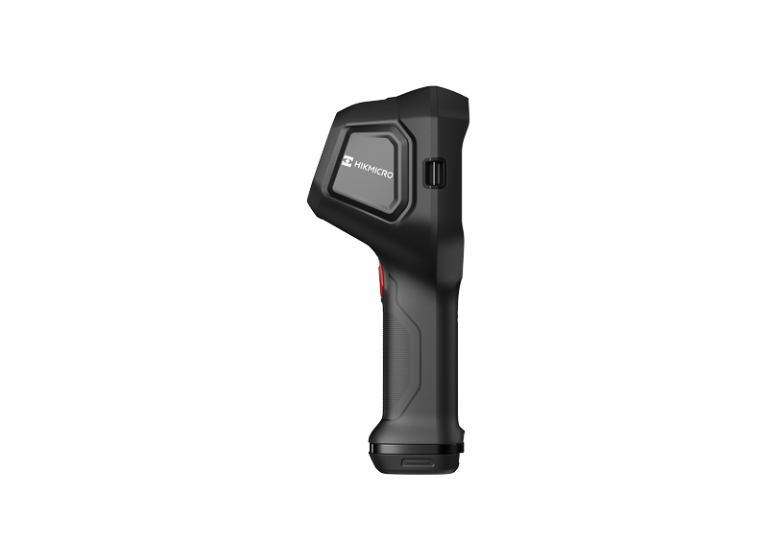

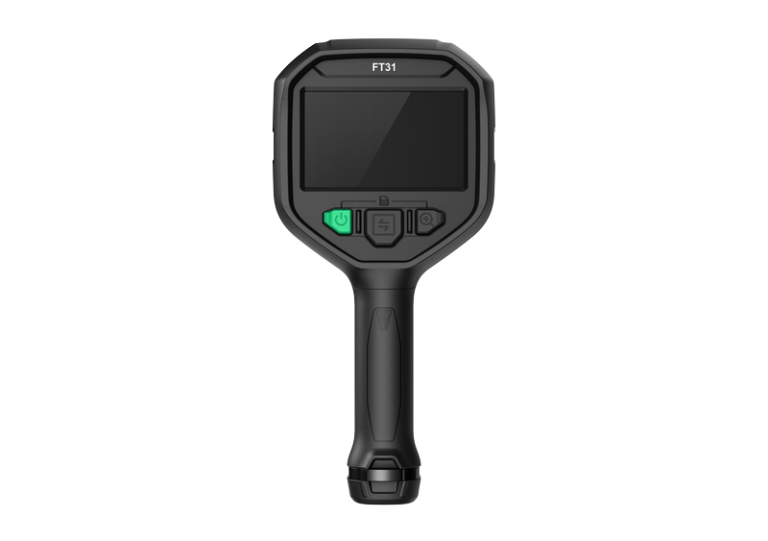

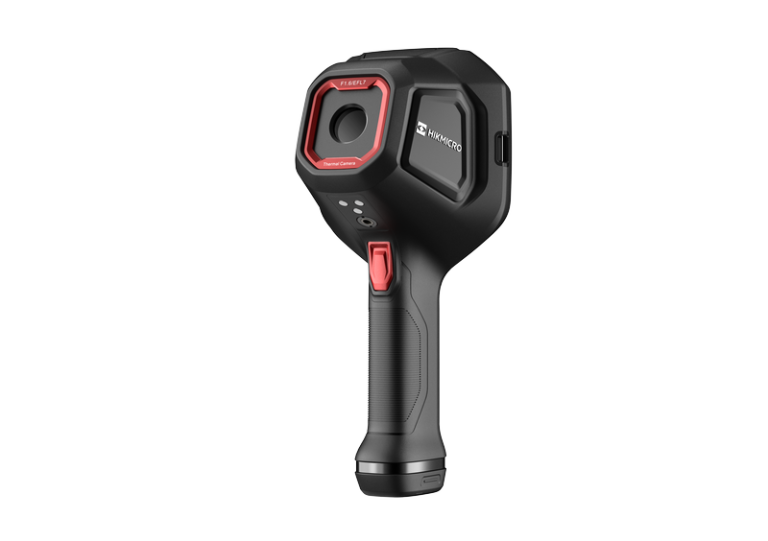

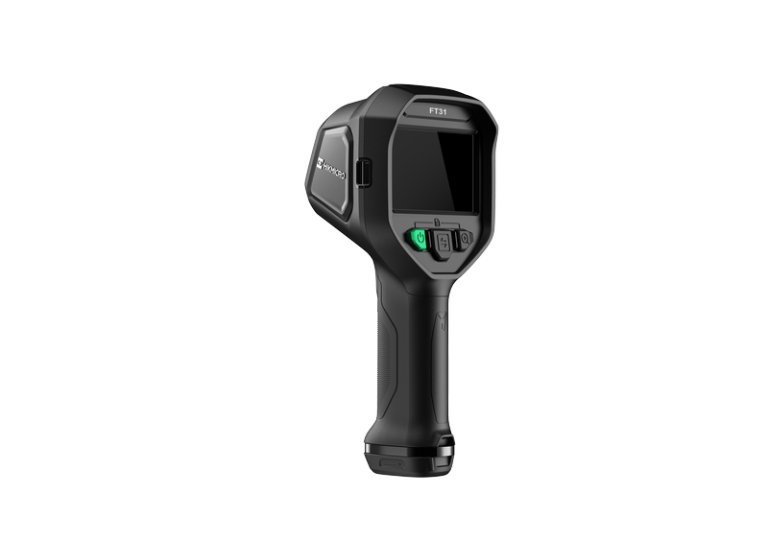

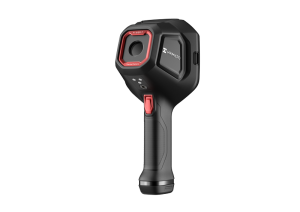

The HIKMICRO FT31 is a high-performance firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe. Features like object details enhancement, easy-to-navigate buttons and a working temperature range of up to 260°C(500°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from satisfy most application scenarios.
High-Performance Thermal Camera
High Image Quality – Features a highly sensitive (NETD < 35 mK) VOx detector, along with ODE(Object Details Enhancement) to provide clear thermal images.
60 Hz Fast Image Frequency – 60 Hz fast image frequency delivers smooth video while panning across scenes or viewing moving targets.

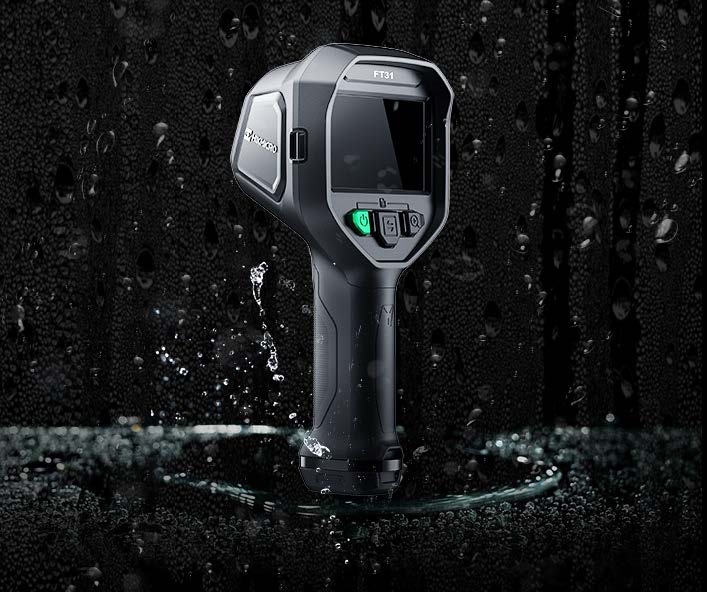

Rugged & Durable Design – IP67 rated for protection against water and dust. Featuring 2-meter (6.56ft)drop protection, suitable for harsh environment.
For Observing In Total Darkness And Smoke
1. For Firefighting/ Smoke Systems
2. For Fire Rescue
3. For Building Construction
Working Temperature Range:
-20°C to 50°C (-4°F to 122°F);
80°C (176°F), 40min;
150°C (302°F), 15min;
260°C (500°F), 7min.

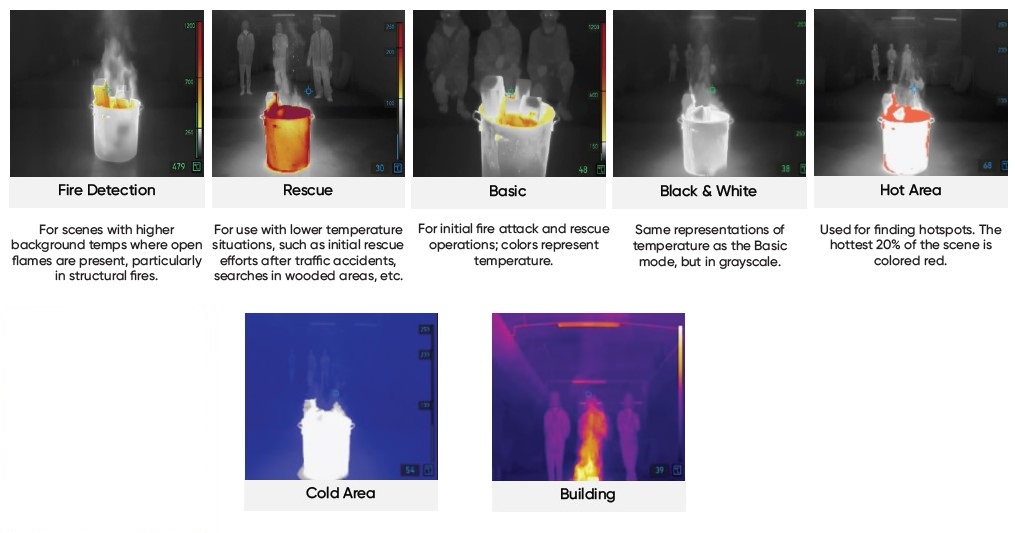

8 Color Palettes Give Different Image Display Options
| Infrared Image | |
| IR Resolution | 384×288 (110,592 pixels) |
| NETD | < 30 mK (@25°C, F#=1.0) |
| Image Frequency | 60 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 7 mm |
| F-number | F1.6 |
| Field of View (FOV) | 54.1°×40.2° |
| Spatial Resolution (IFOV) | 2.42 mrad |
| Focus Mode | Focus Free |
| Image Sensor | VOx Uncooled Focal Plane Arrays, Germanium protective lens cover |
| Min. Focus Distance | 1 m (3.28 ft) |
| Image Display | |
| Display | 800×480 Resolution, 4.3″ LCD Screen |
| Digital Zoom | 1x, 2x, 4x |
| Image Modes | Thermal |
| Color Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 250°C (-4°F to 482°F) Range 200°C to 1200°C (392°F to 2192°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Data Storage and Communication | |
| Storage Media | Built-in 128 GB flash memory |
| Image Storage Capacity | Approx. 281,600 Images |
| Video Storage Capacity | Approx. 15.6 hours |
| General | |
| Wi-Fi | Yes |
| USB Interface | USB Type-C |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP67, IEC 60529 |
| Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Vibration | 2g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 85°C (-4°F to 185°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 1022g (2.25 lb) |

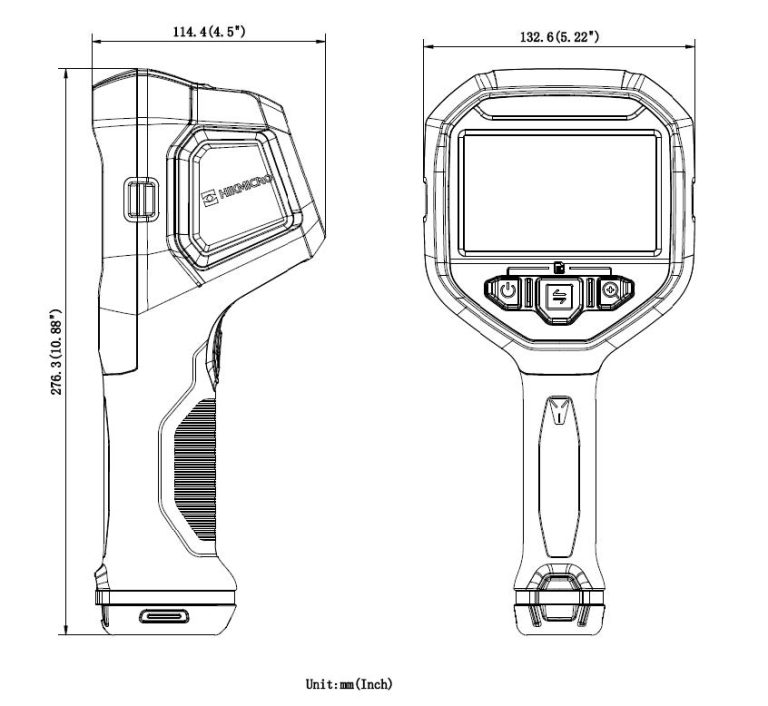

| Dimension | 132.7×276.3×114.6 mm (5.2 × 10.9 × 4.5 in) |
| Tripod Mounting | UNC ‘&’-20 |
Model Number: HM-TF23-7QF-FT31
The warranty for the HIKMICRO FT31 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The cost of extending the warranty for the HIKMICRO FT31 is:
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO FT31 thermal imager is €532 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO FT31 using the special form.
You can buy HIKMICRO FT31 in Latvia at a price starting from 2800 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO FT31 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
