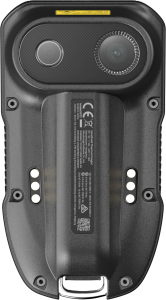

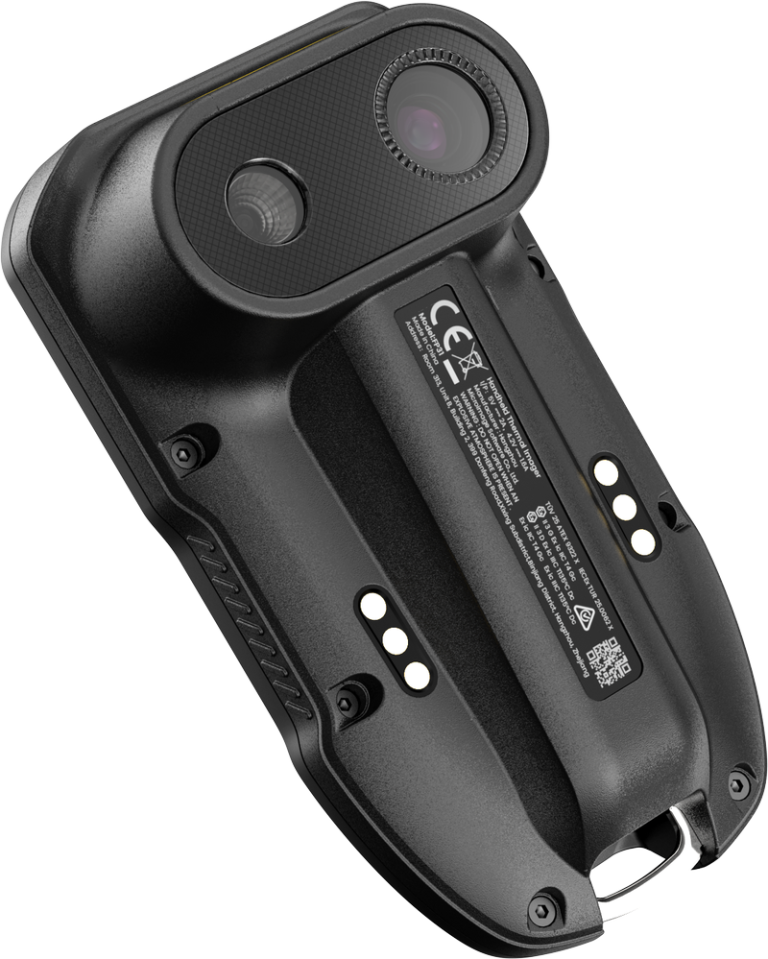

Made in China. brand HIKMICRO, model FP21
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 900 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

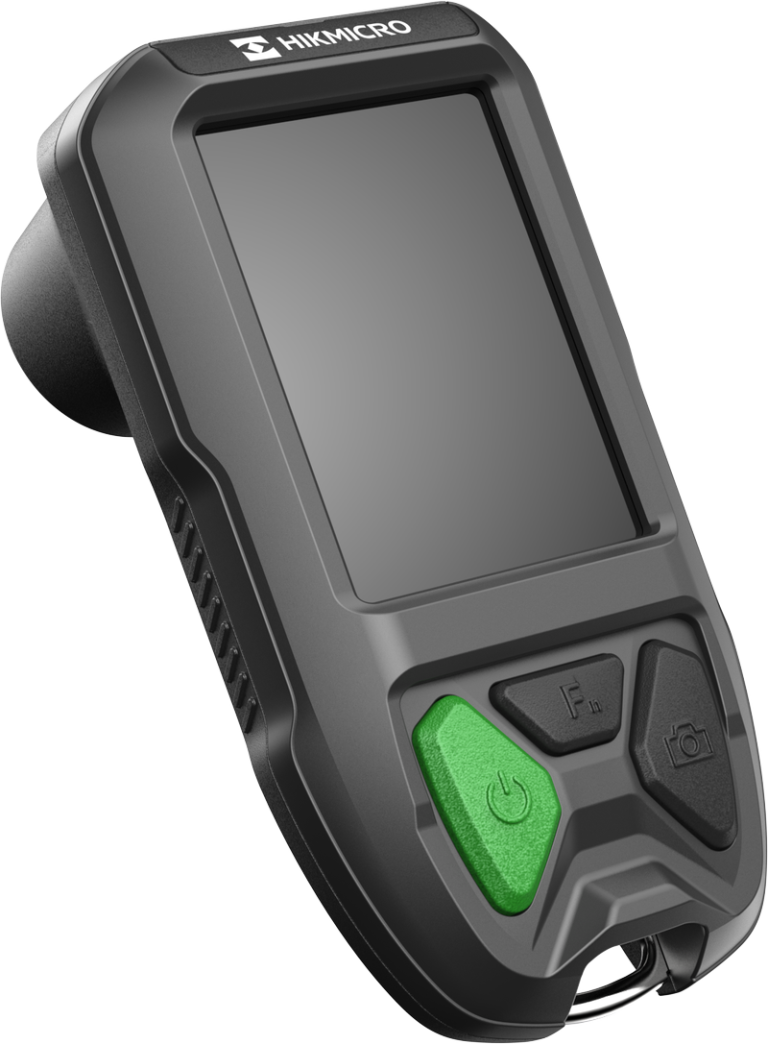

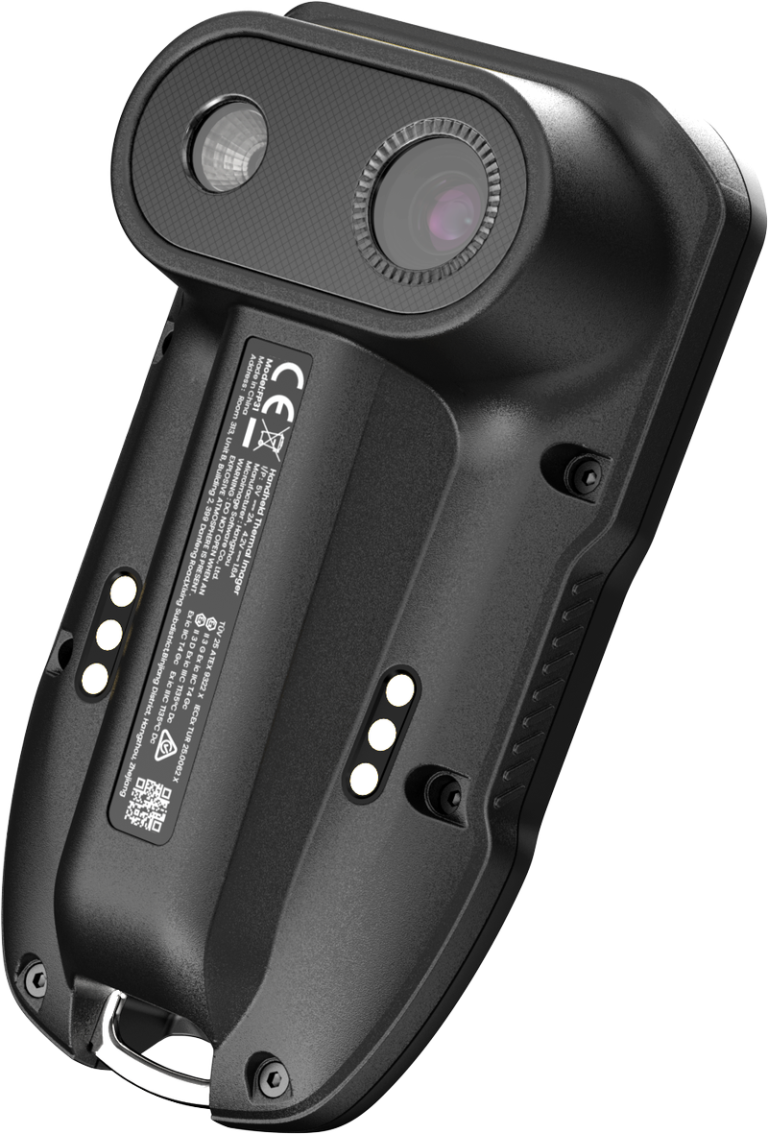

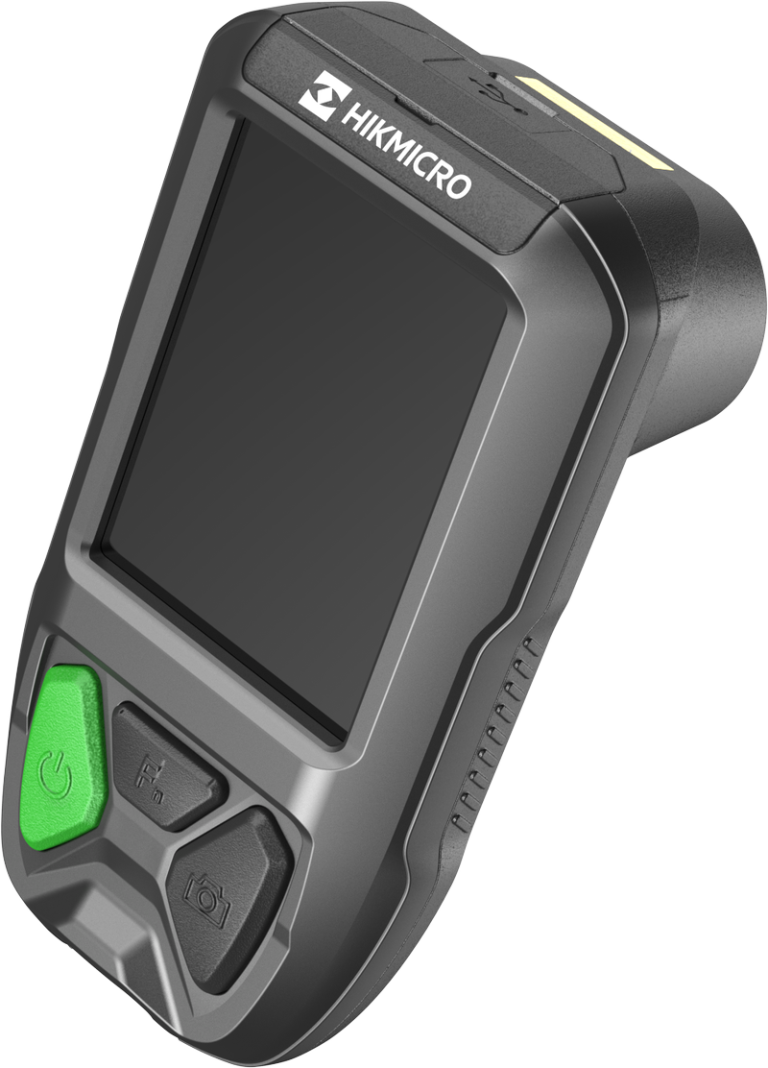

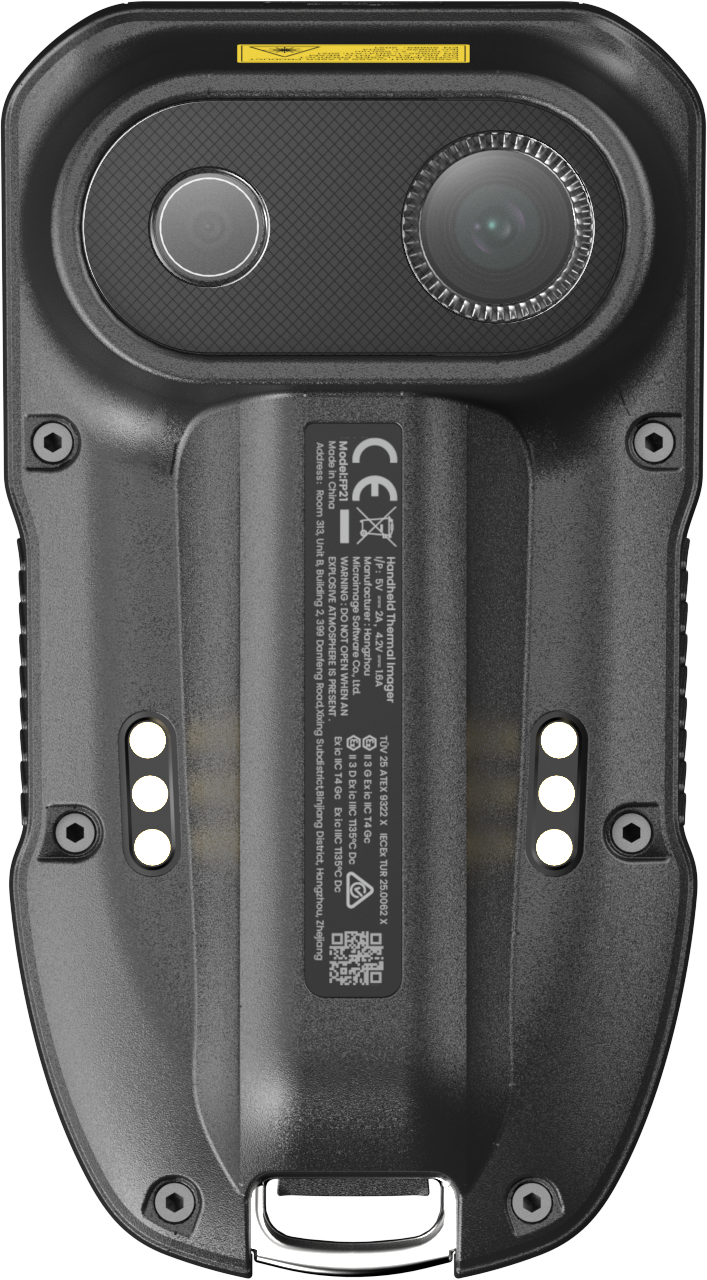

The handheld thermal imager is a handheld temperature measurement product suitable for multiple scenarios. Equipped with a high-resolution detector, it delivers clear imaging and high thermal sensitivity, enabling effective detection of temperature variations and precise temperature measurement of targets. The handheld thermal imager supports multiple palettes, making it suitable for various on-site environments including fire detection, rescue, and buildings, etc.
Enhanced Image Quality with SuperIR – HIKMICRO’s SuperIR technology is powered by a neural network algorithm trained on a vast dataset of images to enhance thermal image quality. The FP21 features real-time SuperIR, significantly improving image clarity while maintaining smooth performance.

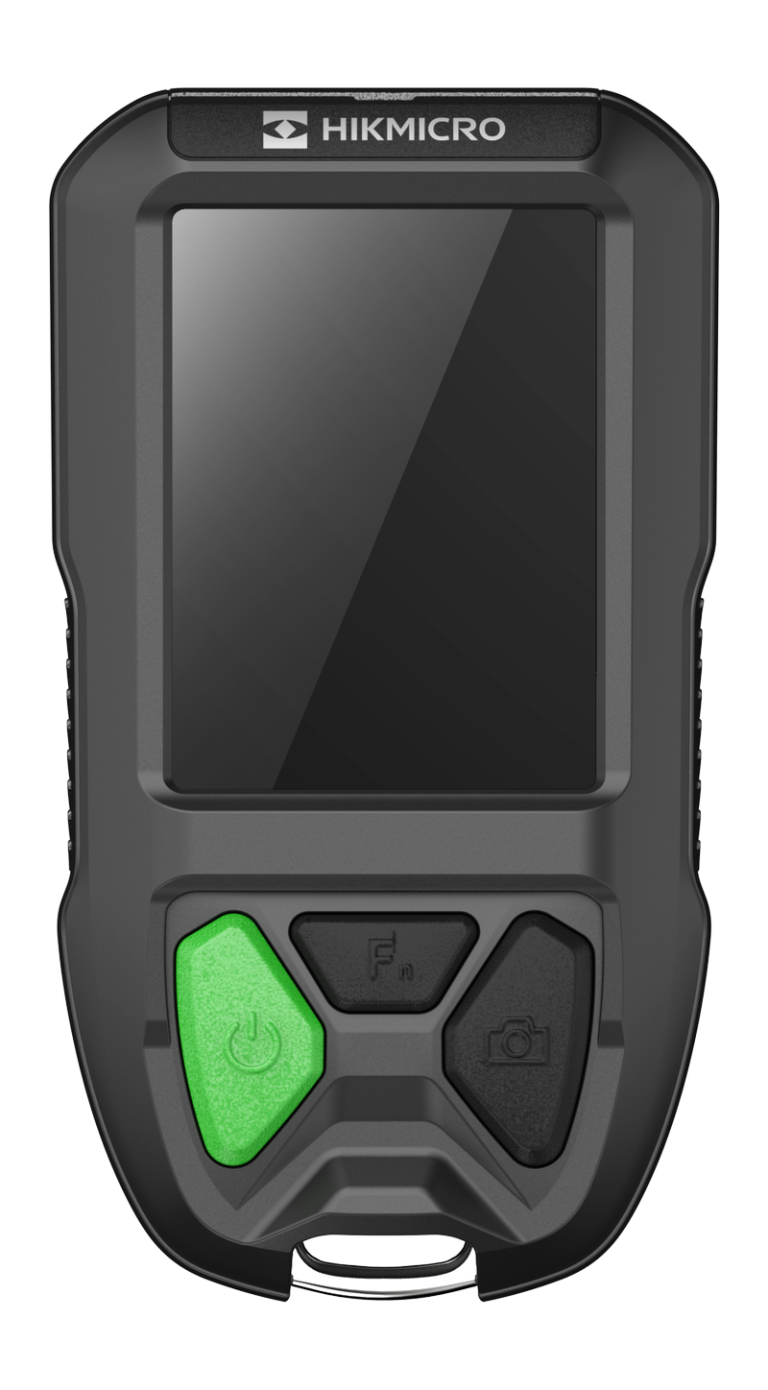

Big Clarity in a Pocket-Sized Form：3.2” LCD + Pocket-Sized Design – Most portable imagers sacrifice display quality. FP Series delivers large-screen readability with true pocket-sized convenience—ideal for field teams needing fast deployment.
Automatic AGC – HIKMICRO AGC dynamically adjusts the gain for every pixel based on the scene’s temperature distribution. In thermal images, background areas with small temperature differences often appear flat. Auto AGC expands the contrast in those regions, making subtle features visible.
Enhance outline of certain targets with ODE – False-color thermal overlays are based on temperature mapping, which flattens visual details in hot areas. ODE enhances clarity without altering the thermal data. HIKMICRO FP21 with this function enabled, target outline will be clearer, but noise of the image will be increased accordingly.
Rugged Reliability for Harsh Environments – FP Series is IP67-rated—fully dust-tight and water-resistant up to 1 meter submersion for 30 minutes. It is also certified to operate under extreme heat, while most devices shut down or degrade in extreme heat, the FP Series keeps running.
8 Color Palettes – smooth, basic, fire detection, white hot, rescue, hot area, building, cold area
| Infrared Image | |
| IR Resolution | 256×192 (49,152 pixels) |
| NETD | ＜ 30 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| SuperIR | Yes, on captured images and live view |
| Image Display | |
| Display | 640×480 Resolution, 3.2”LCD Screen |
| Digital Zoom | 1x, 2x, 4x |
| Color Palettes | Basic, Smooth, White Hot, Black Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
| Image Modes | Thermal |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 150°C Range 0°C to 550°C |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory |
| Image Storage Capacity | Approx. 8400 Images |
| Video Storage Capacity | Approx. 26.5 h |
| Video File Format | MP4 |
| General | |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Battery Type | Rechargeable Li-ion battery |
| Wi-Fi | Yes |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time</td | Approx. 3 hours via USB；4 hours with battery charger |
| Protection Level | IP67, IEC 60529 |
| Safety | EN 62368 |
| Drop Test Height | 2 m, IEC 60068-2-31 |
| Vibration | 2 g, IEC 60068-2-6 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -10°C to 55°C（default settings） 85°C，30min 150°C，10min 260°C，5min |
| Relative Humidity | IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C, 2 cycles |
| Storage Temperature Range | -20°C to 60°C |
| Weight | Approx. 398 g (0.88 lb) |

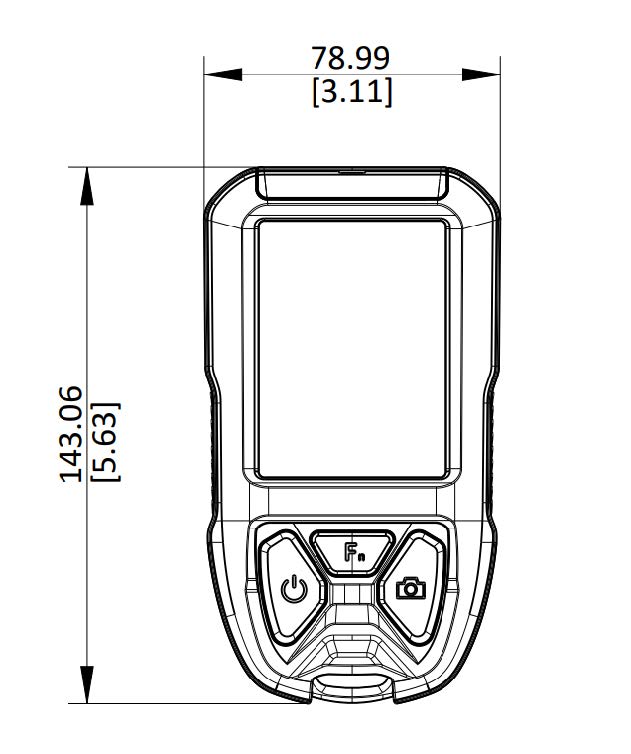

| Dimension | 52.7× 143× 79 mm (2.1 × 5.6 × 3.1 in) |
Model Number: HRYXBSZ-256-FP21
The warranty for the HIKMICRO FP21 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO FP21 thermal imager is €265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO FP21 using the special form.
You can buy HIKMICRO FP21 in Latvia at a price starting from 900 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO FP21 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
