Made in China. brand HIKMICRO, model Eco-V
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $230
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

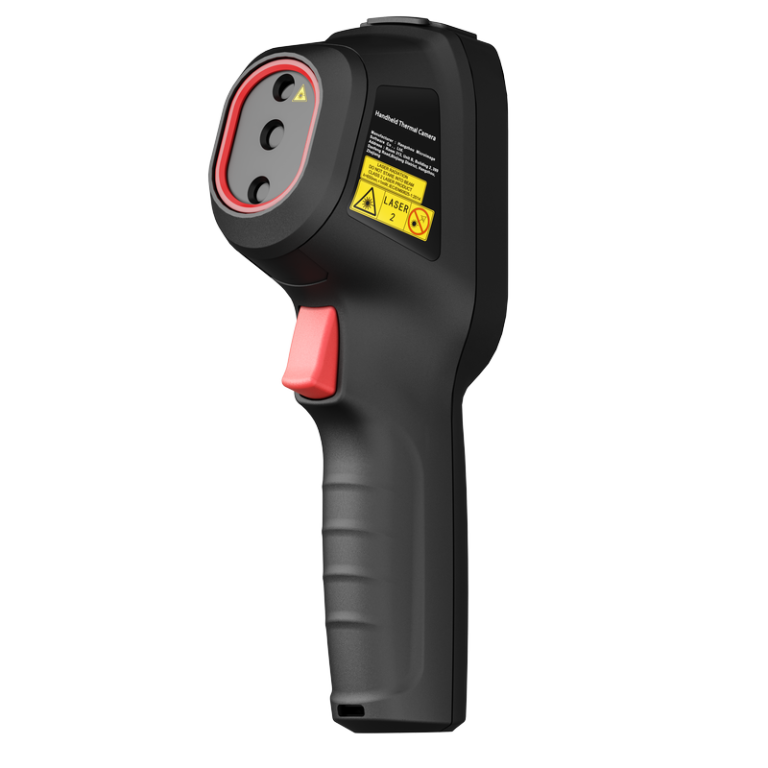

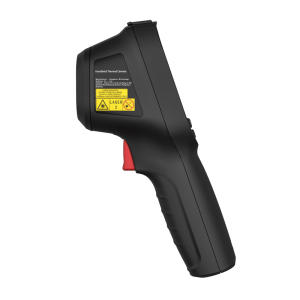

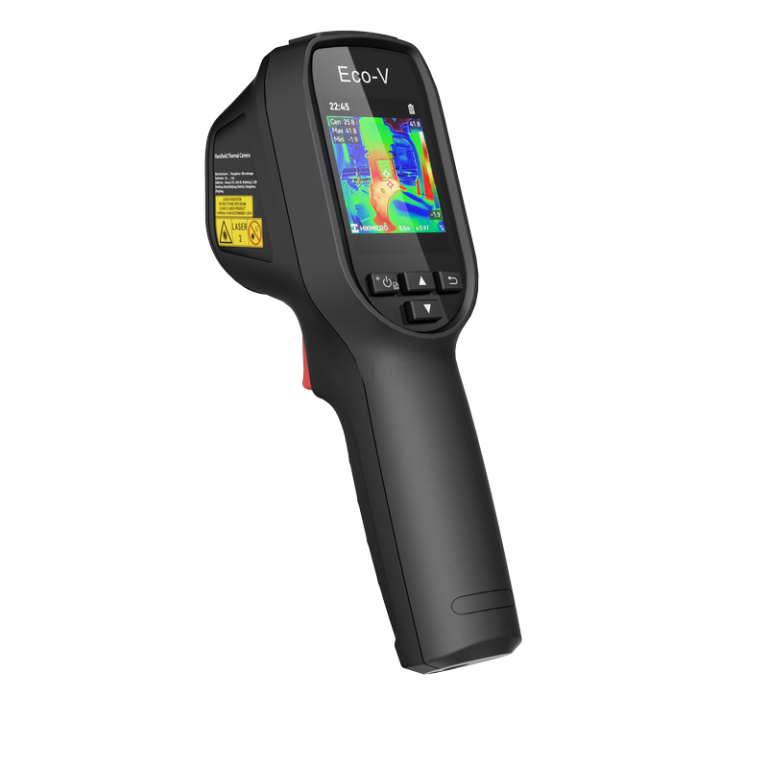

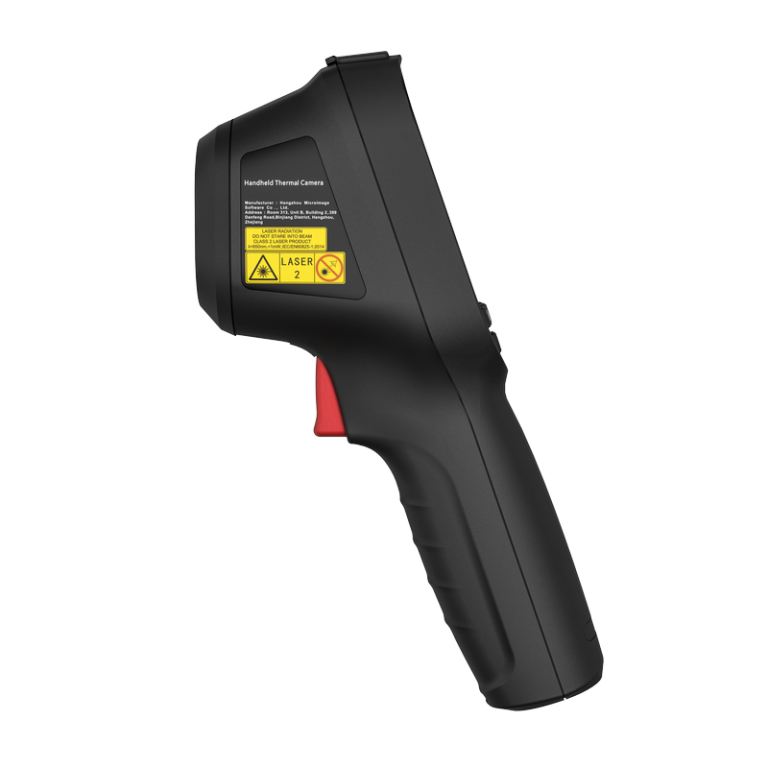

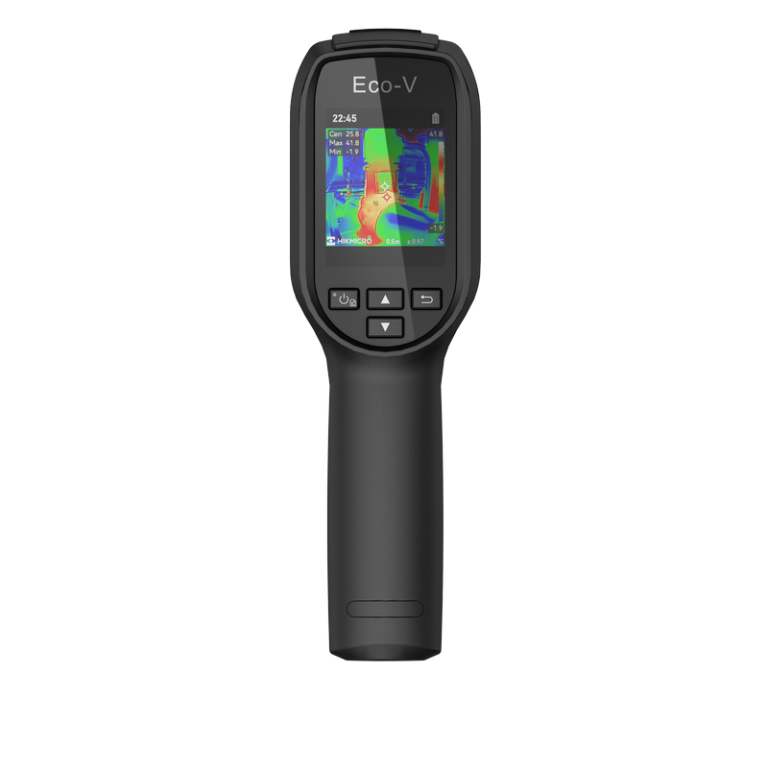

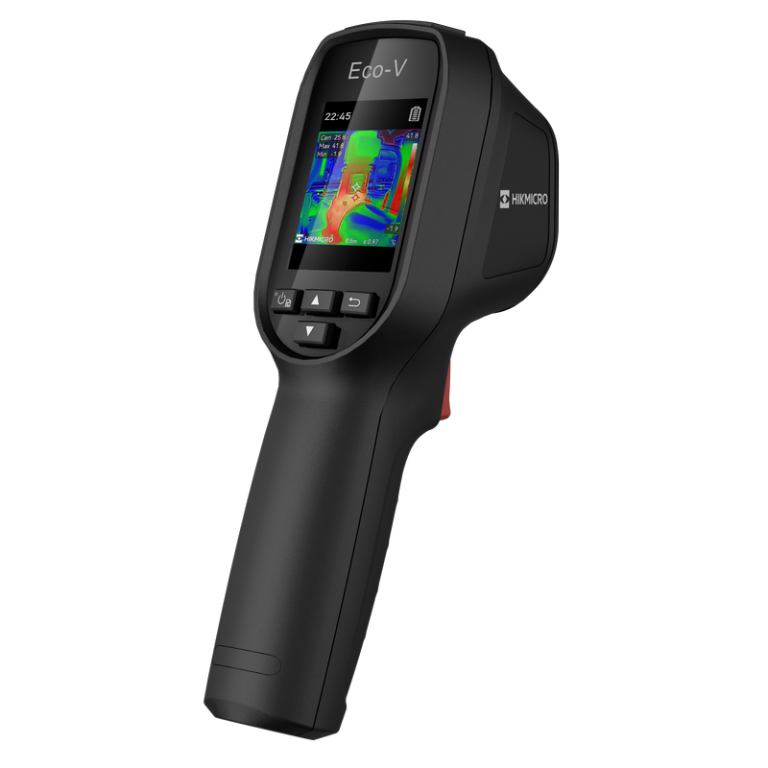

The handheld thermal camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.
Features
Enhanced Thermal Clarity with SuperIR – Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.
Dual-camera Thermal Imager (Eco-V Only) – Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.
50° Wide Angle Lens – Scan large areas quickly with the 50° wide angle lens to find issues like air infiltration, water leaks, and insulation issues.
Rugged and Durable – Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty.
Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
8 Hrs. Continuous Runtime – Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20 minutes) allow the camera up to 8 hours of continuous operation.
Thoughtful Functions for Efficient Workflow
Locate with Laser Pointer – Helps show the position of the center point on actual object.
1-Click IR and Visual Image Storage (Eco-V Only) – Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.
7 Color Palettes – Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 color palettes so you can choose the ideal color scale for your job.
Introduction video
How to video
Unboxing HIKMICRO Eco series
| Infrared Image | |
| IR Resolution | 96 × 96 (9,216 pixels) SuperIR 240 x 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:1 |
| Image Frequency | 25 Hz |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Detector Pitch | 12 μm |
| Focal Length | 1.35 mm |
| Spectral Range | 7.5 to 14 μm |
| Field of View (FOV) | 50° × 50° |
| F-number | F1.0 |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 2.4″ LCD Screen |
| Image Modes | Thermal/Visual/Fusion |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm, Below Alarm |
| Visual Camera | 640 × 480 |
| Measurement and Analysis | |
| SuperScene | Water Leak, Insulation |
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100℃ to 550℃ (212°F to 1022°F) |
| Accuracy | Max (± 2°C/3.6°F, ± 2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 4G eMMC (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Approx. 30,000 Images |
| General | |
| USB Interface | USB Type-C |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged (Adapter Output: 5 V 2 A) |
| Battery Operating Time | Approx. 8 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |
| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number:
| Model | Description | Photo |

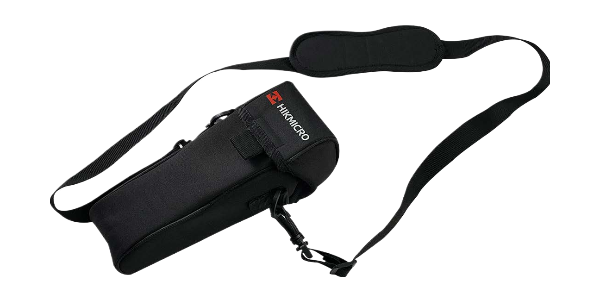

| HM-B01-POUCH | Soft Carrying Pouch |  |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Eco-V using the special form.
You can buy HIKMICRO Eco-V in Latvia at a price starting from230 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Eco-V price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
