Made in China. brand HIKMICRO, model Eco
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 200 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

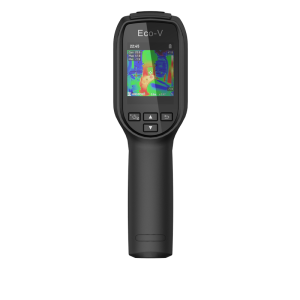

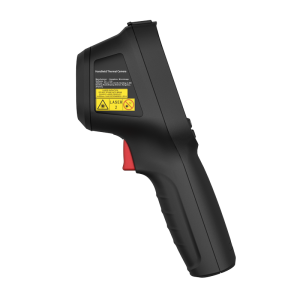

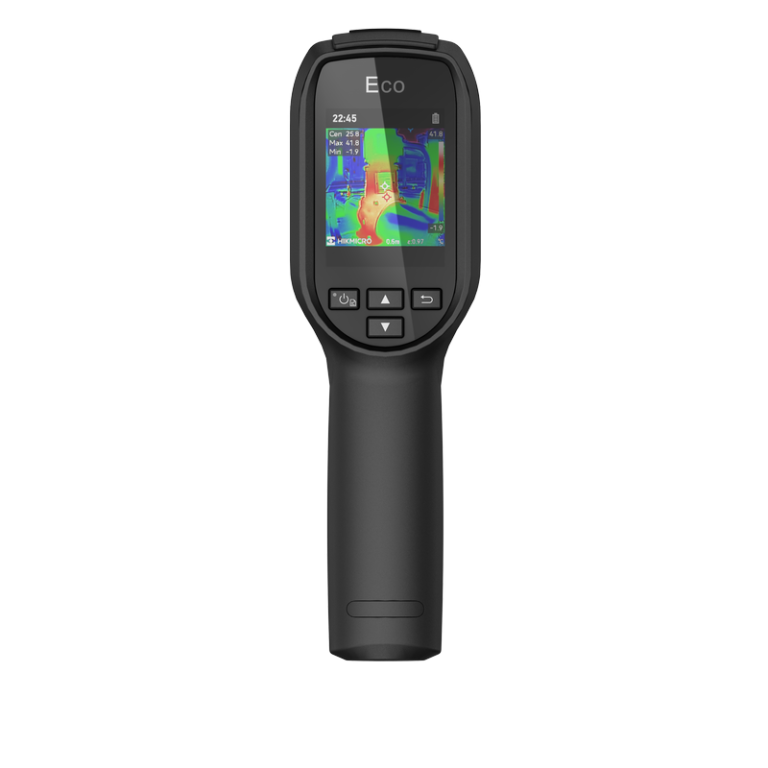

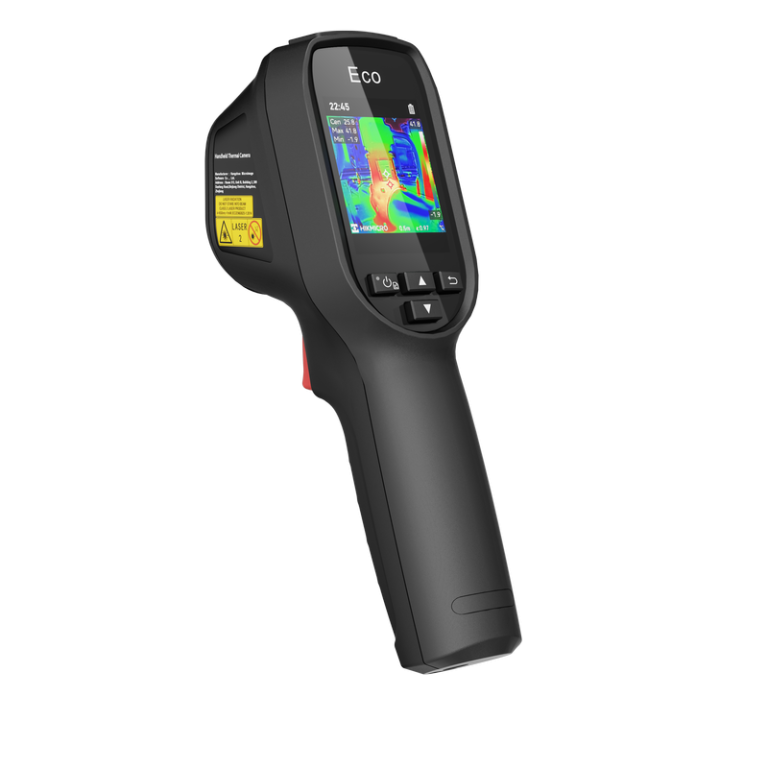

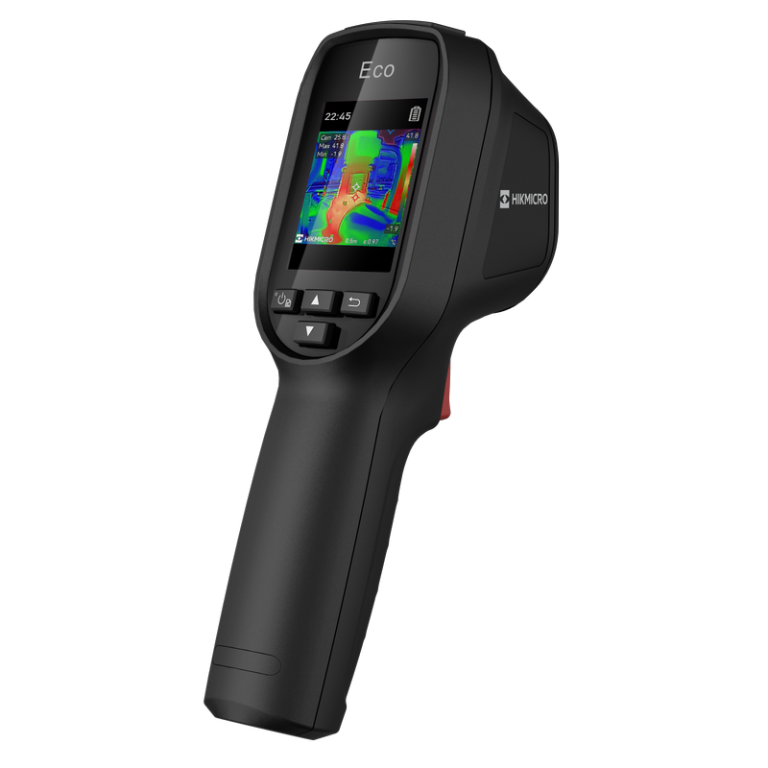

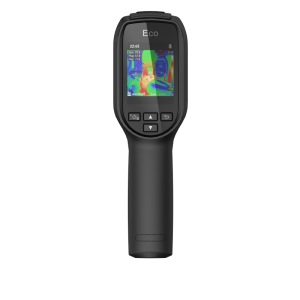

The handheld thermal camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.
Features

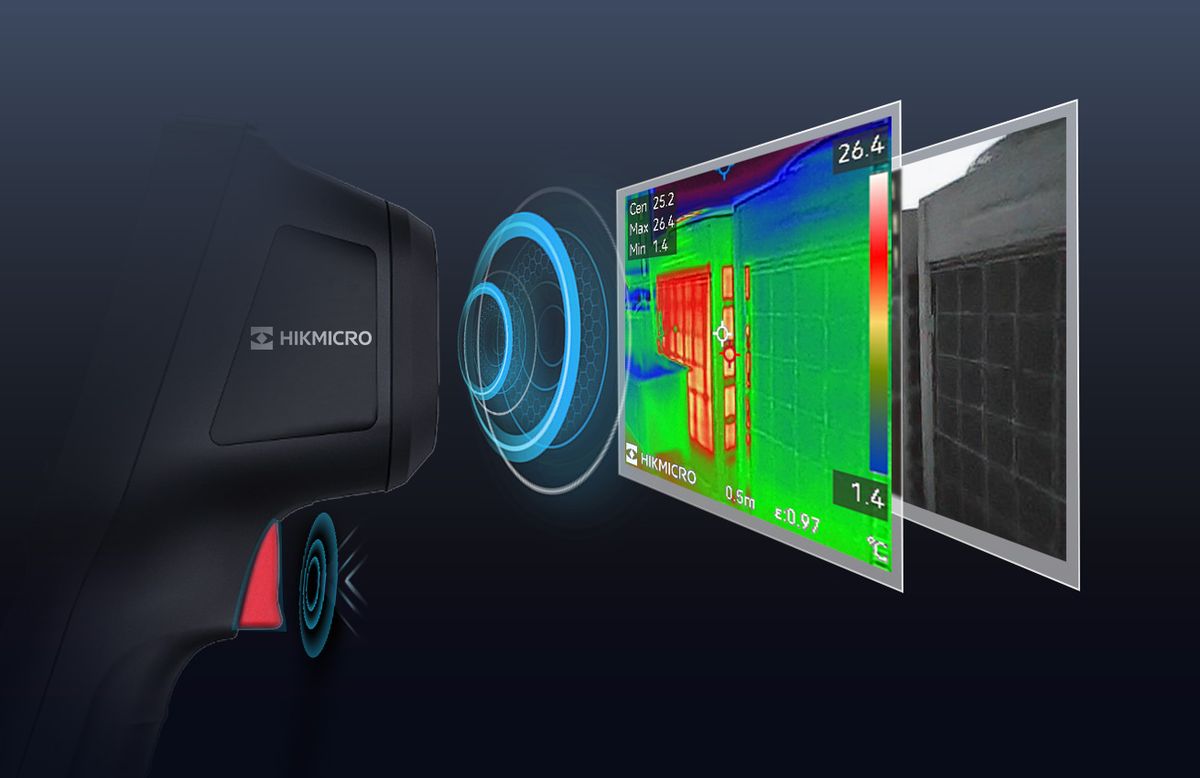

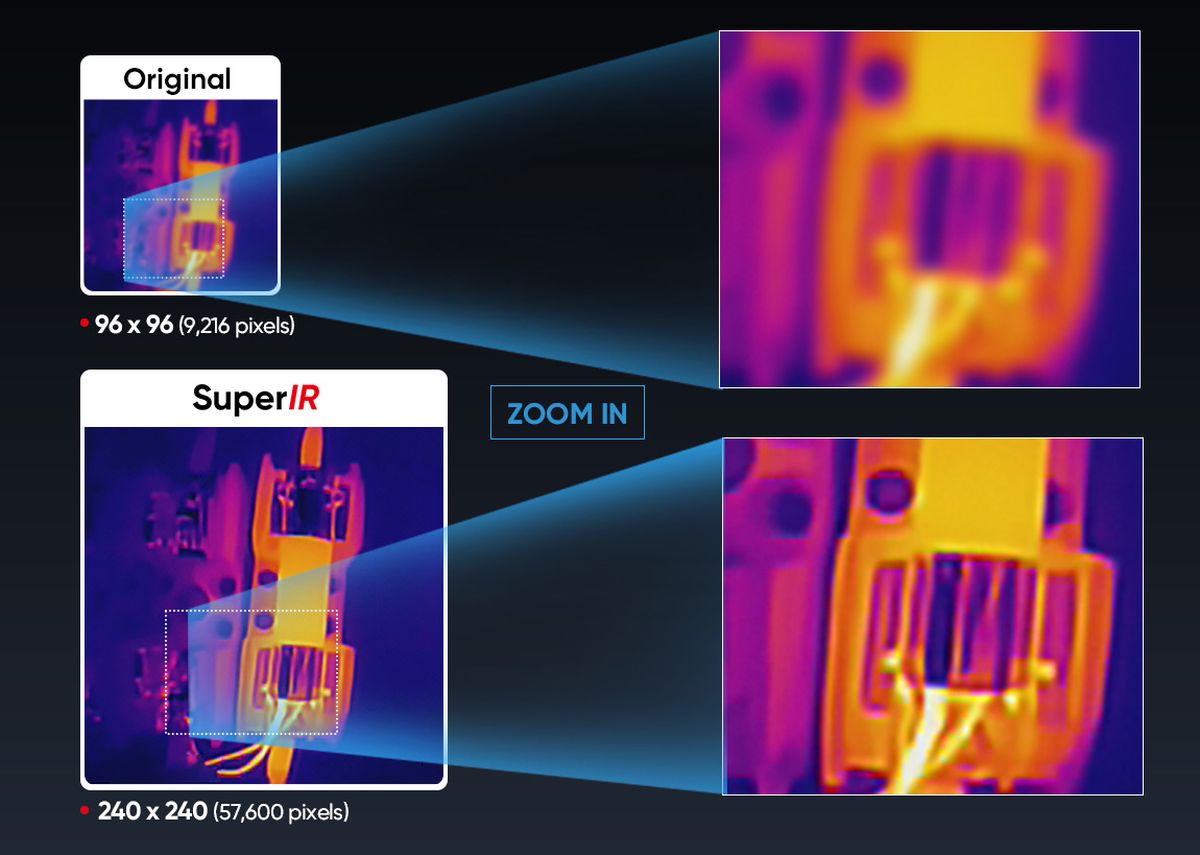

Enhanced Thermal Clarity with SuperIR – Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.

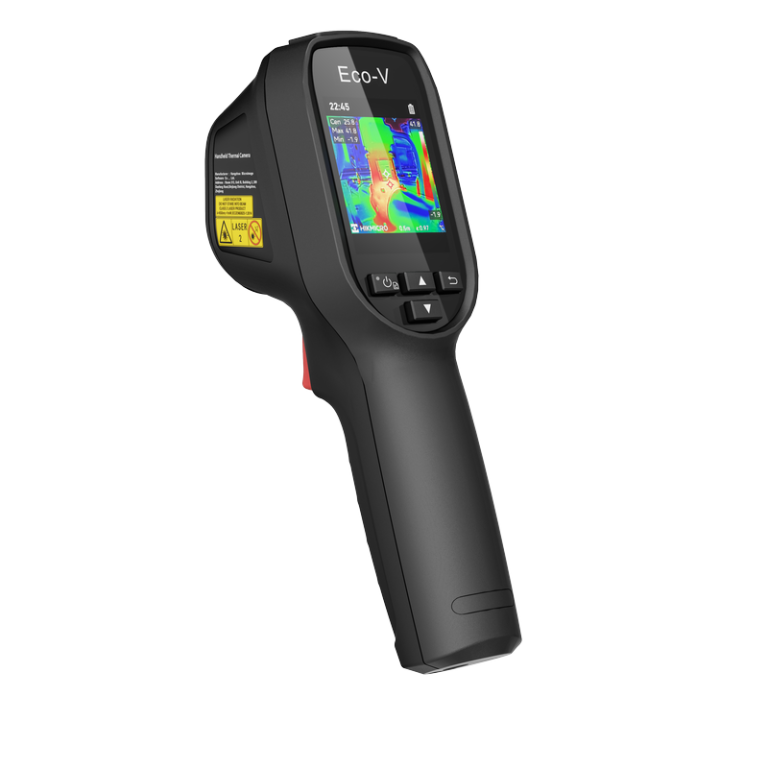

Dual-camera Thermal Imager (Eco-V Only) – Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.

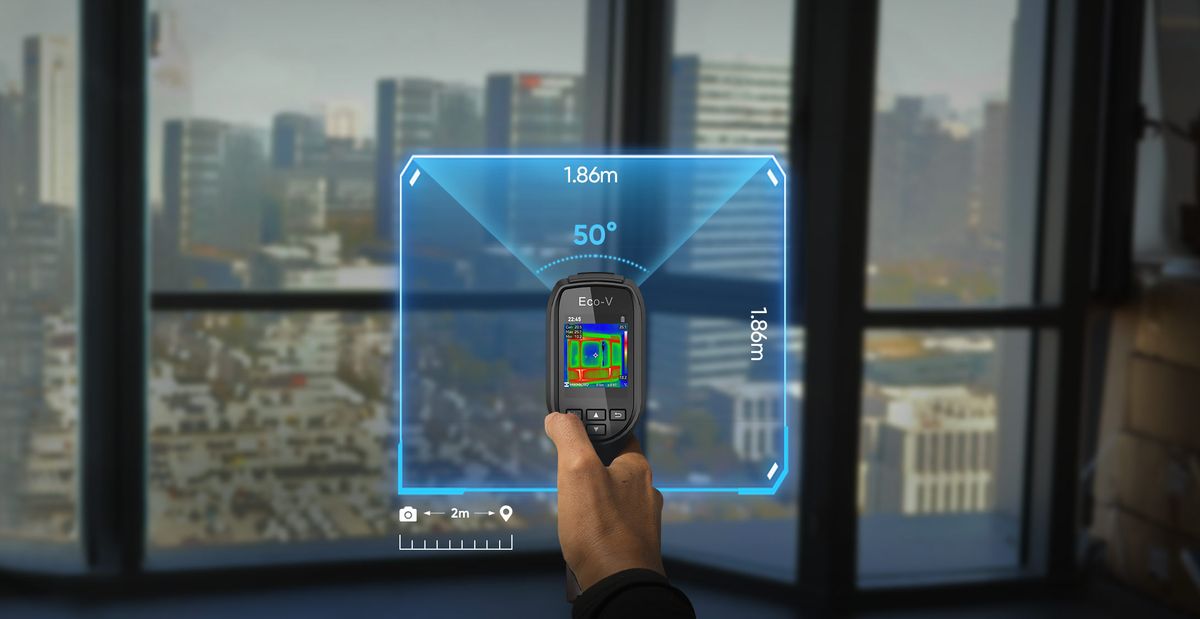

50° Wide Angle Lens – Scan large areas quickly with the 50° wide angle lens to find issues like air infiltration, water leaks, and insulation issues.
Rugged and Durable – Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty.

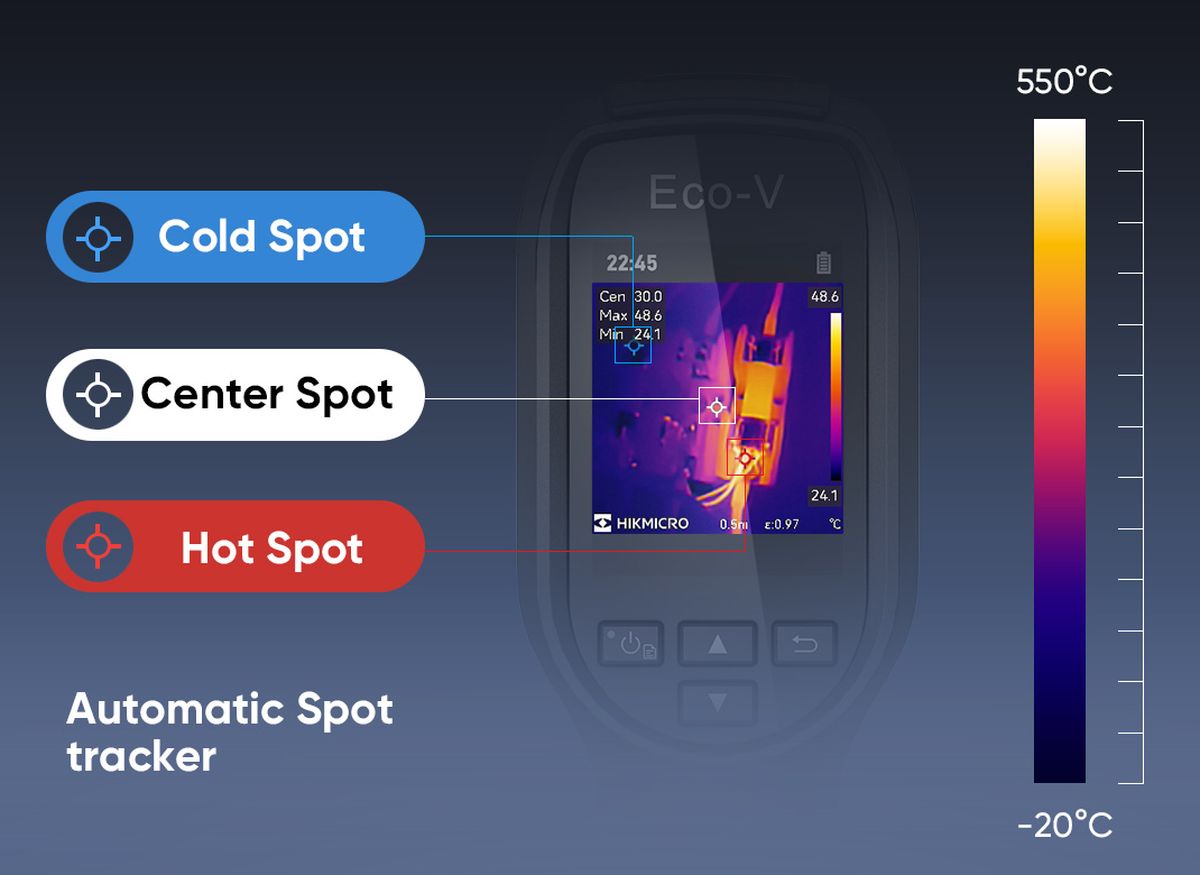

Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
8 Hrs. Continuous Runtime – Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20 minutes) allow the camera up to 8 hours of continuous operation.
Thoughtful Functions for Efficient Workflow

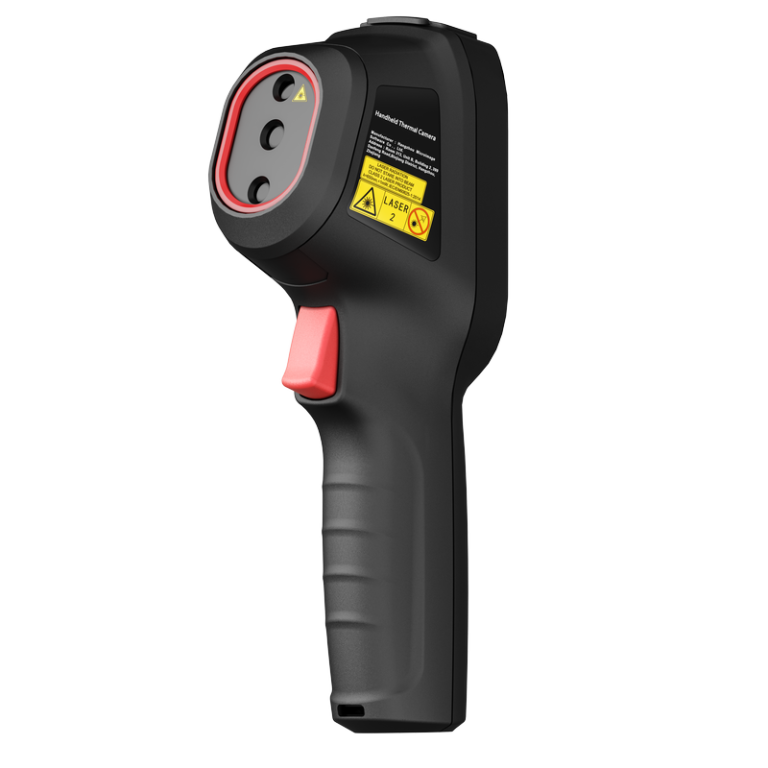

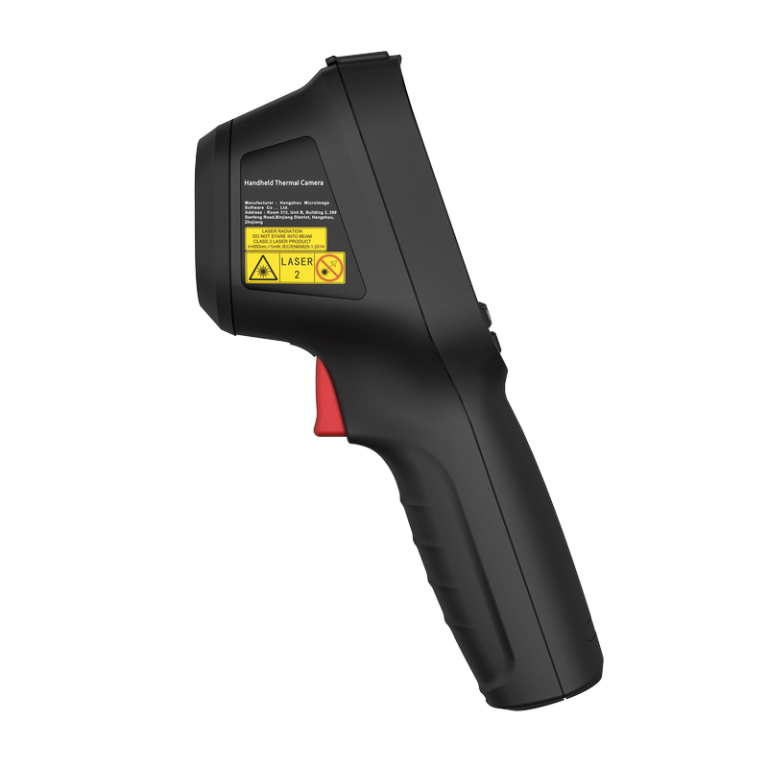

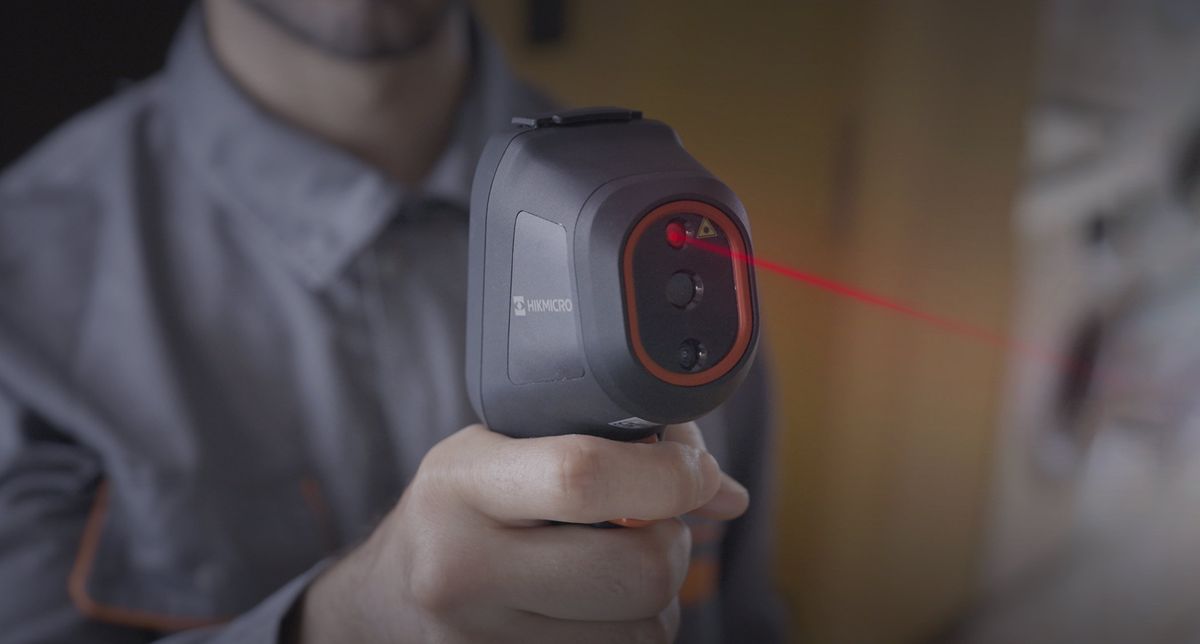

Locate with Laser Pointer – Helps show the position of the center point on actual object.
1-Click IR and Visual Image Storage (Eco-V Only) – Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.

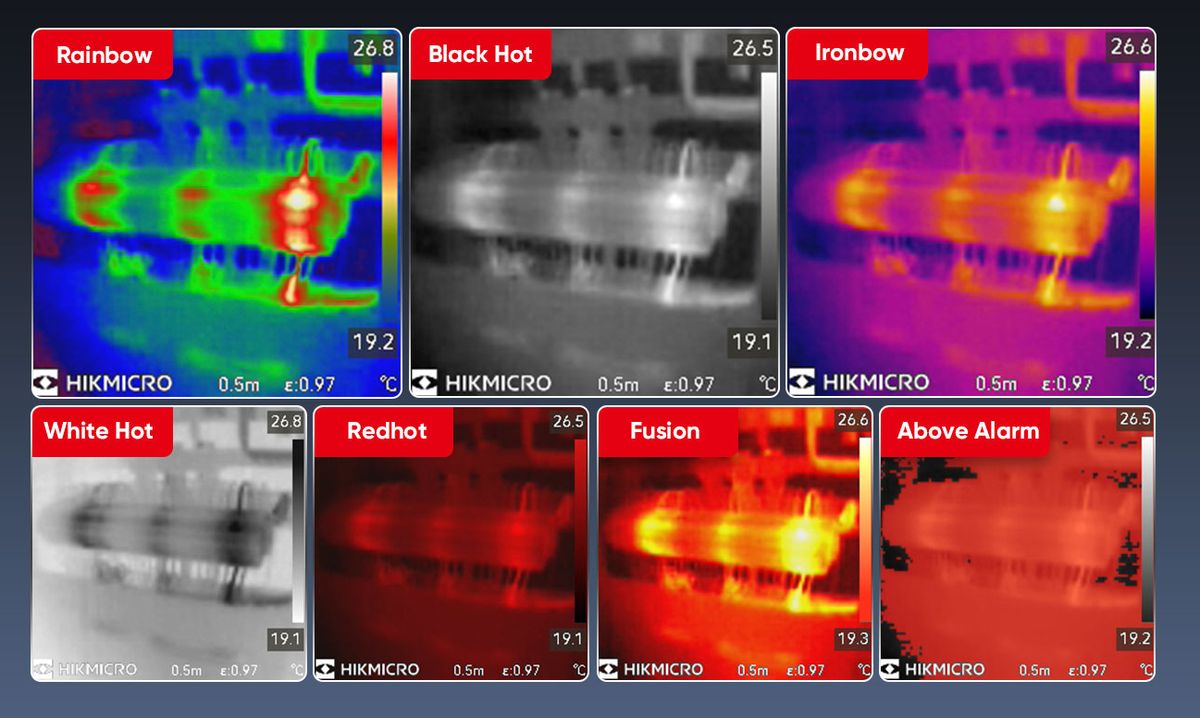

7 Color Palettes – Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 color palettes so you can choose the ideal color scale for your job.
Introduction video
How to video

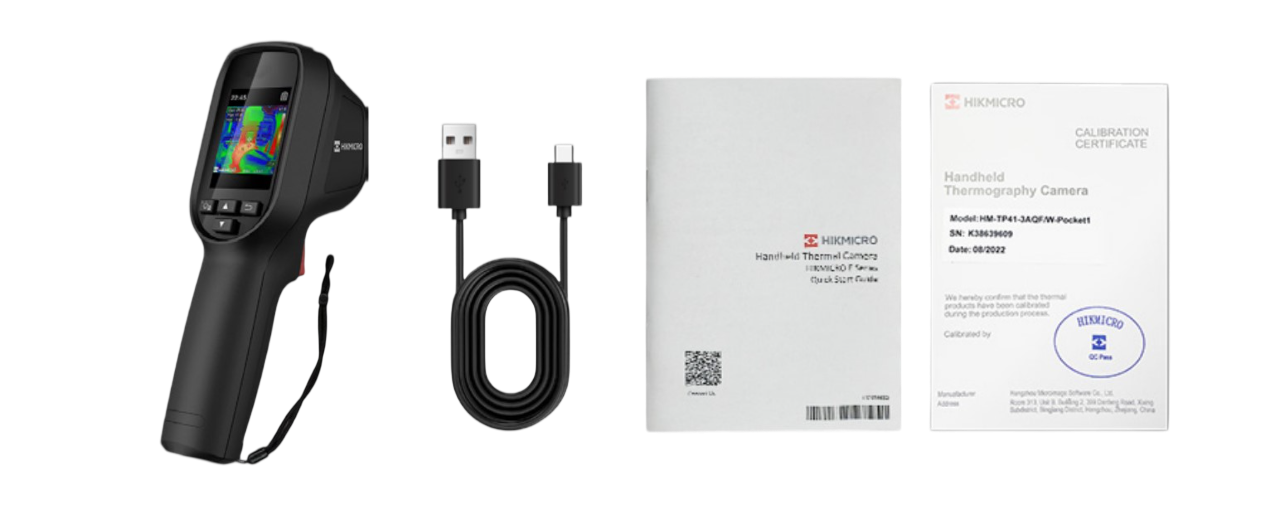

Unboxing HIKMICRO Eco series
| Infrared Image | |
| IR Resolution | 96×96 (9,216 pixels) SuperIR 240 x 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:1 |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 2.4″ LCD Screen |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm, Below Alarm |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100℃ to 550℃ (212°F to 1022°F) |
| Accuracy | Max (± 2°C/3.6°F, ± 2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| SuperScene | Water Leak, Insulation |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory |
| Image Storage Capacity | Approx. 30,000 Images |
| Video Storage Capacity | Approx. 14 hours |
| General | |
| USB Interface | USB Type-C |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged (Adapter Output: 5 V 2 A) |
| Battery Operating Time | Approx. 11 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |

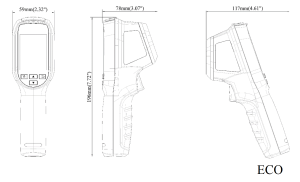

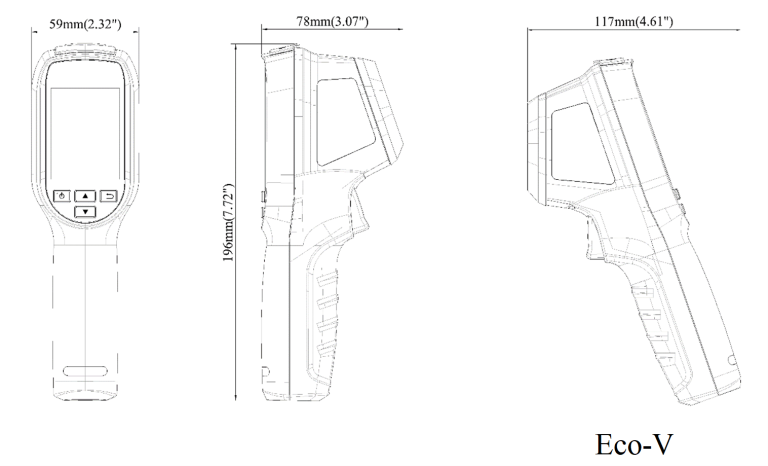

| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number:
| Model | Description | Photo |
| HM-B01-POUCH | Soft Carrying Pouch |  |
| Model | Description | Price, € |
| HM-TP30-1AQF-Eco | 96×96, 50° × 50°, NETD<50mk, 25 Hz, -20~550℃, ±2℃/±2%, 4GB, 2.4 inch 240×320 LCD screen, Laser pointer, SuperIR | 200 |
| HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras | 16 |
The warranty for the HIKMICRO Eco thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Eco using the special form.
You can buy HIKMICRO Eco in Latvia at a price starting from 200 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Eco price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
