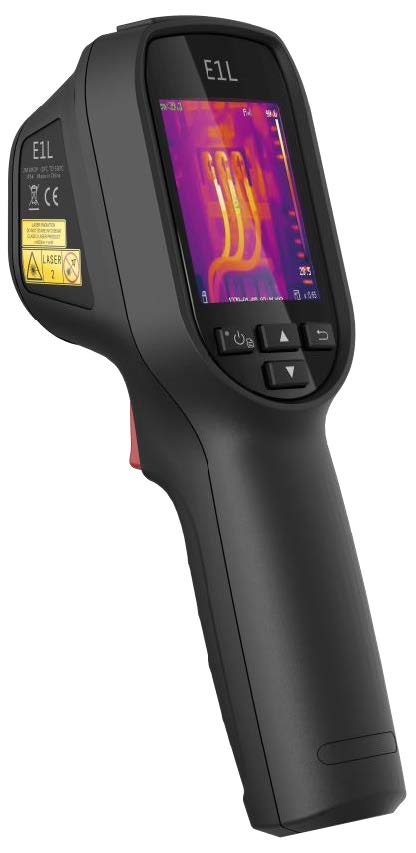

Made in China. brand HIKMICRO, model E1L
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Discontinued
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

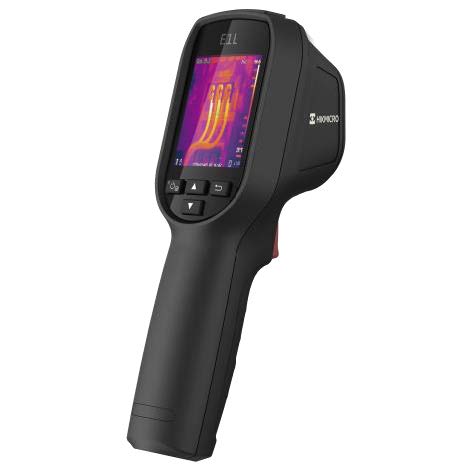

The handheld thermography camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.
Key Feature

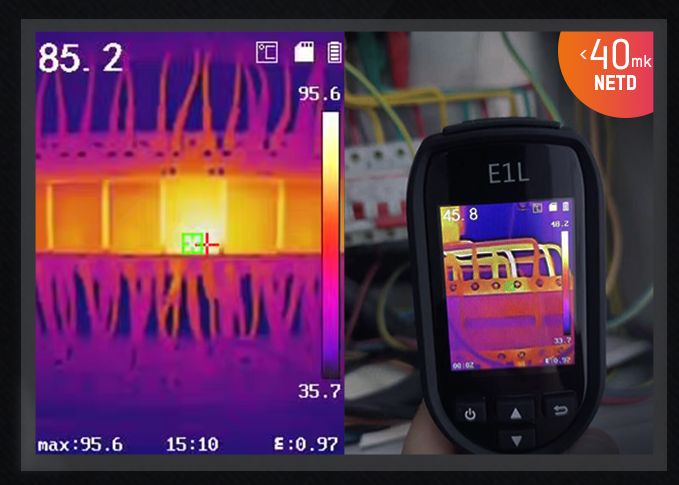

High Image Quality – A highly sensitive VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.

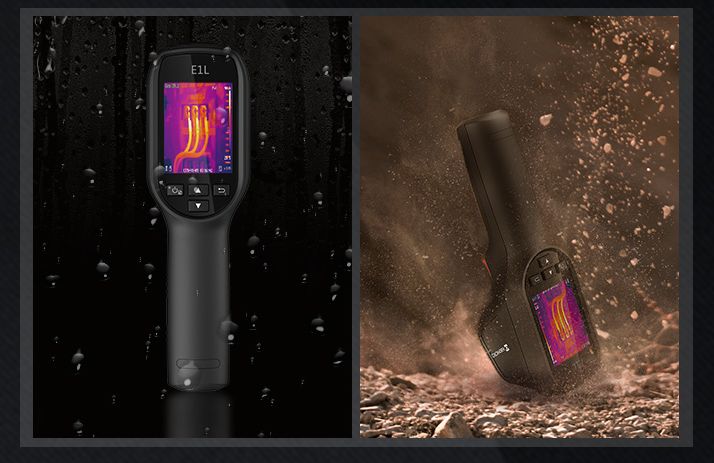

Rugged & Durable Design – IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.

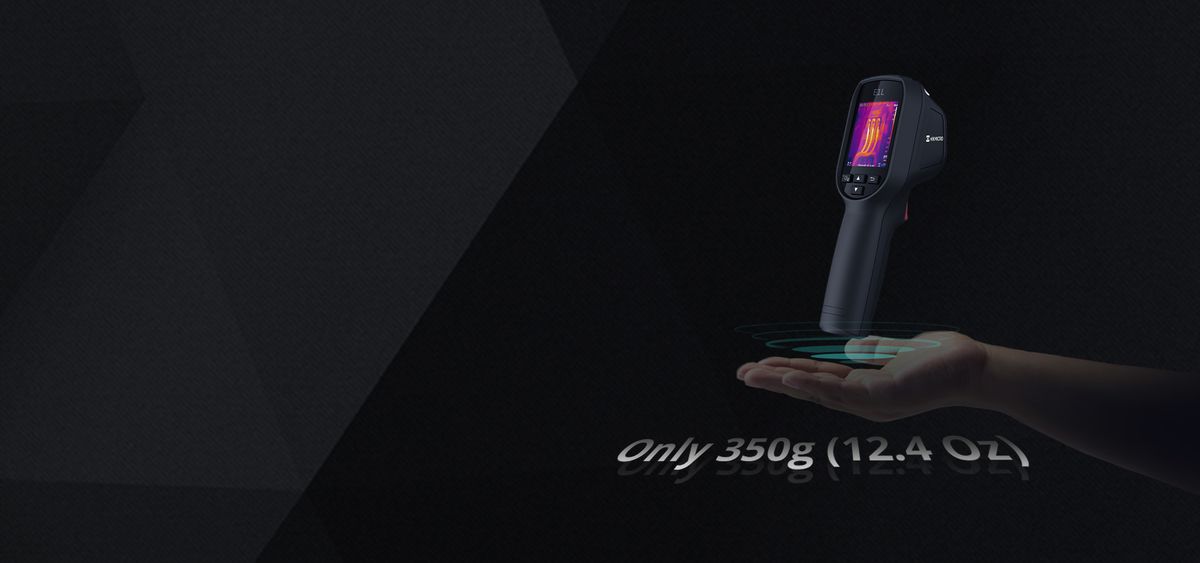

Light Weight Easy To Carry – Compact design, easy to carry.

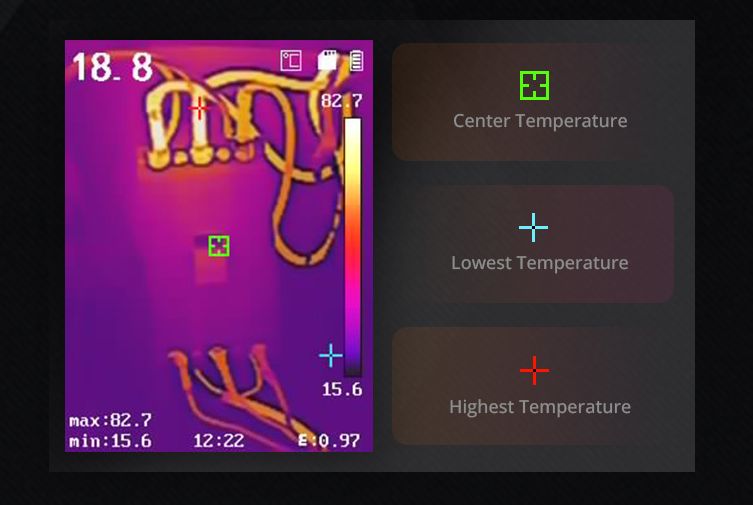

Quick Temperature Measurement – Full screen measurement in virtue of different presets checks everywhere at the very first sight. Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off.

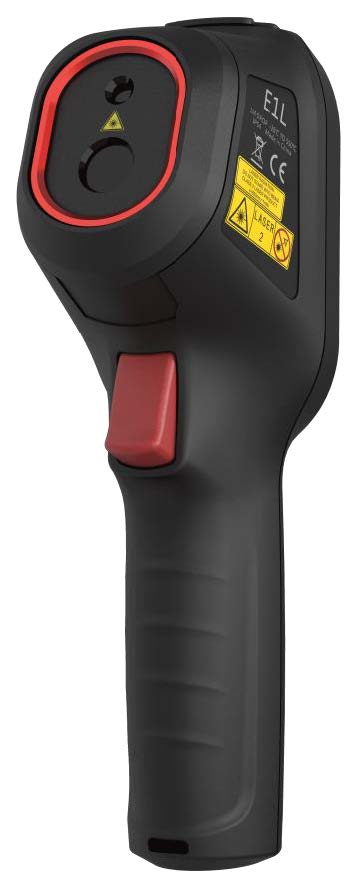

Laser Pointer – The Laser Pointer helps show the position of the center point on the actual object.

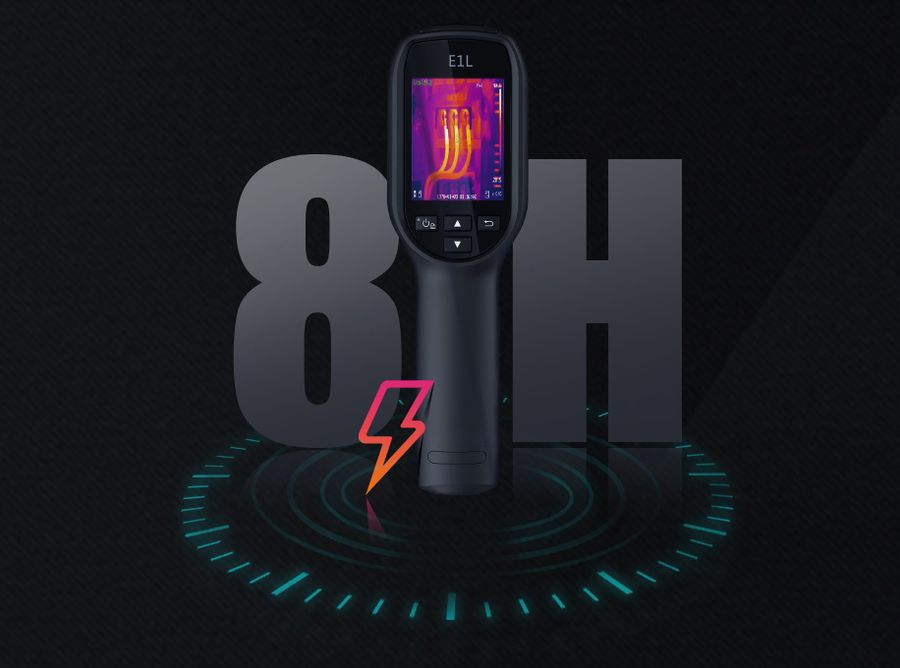

Long Battery Life – Reliable 8 hours continuous running.

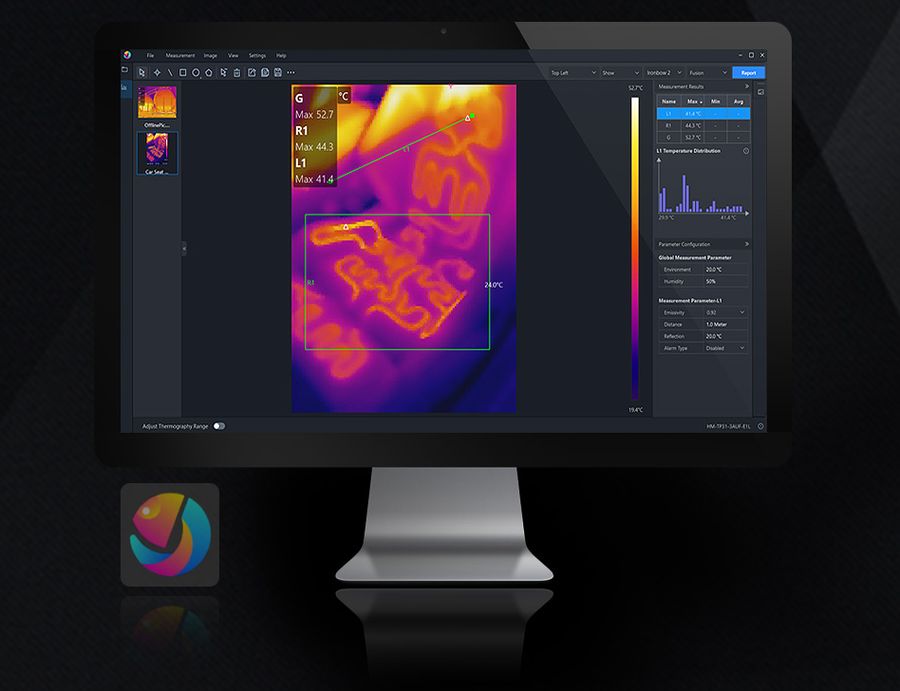

Temperature Analysis Software – HIKMICRO Analyzer is a free software offering flexible ways, including points, lines, rectangles, circles, polygons to analyze thermographic information of captured pictures, and generate reports.
| Infrared Image | |
| IR Resolution | 160 × 120 (19,200 pixels) |
| NETD | < 40 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.1 mm |
| F-number | F1.1 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 5.48 mrad |
| Min. Focus Distance | 0.15 m (0.49 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 2.4″ LCD Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto |
| Data Storage and Communication | |
| Storage Media | Removable 8 GB Micro SD Card |
| Image Storage Capacity | Approx. 120,000 Images |
| General | |
| USB Interface | Micro USB |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 4 hours fully charged |
| Battery Operating Time | Approx. 8 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 350 g (0.77 lb) |

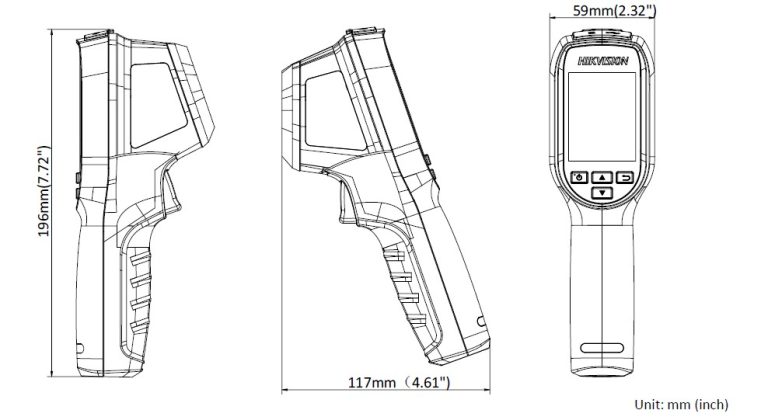

| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-TP31-3AUF-E1L
| Model | Description | Photo |
| HM-2925ZJ-TM01-BRACKET | Tripod Mounting Bracket |  |
| HM-B01-POUCH | POUCH |  |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO E1L using the special form.
