HIKMICRO BX20
Photo HIKMICRO BX20 Description of HIKMICRO BX20 Video HIKMICRO BX20 Specifications HIKMICRO BX20 Package Contents HIKMICRO BX20 Accessories for HIKMICRO BX20 Prices for HIKMICRO BX20 Warranty for HIKMICRO BX20 Calibration of HIKMICRO BX20 User Manual for HIKMICRO BX20 Related instruments to HIKMICRO BX20
Made in China. brand HIKMICRO, model BX20
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 1600 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

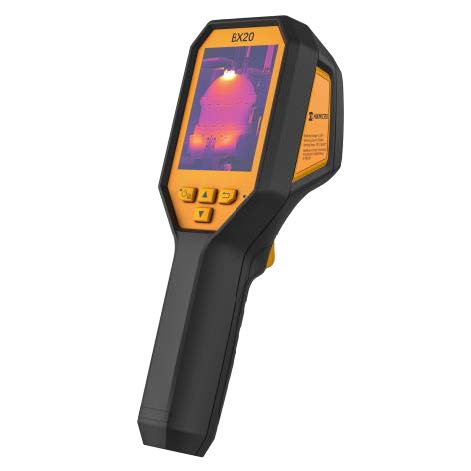

HIKMICRO BX20 is certified to measure temperature in many explosive environments to quickly find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and 2MP visual camera. The temperature ranges from -20°C to 550°C (-4° F to 1022° F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance in the decision and ensures safety.

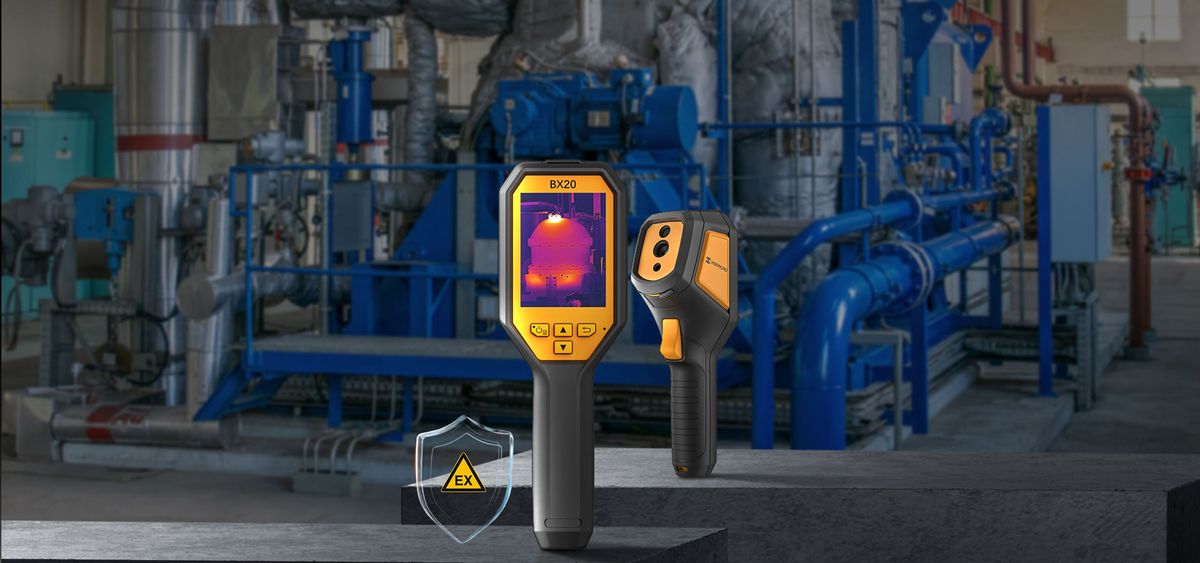

ATEX & IECEx Certified Compact Intrinsically Safe Thermal Camera for Hazardous Areas
Certified Product and Manufacturer – Not only the HIKMICRO BX20 intrinsically safe thermal camera has obtained ATEX and IECEx certification. In addition, HIKMICRO is an audited manufacturer of hazardous location equipment and gets ATEX Quality Assurance Notification (QAN) and IECEx Quality Assurance Report (QAR).

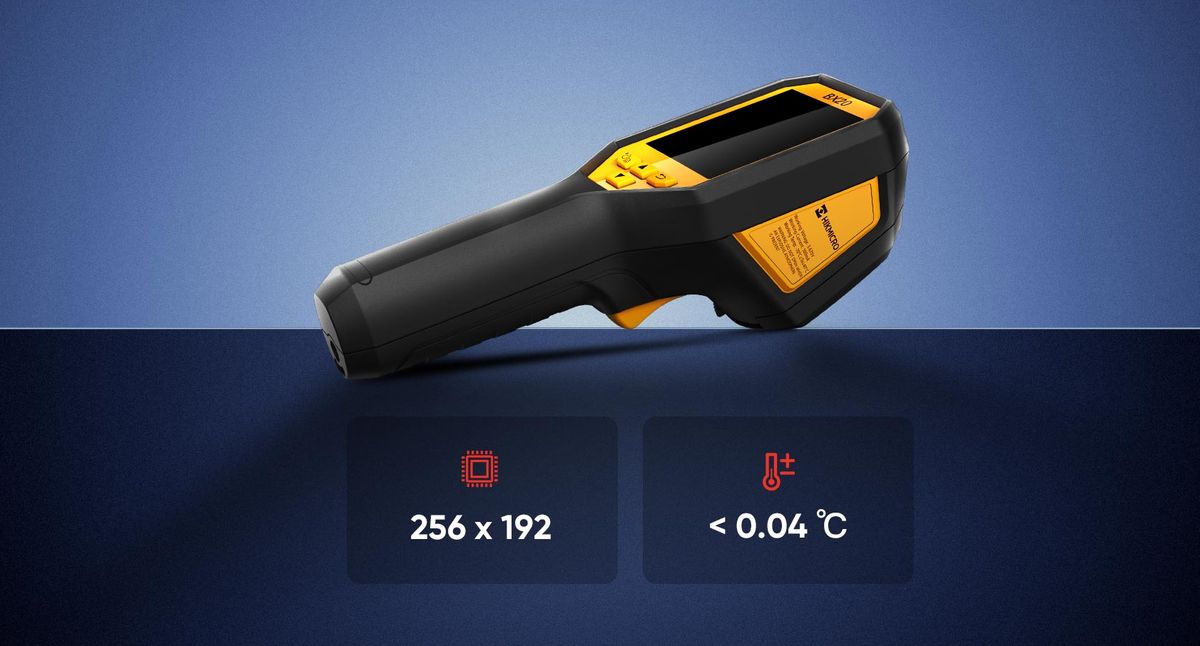

High Image Quality – Features a high Resolution (256 × 192, 49,152 pixels) and highly sensitive (NETD < 40 mK) VOx IR detector, along with HIKMICRO SuperIR image enhancement algorithms to provide super clear thermal images.

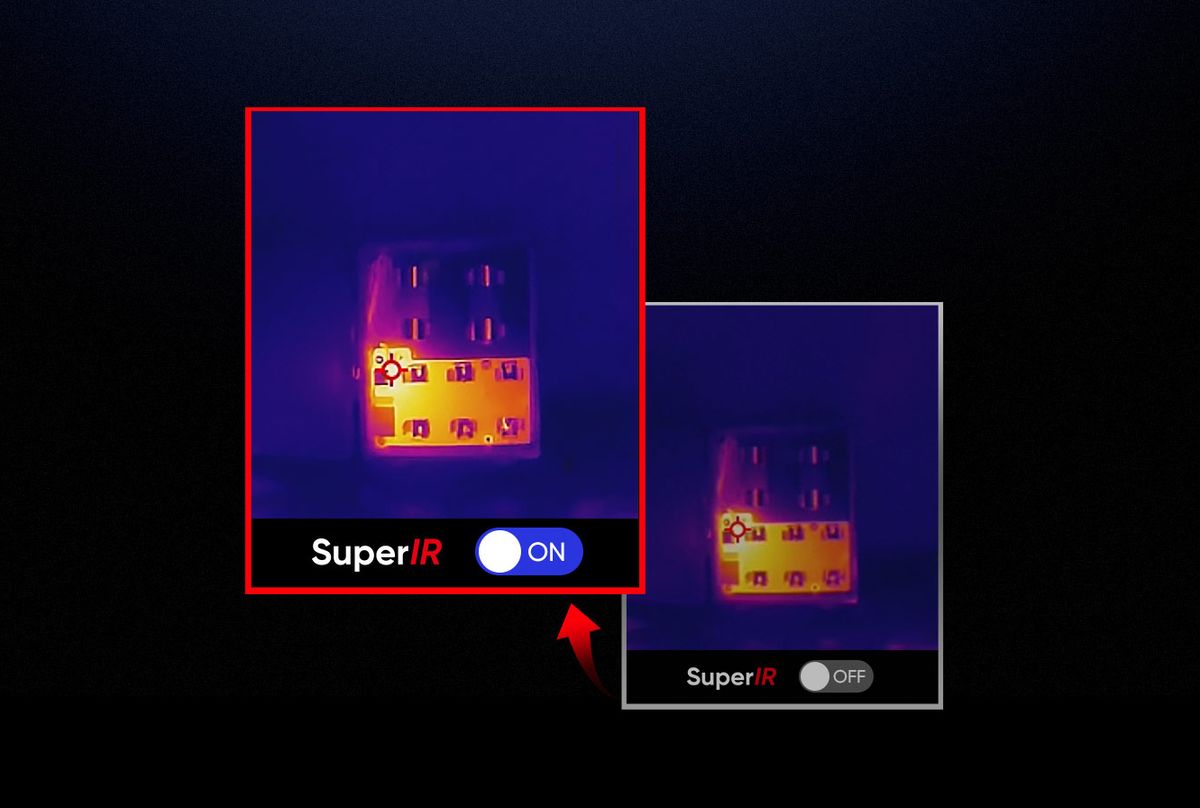

Enhanced Thermal Clarity with SuperIR* – Powered by HIKMICRO SuperIR image enhancement technology, it upscales the resolution of captured thermal images to 320 x 240 (76,800 Pixels). (*SuperIR enables captured thermal images only)
25 Hz Fast Image Frequency – 25 Hz fast image frequency delivers smooth video while panning across scenes or viewing moving targets.

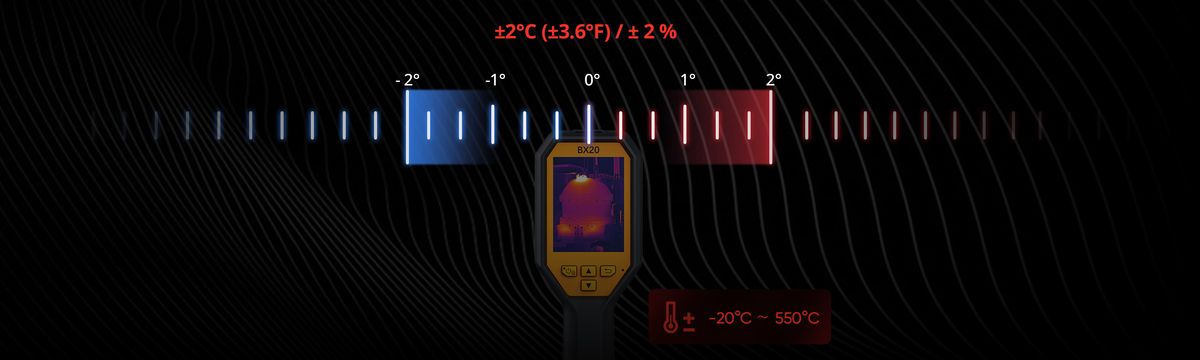

Full-screen Precise and Wide Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C with a temperature accuracy up to +/-2°C or +/-2% of reading.
Durable and Rechargeable Batteries – Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (10/20/30/40/50/60 minutes) allow the camera up to 6 hours of continuous operation.

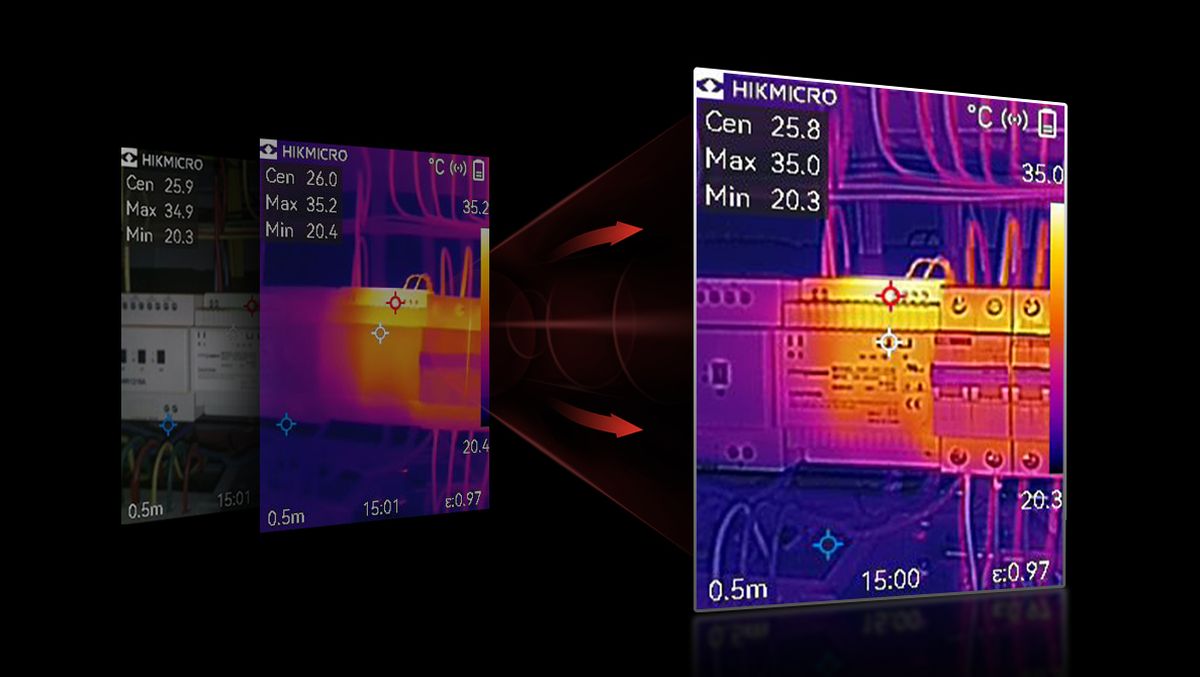

Dual-camera Thermal Imager – Built-in IR camera and visual camera give you enhanced details. Thermal, Fusion, PIP, and Visual modes to suit your preferred view.

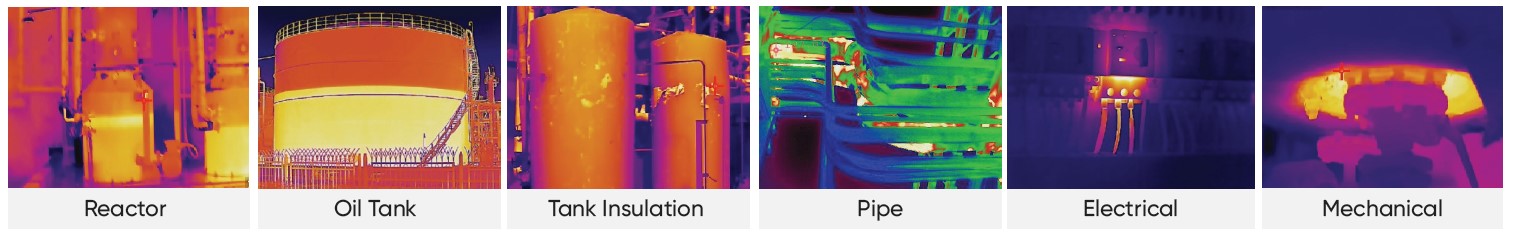

Application – It is suitable for Zone 2 scenarios in petrochemical plants, refineries, substations, offshore platforms, production plants, pharmaceuticals, hazardous waste management and other industries.
Introduction video
| Infrared Image | |
| IR Resolution | 256×192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.3 mrad |
| Focus Mode | Focus Free |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| SuperIR | Yes, on captured thermal images |
| Image Display | |
| Visual Camera | 1600 × 1200 (2 MP) |
| Display | 240 × 320 Resolution, 3.2°LCD Screen |
| Image Modes | Thermal/Visual/Fusion/PIP |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion |
| Color Alarm | Above alarm |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100°C to 550°C (212°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-In 16 GB flash memory |
| Image Storage Capacity | Approx. 90,000 Images |
| General | |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP64 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |

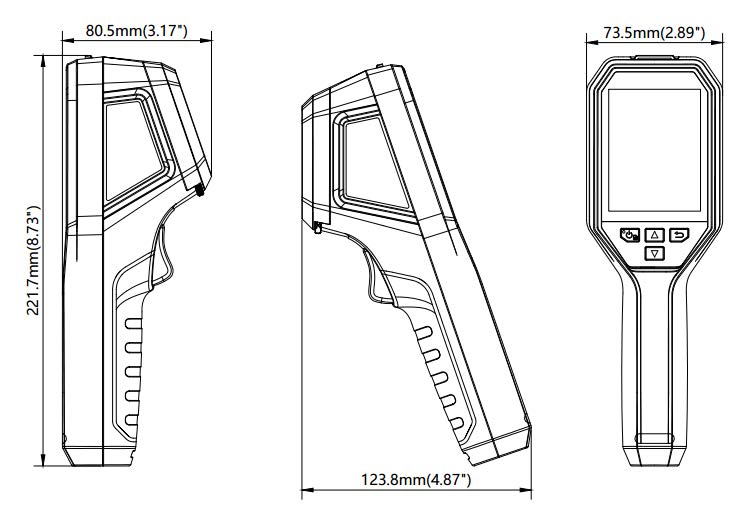

| Dimension | 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in) |
| Tripod Mounting | UNC ¥/-20 |
| LED Light | Yes |
| ATEX / IECEx Certificate | ATEX: II 3 G Ex ic IIC T6 GC, II 3 D Ex ic IIC T85°C DC |
| Type | IECEx: Ex ic IIC T6 GC, Ex ic IIC T85°C DC |
Model Number: HM-TP52N-3AQF-BX20
| Model | Description | Photo |
| HM-B01-POUCH | POUCH |  |
| Model | Description | Price, € |
| HM-TP52N-3AQF-BX20 | 256×192, 37.2°×50°, 2MP visual camera, NETD<40mk, -20~550℃, ±2℃/±2%, 16GB, 3.2 inch 320×240 LCD Screen, IP64, ATEX&IECEx | 1600 |
| HM-B201-MACRO | Macro lens for B series cameras, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20~150℃, ±3℃/±3% | 100 |
| HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras | 16 |
The warranty for the HIKMICRO BX20 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO BX20 thermal imager is €265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO BX20 using the special form.
You can buy HIKMICRO BX20 in Latvia at a price starting from 1600 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO BX20 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
