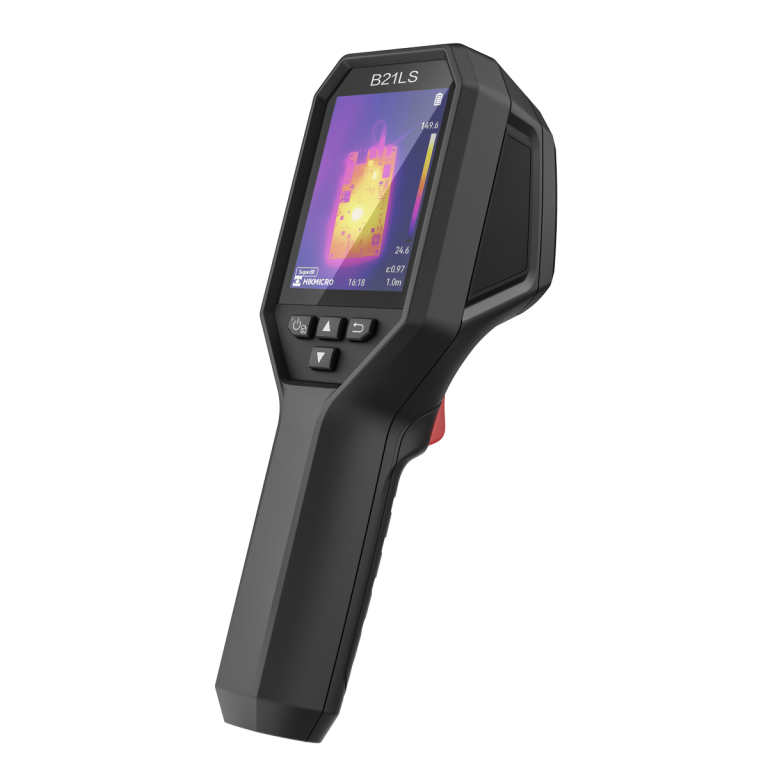

HIKMICRO B21LS Handheld Thermal Imaging Camera 256×192 -20°C to 550°C IP54

Description of HIKMICRO B21LS

HIKMICRO B21LS is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.

High Image Quality – Get unmatched clarity with HIKMICRO B21LS, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2″ LCD screen with a crisp 640×480 resolution, capturing every detail with its 256×192 thermal resolution.

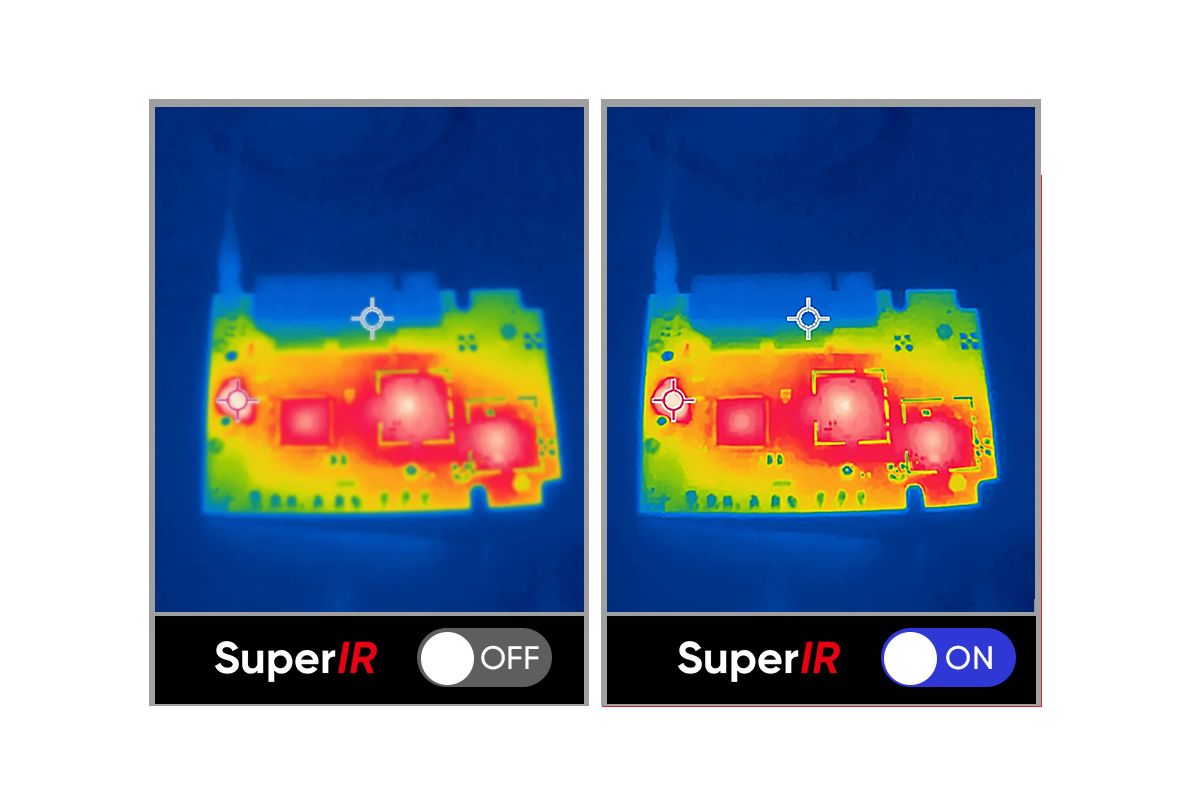

Enhanced Thermal Clarity with SuperIR – HIKMICRO’s SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.

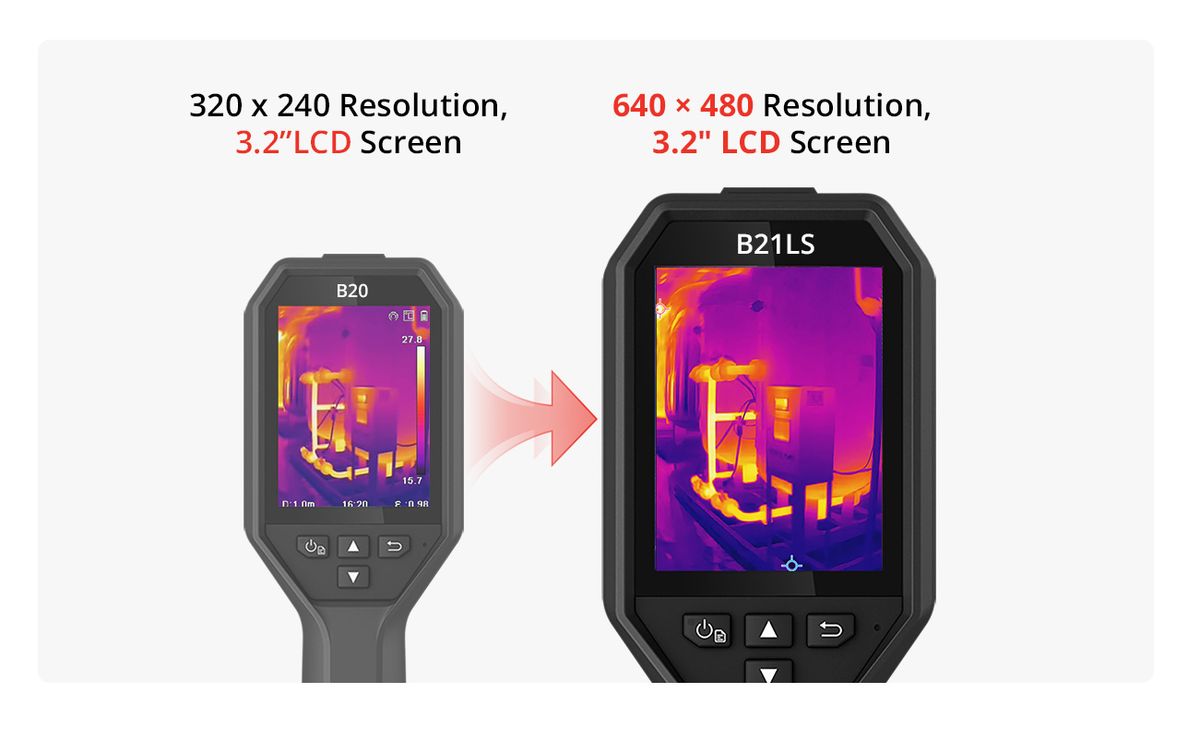

Experience the New and Improved Display – The B21LS features a high-resolution display of 640×480. With the SuperIR, you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.

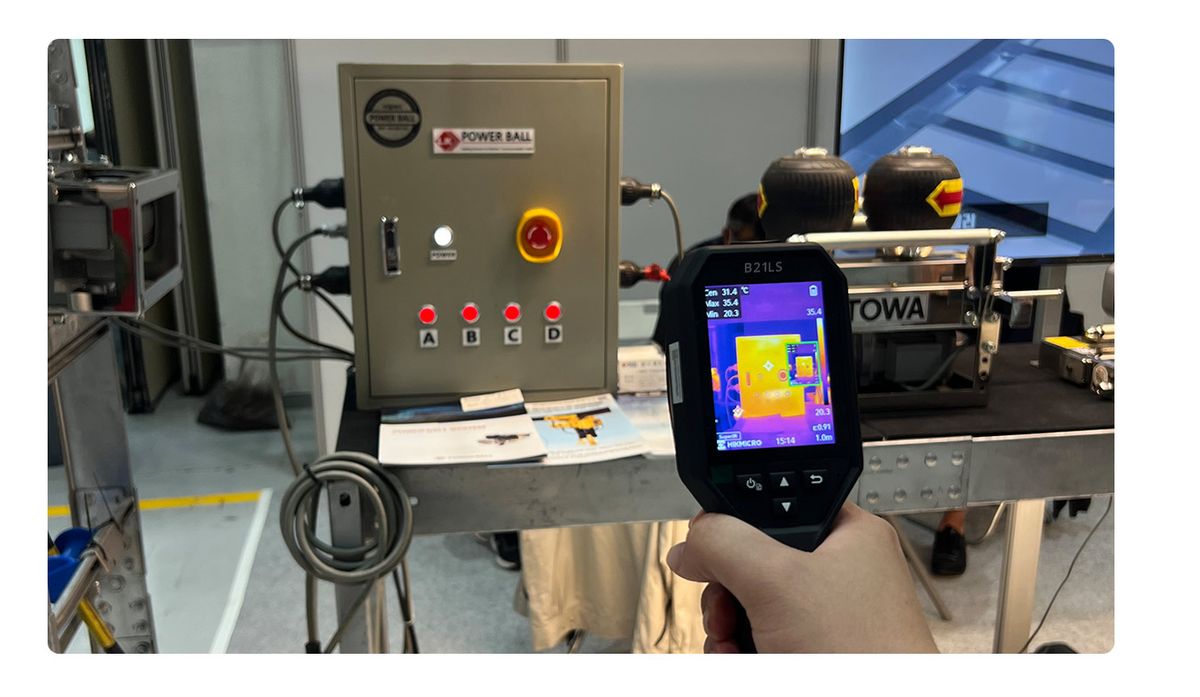

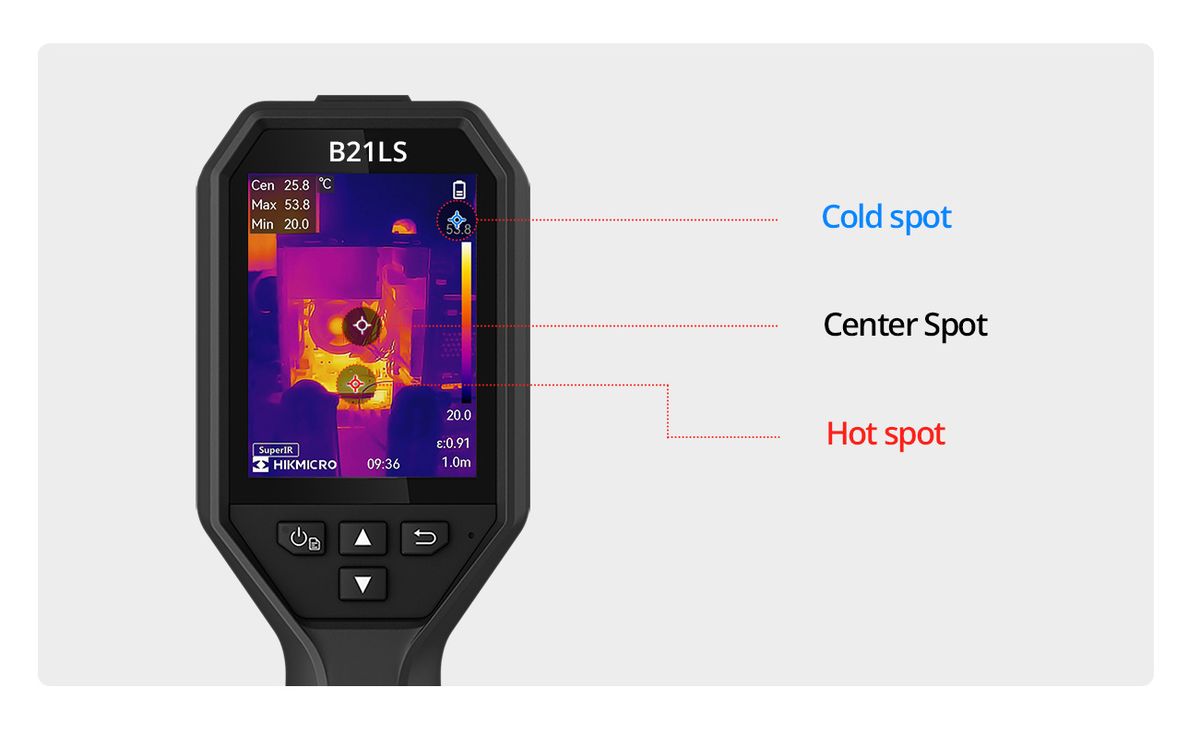

Full-screen Precise and Wide Temperature Measurement – The thermal imaging camera B21LS supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

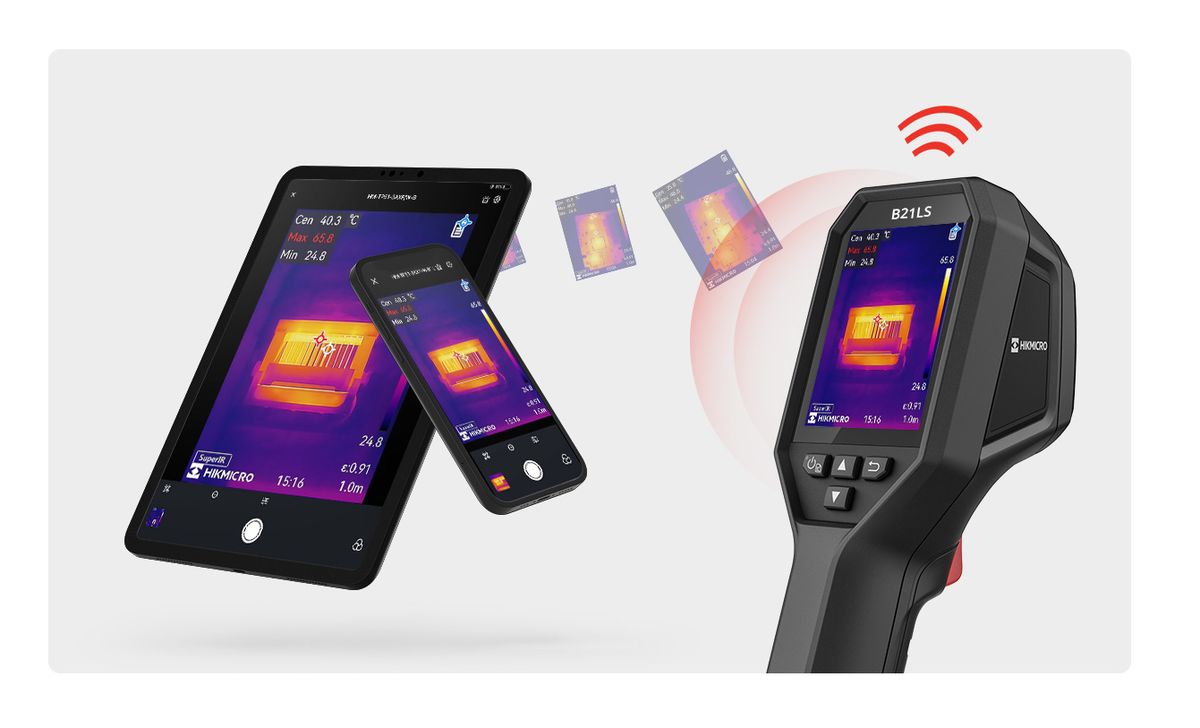

Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

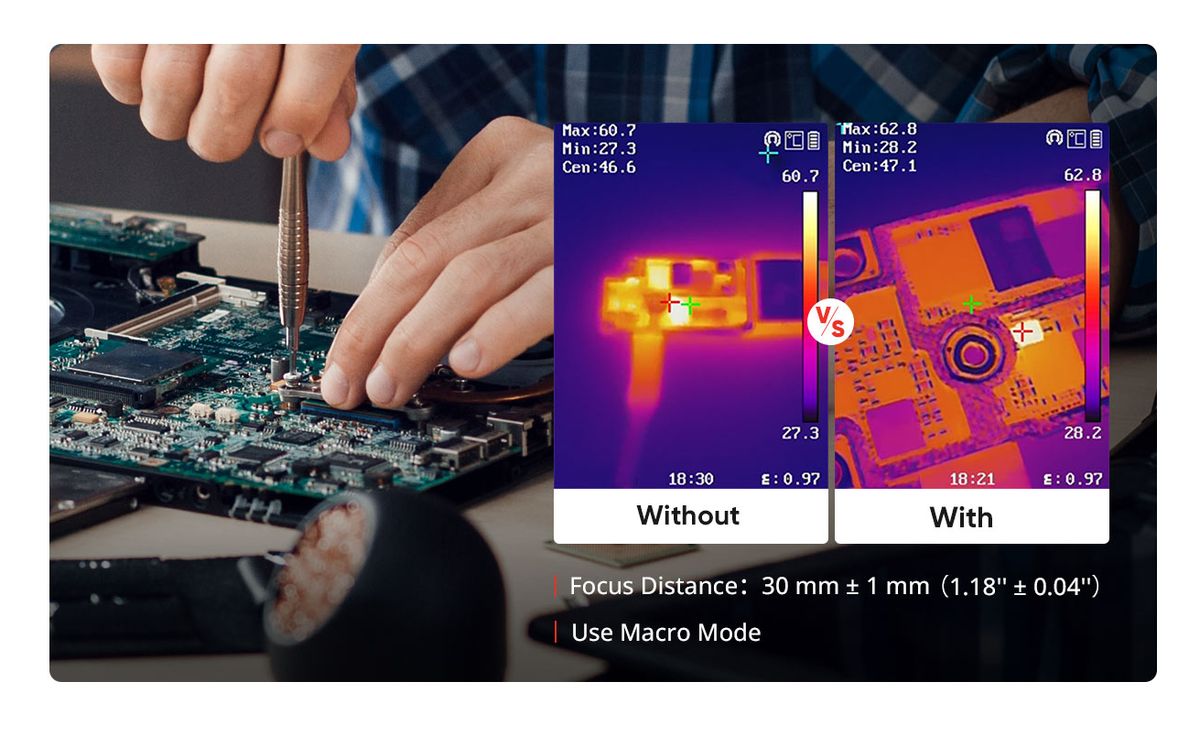

Optional innovative macro mode – Using a clip-on macro lens, the B21LS cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

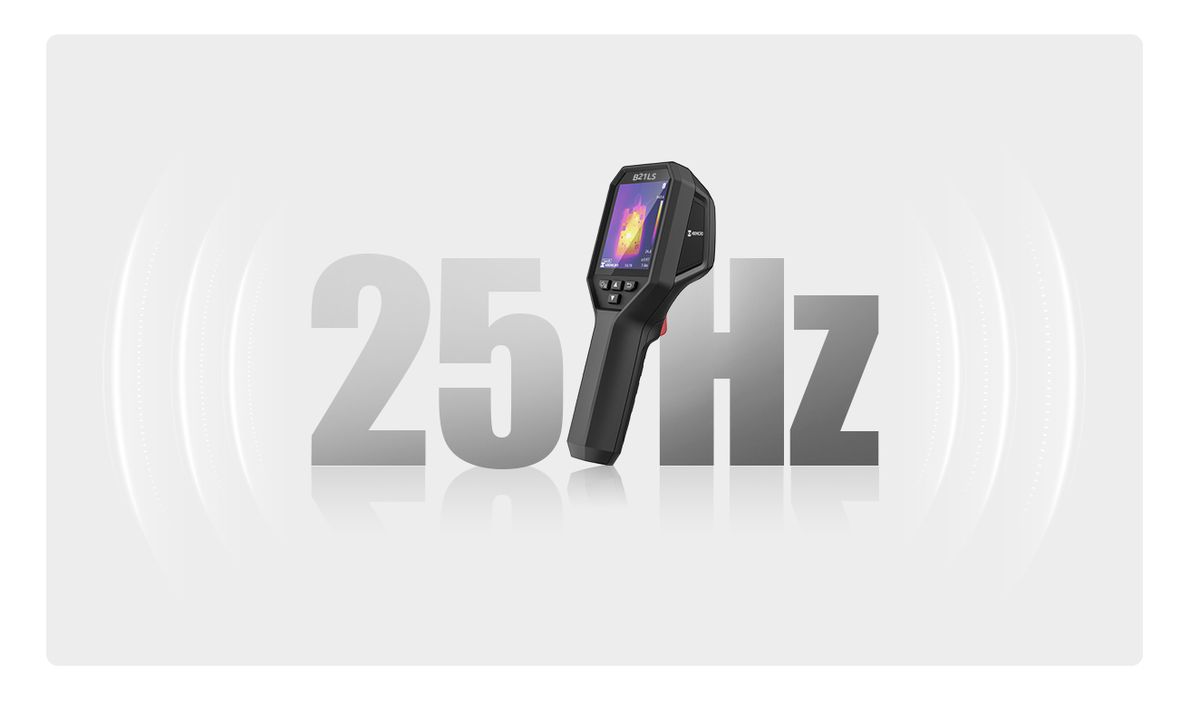

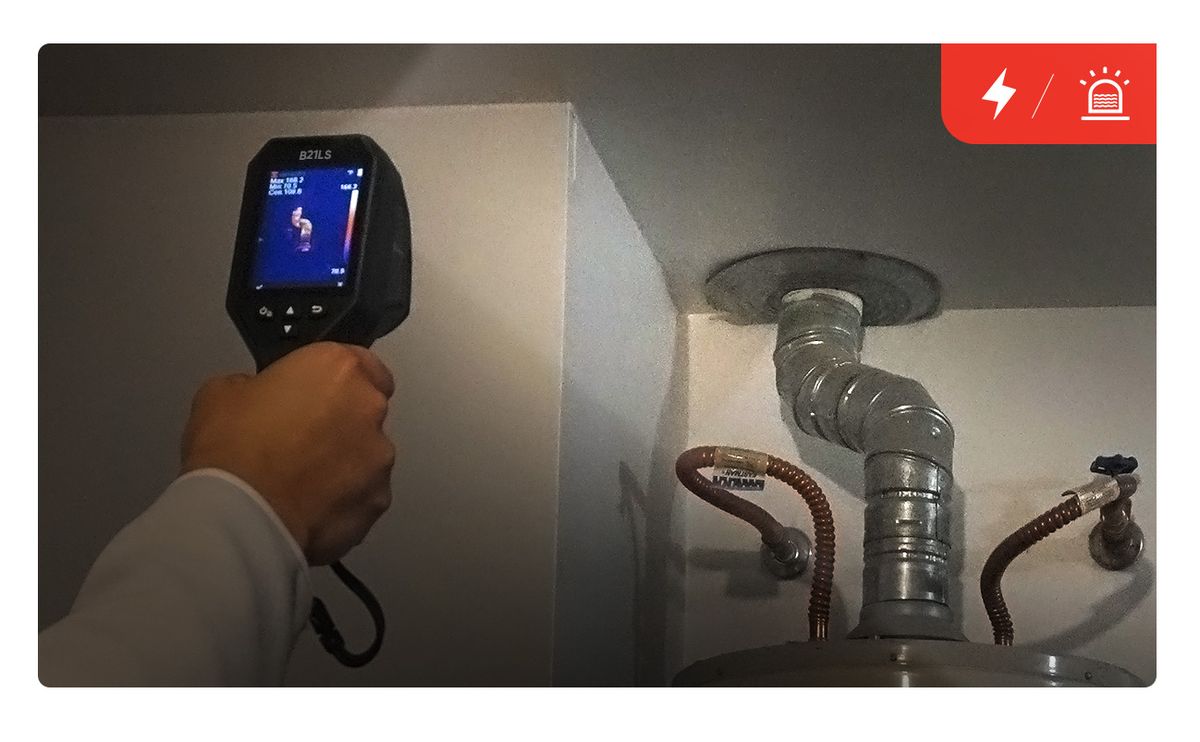

Fast Image Frequency – Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B21LS provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

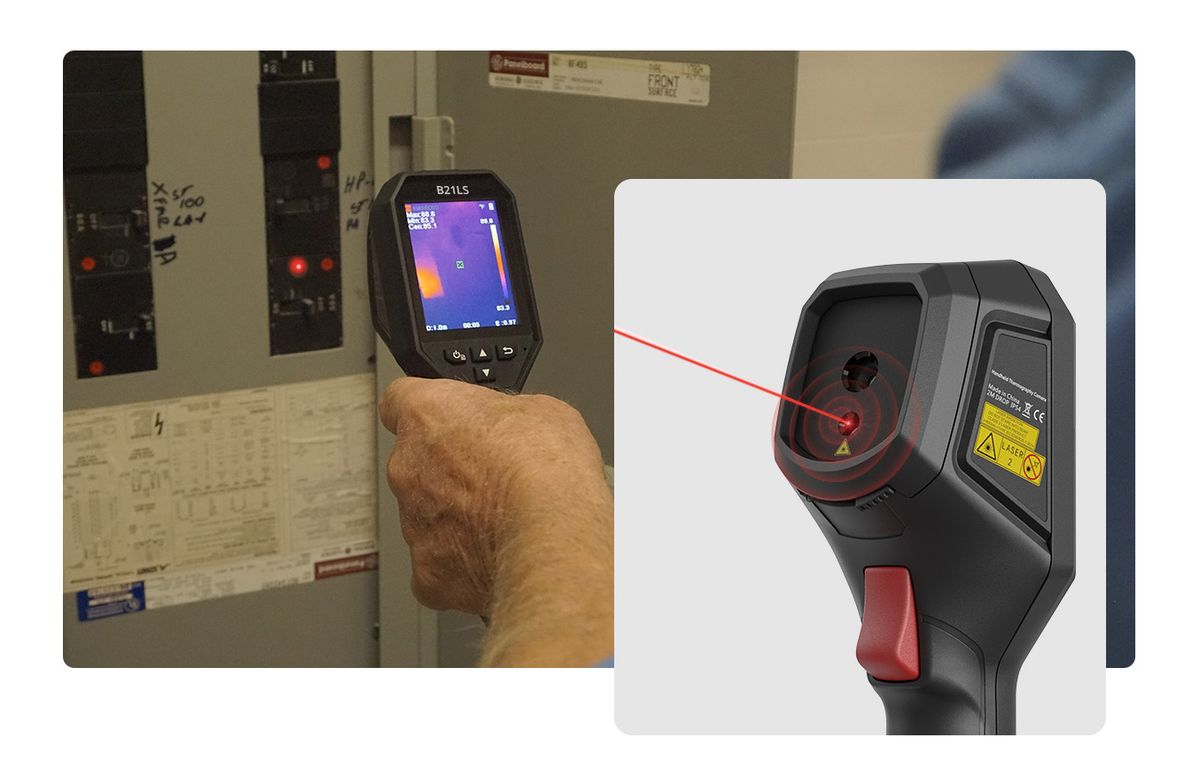

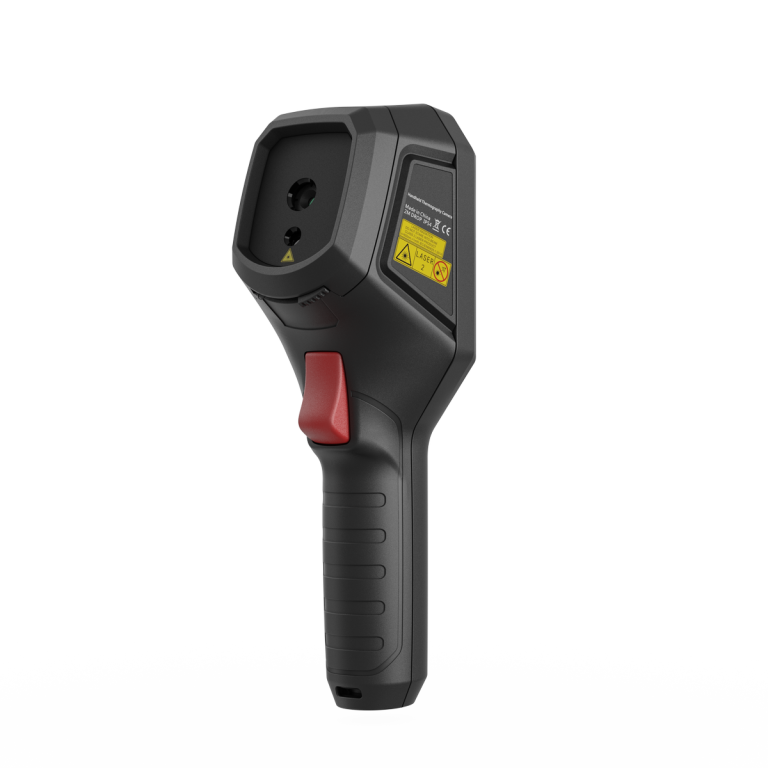

Laser Pointer – The Laser Pointer with B21LS helps show the position of the center point on actual object.
Analyze, share images, and generate reports in real-time on-site.

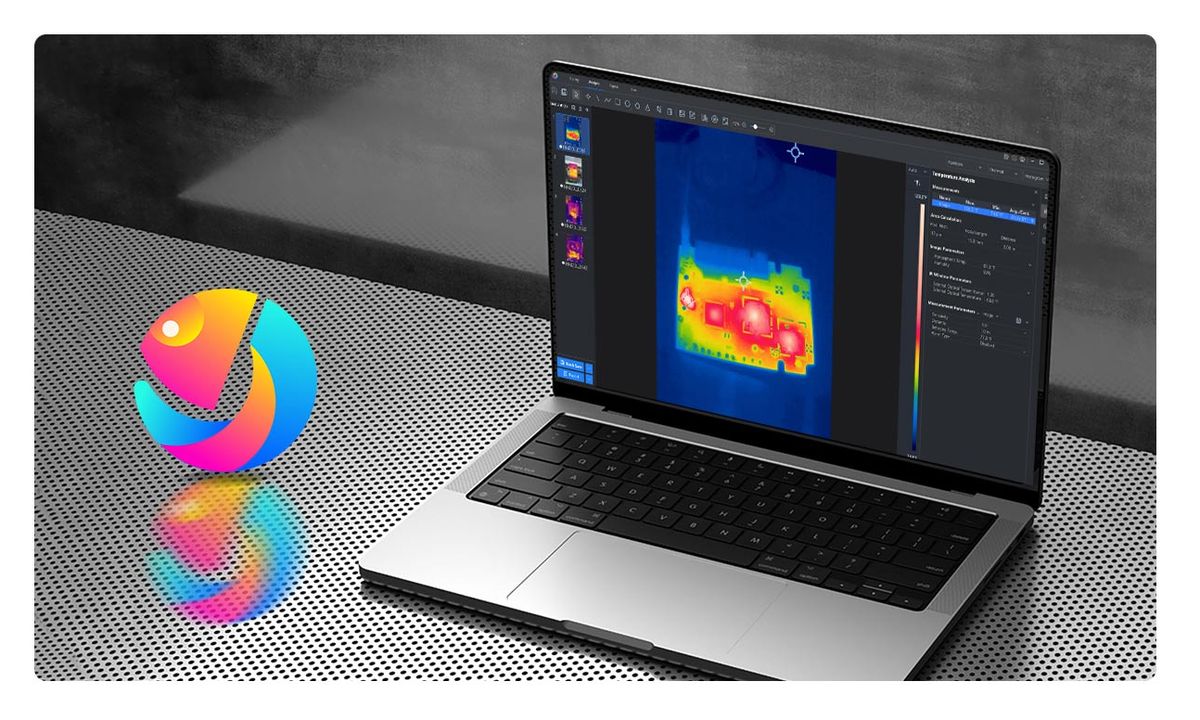

HIKMICRO Analyzer Software – Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

Applications

• Building Envelope

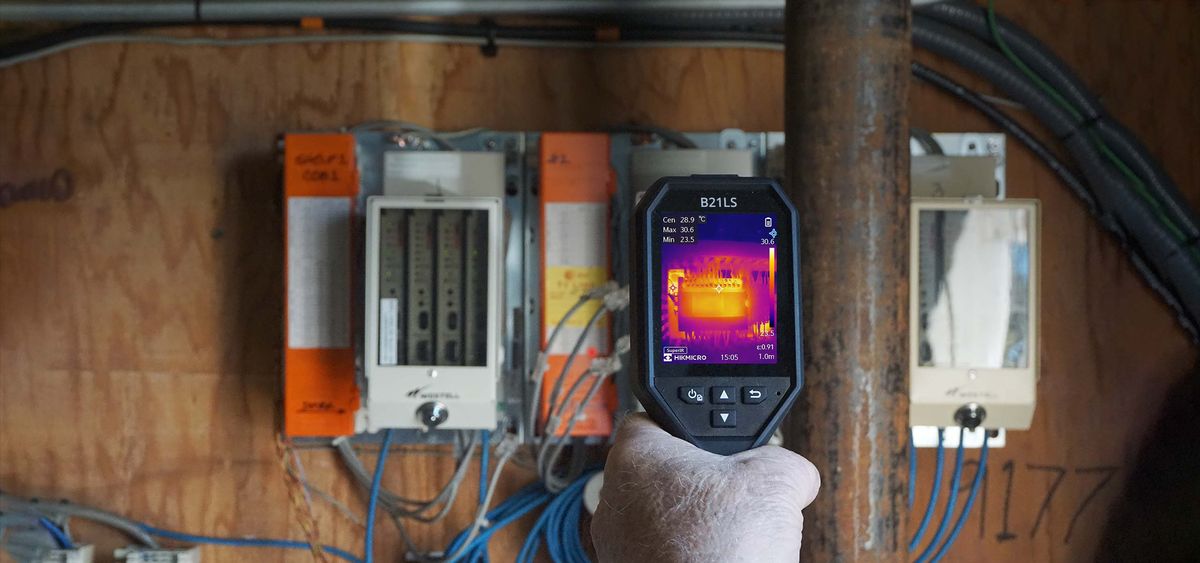

• Electrical Cabinet
• Mechanical Inspection
• Automotive Inspection

Video HIKMICRO B21LS

Introduction video

How to video

Unboxing HIKMICRO B series

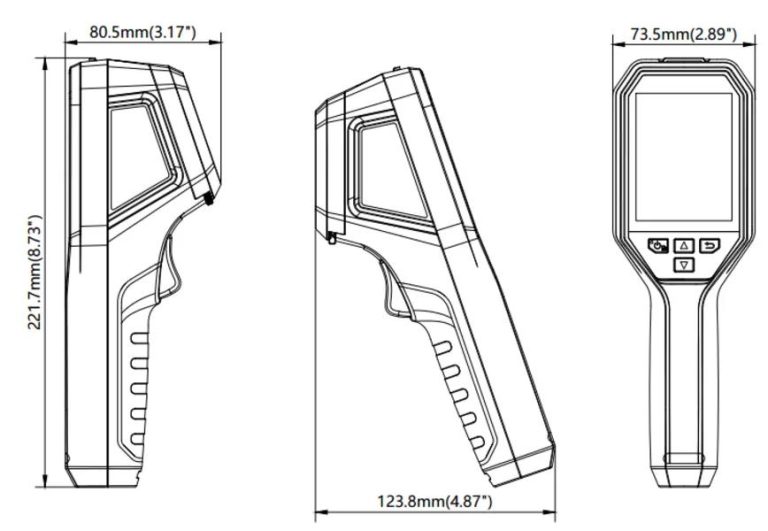

Technical specifications of HIKMICRO B21LS

Package Contents HIKMICRO B21LS

• Thermal Camera with Wrist Strap
• USB Cable
• Calibration Certificate
• Printed Quick Start Guide

Model Number: HM-TP52+-3AQF/W-B21LS

Accessories for HIKMICRO B21LS

Model	Description	Photo
HM-2925ZJ-TM01-BRACKET	Tripod Mounting Bracket
HM-B201-MACRO	Thermography Camera Macro Lens
HM-B01-POUCH	POUCH

Expand Table

Prices for HIKMICRO B21LS

Warranty for HIKMICRO B21LS

The warranty for the HIKMICRO B21LS thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO B21LS

The cost of calibrating the HIKMICRO B21LS thermal imager is €265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
