Made in China. brand HIKMICRO, model B20
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

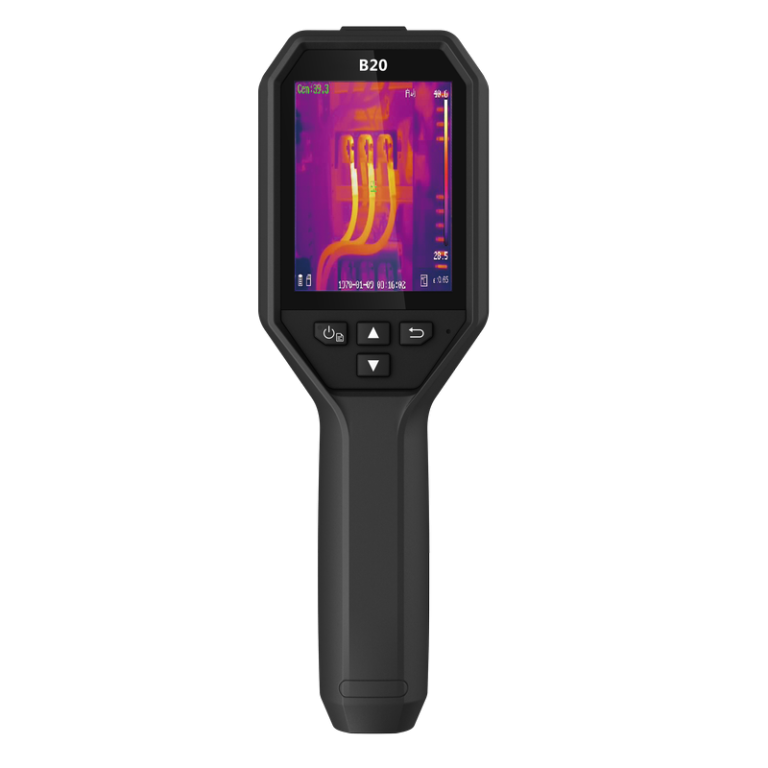

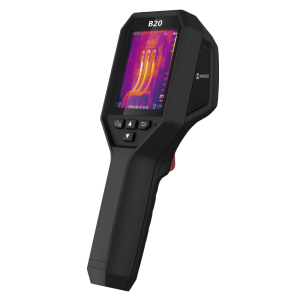

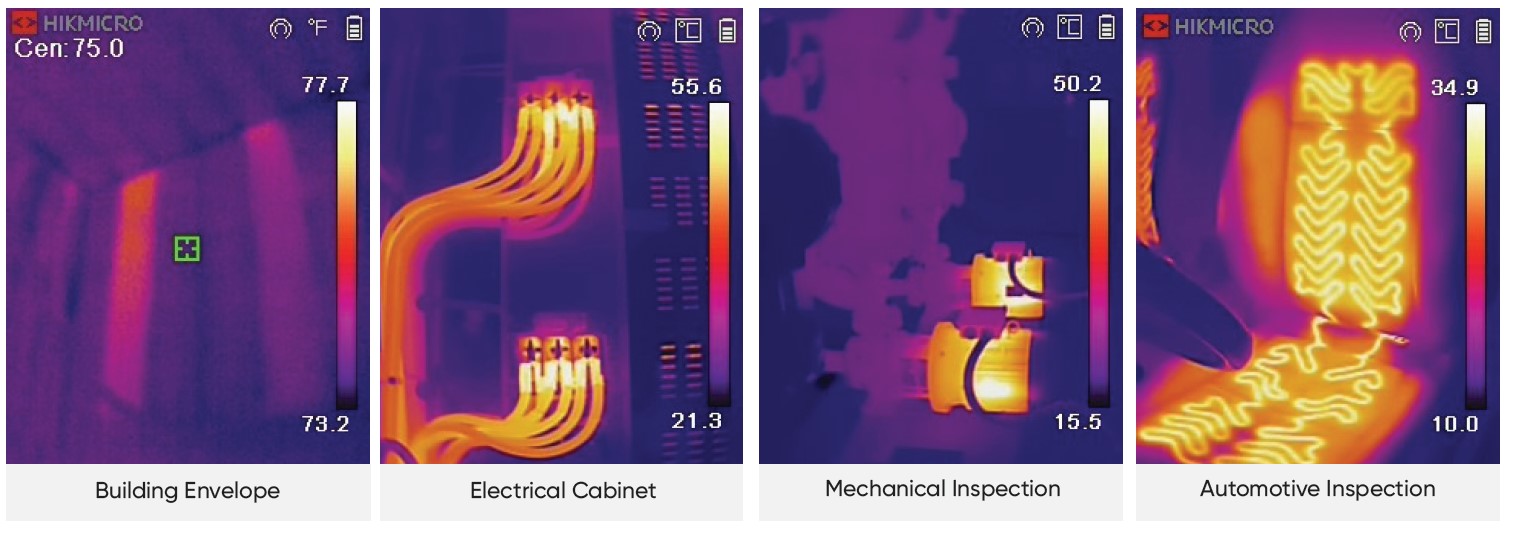

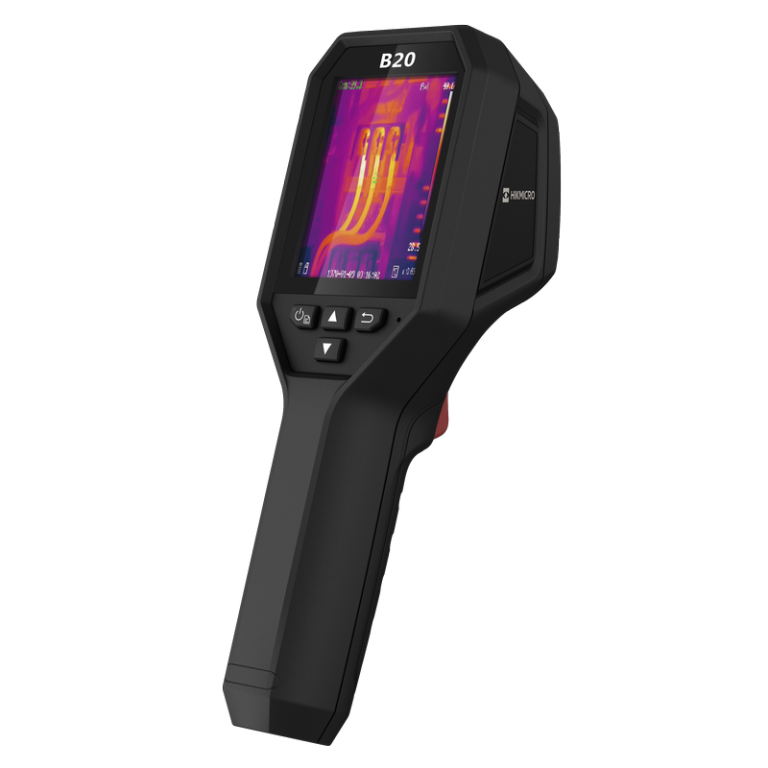

HIKMICRO B20 is designed for temperature measurement to find invisible faults. It’s equipped with a 256 × 192 high-resolution thermal detector, giving you enhanced details for your inspection. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
Enhanced Thermal Clarity with SuperIR – HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
High Image Quality – Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.
4 Images Modes – Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)
Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share images
Innovative Macro Mode – Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency – 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
3.2″ Color LCD – 3.2″ LCD provides a 75% larger screen than other products in the category.
HIKMICRO Analyzer Software – Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Promotional Video
How to video (model B20)
| Infrared Image | ||
| IR Resolution | 256 × 192 (49,152 pixels) | |
| NETD | < 40 mK (@ 25 °C, F#=1.0) | |
| Image Frequency | 25 Hz | |
| Detector Pitch | 12 μm | |
| Spectral Range | 7.5 to 14 μm | |
| Focal Length | 3.6 mm | |
| F-number | F1.0 | |
| Field of View (FOV) | 50.0° × 37.2° | |
| Spatial Resolution (IFOV) | 3.33 mrad | |
| Focus Mode | Focus Free | |
| SuperIR | Yes, on captured thermal images | |
| Min. Focus Distance | 0.3 m (0.98 ft) | |
| Image Display | ||

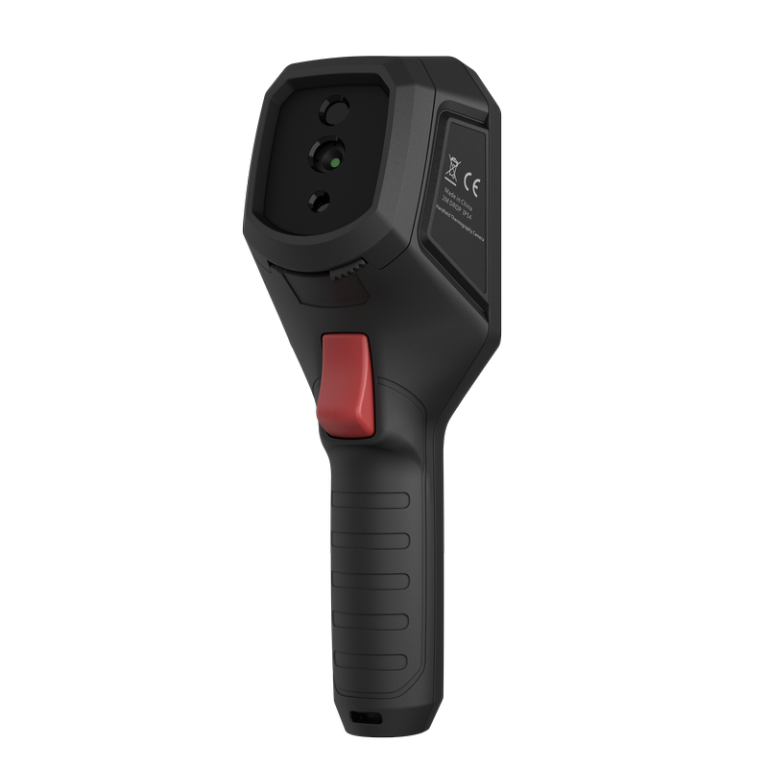

| Visual Camera | 1600 × 1200 (2 MP) | |
| Display | 240 × 320 Resolution, 3.2″ LCD Screen | |
| Image Modes | Thermal | |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion | |
| Color Alarm | Above alarm | |
| Measurement and Analysis | ||
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) | |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
|
| Level and Span Mode | Auto/Manual | |
| Data Storage and Communication | ||
| Storage Media | Built-in 4 GB flash memory (user available storage space is less than the nominal capacity) | |
| Image Storage Capacity | Approx. 30,000 Images | |
| Annotations | Text note: max. 255 characters | |
| Video Storage Capacity | Approx. 20 hours | |
| Video File Format | MP4 video | |
| Image File Format | Radiometric JPEG | |
| General | ||
| Wi-Fi | 802.11 b/g/n (2.4GHz) | |
| USB Interface | USB Type-C | |
| Battery Type | Rechargeable Li-ion battery | |
| Battery Operating Time | Approx. 6 hours | |
| Battery Charging Time | Approx. 3 hours fully charged | |
| Protection Level | IP54 | |
| Drop Test Height | 2 m (6.56 ft) | |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) | |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | |
| Relative Humidity | < 95% non-condensing | |
| Weight | Approx. 380 g (0.84 lb) | |

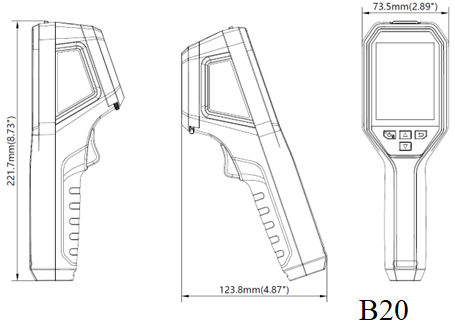

| Dimension | 221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in) | |
| Tripod Mounting | UNC W-20 | |
| LED Light | Yes | |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO B20 using the special form.
You can buy HIKMICRO B20 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO B20 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
