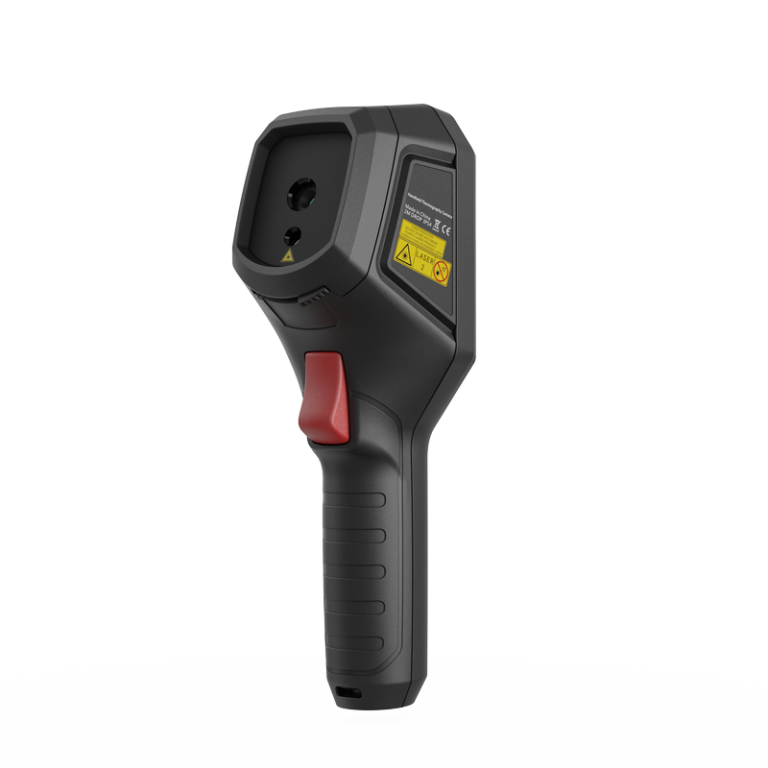

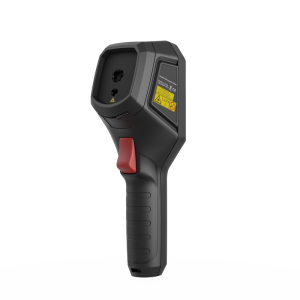

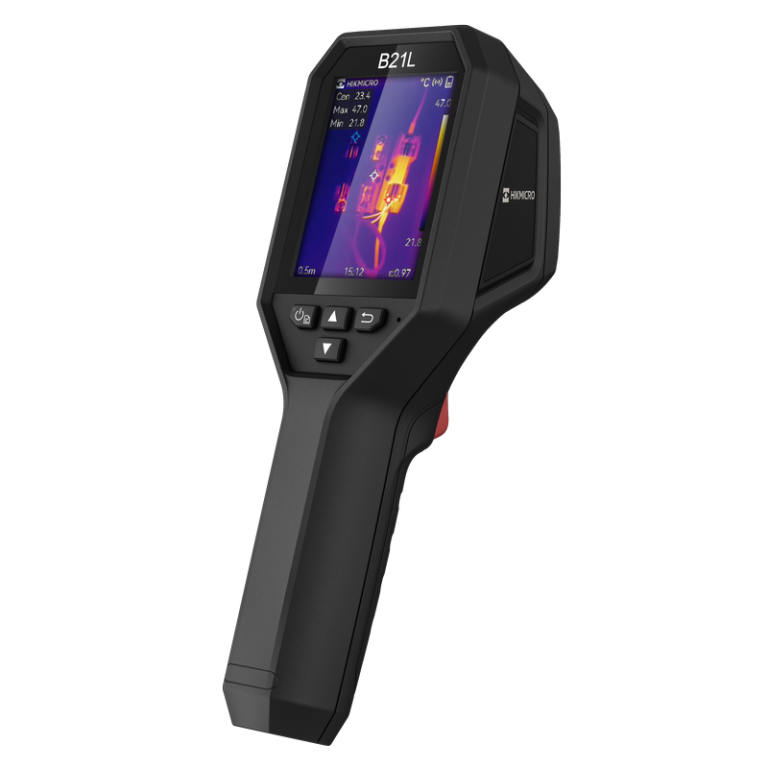

HIKMICRO B21L Handheld Thermal Imaging Camera 256×192 -20°C to 550°C IP54

Description of HIKMICRO B21L

HIKMICRO B21L is designed for temperature measurement to find invisible faults. It’s equipped with a 256 × 192 high-resolution thermal detector, giving you enhanced details for your inspection. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

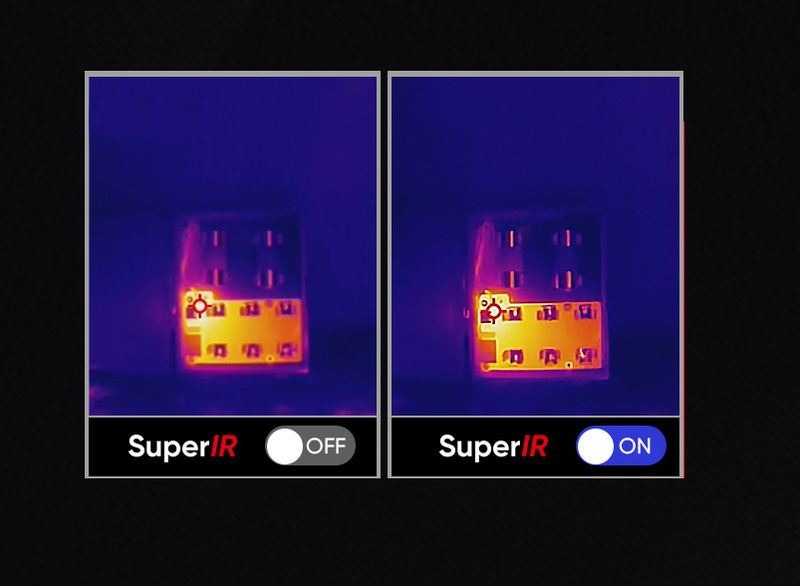

Enhanced Thermal Clarity with SuperIR – HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

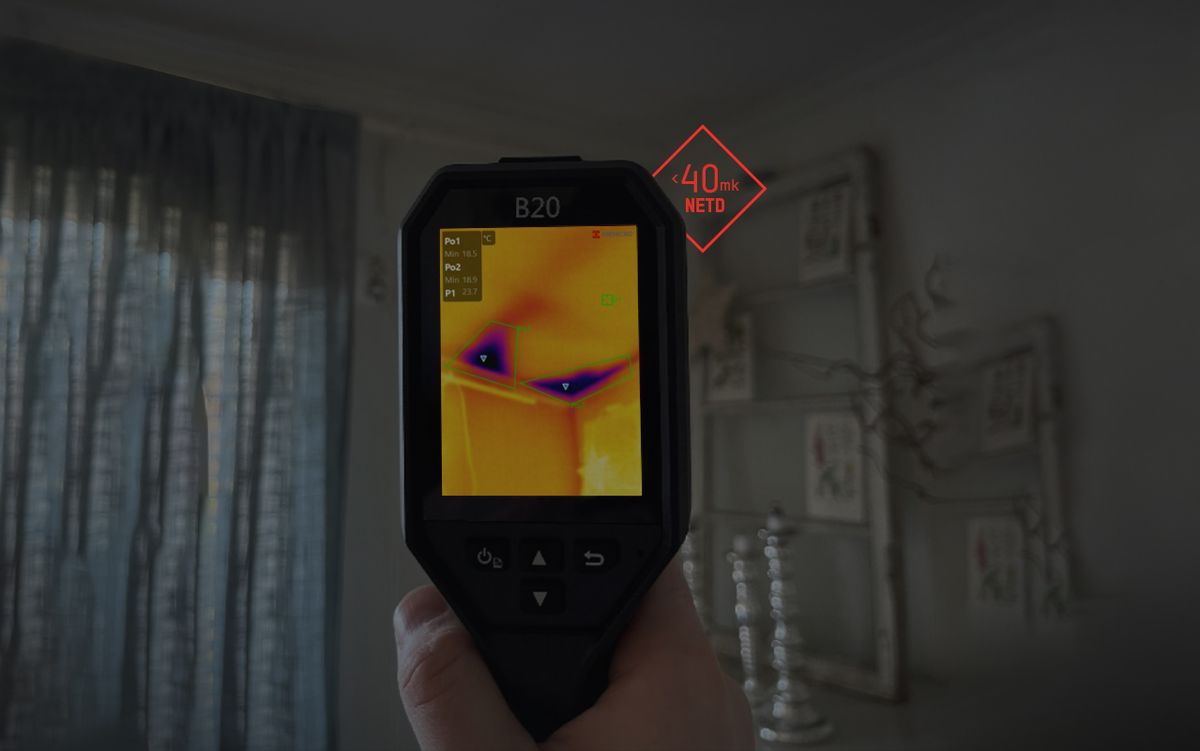

High Image Quality – Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.

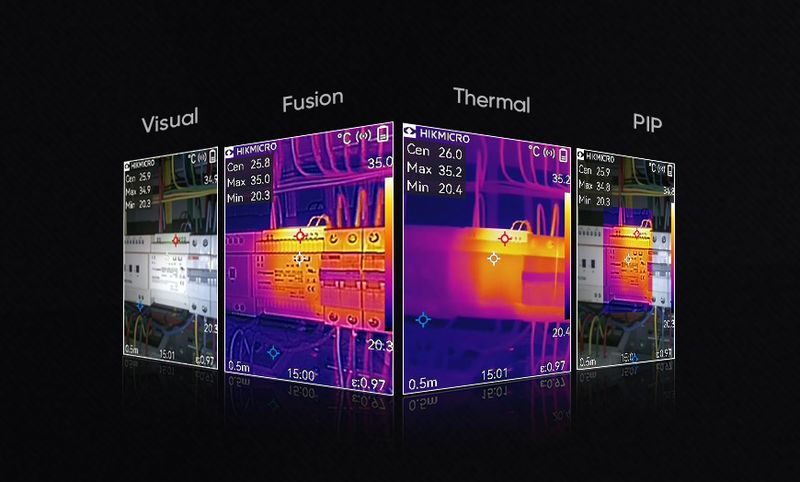

4 Images Modes – Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)

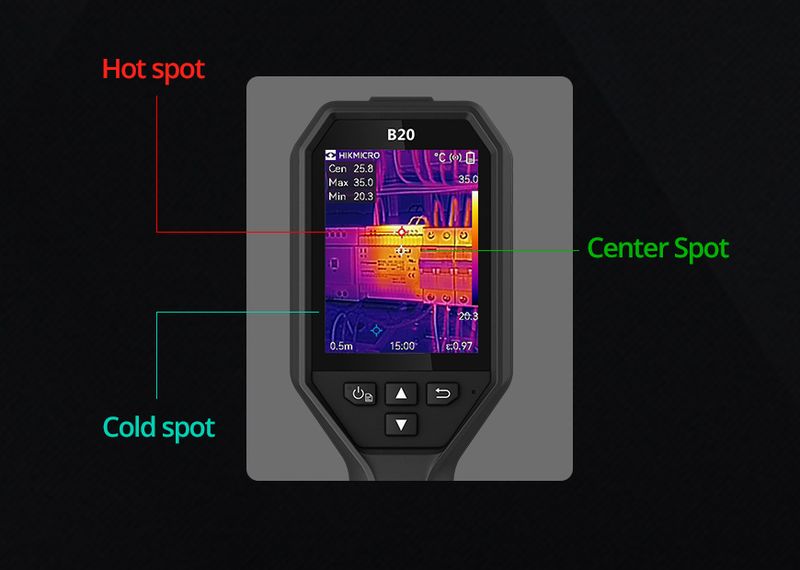

Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

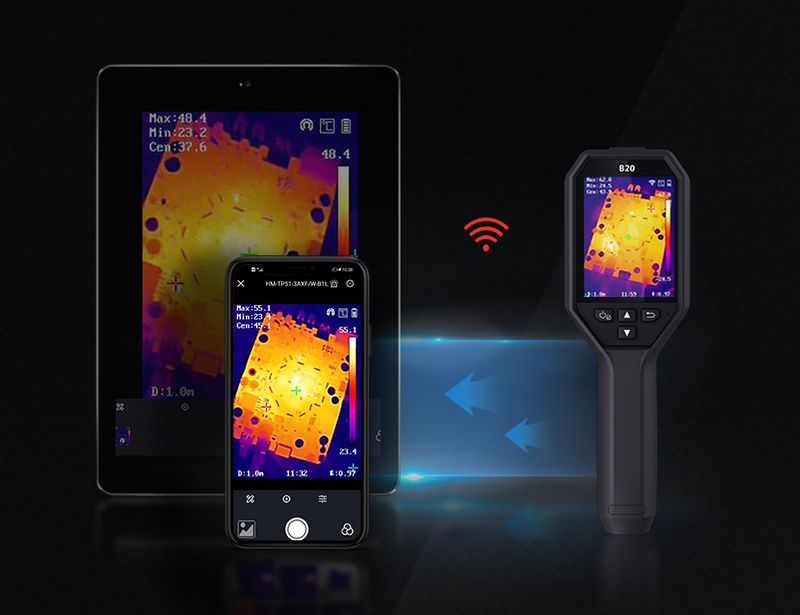

Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share images

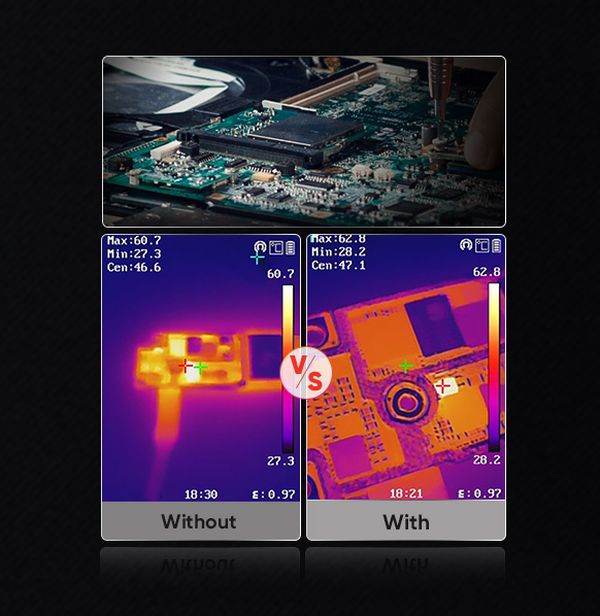

Innovative Macro Mode – Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

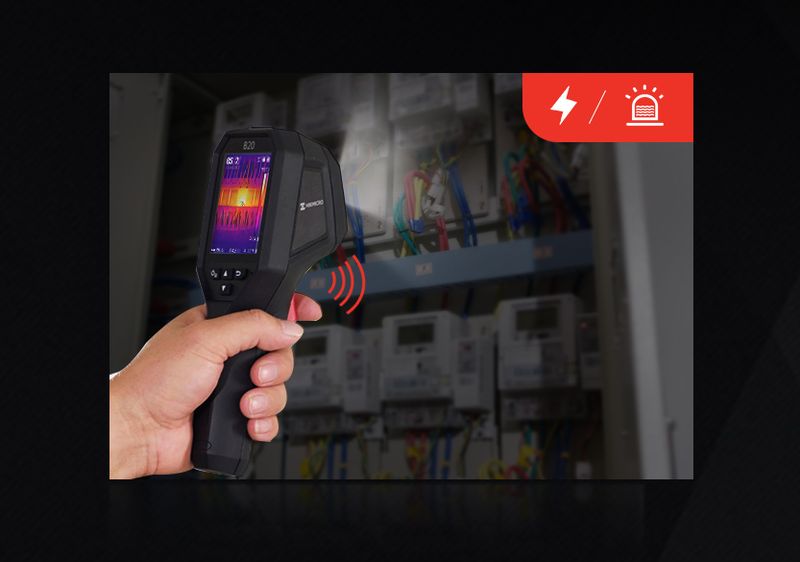

High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

Fast Image Frequency – 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

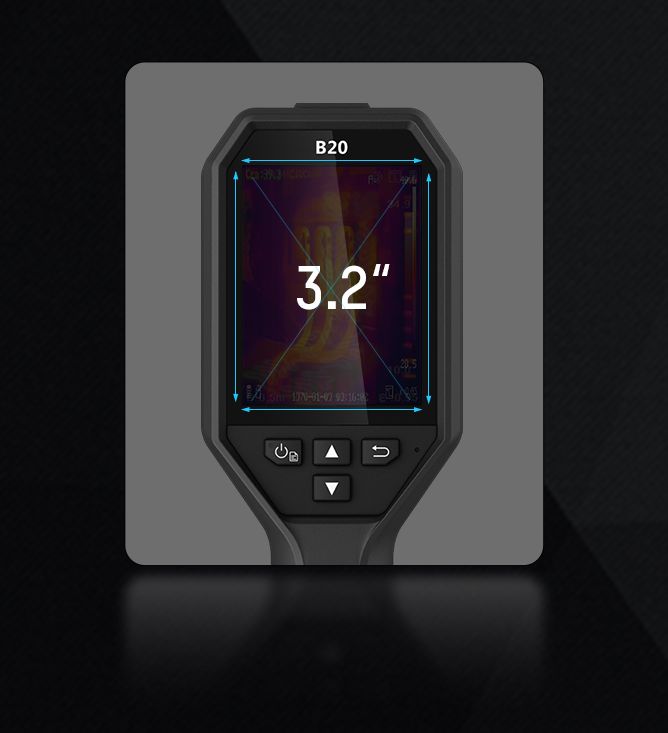

3.2″ Color LCD – 3.2″ LCD provides a 75% larger screen than other products in the category.

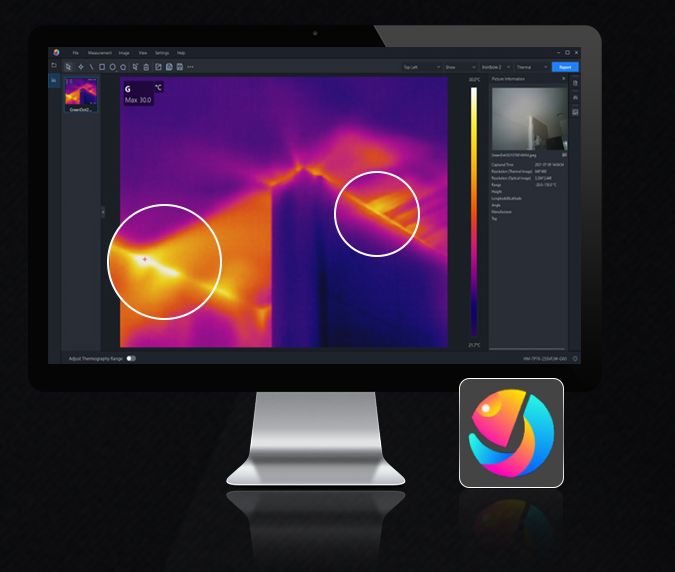

HIKMICRO Analyzer Software – Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

Applications

• Building Envelope
• Electrical Cabinet
• Mechanical Inspection
• Automotive Inspection

Video HIKMICRO B21LS

Introduction video

How to video

Unboxing HIKMICRO B series

Technical specifications of HIKMICRO B21L

Package Contents HIKMICRO B21L

• Thermal Camera with Wrist Strap
• International Charger x 5 (US, UK, EU, AU, CN)
• Quick Start Guide
• Power Adapter
  (B20S: Power adapter is not provided.)
• Calibration Certificate
• 2-in-1 USB-C to USB-C/A Cable
  (The data cable changed to a 2-in-1 cable for products manufactured after May 2024.)

Model Number: HM-TP52-3AQF/W-B21L

Accessories for HIKMICRO B21L

Model	Description	Photo
HM-2925ZJ-TM01-BRACKET	Tripod Mounting Bracket
HM-B201-MACRO	Thermography Camera Macro Lens
HM-B01-POUCH	POUCH

Expand Table

Prices for HIKMICRO B21L

Warranty for HIKMICRO B21L

The warranty for the HIKMICRO B21L thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO B21L

The cost of calibrating the HIKMICRO B21L thermal imager is €265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
