Made in China. brand HIKMICRO, model AI56L
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

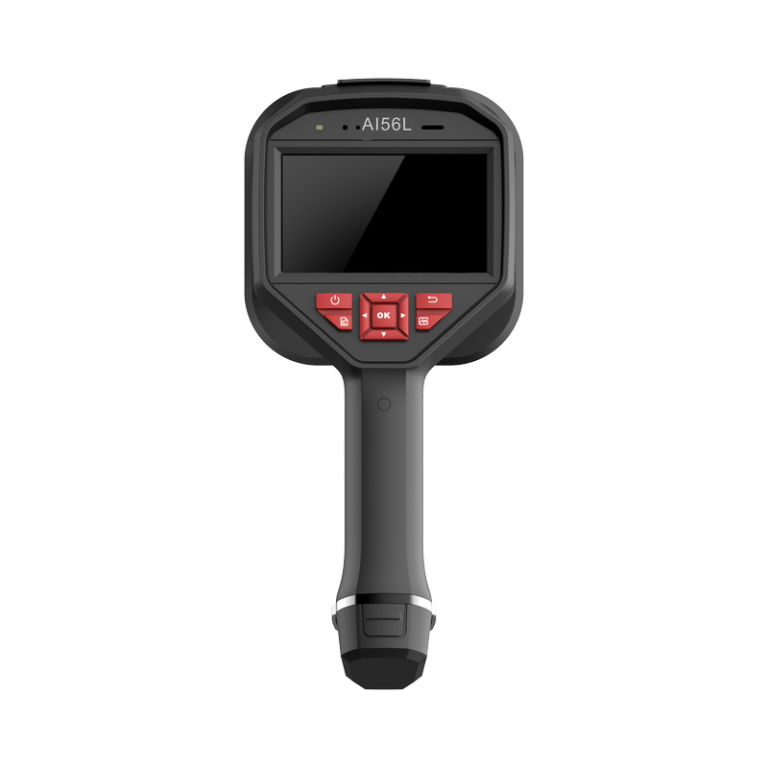

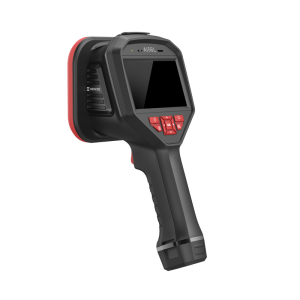

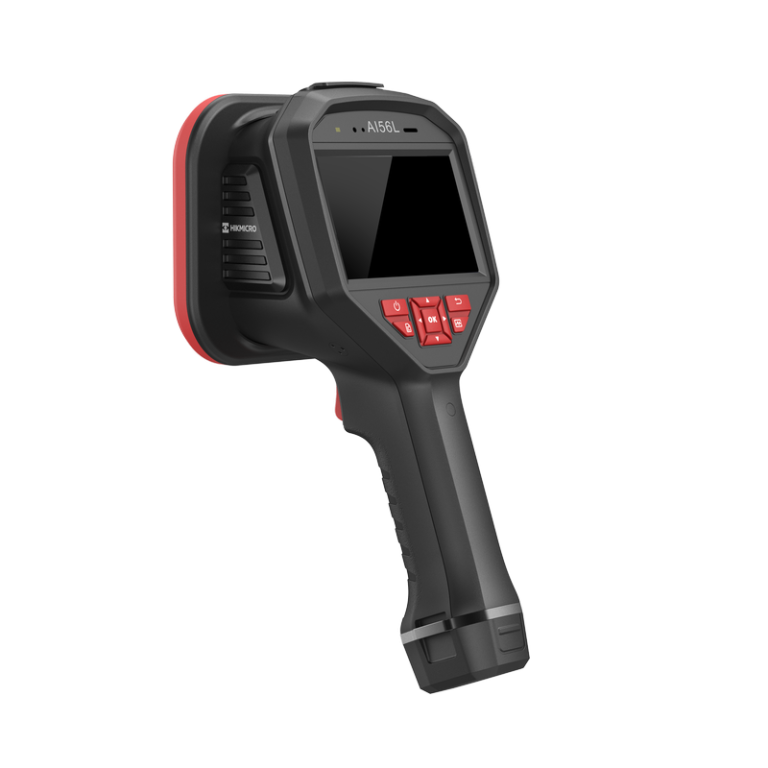

The HIKMICRO AI56L acoustic imaging camera is a professional product for gas leak detection. With 64 Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, AI56L provides an easy and effective way to locate pressurized air leaks in industrial environments. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime. Ultrasound Localization for Compressed air leak and Partial Discharge Detection.
AI56
64-MEMS-mic array delivers efficient gas leak and PD identification. Compact design enhances portability for daily troubleshooting in spaces.
AI56L
Specialized algorithms and 64-MEMS-mic array target industrial gas leaks with high accuracy. Streamlined for plant safety and environmental compliance.
AI76 with Mini3R
Combines AI76’s 136-MEMS-mic array for precise Partial Discharge (PD) detection with the optional Mini3R thermal module. Ideal for comprehensive electrical inspections – PD and thermal analysis in one device.
AI76
Features 136 MEMS microphones for superior sensitivity in PD and gas leak detection. Engineered for reliability in critical utility and industrial maintenance.
Low-noise MEMS Microphones and Adjustable Bandwidth – With Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz. The HIKMICRO AI series provides an easy and effective way to instantly locate gas leak detection and partial discharge from high-voltage systems.
Real-time Display of Leakage Data – The HIKMICRO AI series offers real-time estimated leak rate, leak cost for gas leak detection. AI series can filter noise to “visualize” sound with a large 4.3″ LCD touch screen even in noisy environments.
Smart Partial Discharge Detection – When placed in Partial Discharge mode, the AI series identifies corona, floating, surface, or particle discharge on high voltage systems that can lead to equipment failure. This is instantly displayed onscreen and can be saved for documentation and reporting. (*AI56, AI76 only)
Analyzer Acoustic – Analyzer Acoustic for PC is included at no additional cost or recurring fees. Simply import images from the camera to quantify issues, analyze field images, highlight concerns, and create reports for repairs, field audits, or energy rebate programs.
Interchangeable Battery System – Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 10 hours with AI56, and 6 hours with AI76 of operation. You can stay powered up for even the longest inspections.
Voice & Text Annotations – In addition to supporting voice, text annotations to the image helps to improve inspection efficiency and productivity.
| Acoustic | |
| Number of Microphones | 64 |
| Acoustic Image Resolution | 800 × 480 |
| Bandwidth | 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz |
| Distance | 0.3m~150m |
| Acoustic Image Palette | White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Camera FOV | 50.2° × 35.4° |
| Sound Intensity Display | Peak Point |
| Acoustic Image Frame Rate | 25 fps |
| Dynamic Range | Low Limit: <-15dB High Limit: >120dB |
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft) |
| Discharge Detection | Automatic detection 50 / 60 Hz |
| Image Display | |
| Display | 800 × 480 Resolution, 4.3’LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.0x to 16.0x continuous |
| Visual Camera | 2688 x 1944 (5 MP) |
| Data Storage and Communication | |
| Image Storage Capacity | 20,000 images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | 60 hours |
| Extendable Memory Card | Extendable 128 GB SD Card |
| Video File Format | MP4 |
| General | |
| Bluetooth | Bluetooth 4.1 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Battery Operating Time | Approx. 3.5 hours x3 for a total for a total of 10.5 hours |
| Battery Type | Interchangeable and Rechargeable Li-ion Battery |
| Battery Charging Time | 5 hours to full charge |
| Protection level | IP54 |
| Power Supply | 5V DC/2A (Charging via USB) |
| Drop Test Height | 1.2 m (3.94 ft) |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1 |
| Working Temperature Range | -20 °C to 50 °C (-4 °F to 122 ° F) |
| Storage Temperature Range | -20 °C to 60 °C (-4 °F to 140 ° F) |
| Relative Humidity | ＜95 % non-condensing |
| Weight Approx. | 940 g (2.07 lb) |

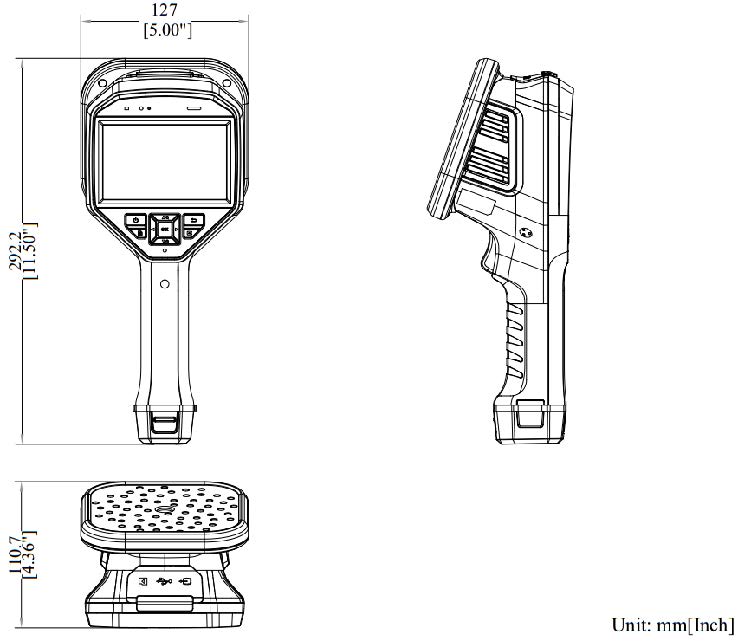

| Dimension | 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in) |
| Tripod Mounting | UNC ¼”-20 |
| Vibration | 2g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO AI56L using the special form.
You can buy HIKMICRO AI56L in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO AI56L price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
