Made in China. brand HIKMICRO, model AI56
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 6000 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

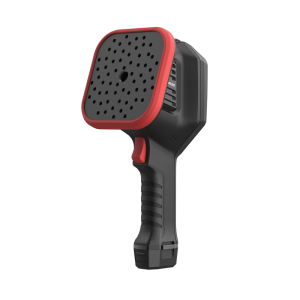

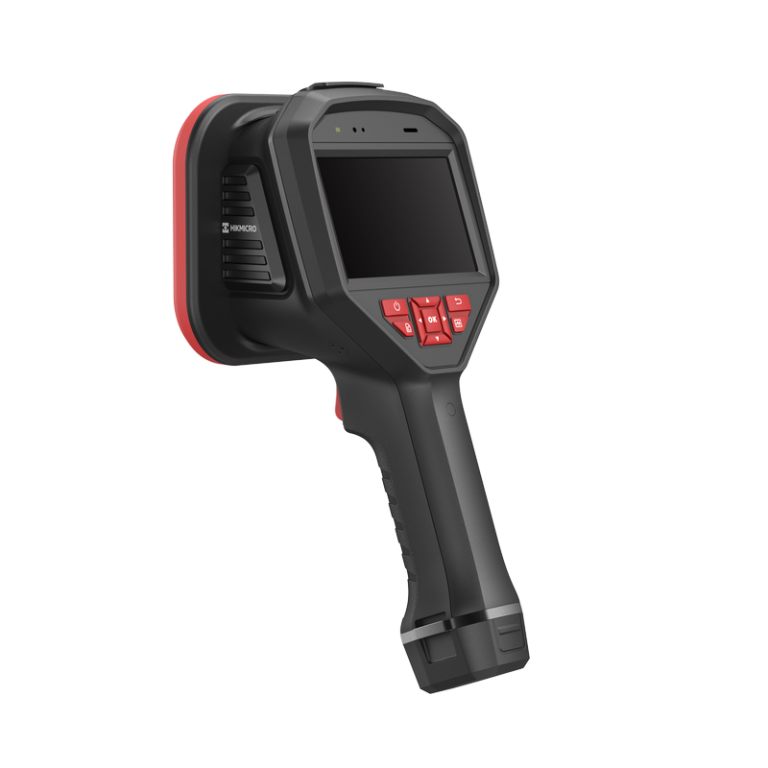

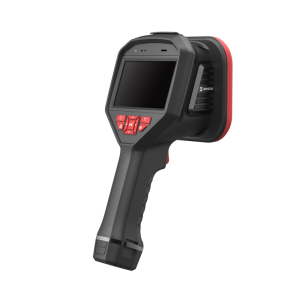

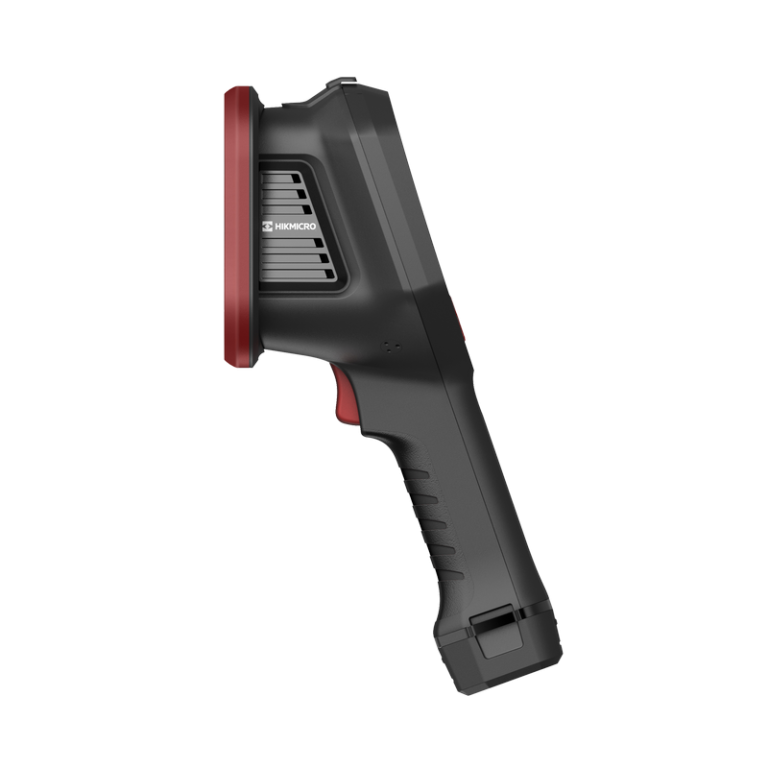

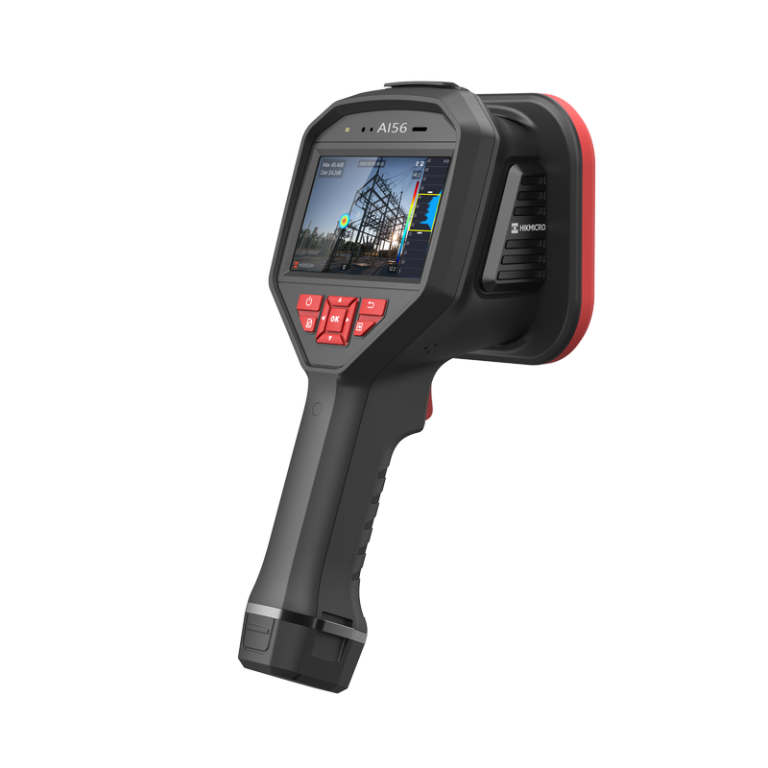

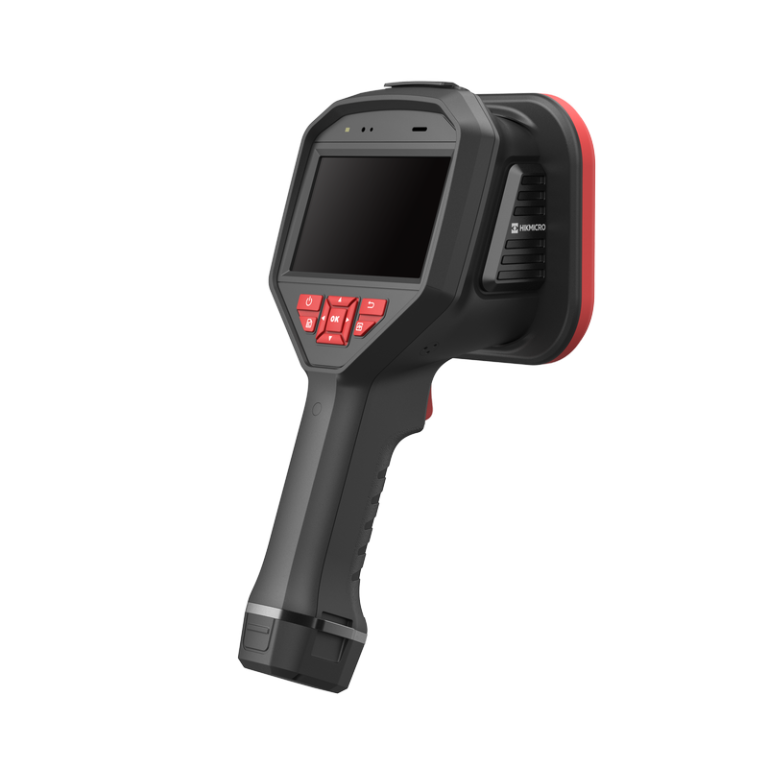

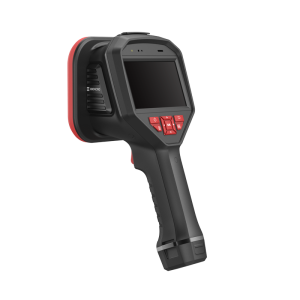

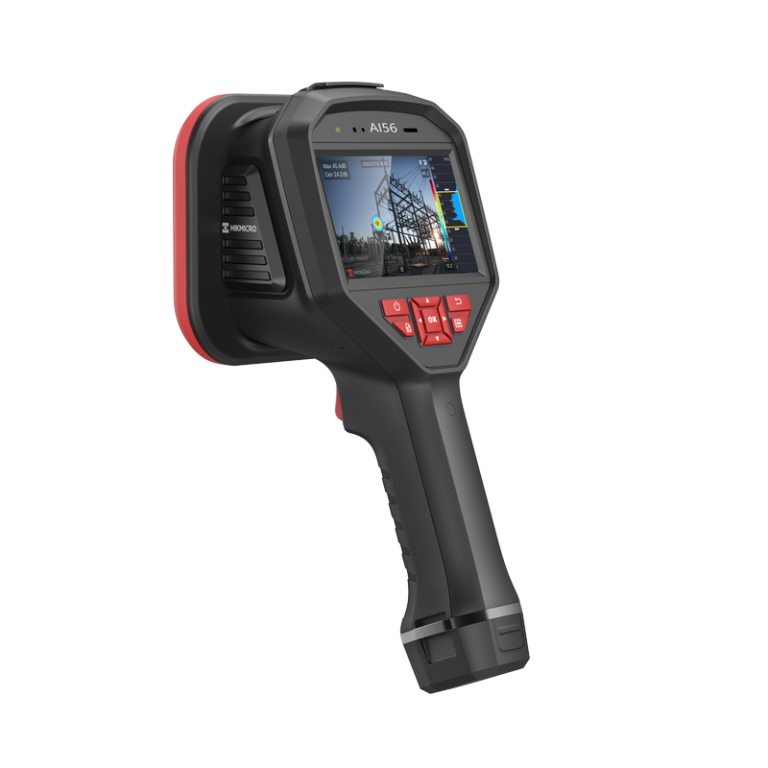

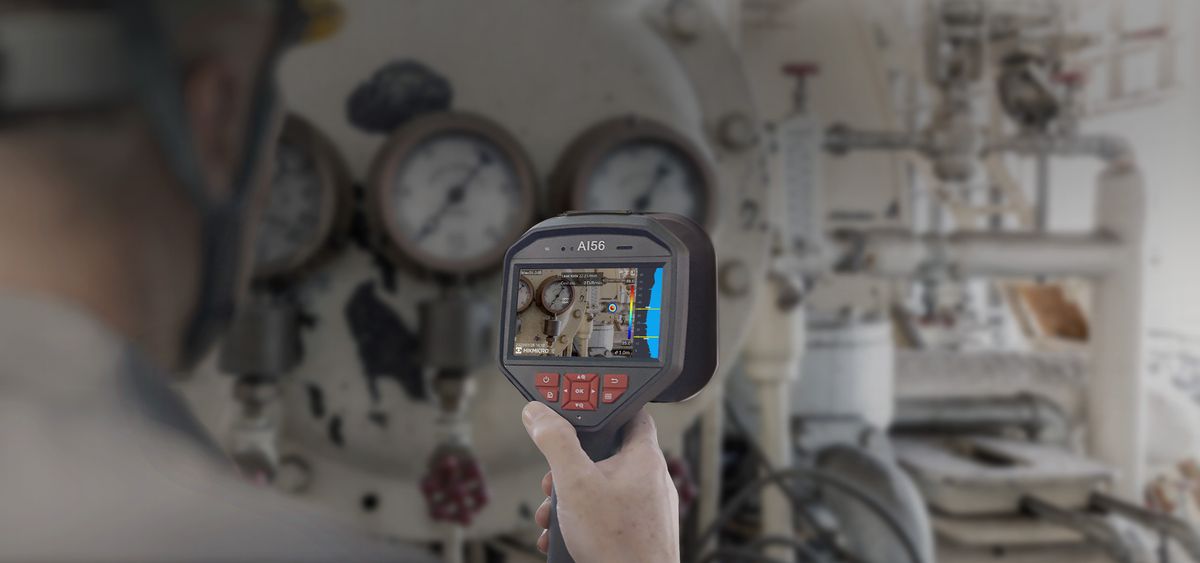

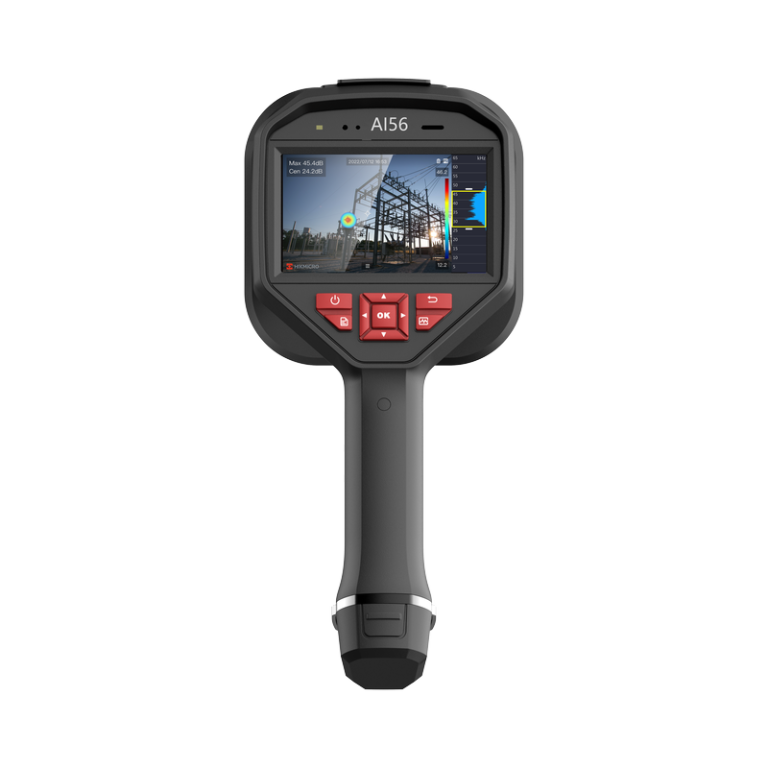

The HIKMICRO AI56 acoustic imaging camera is a professional product for gas leak detection and partial discharge detection. With 64 Low-noise MEMS microphones and an adjustable bandwidth range from 2 kHz to 65 kHz, AI56 provides an easy and effective way to locate pressurized air leaks in industrial environments or detect partial discharge in electric systems. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime.
Ultrasound Localization for Compressed air leak and Partial Discharge Detection.

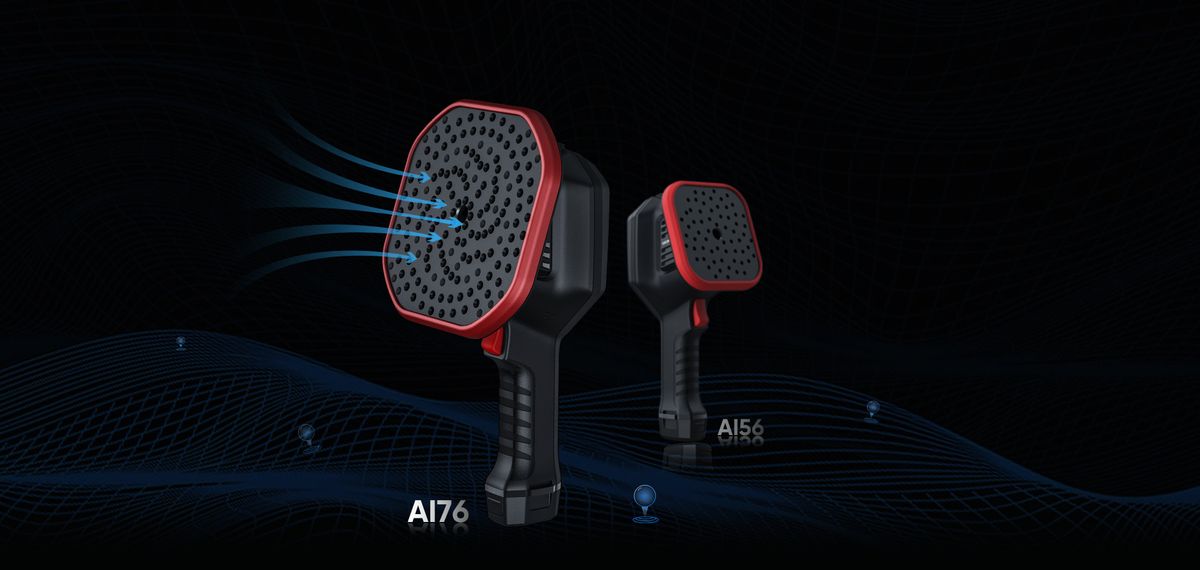

AI56 – 64-MEMS-mic array delivers efficient gas leak and PD identification. Compact design enhances portability for daily troubleshooting in spaces.
AI56L – Specialized algorithms and 64-MEMS-mic array target industrial gas leaks with high accuracy. Streamlined for plant safety and environmental compliance.

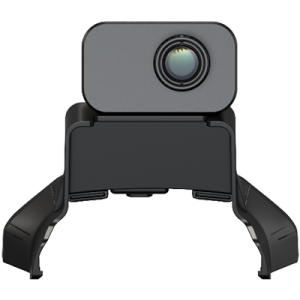

AI76 with Mini3R – Combines AI76’s 136-MEMS-mic array for precise Partial Discharge (PD) detection with the optional Mini3R thermal module. Ideal for comprehensive electrical inspections – PD and thermal analysis in one device.
AI76 – Features 136 MEMS microphones for superior sensitivity in PD and gas leak detection. Engineered for reliability in critical utility and industrial maintenance.

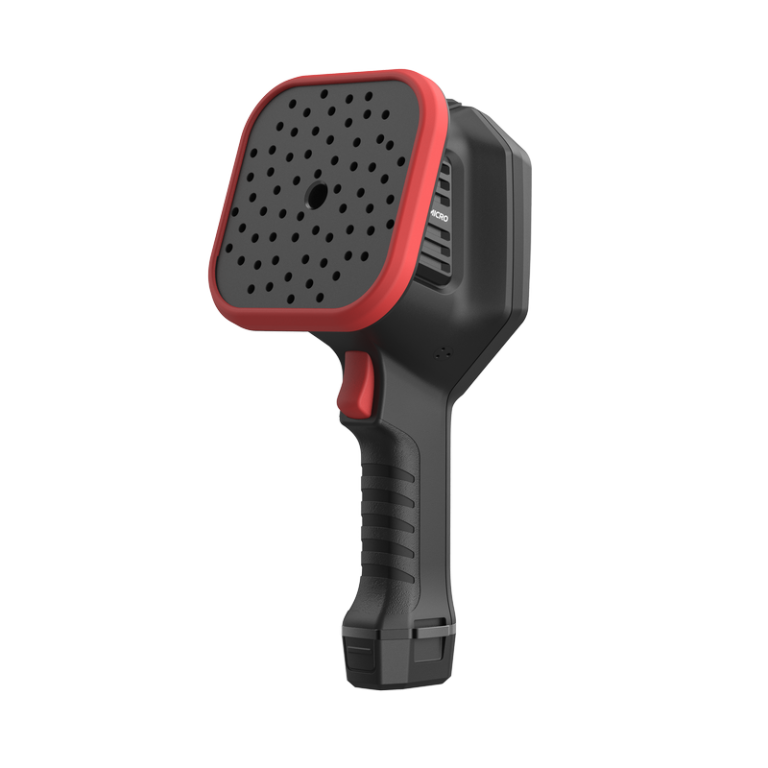

Low-noise MEMS Microphones and Adjustable Bandwidth – With Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz. The HIKMICRO AI series provides an easy and effective way to instantly locate gas leak detection and partial discharge from high-voltage systems.

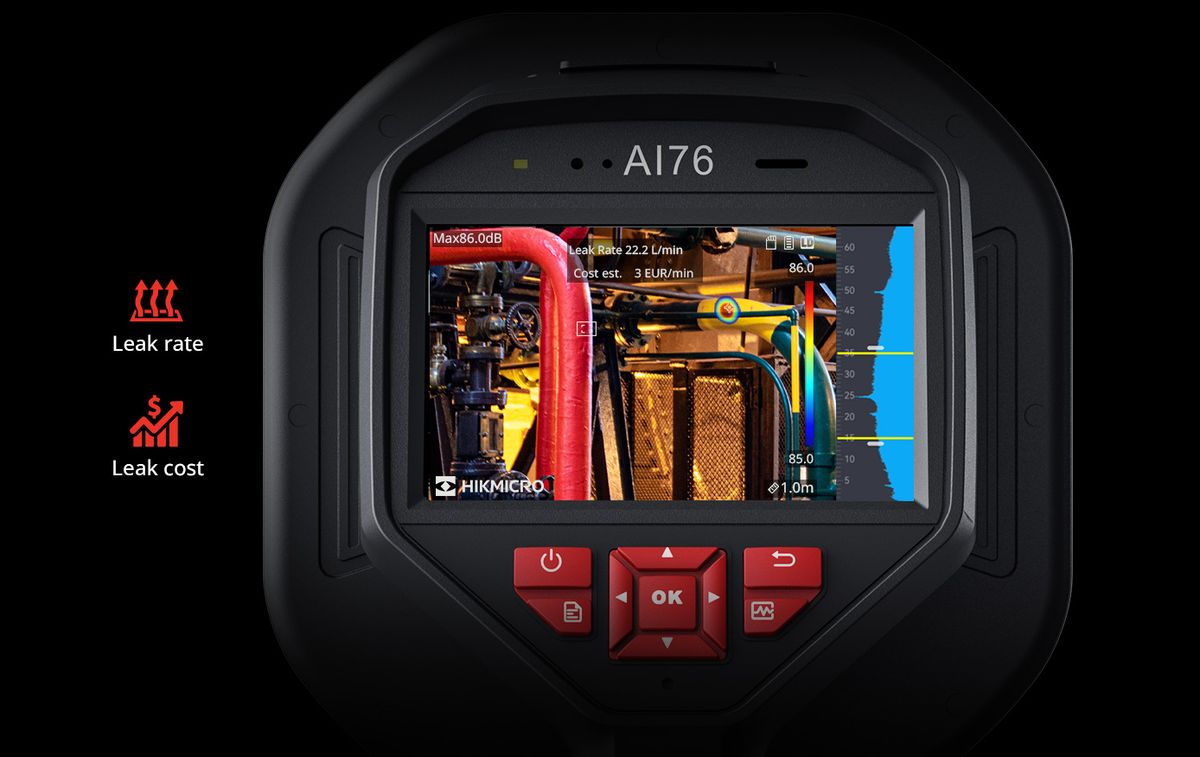

Real-time Display of Leakage Data – The HIKMICRO AI series offers real-time estimated leak rate, leak cost for gas leak detection. AI series can filter noise to “visualize” sound with a large 4.3″ LCD touch screen even in noisy environments.

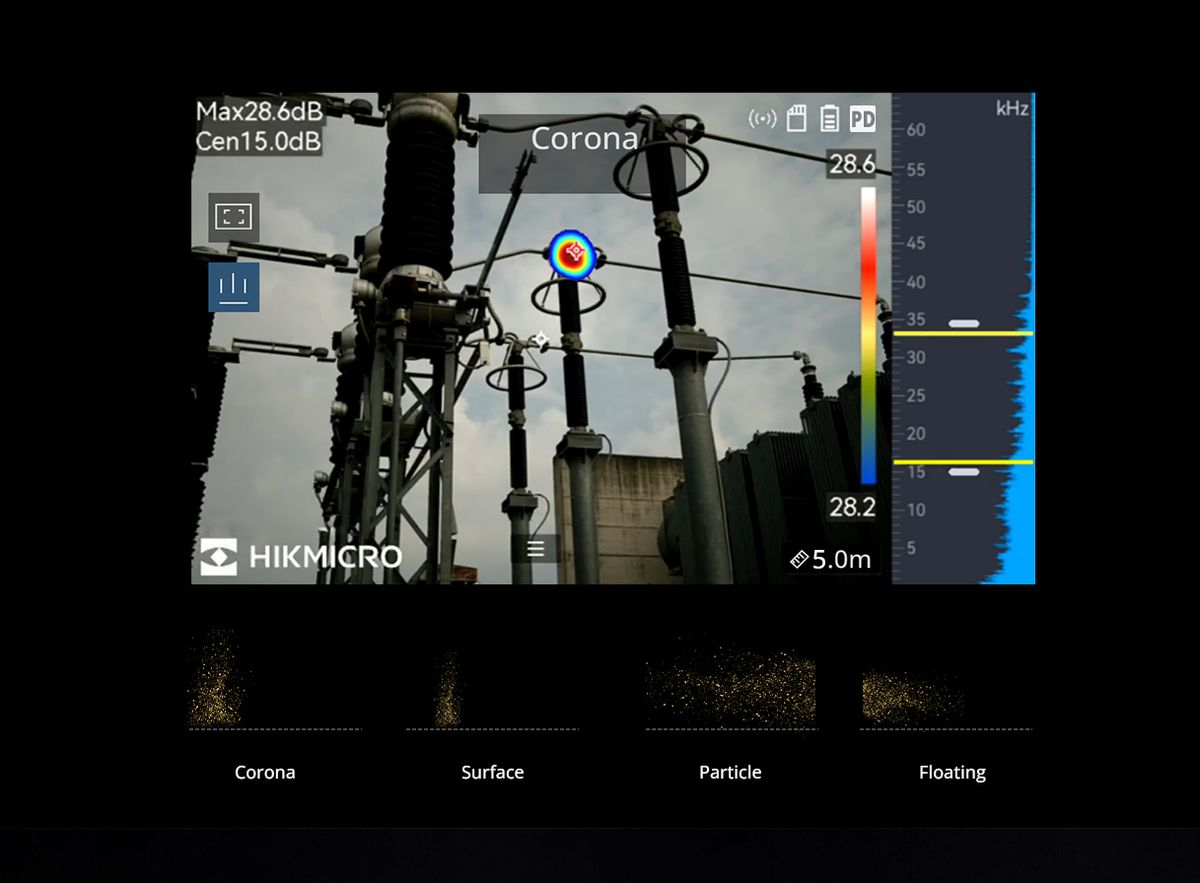

Smart Partial Discharge Detection – When placed in Partial Discharge mode, the AI series identifies corona, floating, surface, or particle discharge on high voltage systems that can lead to equipment failure. This is instantly displayed onscreen and can be saved for documentation and reporting. (*AI56, AI76 only)

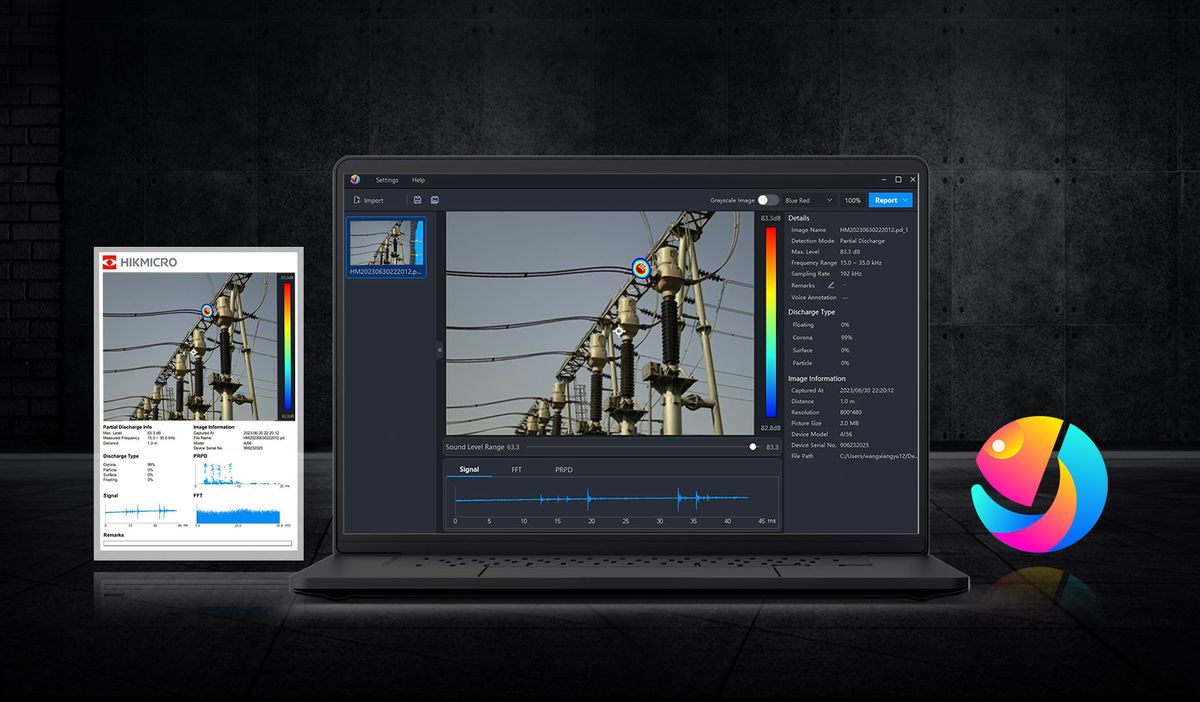

Analyzer Acoustic – Analyzer Acoustic for PC is included at no additional cost or recurring fees. Simply import images from the camera to quantify issues, analyze field images, highlight concerns, and create reports for repairs, field audits, or energy rebate programs.

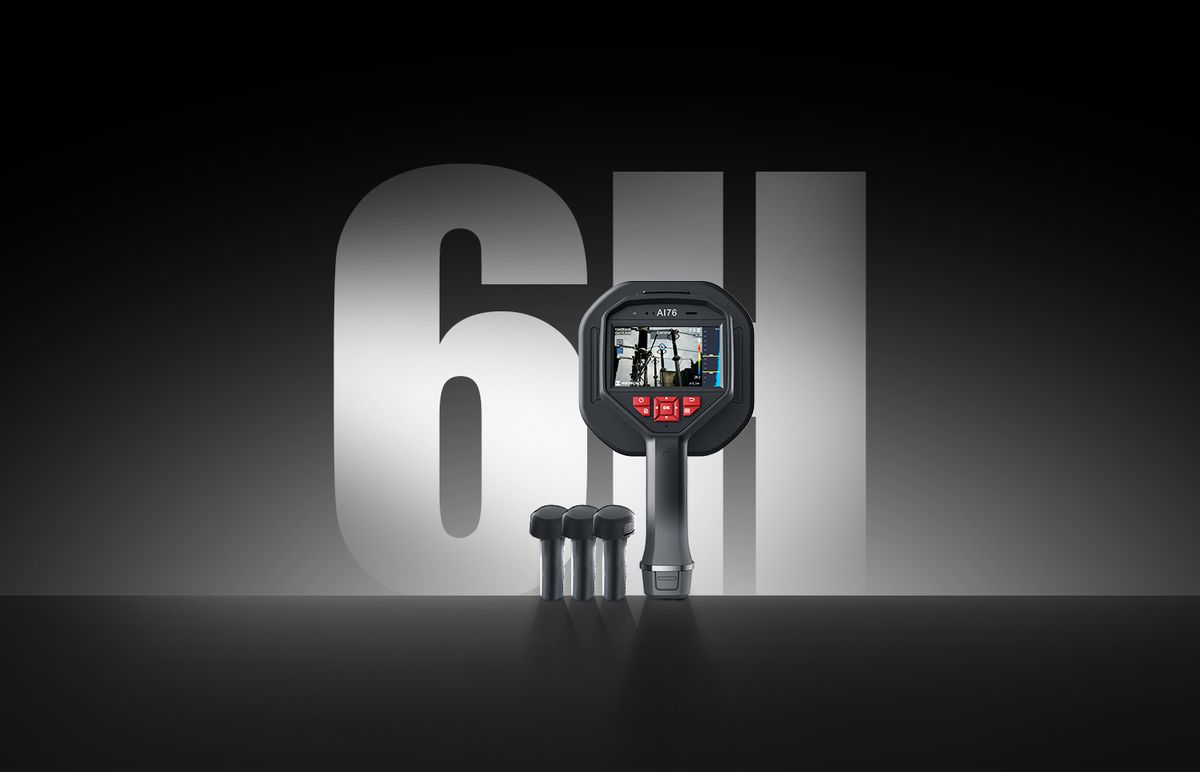

Interchangeable Battery System – Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 10 hours with AI56, and 6 hours with AI76 of operation. You can stay powered up for even the longest inspections.

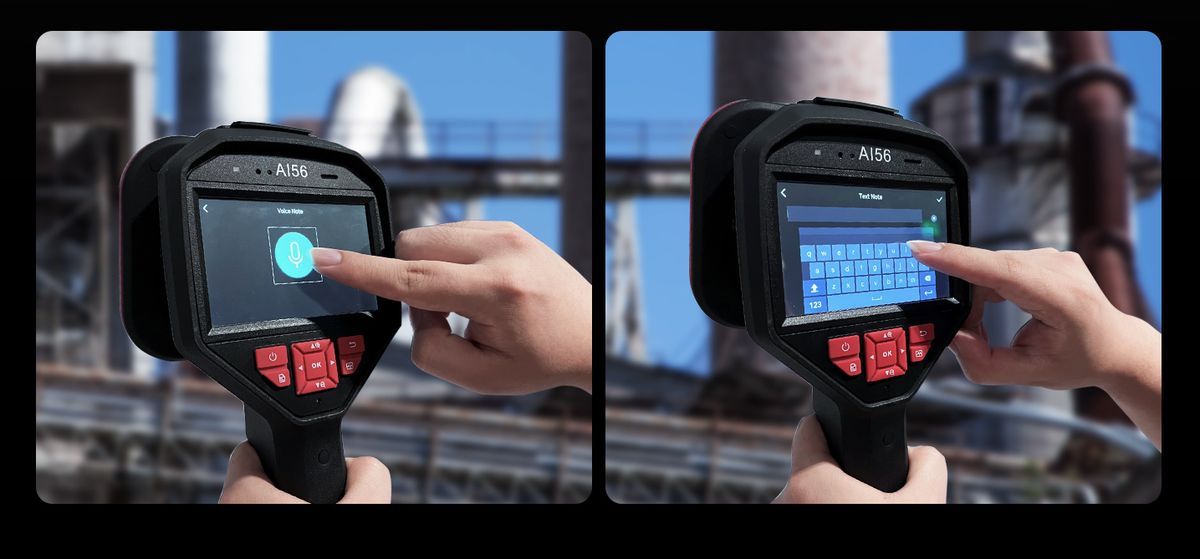

Voice & Text Annotations – In addition to supporting voice, text annotations to the image helps to improve inspection efficiency and productivity.
Applications
Introduction video
| Acoustic | |
| Number of Microphones | 64 |
| Acoustic Image Resolution | 800×480 |
| Bandwidth | 2kHz~65kHz |
| Distance | 0.3m~100m |
| Acoustic Image Palette | 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Camera FOV | 50.2°× 35.4° |
| Sound Intensity Display | Peak Point |
| Acoustic Image Frame Rate | 25 fps |
| Dynamic Range | Low Limit: <-15dB High Limit: >120dB |
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft) |
| Discharge Detection | Automatic detection 50 / 60 Hz |
| Discharge Type | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge |
| Image Display | |
| Display | 800 × 480 Resolution, 4.3’LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.0x to 8.0x continuous |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | 20,000 images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | 60 hours |
| Video File Format | MP4 |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only |
| Bluetooth | Bluetooth 4.1 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Battery Operating Time | Approx. 3.5 hours |
| Battery Type | Dismountable and Rechargeable Li-ion Battery |
| Battery Charging Time | 5 hours to full charge |
| Protection level | IP40 |
| Power Supply | 5V DC/2A (Charging via USB) |
| Drop Test Height | 1.2 m (3.94 ft) |
| Safety | IEC 61010-1 |
| EMC | EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 |
| Working Temperature Range | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage Temperature Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative Humidity | ＜95 % non-condensing |
| Weight | Approx. 940 g (2.07 lb) |

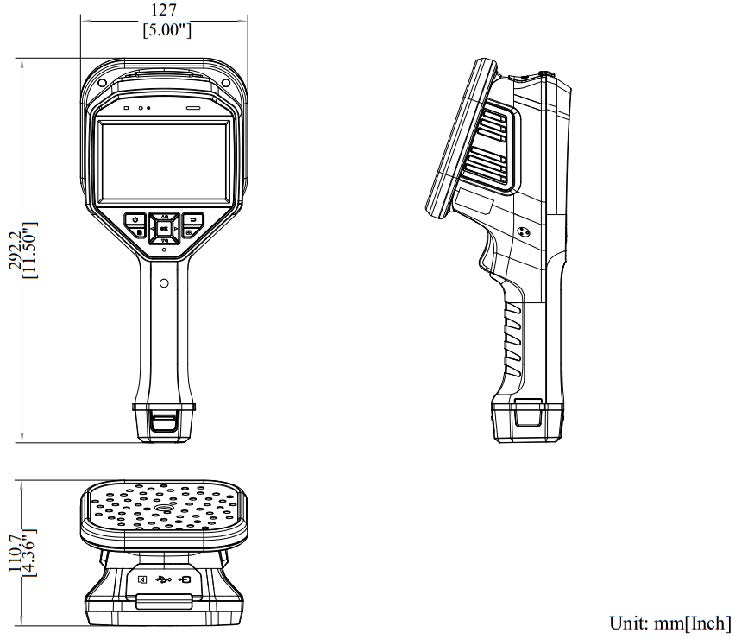

| Dimension | 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-AP56-W/W-AI56
The warranty for the HIKMICRO AI56 acoustic imaging camera is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The cost of extending the warranty for the HIKMICRO AI56 is:
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO AI56 using the special form.
You can buy HIKMICRO AI56 in Latvia at a price starting from 6000 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO AI56 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
