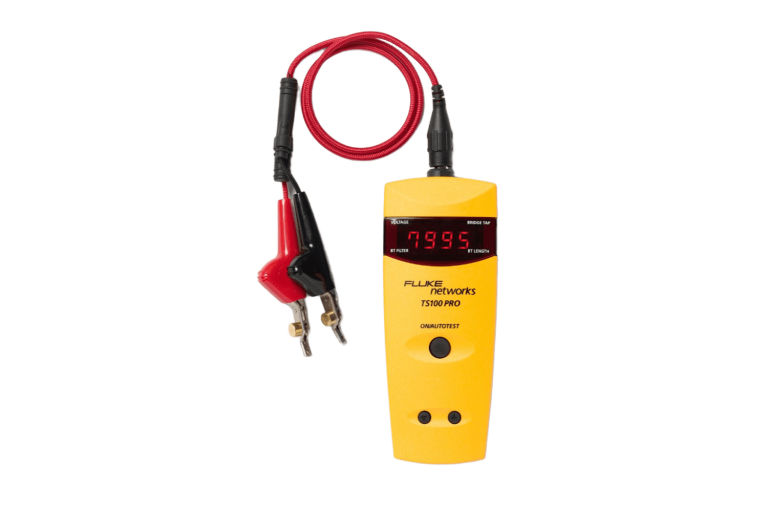

Fluke Networks Cable fault finder with PowerBT Bridge Tap Detect provides open/short circuit detection—to 8,000 feet (2.4 km) and locates multiple bridge taps up to 3,200 feet (975 m) of cable, built-in toner has five tones, reports AC/DC voltage on any two conductor, telephone, security wires, or coax cables.
Made in USA. brand FLUKE, model TS100-PRO-BT-TDR
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Maximum Length | 8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured. |
| Representative Maximum Cable Length | 8,000 feet (2,438 meters): CAT-3 Twisted Pair 8,000 feet (2,438 meters): CAT-5 Twisted Pair 6,000 feet (1,830 meters): 12/2 AC Wire 3,000 feet (900 meters): RG-6/U TV Coax 1,500 feet (457 meters): RG-174/U Coax |
| Minimum Length | No minimum length (can read a bridge tap at 0 feet/meters). Minimum non-zero reading is 2 feet or 1 meter. |
| Length Accuracy | “±2 feet (±0.6 m) for cables less than 10 feet (3 m) ±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m) +/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m)” |
| Distance to Bridge Tap | 0 feet to 3,200 feet (975 meters) |
| Minimum Length of Bridge Tap | 10% of the distance to the bridge tap. Dependent on the cable characteristics. |
| Measurement Rate | Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. |
| VOP | Adjustable from 20 to 99, saved in flash memory. |
| Test Technology | Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. |
| Cable Type | Virtually all two or more conductor cables. |
| Power | 4 AA alkaline batteries. |
| Reverse Battery Protection | No damage to the tester will occur if the batteries are installed backwards. |
| Battery Life | 35 hours (typical) |
| Low Battery Indication | LED display alternates between LO and bAtt when the battery voltage falls below 4.5v. |
| Maximum Output Voltage | 4 voltage peak |
| Maximum Isolation Voltage | 250 volts RMS |
| Voltage Measurements | Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC |
| High Voltage Detection | AC voltage detected to 115 volts; DC voltage detected to ±150 volts. AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display |
| SmartTone® (5-tones) Range | 7,000 feet (2,134 meters) |
| Toner Range | 52,800 feet (16,093 meters) |
| Tone Injection | Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. |
| Impedance Range | 35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) Storage: 32°F to 131°F (0°C to 55°C) |
| Humidity | Operating: 20% to 80% relative humidity Storage: 0% to 100% relative humidity |
| Operating Humidity | 80% maximum at 86°F (30°C ) 50% maximum at 104°F (40°C ) |
| Operating Altitude | 9,843 ft max (3,000 m max) |
| Weight | 1 lb (454 grams) |
| Dimensions | 7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm) |
| Safety | IEC 61010-1:2010; N10140 EMC: IEC/EN61326-1:2006 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 Notes: Patents 6160405, 6285195, 6323654, and 6509740. Specifications subject to change without notice. |
