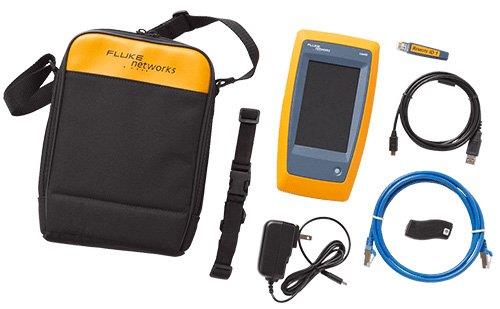

FLUKE LIQ-DUO Cable+Network+Wi-Fi Tester

Description of FLUKE LIQ-DUO

LinkIQ Cable+Wi-Fi+Network Tester performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration – eliminating the need for another device. The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved), including networks, channels, and access points plus warning of common configuration issues. The IE models allow identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC.

Validates Cable Performance

LinkIQ ensures that tested links meet performance requirements. It can measure lengths up to 1,000 feet (305 m) and provide distance to faults such as opens, shorts, and unterminated cable. The included remote ID provides a complete wire map of the cable pairs to identify miswired and split pairs.

In-Depth Testing for PoE

To simplify PoE installation and troubleshooting, LinkIQ displays the pairs where power is provided, showing the different power levels and pairs for dual-signature implementations. LinkIQ performs load testing up to Class 8 (90 W) by placing a load on the connection to ensure that the advertised power is actually being delivered across the cabling infrastructure.

Testing to Wi-Fi 6E

The LinkIQ Duo tester makes it easy to understand the Wi-Fi environment by running a complete suite of tests and displaying the results the way you want to view them: by networks, channels, or access points. Choosing a specific item (such as an access point listed under a specific network) changes seamlessly to that view. The LinkIQ Duo tester also flags common configuration errors including:

• use of an illegal channel for the detected region
• use of a non-recommended channel
• access points that overlap with an adjacent access point unless one is low power
• weak security settings

Color Touchscreen

LinkIQ has a large, gesture-based touchscreen that displays a great deal of information and provides clear, easy-to-use controls such as sliders and a full keyboard. Its simplified TEST function displays results according to what’s plugged into the unit’s single RJ-45 connector. A single USB-C port provides connectivity to your PC for software updates, reporting, and charging.

Integrated with LinkWare PC

LinkIQ provides complete documentation via LinkWare PC. Up to 1,000 results with descriptive names can be stored in the tester and recalled. Test names and numbers automatically increment when saved (“Annex B-1,” “Annex B-2,” “Annex B-3,” etc.), saving valuable time when you test cables in sequence.

Features

• Multiple-language interface support: English, German, French, Japanese, Thai, Spanish, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
• Cable Toning (compatible with the Fluke Networks IntelliTone Probe or Pro3000)
• Blink Port light on switch
• Compatible with MicroScanner PoE Remote Identifiers
• Color touchscreen
• Rechargeable Li-Ion battery via standard USB-C port
• Easy upgrades through USB-C or LinkWare PC

Technical specifications of FLUKE LIQ-DUO

Active Network Diagnostics

Cable Test Specifications

Wi-Fi Test Specifications

Accessories for FLUKE LIQ-DUO

	Fiber Media Converters for LinkIQ Testers	The FMC includes the FiberLert Live Fiber Detector for checking the presence of fiber optic light and determining polarity.
	Fluke Networks Remote ID Kit for MS-POE MicroScanner with Identifiers #2-7	Remote ID kit for Microscanner PoE, includes #2-7 IDs, this is an optional accessory. Locators help identify connections at patch panels and shows the number of the ID connected to the far end of the cabling to determine network layout, test telephone, Ethernet, and CATV outlets.
	Fluke Networks Replacement Remote ID #1 / Wiremapper for LinkIQ	Replacement Remote ID #1 / Wiremapper for LinkIQ Cable+Network Tester. Works with the Industrial Ethernet version of LinkIQ as well.
