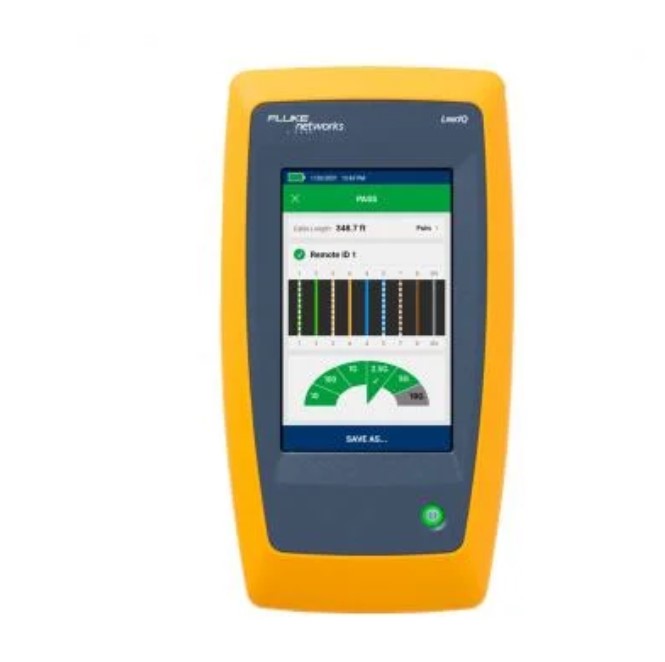

The LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test.
Made in USA. brand FLUKE, model LIQ-100-IE
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration – eliminating the need for another device. The IE models allow identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC.
Validates Cable Performance
LinkIQ ensures that tested links meet performance requirements. It can measure lengths up to 1,000 feet (305 m) and provide distance to faults such as opens, shorts, and unterminated cable. The included remote ID provides a complete wire map of the cable pairs to identify miswired and split pairs.
In-Depth Testing for PoE
To simplify PoE installation and troubleshooting, LinkIQ displays the pairs where power is provided, showing the different power levels and pairs for dual-signature implementations. LinkIQ performs load testing up to Class 8 (90 W) by placing a load on the connection to ensure that the advertised power is actually being delivered across the cabling infrastructure.
Color Touchscreen

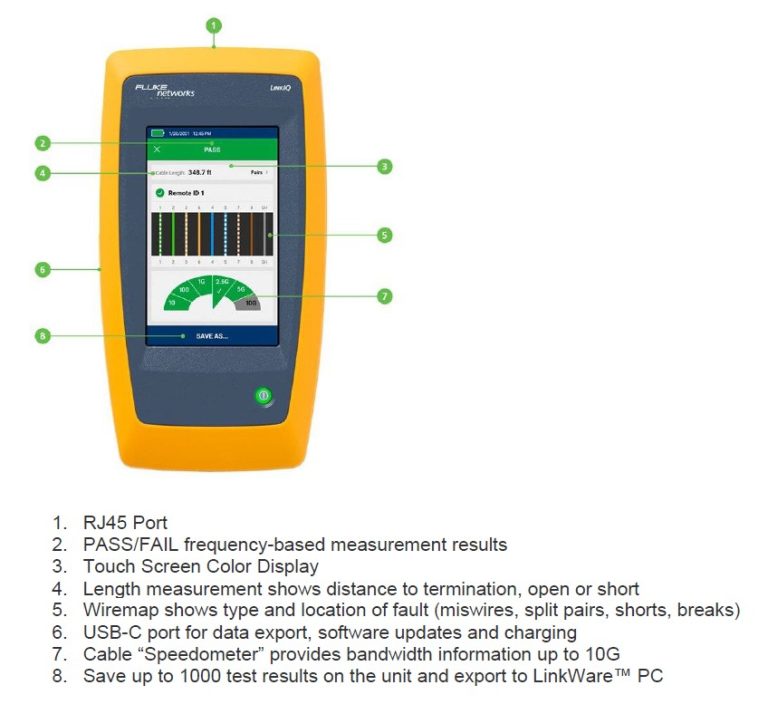

LinkIQ has a large, gesture-based touchscreen that displays a great deal of information and provides clear, easy-to-use controls such as sliders and a full keyboard. Its simplified TEST function displays results according to what’s plugged into the unit’s single RJ-45 connector. A single USB-C port provides connectivity to your PC for software updates, reporting, and charging.
Features
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish |
| Weight | 1 lbs 6 oz (624g) |
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh; Life: 8 hours typical; Charge time: 4.5 hours; Charging temperature range: 0 °C to 40 °C |
| Power Adapter | Input: 100 to 240 V ac ±10%, 50/60Hz; Output: 15 V dc, 2 A maximum; Class II |
| Host Interface | USB type C |
| Display | 800 x 480 pixels color capacitive multi-touch |
| Dimensions | 22 cm x 11 cm (8.5 in x 4.5 in) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -10 °C to 60 °C (-14 °F to 140 °F) |
| Operating Relative Humidity | 0 % to 90 %, 0 °C to 35 °C 0 % to 70 %, 35 °C to 45 °C |
| Operating Altitude | 4,000 m 3,200 m with ac adapter |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Drop | 1 m drop, 6 sides |
Active Network Diagnostics
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP |
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost |
| Nearest Device Diagnostics (If available through diagnostic protocols) | Switch Name / IP + MAC Address, Port Number, VLAN Name, Advertised Data Rates, Advertised Duplex |
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP |
| Power Over Ethernet Diagnostics | Advertised Power Class (0-8), Advertised Available Power, Powered Pairs, Diagnostics for both Single and Dual signatures |
| Power Over Ethernet Measurements | Loaded Voltage (V), Loaded Power (W) |
| Port Blink | Blink the light of the connected port |
Cable Test Specifications
| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs |
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m |
| Cable Types | Balanced twisted-pair cabling; Unshielded twisted-pair; Screened twisted-pair; 2-pair and/or 4-pair; Adapter cables for M8D, M12D, M12X |
| Wire Map-Only Tests | Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analog probes. |
| Remote ID Locators | Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets. |
 |
Fiber Media Converters for LinkIQ Testers | The FMC includes the FiberLert Live Fiber Detector for checking the presence of fiber optic light and determining polarity. |
 |

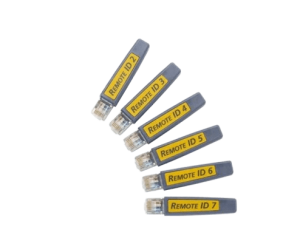

Fluke Networks Remote ID Kit for MS-POE MicroScanner with Identifiers #2-7 | Remote ID kit for Microscanner PoE, includes #2-7 IDs, this is an optional accessory. Locators help identify connections at patch panels and shows the number of the ID connected to the far end of the cabling to determine network layout, test telephone, Ethernet, and CATV outlets. |
 |

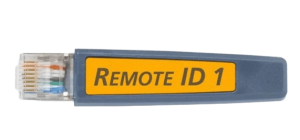

Fluke Networks Replacement Remote ID #1 / Wiremapper for LinkIQ | Replacement Remote ID #1 / Wiremapper for LinkIQ Cable+Network Tester. Works with the Industrial Ethernet version of LinkIQ as well. |
 |

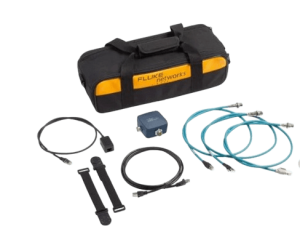

Fluke Networks Industrial Connector Adapter Kit | The Fluke Networks Industrial Ethernet Adapter Set allows users of the MicroScanner2 Industrial Ethernet Cable Verifier, MicroScanner PoE, and LinkIQ Cable+Network Tester to connect to the most common connector types that are used in industrial ethernet applications.
Includes Multi-Connector Adapter, Cat6A patch cord, RJ45 male to RJ45 female patch cord, RJ45/M12X patch cord, RJ45/M12D patch cord, and RJ45/M8D patch cord. |
