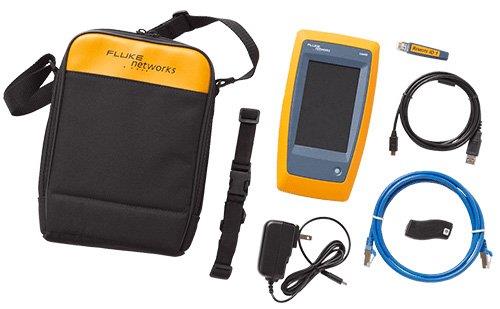

FLUKE LIQ-100 Cable+Network Tester

Description of Fluke LIQ-100

Additional convenient features include Analog and Digital Toning, Port Blink, Remote Office Locators, and integration with LinkWare PC software for managing and documenting results.

Validates Cable Performance

LinkIQ ensures that tested links meet performance requirements. It can measure lengths up to 1,000 feet (305 m) and provide distance to faults such as opens, shorts, and unterminated cable. The included remote ID provides a complete wire map of the cable pairs to identify miswired and split pairs.

Detailed Ping Tests Speed Troubleshooting

LinkIQ performs IP ping tests that verify connectivity and provides nearest switch diagnostics, including advertised data rate (up to 10GBASE-T), half/full duplex identification, switch name and IP address, port number, VLAN information, and load test up to Class 8 (90 W). With LinkIQ, you can quickly identify key network issues and validate switch configuration without having to use another device.

In-Depth Testing for PoE

To simplify PoE installation and troubleshooting, LinkIQ displays the pairs where power is provided, showing the different power levels and pairs for dual-signature implementations. LinkIQ performs load testing up to Class 8 (90 W) by placing a load on the connection to ensure that the advertised power is actually being delivered across the cabling infrastructure.

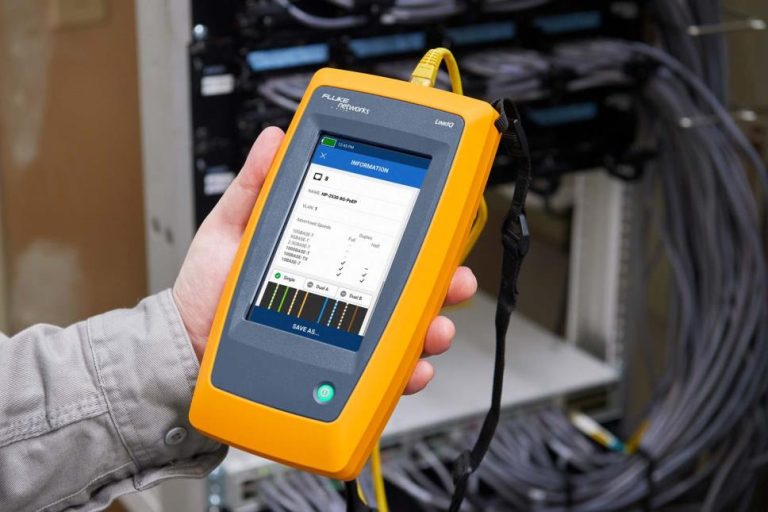

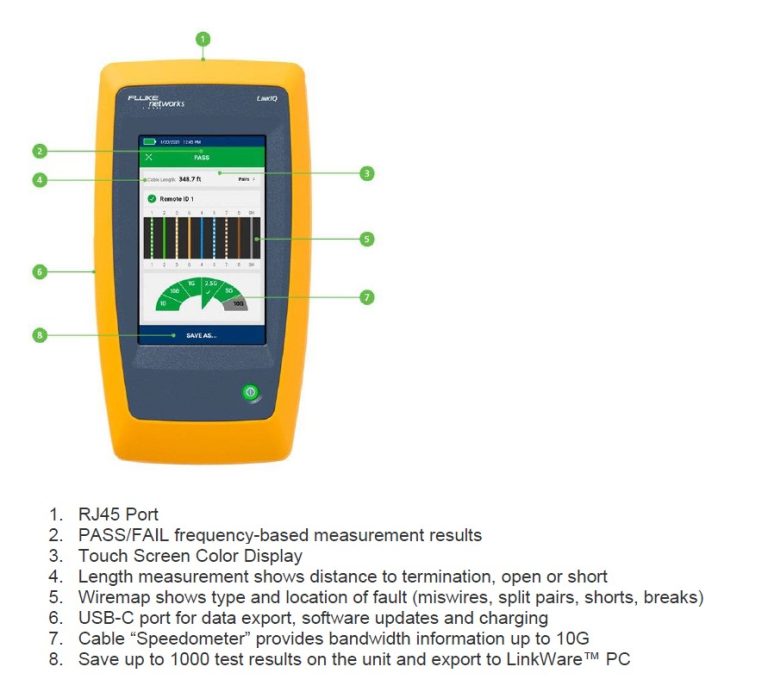

Color Touchscreen

LinkIQ has a large, gesture-based touchscreen that displays a great deal of information and provides clear, easy-to-use controls such as sliders and a full keyboard. Its simplified TEST function displays results according to what’s plugged into the unit’s single RJ-45 connector. A single USB-C port provides connectivity to your PC for software updates, reporting, and charging.

Integrated with LinkWare PC

LinkIQ provides complete documentation via LinkWare PC. Up to 1,000 results with descriptive names can be stored in the tester and recalled. Test names and numbers automatically increment when saved (“Annex B-1,” “Annex B-2,” “Annex B-3,” etc.), saving valuable time when you test cables in sequence.

Features

• Multiple-language interface support: English, German, French, Japanese, Thai, Spanish, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
• Cable Toning (compatible with the Fluke Networks IntelliTone Probe or Pro3000)
• Blink Port light on switch
• Compatible with MicroScanner PoE Remote Identifiers
• Color touchscreen
• Rechargeable Li-Ion battery via standard USB-C port
• Easy upgrades through USB-C or LinkWare PC
• Validate Cable Performance up to 10 GBASE-T via frequency-based measurements
• Get connected switch data rate, switch name, IP address, port number, and VLAN
• Detect the PoE class (1-8) and power, and perform a load test
• Test connectivity to TCP/IP network through IP configuration and ping
• Manage results and print reports from LinkWare PC

Technical specifications of Fluke LIQ-100

Active Network Diagnostics

Cable Test Specifications

Accessories for Fluke LIQ-100

	Fiber Media Converters for LinkIQ Testers	The FMC includes the FiberLert Live Fiber Detector for checking the presence of fiber optic light and determining polarity.
	Fluke Networks Remote ID Kit for MS-POE MicroScanner with Identifiers #2-7	Remote ID kit for Microscanner PoE, includes #2-7 IDs, this is an optional accessory. Locators help identify connections at patch panels and shows the number of the ID connected to the far end of the cabling to determine network layout, test telephone, Ethernet, and CATV outlets.
	Fluke Networks Replacement Remote ID #1 / Wiremapper for LinkIQ	Replacement Remote ID #1 / Wiremapper for LinkIQ Cable+Network Tester. Works with the Industrial Ethernet version of LinkIQ as well.
