FLUKE FI2-7300 Networks Fiber Inspector Pro, Includes Versiv Mainframe

The FI2-7300 FiberInspector Pro makes inspecting MPO and single fiber optic cables easy and efficient. Integrates with Versiv / LinkWare or with mobile phones for testing and sharing using the Fi-In app.

			int(23346)
NULL


Made in USA. brand FLUKE, model FI2-7300

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Description of Fluke FI2-7300

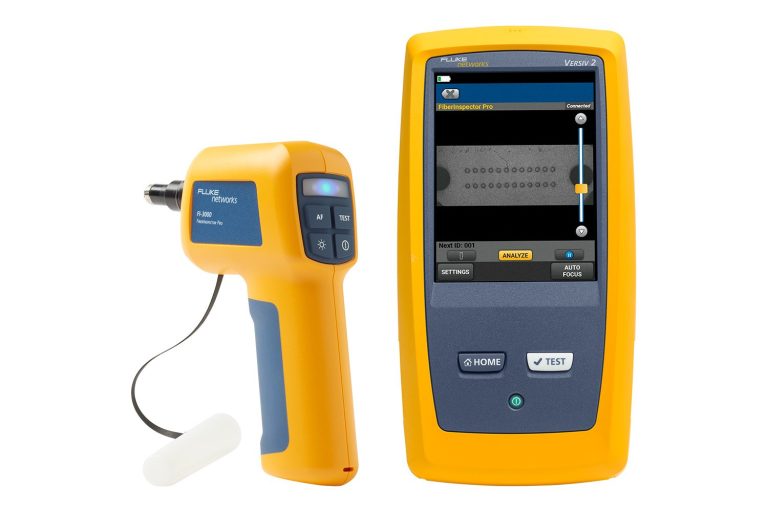

The multiple camera Live View provides an instant, real-time image with simple touchscreen gestures to view the full connector down to individual end faces. Automated pass/fail results are available in seconds. Compact, ergonomic design with autofocus makes it comfortable and fast. Versiv2 mainframe included.

Key features

  • MPO and single strand fiber inspection camera with instant Live View

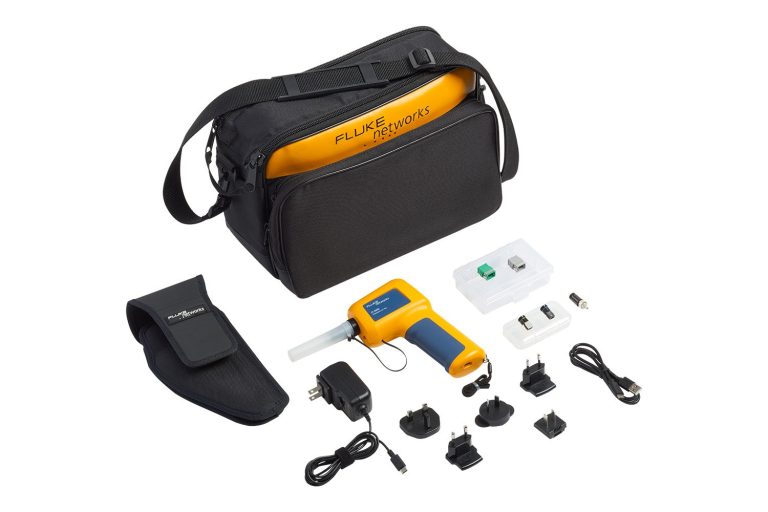

  • Includes FI-3000 FiberInspector Ultra camera, Versiv main/remote, and accessories
  • Autofocus/Auto centering multi-camera design and automated pass/fail
  • Total MPO visibility from full trunk to individual end face
  • For single strand fiber and 1 or 2 rows of 8/12/16 UPC or APC connectors

Technical specifications of Fluke FI2-7300

Temperature range Operating: -10 °C to +45 °C (+14 °F to +113 °F)
Storage: -10 °C to +60 °C (+14 °F to +140 °F)
Humidity range Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)
RH non-condensing
Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C)
RH non-condensing
Altitude Operating: 4,000 m (3,200 m with AC adapter)
Storage: 12,000 m
Vibration 2 g, 5 Hz to 500 Hz
Shock 1 meter drop test
Safety IEC 61010-1: Pollution Degree 2
EMC IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1
CISPR 11: Group 2, Class A
USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules.
Endtype support Single Fiber and MPO: 1×8 (8 fibers), 1×12 (8, 10, or 12 fibers), 1×16 (16 fibers), 2×12 (16, 20, or 24 fibers), 2×16 (32 fibers)
Test limits IEC 61300-3-35 ED. 2 MM
IEC 61300-3-35 ED. 2 SM APC
Document Only
Optional automated pass/fail test time Less than 2 seconds per fiber
Camera type 5 Megapixel 1/4-inch CMOS sensor
Field of view 610 µm x 460 µm
Resolution 1 µm
Light source LED, >100,000 hr life
Endface illumination Coaxial blue LED
Resolution White LED
Battery type Lithium-ion; 10.8 hour life
Power adapter Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Wireless transmission* Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz)
Dimensions 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm)
(with no dust cap or adapter tip)
Length with dust cap: 7.5 in (191 mm)
Weight 11.5 oz (326 gm)
(with dust cap and no adapter tip)
Expand Table

User Guide and Instruction manual for FLUKE FI2-7300

You can request the necessary certificates, documentation, instructions and user guide for FLUKE FI2-7300 using the special form.

You can buy FLUKE FI2-7300 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . FLUKE FI2-7300 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
