Made in China. brand HIKMICRO, model Mini2
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

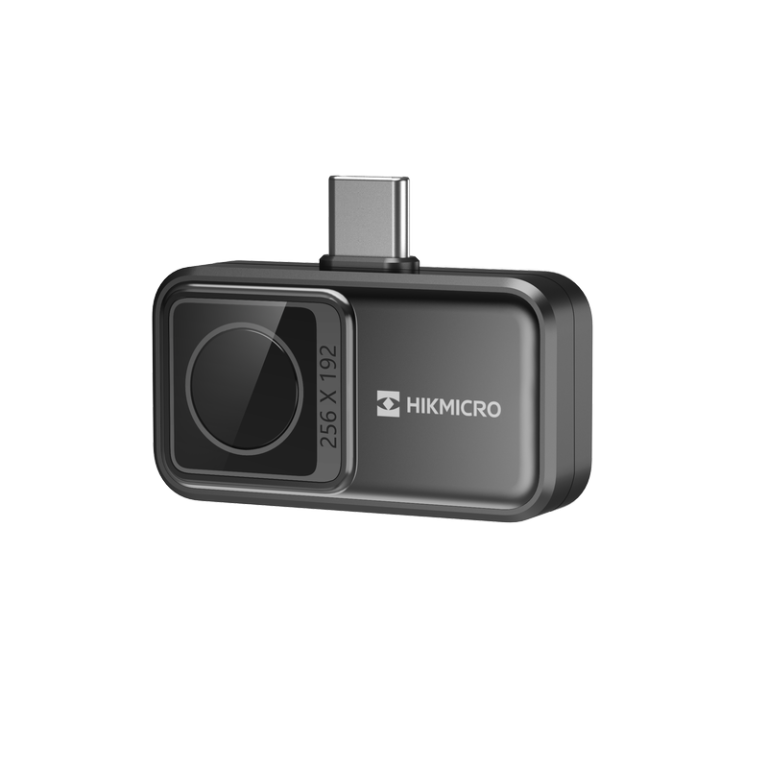

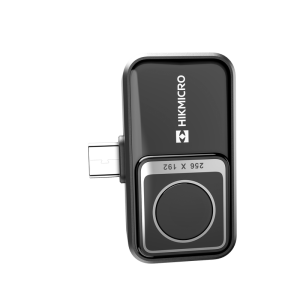

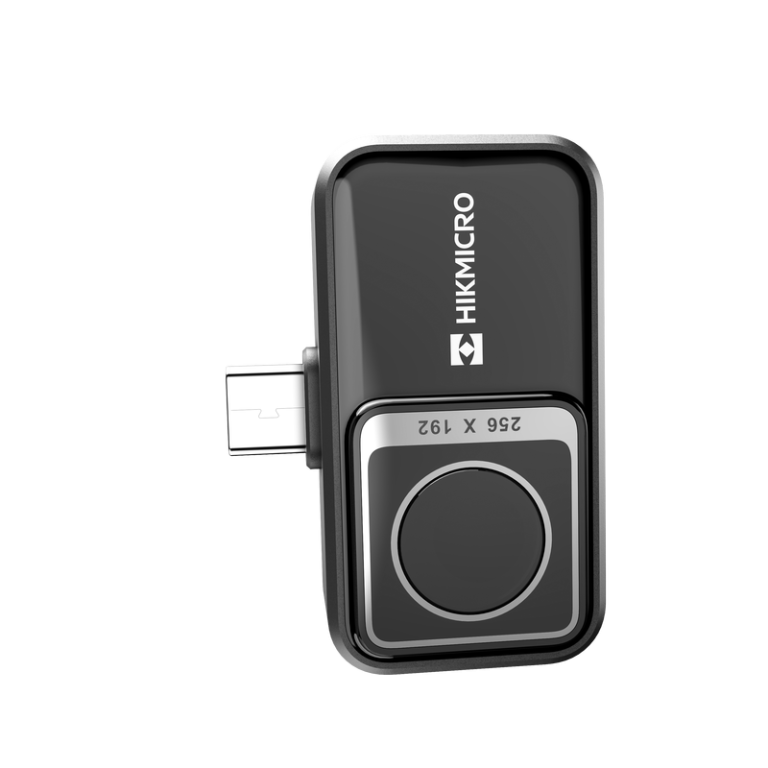

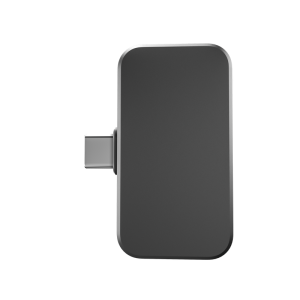

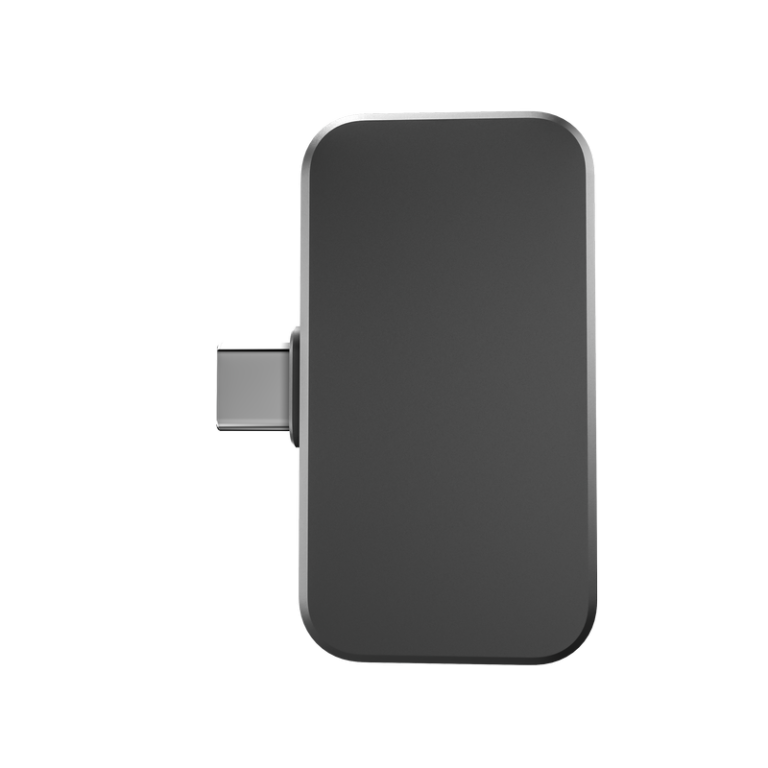

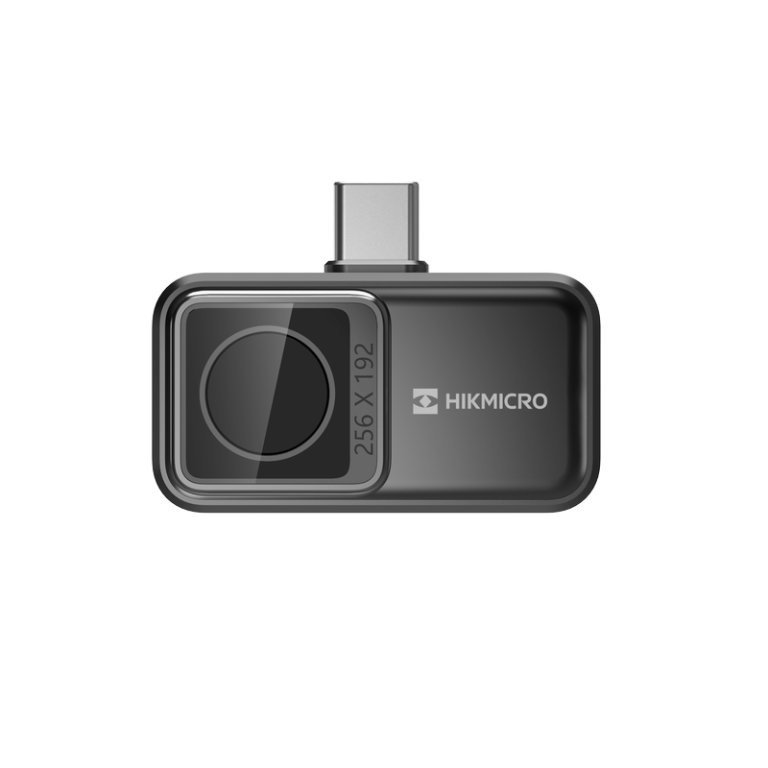

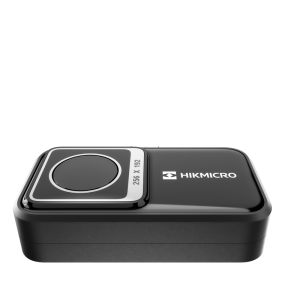

The Smartphone Module is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with functional thermal App for smartphone, the Smartphone Module enables you to get the thermal imaging on your phone.
Premium Performance, Small Package – Explore your world in thermal with high accuracy
Super Clear Thermal Image – Mini2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
Accurate Temperature Measurements – Mini2 accurately measures temperatures from -20°C (-4°F) to 350°C (662°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.

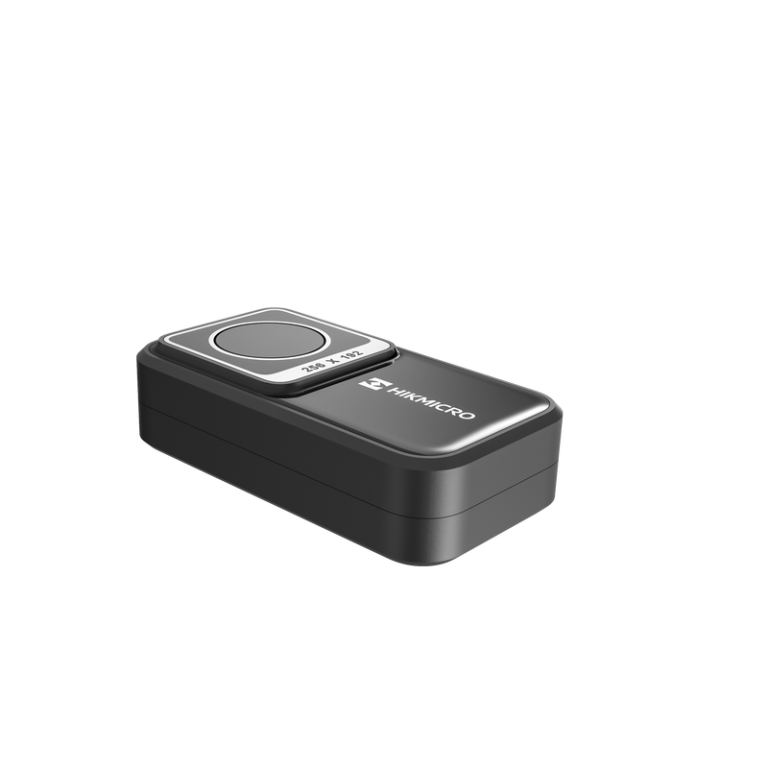

Mini Size – At just 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in) and weighing only 20 g (0.71oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
Ready for any job or just for fun – Small, easy to carry, and ready 24/7 for almost anything
Plug and Play – Instantly attaches to your Android smartphone or tablet and is ready to go in seconds.
Battery-free – Mini2 is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
Durable and Rugged – Designed for where you work, live or relax, the Mini2 features IP40-rated aluminum alloy housings, pass strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.
Mini2- Connecting with you
Wide Angle – HIKMICRO Mini2 with a 50° wide angle lens provides a large FOV, which is ideal for scanning walls, floors, and facades for finding issues like water leaks, insulation issues, and air infiltration.

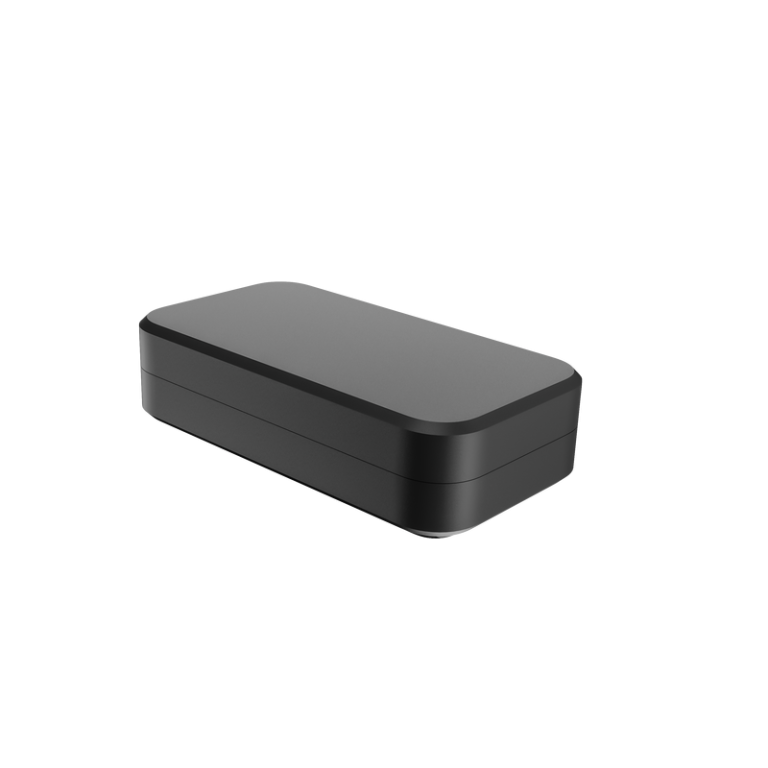

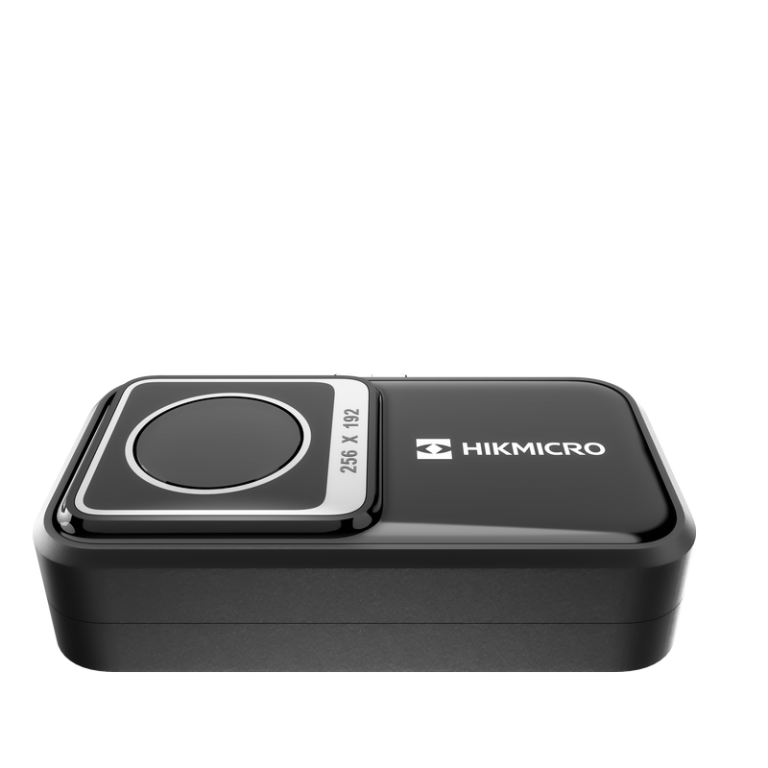

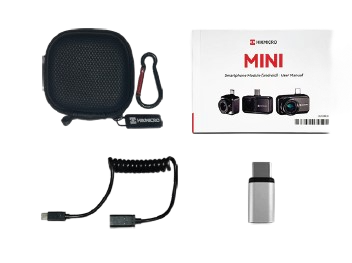

Essential Accessories Included – A 40 cm (15.75 in) extending cord connects between your device and the camera allowing remote viewing, and inspection through narrow, confined openings, or difficult-to-reach places. Also included is an 18 mm extended connector to accommodate smartphones or tablets in a protective case. A storage case is provided for storing your camera.
Mini Series APP for smartphone or tablet – The HIKMICRO Min2 is compatible with our free HIKMICRO Viewer APP for Android (Type-C) smartphones or tablets. It provides a user-friendly user interface and powerful temperature measurement and analysis functions, including high-temperature alarms, 15 Color Palettes, 9 measurement areas, and image share.
Quick Temperature Measurement – Full screen measurement: Center Spot, Hot Spot, Cold Spot, 3 Custom Spots and 3 Areas.
15 Different Color Palettes – Find invisible problems more easily.
Multiple Professional Settings – Providing professional settings like emissivity/distance/range of your thermal camera allows you to get the best thermal imaging images and temperature readings of different surfaces.
High Temperature Alarm – Give the operator audio and visual alerts to high temperatures. Instant notification when the temperature exceeds the preset alarm level.
Introduction video
Unboxing HIKMICRO Mini2
| Infrared Image | |
| Power Consumption | 360 mW |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 20 g (0.044 lb) |
| Dimension | 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in) |
| Interface | USB-C |
| Image Display | |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, and 3 rectangles. |
| Level and Span Mode | Auto/Manual |
| General | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.5 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 37.2° |
| Focus Mode | Focus Free |
| Min. Focus Distance | 0.2 m (0.66 ft) |
The warranty for the HIKMICRO Mini2 thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Mini2 using the special form.
You can buy HIKMICRO Mini2 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Mini2 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
