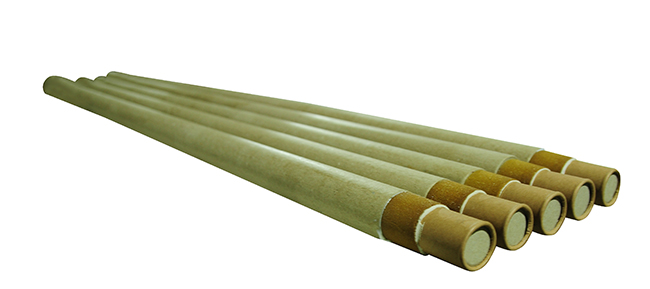

MIRKIP OS Sensors for Oxygen Concentration in Melted Steel

Description of MIRKIP OS

Used for primary melting furnace，LF and RH furnaces and so on, oxygen probes measure oxygen activity of the melted steel and the oxygen activity of the molten steel in the treating process, which can guarantee the deoxidizer addition, shorten the refining time, help to develop new varieties, improve technology, and promote steel purity.

Types of sensor and range of application:

Oxygen sensor has three types:

1. Oxygen sensor for high ppm
2. Oxygen sensor for low ppm .
3. Oxygen sensor for ultra-low ppm.

The first one is used to measure the temperature and high oxygen content of molten steel in converter, electric furnace, refining furnace. The second one is used to measure the temperature and low oxygen content of molten steel in LF, RH, DH, tundish, etc. and also quickly measure acid soluble aluminum. The third one is suitable for the steel smelting process which require the ultra-low oxygen content.

Principle:

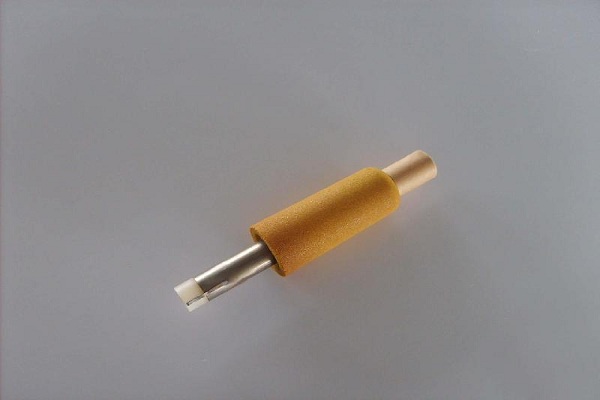

“Solid dielectric concentration cell oxygen-content test technology” is applied in oxygen sensor, which allows to measure the temperature and oxygen content of melted steel at the same time. Oxygen sensor consists of oxygen cell and thermocouple. Oxygen content can be calculated from the measured oxygen potential and temperature of the melted steel.

Features:

• The oxygen activity of the melted steel can be measured directly and rapidly, which is helpful to determine the amount of the deoxidizing agent, and improve the operation of the deoxidation.
• The oxygen sensor is easy to operate. Measurement results can be obtained just 5-10s after inserting it into the melted steel.

Technical specifications of MIRKIP OS

Oxygen sensor for high ppm

Measurement efficiency is usually above 98%, but it is related to operations by the workers; if misused, measurement efficiency will be reduced.

Note: If oxygen activity in molten steel is above 50ppm, oxygen sensor for high ppm is suggested.

Oxygen sensor for low ppm

Measurement efficiency is usually above 98%, but it is related to operations by the workers; if misused, measurement efficiency will be reduced.

Note: If oxygen activity in molten steel is between 1ppm and 50ppm, oxygen sensor for low ppm is suggested.

Oxygen sensor for ultra-low ppm

Measurement efficiency is usually above 98%, but it is related to the operations by the workers; if misused, measurement efficiency will be reduced.

Note: If oxygen activity in molten steel is between 1ppm and 5ppm, oxygen sensor for ultra-low ppm is suggested. If oxygen activity is between 1ppm and 5ppm, oxygen sensor for ultra-low ppm is more accurate than oxygen sensor for low ppm.
